iFlightPlanner



...

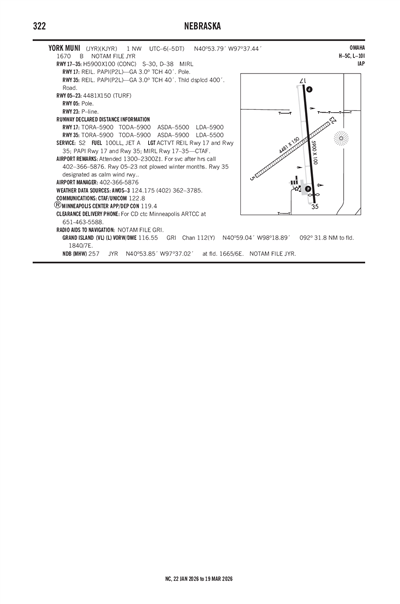

YORK MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJYR
ICAO KJYRLocal JYR
YORK MUNI
PublicPUB

1 miles NW of YORK, NE, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 53' 47"N 97° 37' 27"W
Elevation
1670' MSL
Pattern Alt
2670' MSL
Mag Variation
3°E
Declination
6°E
Fuel
JET A, 100LL
FSS
COLUMBUS (OLU)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KJYR MVFR
3:35 AM CST
Mist
No Clouds
4sm
39°F
39°F
30.12"Hg
060° 5kts
AO2
METAR KJYR 040935Z AUTO 06005KT 4SM BR 04/04 A3012 RMK AO2
+ Add Your Business

KJYR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 124.175
(402) 362-3785

Common

CTAF 122.8
ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
UNICOM 122.8

Center

MINNEAPOLIS CENTER 119.4
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQ 119.4/278.8 (HASTINGS RCAG).

Terminal Area Forecast

KGRI (32nm)
Tue, 3/3 11:55 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
MVFR
12:00 AM CST - 3:00 AM CST
Overcast 1,500'
6sm
VRB° 4kts
IFR
3:00 AM CST - 11:00 AM CST
Mist
Overcast 700'
5sm
050° 5kts
MVFR
11:00 AM CST - 3:00 PM CST
Broken 1,500'
6sm
VRB° 5kts
VFR
3:00 PM CST - 6:00 PM CST
Scattered 2,000'
6sm
190° 6kts
VFR
6:00 PM CST - 12:00 AM CST
Few 10,000'
6sm
170° 7kts
TAF KGRI 040555Z 0406/0506 VRB04KT P6SM OVC015
   FM040900 05005KT 5SM BR OVC007
   FM041700 VRB05KT P6SM BKN015
   FM042100 19006KT P6SM SCT020
   FM050000 17007KT P6SM FEW100
KJYR
EffectiveExpiresCategoryNOTAM
Domestic
1/6/26
1514Z
3/6/26
2359Z
!JYR 01/002 JYR OBST TOWER LGT (ASR 1283363) 405011.60N0973443.80W (4.1NM SSE JYR) 1913.7FT (279.9FT AGL) U/S 2601061514-2603062359
No
0700-1700
FOR SVC AFTER HRS CALL (402) 366-5876
CITY OF YORK
PO BOX 276
YORK, NE 68467
Phone: 402-363-2600
RANDY HALL
1112 HWY 34
YORK, NE 68467
Phone: 402-366-5876
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
JYR
--
ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Minor
Minor
None
None
Crop Dusting

Runway 05/23

4481 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 54°234°
Traffic Pattern
Markings
Markings Condition
Latitude 40° 53' 32"N 40° 53' 59"N
Longitude 97° 37' 56"W 97° 37' 09"W
Elevation 1,665' 1,665'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5900 ft. x 100 ft.
CONC
Good
NONE
MED

30,000lbs
38,000lbs
--
--
  Runway 17 Runway 35
True Heading 175°355°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 54' 17"N 40° 53' 19"N
Longitude 97° 37' 26"W 97° 37' 18"W
Elevation 1,665' 1,670'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RY 35 DESIGNATED AS CALM WIND RY.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A14RANDY HALL AIRPORT OPS MANAGER
A17-M1FOR SVC AFTER HRS CALL (402) 366-5876
A30-05/23NOT PLOWED WINTER MONTHS.
A52-05RWY 05 CNTR PIVOT ROTATES INTO APCH DURING IRRIGATION SEASON.
A57-17RWY 35 APCH SLOPE 50:1 DUE TO 12 FT ROAD 1020 FT FROM DSPLCD THLD.
A81-APTACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
E111DETERMINATION PENDING.
YORK MUNI (ICAO: KJYR, IATA: JYR) is a public airport located in YORK, NE, US.
