iFlightPlanner



...

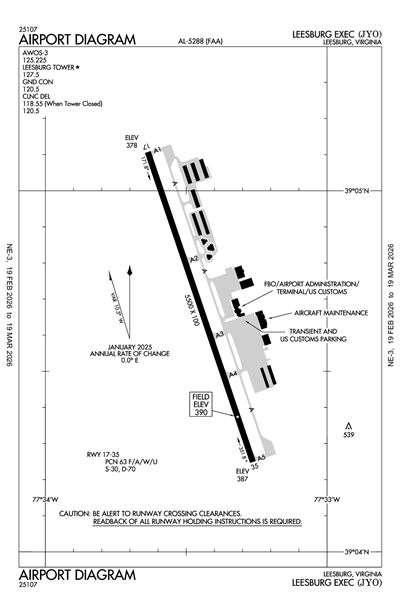

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJYO
LEESBURG EXEC
PublicPUB

3 miles S of LEESBURG, VA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 04' 41"N 77° 33' 27"W
390' MSL
1200' MSL
10W
JET A, 100LL
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
4/17/25-5/15/25
KJYO IFR
4:55 AM EDT
Light Rain
Overcast 1,600'
Broken 700'
2.5sm
55°F
55°F
30.05"Hg
Calm
AO2
METAR KJYO 140855Z AUTO 2 1/2SM -RA BKN007 OVC016 13/13 A3005 RMK AO2
+ Add Your Business

KJYO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 127.5

AWOS-3

AWOS-3
703-777-3781
 125.225

Clearance Delivery

CD/P
 120.5

Ground

GND/P
 120.5

Tower

LCL/P
 127.5

Terminal Area Forecast

KIAD (10nm)
Tue, 10/14 4:59 AM EDT
Tue, 10/14 5:00 AM EDT - Wed, 10/15 8:00 AM EDT
VFR
1:00 PM EDT - 8:00 PM EDT
Broken 3,500'
6sm
350° 13kts
Gusts 21kts
MVFR
11:00 AM EDT - 1:00 PM EDT
Broken 2,500'
6sm
350° 14kts
Gusts 22kts
IFR
5:00 AM EDT - 7:00 AM EDT
Light Drizzle and Mist
Overcast 1,900'
Broken 800'
4sm
340° 8kts
MVFR
7:00 AM EDT - 11:00 AM EDT
Light Drizzle and Mist
Overcast 2,500'
Broken 1,500'
6sm
350° 11kts
VFR
8:00 PM EDT - 8:00 AM EDT
Scattered 4,000'
6sm
340° 8kts
TAF KIAD 140859Z 1409/1512 34008KT 4SM -DZ BR BKN008 OVC019
   FM141100 35011KT 6SM -DZ BR BKN015 OVC025
   FM141500 35014G22KT P6SM BKN025
   FM141700 35013G21KT P6SM BKN035
   FM150000 34008KT P6SM SCT040
KJYO
EffectiveExpiresCategoryNOTAM
Domestic
10/2/25
1908Z
!JYO 10/001 JYO SVC AUTOMATED WX BCST SYSTEM WIND UNREL 2510021908-2510302359EST
9/17/25
1558Z
7/6/26
2359Z
!JYO 09/007 JYO OBST CRANE (ASN 2024-AEA-10725-OE) 390311N773246W (1.47NM S JYO) 573FT (200FT AGL) NOT LGTD 2509171558-2607062359
9/4/25
1612Z
!JYO 09/001 JYO AIRSPACE SEE FDC 5/7224 ZDC SECURITY INSTRUCTIONS 2509041612-PERM
9/4/24
1822Z
!JYO 09/002 JYO AIRSPACE SEE FDC 4/2565 ZDC SECURITY INSTRUCTIONS 2409041822-PERM
FDC
9/30/25
1221Z
!FDC 5/2643 JYO SID LEESBURG EXEC, LEESBURG, VA.
JDUBB FOUR DEPARTURE (RNAV)...
RRSIN TRANSITION: JDUBB TO TYPNZ MOCA 1900. MELTN TRANSITION: JDUBB TO CASLY MOCA 1900. ALL OTHER DATA REMAINS AS PUBLISHED. 2509301221-2709301221EST
9/11/25
1305Z
!FDC 5/1758 JYO SID LEESBURG EXEC, LEESBURG, VA.
CLTCH THREE DEPARTURE (RNAV)...
JDUBB FOUR DEPARTURE (RNAV)...
PTOMC TWO DEPARTURE (RNAV)...
SCRAM SIX DEPARTURE (RNAV)...
TAKEOFF MINIMUMS: RWY 17, 300-1 3/8 OR PROCEDURE NA. TAKEOFF OBSTACLE NOTES: RWY 17, TEMPORARY CRANE 4849FT FROM DER, 529FT LEFT OF CENTERLINE, 178FT AGL/556FT MSL (2023-AEA-4864-OE). TEMPORARY CRANE 5366FT FROM DER, 319FT LEFT OF CENTERLINE, 190FT AGL/572FT MSL (2023-AEA-4876-OE). TEMPORARY CRANES BEGINNING 1.00NM FROM DER, 526FT LEFT OF CENTERLINE, UP TO 200FT AGL/571FT MSL (2024-AEA-10703 THRU 10713-OE). TEMPORARY CRANES BEGINNING 1.02NM FROM DER, 556FT LEFT OF CENTERLINE, UP TO 200FT AGL/573FT MSL (2024-AEA-10715 THRU 10725-OE), TEMPORARY CRANES, BEGINNING 957FT FROM DER, 758FT RIGHT OF CENTERLINE, 200 AGL/550 MSL (2024-AEA-9236 THRU 9239-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2509111305-2610061305EST
9/11/25
1305Z
!FDC 5/1757 JYO ODP LEESBURG EXEC, LEESBURG, VA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKEOFF MINIMUMS: RWY 17, 300-1 3/8 OR PROCEDURE NA. TAKEOFF OBSTACLE NOTES: RWY 17, TEMPORARY CRANE 4849FT FROM DER, 529FT LEFT OF CENTERLINE, 178FT AGL/556FT MSL (2023-AEA-4864-OE). TEMPORARY CRANE 5366FT FROM DER, 319FT LEFT OF CENTERLINE, 190FT AGL/572FT MSL (2023-AEA-4876-OE). TEMPORARY CRANES BEGINNING 1.00NM FROM DER, 526FT LEFT OF CENTERLINE, UP TO 200FT AGL/571FT MSL (2024-AEA-10703 THRU 10713-OE). TEMPORARY CRANES BEGINNING 1.02NM FROM DER, 556FT LEFT OF CENTERLINE, UP TO 200FT AGL/573FT MSL (2024-AEA-10715 THRU 10725-OE), TEMPORARY CRANES, BEGINNING 957FT FROM DER, 758FT RIGHT OF CENTERLINE, 200 AGL/550 MSL (2024-AEA-9236 THRU 9239-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2509111305-2610061305EST
9/11/25
1305Z
!FDC 5/1756 JYO IAP LEESBURG EXEC, LEESBURG, VA.
ILS OR LOC RWY 17, AMDT 1B...
PEARC FIX MINIMUMS:
CIRCLING CAT A/B MDA 920/HAA 530.
TEMPORARY CRANE 556FT MSL 1.25 NM SOUTHEAST OF JYO AIRPORT (2023-AEA-4864-OE). TEMPORARY CRANE 572FT MSL 1.34 NM SOUTHEAST OF JYO AIRPORT (2023-AEA-4876-OE). TEMPORARY CRANES 571FT MSL 1.00NM SOUTHEAST OF JYO AIRPORT (2024-AEA-10703 THRU 10713-OE). TEMPORARY CRANES 573FT MSL 1.47NM SOUTHEAST OF JYO AIRPORT (2024-AEA-10715 THRU 10725-OE), TEMPORARY CRANES, 550 MSL, 1.11 NM SOUTH OF RWY 17 (2024-AEA-9236 THRU 9239-OE).
2509111305-2610061305EST
6/25/25
2041Z
!FDC 5/9056 JYO IAP LEESBURG EXEC, LEESBURG, VA.
ILS OR LOC RWY 17, AMDT 1B...
S-ILS 17, VISIBILITY ALL CATS 1.
S-LOC 17, VISIBILITY CAT A 1.
PEARC FIX MINIMUMS: S-LOC 17, VISIBILITY CATS A/B 1.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WASHINGTON DULLES INTL ALTIMETER SETTING AND INCREASE S-ILS 17 DA TO 665 FEET; INCREASE ALL MDAS 40 FEET AND S-LOC 17 VISIBILITY CAT C/D 1/8 SM AND CIRCLING VISIBILITY CAT C 1/4 SM AND PEARC FIX MINIMUMS: CIRCLING CAT C 1/4 SM..
2506252041-2706252041EST
6/25/25
2041Z
!FDC 5/9055 JYO IAP LEESBURG EXEC, LEESBURG, VA.
RNAV (GPS) RWY 17, AMDT 3C...
LPV DA, VISIBILITY ALL CATS 1.
LNAV/VNAV, DA VISIBILITY ALL CATS 1.
LNAV MDA VISIBILITY CATS A/B 1.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WASHINGTON DULLES INTL ALTIMETER SETTING AND INCREASE LPV DA TO 665 FEET; INCREASE LNAV/VNAV DA TO 757 FEET; INCREASE ALL MDAS 40 FEET AND LNAV VISIBILITY CAT C/D 1/4 SM, AND CIRCLING VISIBILITY CAT C 1/4 SM.
INOP TABLE DOES NOT APPLY TO LPV ALL CATS, LNAV/VNAV ALL CATS AND LNAV CATS A/B. FOR INOP ALS INCREASE LNAV CATS C/D TO 1 5/8 SM.
FOR INOP ALS WHEN USING WASHINGTON DULLES INTL ALTIMETER SETTING, INOP TABLE DOES NOT APPLY TO LPV ALL CATS, LNAV/VNAV ALL CATS AND LNAV CATS A/B.
2506252041-2706252041EST
2/21/25
2300Z
12/24/25
2300Z
!FDC 5/5385 JYO STAR LEESBURG EXEC, LEESBURG, VA TRSTN FOUR ARRIVAL
THHMP TRANSITION ATC ASSIGNED ONLY.
2502212300-2512242300
11/14/24
1411Z
!FDC 4/4174 JYO ODP LEESBURG EXEC, LEESBURG, VA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
ADD TAKEOFF OBSTACLE NOTE: RWY 17, BLDG 1301FT FROM DER, 765FT RIGHT OF CENTERLINE, 79FT AGL/420FT MSL (4D).
2411141411-2611141408EST
Yes
0600-2100
TOWN OF LEESBURG
25 WEST MARKET ST., 25 WEST MARKET ST.
LEESBURG, VA 20176
Phone: 703-777-2420
SCOTT COFFMAN
1001 SYCOLIN ROAD, SE, SUITE 7
LEESBURG, VA 20175
Phone: 703-737-7125
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
JYO
--
WHEN ATCT CLSD ACTVT ODALS RWY 17; REIL RWY 17 & 35; PAPI RWY 17 & 35; HIRL RWY 17/35 - CTAF.
N/A
Yes
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 17/35

5500 ft. x 100 ft.
ASPH
Good
GRVD
HIGH
63 /F/A/W/U
30,000lbs
70,000lbs
--
--
  Runway 17 Runway 35
True Heading 161°341°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 39° 05' 06"N 39° 04' 15"N
Longitude 77° 33' 38"W 77° 33' 16"W
Elevation 378' 387'
Threshold Crossing Height 45 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ODALS
Centerline Lights No
Runway End Identifier Lights Yes Yes
A110-10RAMP FENCE S/W SIDE RAMPS LEAD IN LINES ON WEST RAMP NA.
A110-12PSBL THERMAL PLUMES FM PWR PLANT 1.3 NM SSE.
A110-13FOR CD WHEN ATCT CLSD, CTC POTOMAC APCH 118.55 OR 866-709-4993.
A110-3BIRDS & DEER ON & INVOF ARPT.
A110-7HEL ACT ON & INVOF ARPT.
A110-9CALM WIND USE RWY 17.
LEESBURG EXEC (ICAO: KJYO, IATA: JYO) is a public airport located in LEESBURG, VA.
