KJYG
ST JAMES MUNI
PublicPUB

3 miles E of ST JAMES, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 59' 11"N 94° 33' 29"W
1068' MSL
2068' MSL
01E
100LL
PRINCETON (PNM)
OMAHA
MINNEAPOLIS (ZMP)
10/31/24-11/28/24
KJYG VFR
5:55 AM CST
Scattered 12,000'
10sm
41°F
39°F
30.13"Hg
160° 4kts
AO2
KJYG 091155Z AUTO 16004KT 10SM SCT120 05/04 A3013 RMK AO2
Add Your Business

KJYG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
507-375-7105
 123.7

FAA A/FD Pages

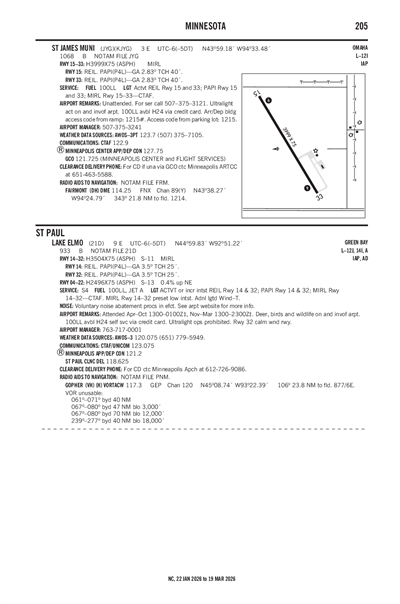

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMKT (31nm)
Sat, 11/9 5:20 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Overcast 20,000'
6sm
120° 7kts
VFR
10:00 AM CST - 3:00 PM CST
Overcast 8,000'
6sm
130° 10kts
VFR
3:00 PM CST - 5:00 PM CST
Light Showers and Rain
Overcast 3,500'
6sm
110° 11kts
MVFR
5:00 PM CST - 10:00 PM CST
Light Showers and Rain and Mist
Overcast 2,000'
6sm
120° 10kts
MVFR
10:00 PM CST - 2:00 AM CST
Overcast 1,500'
6sm
130° 7kts
IFR
2:00 AM CST - 6:00 AM CST
Light Showers and Rain and Mist
Overcast 900'
4sm
130° 4kts
KMKT 091120Z 0912/1012 12007KT P6SM OVC200
   FM091600 13010KT P6SM OVC080
   FM092100 11011KT 6SM -SHRA OVC035
   FM092300 12010KT 6SM -SHRA BR OVC020
   FM100400 13007KT P6SM OVC015
   FM100800 13004KT 4SM -SHRA BR OVC009
KJYG
FDC
6/10/241917Z !FDC 4/6255 JYG IAP ST JAMES MUNI, ST JAMES, MN.
RNAV (GPS) RWY 15, AMDT 1B...
RNAV (GPS) RWY 33, AMDT 1B...
VGSI AND RNAV GLIDEPATH NOT COINCIDENT.
2406101917-2606101917EST
No
UNATNDD
FOR SER CALL 507-375-3121.
CITY OF ST JAMES
124 ARMSTRONG BLVD S, PO BOX 70
SAINT JAMES, MN 56081
Phone: 507-375-3241
AMANDA GLASS
124 ARMSTRONG BLVD S, PO BOX 70
SAINT JAMES, MN 56081
Phone: 507-375-3241
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
JYG
--
ACTVT REIL RWY 15 & 33; PAPI RWY 15 & 33; MIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
None

Runway 15/33

3999 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 15 Runway 33
True Heading 149°329°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 59' 28"N 43° 58' 54"N
Longitude 94° 33' 43"W 94° 33' 15"W
Elevation 1,061' 1,065'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 2.83° 2.83°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1ULTRALIGHT ACT ON & INVOF ARPT.
A110-2GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.
A110-5RWY 33 RT OF CTR LINE FRM APP END -120 TO -183 FT CATTAILS IN PRIMARY SURFACE
A110-7ARR/DEP BLDG ACES CODE FM RAMP: 1215#; ACES CODE FM PRKG LOT: 1215.
A110-8FOR CD IF UNA VIA GCO CTC MINNEAPOLIS ARTCC AT 651-463-5588.
ST JAMES MUNI (ICAO: KJYG, IATA: JYG) is a public airport located in ST JAMES, MN.
