iFlightPlanner



...

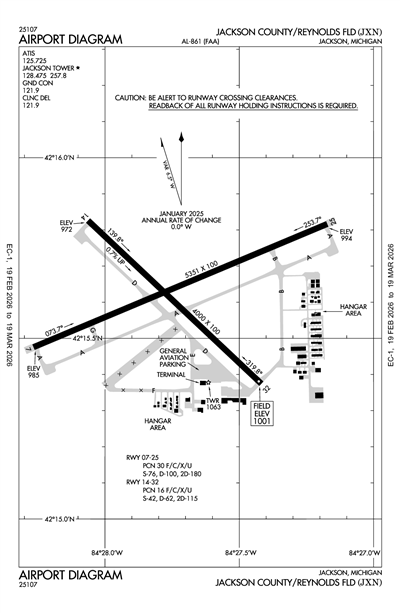

JACKSON COUNTY/REYNOLDS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJXN
ICAO KJXNIATA JXNLocal JXN
JACKSON COUNTY/REYNOLDS FLD
PublicPUB

2 miles W of JACKSON, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 15' 38"N 84° 27' 44"W
Elevation
1001' MSL
Pattern Alt
2001' MSL
Mag Variation
7°W
Declination
7°W
Fuel
JET A (FSII), 100LL
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KJXN MVFR
8:56 PM EST
Overcast 1,600'
9sm
36°F
31°F
30.18"Hg
180° 4kts
AO2 SLP231 T00221006
METAR KJXN 040156Z 18004KT 9SM OVC016 02/M01 A3018 RMK AO2 SLP231 T00221006
+ Add Your Business

KJXN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.725
ASOS (517) 768-7506

Common

CTAF 128.475
WHEN ATCT CLSD ACTVT MALSR RWY 25; REIL RWY 07 & 32; PAPI RWY 07, 25, 14 & 32; HIRL RWY 07/25; MIRL RWY 14/32 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 121.9

Ground

JACKSON GROUND 121.9
0700-2100

Tower

JACKSON TOWER 128.475
0700-2100

Approach

GREAT LAKES APPROACH 127.3

Departure

GREAT LAKES DEPARTURE 127.3

Center

GREAT LAKES CENTER 120.45
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 120.45/360.7 (LITCHFIELD RCAG) WHEN GREAT LAKES APCH CTL CLSD.

Flight Service

Flight Service 122.2
(LAN)

Emergency

Emergency 121.5

Terminal Area Forecast

KJXN
Tue, 3/3 6:40 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
MVFR
7:00 PM EST - 12:00 AM EST
Overcast 1,500'
6sm
VRB° 4kts
VFR
12:00 AM EST - 4:00 AM EST
Scattered 12,000'
Scattered 1,500'
6sm
Calm
MVFR
4:00 AM EST - 10:00 AM EST
Mist
Scattered 25,000'
Few 400'
5sm
Calm
VFR
10:00 AM EST - 4:00 PM EST
Broken 25,000'
6sm
100° 7kts
MVFR
4:00 PM EST - 7:00 PM EST
Overcast 4,000'
Broken 2,500'
6sm
090° 5kts
TAF KJXN 032340Z 0400/0424 VRB04KT P6SM OVC015
   FM040500 00000KT P6SM SCT015 SCT120
   FM040900 00000KT 5SM BR FEW004 SCT250
   FM041500 10007KT P6SM BKN250
   FM042100 09005KT P6SM BKN025 OVC040
KJXN
EffectiveExpiresCategoryNOTAM
Domestic
2/18/26
0515Z
3/20/26
2300Z
!JXN 02/046 JXN OBST TOWER LGT (ASR 1327300) 421618.60N0842751.50W (0.7NM N JXN) 1128FT (144FT AGL) U/S 2602180515-2603202300
Yes
MON-FRI 0800-1700
SAT-SUN 0800-1500
JACKSON COUNTY
120 W MICHIGAN AVE JACKSON CO TOWER BLDG 5TH FL
JACKSON, MI 49201
Phone: 517-788-4335
JUAN ZAPATA
3606 WILDWOOD AVE
JACKSON, MI 49202
Phone: 517-788-4225
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
JXN
--
WHEN ATCT CLSD ACTVT MALSR RWY 25; REIL RWY 07 & 32; PAPI RWY 07, 25, 14 & 32; HIRL RWY 07/25; MIRL RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction

Runway 07/25

5351 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH
30/F/C/X/U
76,000lbs
100,000lbs
180,000lbs
--
  Runway 07 Runway 25
True Heading 67°247°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 15' 29"N 42° 15' 49"N
Longitude 84° 28' 16"W 84° 27' 10"W
Elevation 985' 994'
Threshold Crossing Height 37 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 14/32

4000 ft. x 100 ft.
ASPH
Good
GRVD
MED
16/F/C/X/U
42,000lbs
62,000lbs
115,000lbs
--
  Runway 14 Runway 32
True Heading 133°313°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 15' 50"N 42° 15' 22"N
Longitude 84° 28' 04"W 84° 27' 25"W
Elevation 972' 1,001'
Threshold Crossing Height 25 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1DEER & LRG BIRDS ON & INVOF ARPT.
A110-2LOW ALT HEL OPS PROHIBITED INVOF PRISON 4 MI NE.
A110-3WINTER FICONS UNMON WHEN ATCT CLSD.
A110-6ACFT TAXIING UP TWY D COULD POSSLY MISS THE TURN FOR TWY A & VIOLATE THE SAFETY ZONE FOR RWY 07/25.
A110-7FOR CD WHEN ATCT CLSD CTC GREAT LAKES APCH AT 269-459-3345, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
A70-100LL100LL & JET A+ AVBL SELF SVC ON MAIN RAMP.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 25; REIL RWY 07 & 32; PAPI RWY 07, 25, 14 & 32; HIRL RWY 07/25; MIRL RWY 14/32 - CTAF.
E111PRVDD SFC APROPLY MKD; IF USED AT NGT RWY APROPLY LGTD INCLG EDGE LGTS; CLEAR FAR PART 77 20:1 APCH SFCS TO BOTH RWY ENDS; 300 FT & ASSOCD EDGE RWY SAFETY AREAS PRVDD; HOLD SHORT LINES PAINTED ON ALL ADJ TWYS; AREA BYD EACH THR MKD AS TWYS NOT DSPLCD THRS; THR COORDS & ELEVS PRVDD TO AGL-200.
JACKSON COUNTY/REYNOLDS FLD (ICAO: KJXN, IATA: JXN) is a public airport located in JACKSON, MI, US.
