KJWN
JOHN C TUNE
Public
PUB
1 miles NW of NASHVILLE, TN
View on
Map
Status
Operational
Coordinates
36° 10' 59"N
86° 53' 11"W
Elevation
501' MSL
Pattern Alt
1501' MSL
Mag Variation
03W
Fuel
JET A (FSII), 100LL
FSS
NASHVILLE (BNA)
Sectional
ST LOUIS
ARTCC
MEMPHIS (ZME)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KJWN FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.7
CTAF
119.45
ATIS
ATIS
615-350-6222
127.075
Clearance Delivery
CD/P
121.7
Ground
GND/P
121.7
Tower
LCL/P
119.45
FAA A/FD Pages
FAA A/FD Page
Airport Diagrams

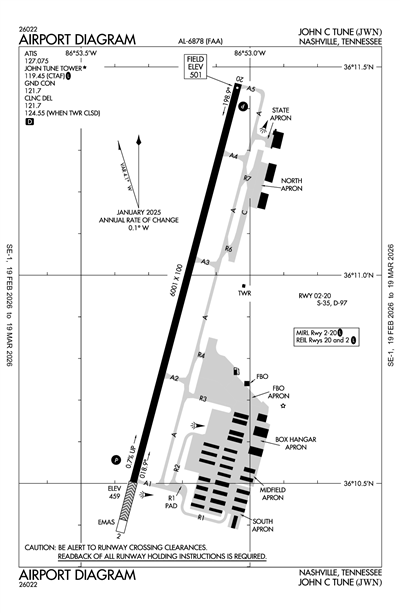

AIRPORT DIAGRAM
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
JOHN TUNE ONE
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 20
RNAV (GPS) RWY 02
RNAV (GPS) RWY 20
Terminal Area Forecast
No TAF is available for this location.
KJWN
Domestic
1/12/25
1320Z
!BNA 01/418 JWN RWY 02 PAPI U/S 2501121320-2501152300
1/9/25
1615Z
!BNA 01/187 JWN OBST TOWER LGT (ASR 1200098) 360810.20N0865904.00W (5.6NM WSW JWN) 1362.9FT (529.9FT AGL) U/S 2501091615-2502092359
1/7/25
1051Z
!BNA 01/154 JWN OBST TOWER LGT (ASR 1220520) 360150.60N0865853.80W (10.3NM SSW JWN) 1129.9FT (272.0FT AGL) U/S 2501071051-2504070500
1/6/25
0235Z
!BNA 01/087 JWN OBST TOWER LGT (ASR 1043385) 360417.00N0865438.60W (6.8NM S JWN) 1168.0FT (264.1FT AGL) U/S 2501060235-2501200500
1/3/25
0614Z
!BNA 01/035 JWN OBST TOWER LGT (ASR 1227782) 361635.80N0865312.20W (5.6NM NE JWN) 1274.0FT (454.1FT AGL) U/S 2501030614-2501180514
12/20/24
1618Z
!BNA 12/429 JWN OBST TOWER LGT (ASR 1000148) 361345.20N0865048.00W (3.4NM NE JWN) 1049.2FT (365.2FT AGL) U/S 2412201618-2503210500
12/14/24
0016Z
!BNA 12/265 JWN OBST TOWER LGT (ASR 1233975) 361604.90N0864744.70W (6.8NM NE JWN) 2049.2FT (1289.0FT AGL) U/S 2412140016-2501280015
9/27/24
1435Z
!BNA 09/649 JWN RWY 02/20 CL MARKINGS N SIDE OBSC 2409271435-2503312000
3/23/24
1149Z
!BNA 03/420 JWN AIRSPACE SEE CKV 03/013 AEROBATIC ACFT DLY SR-SS 2403231149-2701312314
FDC
12/10/24
0702Z
!FDC 4/3997 JWN IAP JOHN C TUNE, NASHVILLE, TN.
RNAV (GPS) RWY 20, AMDT 2...
LPV DA 893/HAT 392 ALL CATS. LNAV/VNAV DA 1013/HAT 512 ALL CATS. LNAV MDA 1140/HAT 639 ALL CATS. VDP 1.9 NM TO RW20.
2412100702-2612100702EST
10/18/24
1556Z
!FDC 4/0953 JWN IAP JOHN C TUNE, NASHVILLE, TN.
ILS OR LOC RWY 20, AMDT 2B...
S-ILS 20 DA 763/HAT 262 ALL CATS, VIS ALL CATS 7/8. CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE NASHVILLE INTL ALTIMETER SETTING AND INCREASE S-ILS 20 DA TO 800 FEET, INCREASE ALL MDAS 40 FEET. TEMPORARY CRANES UP TO 644 MSL 1146FT SE OF RWY 20 (2023-ASO-6849 THRU 6852-NRA).
2410181556-2504241556EST
ATC Tower
Yes
Attendance
ALL
Owner
METRO NASHVILLE APT AUTHORITY
ONE TERMINAL DR.
NASHVILLE, TN 37214
Phone: 615-275-1600
Manager
ADAM C. WOLF
1000 TUNE AIRPORT DRIVE
NASHVILLE, TN 37209
Phone: 615-275-1783
FSS
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
NOTAM
BNA
Light Schedule
--
Lights
WHEN ATCT CLSD ACTVT REIL RWY 02 & 20; PAPI RWY 02 & 20; MIRL RWY 02/20 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High Pressure
Bulk Oxygen
Low Pressure
Other Services
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Runway 02/20
Dimensions
6001 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
GRVD
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
35,000lbs
Double Wheel
97,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 02
Runway 20
True Heading
15°
195°
Traffic Pattern
Right
Markings
NPI
PIR
Markings Condition
GOOD
GOOD
Latitude
36° 10' 30"N
36° 11' 28"N
Longitude
86° 53' 21"W
86° 53' 02"W
Elevation
459'
501'
Threshold Crossing Height
40 ft. AGL
40 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
BIRDS & DEER INVOF ARPT.
A110-3
BLEEDOVER OCR ALL FREQS 1.75 NM NORTH OF RWY.
A110-7
WHEN ATCT CLSD FOR CD CTC NASHVILLE APCH ON 124.55, IF UNABLE CALL 615-695-4524.
A110-8
TWY R1 CLSD TO ACFT WINGSPAN MORE THAN 49FT
A110-9
TWY R2 CLSD TO ACFT WINGSPAN MORE THAN 79FT
JOHN C TUNE (ICAO: KJWN, IATA: JWN) is a public airport located in NASHVILLE, TN.
