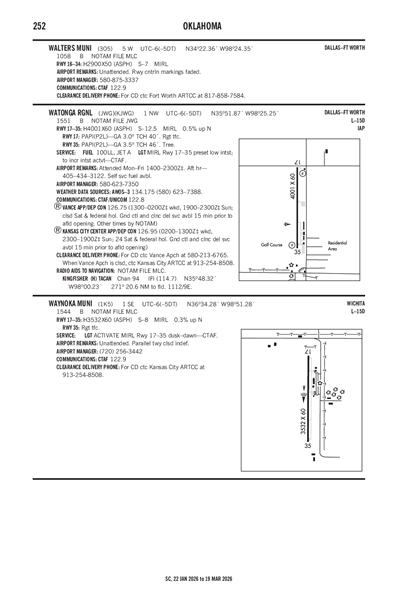

WATONGA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJWG
ICAO KJWGIATA JWGLocal JWG
WATONGA RGNL
PublicPUB

1 miles NW of WATONGA, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 51' 52"N 98° 25' 15"W
Elevation
1551' MSL
Pattern Alt
2551' MSL
Mag Variation
4°E
Declination
7°E
Fuel
JET A, 100LL
FSS
MC ALESTER (MLC)
Sectional
DALLAS-FT WORTH
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KJWG MVFR
8:55 PM CST
Overcast 1,200'
10sm
50°F
45°F
30.09"Hg
360° 13kts
Gusts 21kts
AO2 T01010072
METAR KJWG 040255Z AUTO 36013G21KT 10SM OVC012 10/07 A3009 RMK AO2 T01010072
+ Add Your Business

KJWG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 134.175
(580) 623-7388

Common

CTAF 122.8
MIRL RWY 17/35 PRESET LOW INTST; INCR INTST ACTVT - CTAF.
UNICOM 122.8

Approach

VANCE APPROACH 126.75

Departure

VANCE DEPARTURE 126.75

Center

VANCE CENTER 126.95
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 126.95/379.2 (GAGE RCAG) WHEN VANCE APCH CTL (END) CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KEND (38nm)
Tue, 3/3 8:00 PM CST
Tue, 3/3 8:00 PM CST - Wed, 3/4 6:00 PM CST
IFR
8:00 PM CST - 9:00 PM CST
Overcast 900'
6sm
30.00"Hg
010° 10kts
MVFR
Becoming 9:00 PM CST - 11:00 PM CST
Mist
Overcast 3,500'
Broken 2,000'
Scattered 1,200'
3.73sm
30.03"Hg
360° 10kts
Gusts 15kts
IFR
Becoming 11:00 PM CST - 5:00 AM CST
Mist
Overcast 1,200'
Broken 600'
2.98sm
30.06"Hg
360° 10kts
Gusts 15kts
IFR
Temporary 4:00 AM CST - 7:00 AM CST
Light Showers and Rain and Thunderstorm in vicinity
Overcast 1,000'
2.24sm
VRB° 15kts
Gusts 25kts
IFR
Becoming 5:00 AM CST - 2:00 PM CST
Light Rain and Mist
Overcast 600'
1.49sm
30.00"Hg
330° 10kts
Gusts 15kts
LIFR
Temporary 7:00 AM CST - 10:00 AM CST
Light Thunderstorm and Rain
Overcast 600'
0.99sm
Calm
MVFR
Becoming 2:00 PM CST - 6:00 PM CST
Overcast 2,000'
Broken 1,000'
Scattered 700'
6sm
29.97"Hg
VRB° 6kts
TAF AMD KEND 040200Z 0402/0424 01010KT 9999 OVC009 QNH3000INS
   BECMG 0403/0404 36010G15KT 6000 BR SCT012 BKN020 OVC035 QNH3003INS
   BECMG 0405/0406 36010G15KT 4800 BR BKN006 OVC012 QNH3005INS
   TEMPO 0410/0413 VRB15G25KT 3600 -SHRA VCTS OVC010CB
   BECMG 0411/0413 33010G15KT 2400 -RA BR OVC006 QNH3001INS
   TEMPO 0413/0416 1600 -TSRA OVC006CB
   BECMG 0420/0422 VRB06KT 9999 NSW SCT007 BKN010 OVC020 QNH2998INS TX10/0402Z TN06/0414Z LAST NO AMDS AFT 0402 NEXT 0410
KJWG
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1445Z
12/31/26
1519Z
!JWG 02/003 JWG AIRSPACE SEE ZKC 02/372 UAS 2602231445-2612311519
No
MON-FRI 0800-1700
AFT HR - 405-434-3122.
CITY OF WATONGA
410 W MAIN ST P. O. BOX 564
WATONGA, OK 73772
Phone: 580-623-4669
JENA OHMAN
P.O. BOX 564
WATONGA, OK 73772
Phone: 580-623-7350
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
JWG
--
MIRL RWY 17/35 PRESET LOW INTST; INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 17/35

4001 ft. x 60 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 52' 12"N 35° 51' 33"N
Longitude 98° 25' 15"W 98° 25' 15"W
Elevation 1,551' 1,532'
Threshold Crossing Height 40 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC VANCE APCH AT 580-213-6765. WHEN VANCE APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
A110-3SELF SVC FUEL AVBL.
A17-M1AFT HR - 405-434-3122.
A81-APTMIRL RWY 17/35 PRESET LOW INTST; INCR INTST ACTVT - CTAF.
WATONGA RGNL (ICAO: KJWG, IATA: JWG) is a public airport located in WATONGA, OK, US.
