KJRA
WEST 30TH ST
Public
PUB
0 miles N of NEW YORK, NY
View on
Map
Status
Operational
Coordinates
40° 45' 18"N
74° 00' 25"W
Elevation
7' MSL
Pattern Alt
1007' MSL
Mag Variation
13W
Fuel
JET A
FSS
NEW YORK (ISP)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KJRA FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
123.05
CTAF
123.05
No communication frequencies available for this airport.

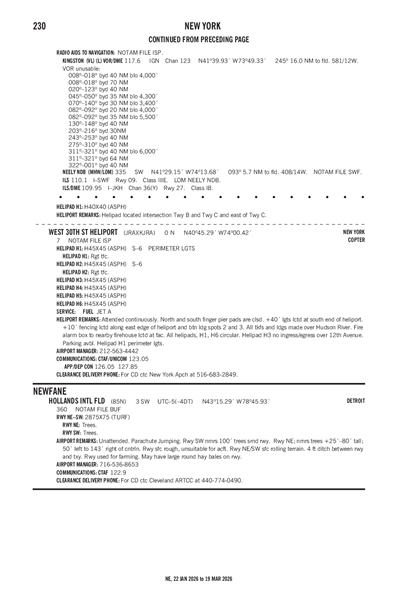

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
COPTER RNAV (GPS) 210
Terminal Area Forecast
No TAF is available for this location.
KJRA
Domestic
1/2/25
2210Z
!ISP 01/058 JRA OBST TOWER LGT (ASR 1260128) 404636.00N0740307.00W (2.4NM WNW JRA) 499.0FT (499.0FT AGL) U/S 2501022210-2501182359
12/31/24
0747Z
!ISP 12/686 JRA OBST STACK (ASN UNKNOWN) 404617N0735928W (1.3NM NE JRA) 528.35FT (505.9FT AGL) NOT LGTD 2412310747-2501312359
12/20/24
2203Z
!ISP 12/373 JRA AIRSPACE SEE FDC 4/9947 ZNY 99.7 SECURITY 2412202203-2501190459
7/23/24
1604Z
!ISP 07/656 JRA OBST CRANE (ASN UNKNOWN) 404517N0740025W (.5NM SE JRA) UNKNOWN (272FT AGL) LGTD 2407231604-2501232359
5/3/24
1820Z
!ISP 05/079 JRA OBST BLDG LGT (ASN 2019-AEA-1875-OE) 404622N0735849W (1.7NM NE JRA) 875FT (795FT AGL) U/S 2405031820-2505312359
5/3/24
1817Z
!ISP 05/077 JRA OBST BLDG LGT (ASN 2019-AEA-1874-OE) 404623N0735849W (1.7NM NE JRA) 875FT (795FT AGL) U/S 2405031817-2505312359
5/3/24
1816Z
!ISP 05/076 JRA OBST BLDG LGT (ASN 2019-AEA-1873-OE) 404622N0735850W (1.6NM NE JRA) 875FT (795FT AGL) U/S 2405031816-2505312359
5/3/24
1815Z
!ISP 05/075 JRA OBST BLDG LGT (ASN 2019-AEA-1872-OE) 404621N0735848W (1.6NM NE JRA) 875FT (795FT AGL) U/S 2405031815-2505312359
5/3/24
1814Z
!ISP 05/074 JRA OBST BLDG LGT (ASN 2019-AEA-1871-OE) 404622N0735848W (1.7NM NE JRA) 875FT (795FT AGL) U/S 2405031814-2505312359
ATC Tower
No
Attendance
ALL
Owner
HUDSON RIVER PARK TRUST
PIER 40 WEST HOUSTON STREET
NEW YORK, NY 10007
Phone: 212-627-2020
Manager
WILLIAM MELENDEZ
WEST 30 ST & 12 AVE.
NEW YORK, NY 10001
Phone: 212-563-4442
FSS
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
NOTAM
ISP
Light Schedule
Sunset to Sunrise
Lights
--
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
Yes
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Air Freight
Air Ambulance
Charter Service
Runway H1
Dimensions
45 ft. x 45 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
PERI
Pavement Class
Single Wheel
6,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H1
Runway
True Heading
101°
281°
Traffic Pattern
Right
Markings
Markings Condition
Latitude
40° 45' 16"N
N/A
Longitude
74° 00' 27"W
N/A
Elevation
7'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
No
Runway End Identifier Lights
No
Runway H2
Dimensions
45 ft. x 45 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
6,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H2
Runway
True Heading
101°
281°
Traffic Pattern
Right
Markings
Markings Condition
Latitude
40° 45' 16"N
N/A
Longitude
74° 00' 26"W
N/A
Elevation
7'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H3
Dimensions
45 ft. x 45 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H3
Runway
True Heading
101°
281°
Traffic Pattern
Markings
Markings Condition
Latitude
40° 45' 18"N
N/A
Longitude
74° 00' 25"W
N/A
Elevation
7'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H4
Dimensions
45 ft. x 45 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H4
Runway
True Heading
101°
281°
Traffic Pattern
Markings
Markings Condition
Latitude
40° 45' 18"N
N/A
Longitude
74° 00' 25"W
N/A
Elevation
7'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H5
Dimensions
45 ft. x 45 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H5
Runway
True Heading
101°
281°
Traffic Pattern
Markings
Markings Condition
Latitude
40° 45' 19"N
N/A
Longitude
74° 00' 24"W
N/A
Elevation
7'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H6
Dimensions
45 ft. x 45 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H6
Runway
True Heading
101°
281°
Traffic Pattern
Markings
Markings Condition
Latitude
40° 45' 20"N
N/A
Longitude
74° 00' 24"W
N/A
Elevation
7'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
FIRE ALARM BOX TO NEARBY FIREHOUSE LCTD AT FAC.
A110-2
PARKING AVAILABLE.
A110-3
H3 NO INGRESS/EGRESS OVER 12TH AVENUE.
A110-4
ALL TKOFS & LDGS MADE ONLY OVER HUDSON RIVER.
A110-5
NORTH & SOUTH FINGER PIER PADS ARE CLOSED.
A110-6
+40 FT LIGHTS LOCATED AT SOUTH END OF HELIPORT.
A110-7
+10 FT FENCING LOCATED ALONG EAST EDGE OF HELIPORT AND BETWEEN LANDING SPOTS 2 AND 3.
A110-8
FOR CD CTC NEW YORK APCH AT 516-683-2849.
WEST 30TH ST (ICAO: KJRA, IATA: JRA) is a public heliport located in NEW YORK, NY.
