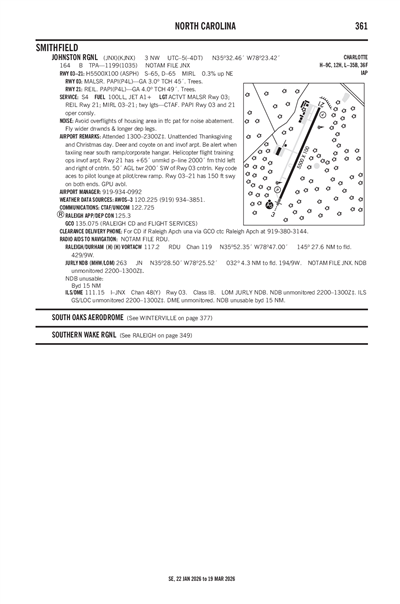

JOHNSTON RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJNX
ICAO KJNXLocal JNX
JOHNSTON RGNL
PublicPUB

3 miles NW of SMITHFIELD, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 32' 27"N 78° 23' 25"W
Elevation
164' MSL
Pattern Alt
1199' MSL
Mag Variation
9°W
Declination
9°W
Fuel
JET A-1+, 100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KJNX VFR
9:56 PM EST
Clear
10sm
46°F
46°F
30.33"Hg
Calm
AO2
METAR KJNX 040256Z AUTO 00000KT 10SM CLR 08/08 A3033 RMK AO2
+ Add Your Business

KJNX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.225
(919) 934-3851

Common

CTAF 122.725
ACTVT MALSR RWY 03; REIL RWY 21; MIRL 03/21; TWY LGTS - CTAF. PAPI RWY 03 & 21 OPER CONSLY.
UNICOM 122.725

Approach

RALEIGH APPROACH 125.3

Departure

RALEIGH DEPARTURE 125.3

Flight Service

Ground Communication Outlet 135.075
GCO AVBL ON FREQ 135.075 THRU RDU CD & FLT SVCS.

Terminal Area Forecast

KGSB (25nm)
Tue, 3/3 7:00 PM EST
Tue, 3/3 7:00 PM EST - Thu, 3/5 1:00 AM EST
VFR
7:00 PM EST - 12:00 AM EST
Scattered 18,000'
6sm
30.27"Hg
VRB° 6kts
MVFR
Becoming 12:00 AM EST - 4:00 AM EST
Mist
Broken 2,600'
4.97sm
30.27"Hg
VRB° 6kts
IFR
Becoming 4:00 AM EST - 9:00 AM EST
Mist
Broken 2,000'
2.98sm
30.27"Hg
240° 9kts
IFR
Temporary 5:00 AM EST - 9:00 AM EST
Mist
Broken 1,600'
1.99sm
Calm
VFR
Becoming 9:00 AM EST - 1:00 AM EST
Scattered 2,500'
6sm
30.21"Hg
230° 9kts
TAF KGSB 040000Z 0400/0506 VRB06KT 9999 SCT180 QNH3028INS
   BECMG 0405/0406 VRB06KT 8000 BR BKN026 QNH3028INS
   BECMG 0409/0410 24009KT 4800 BR BKN020 QNH3026INS
   TEMPO 0410/0414 3200 BR BKN016
   BECMG 0414/0415 23009KT 9999 NSW SCT025 QNH3021INS TX22/0421Z TN09/0412Z
KJNX
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1500Z
2/26/26
1900Z
!JNX 02/018 JNX AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF JNX SFC-3500FT AGL ACFT CS FLC67
2602261500-2602261900
2/22/26
1221Z
3/9/26
1121Z
!JNX 02/021 JNX OBST TOWER LGT (ASR 1213816) 354035.70N0781518.90W (10.6NM NE JNX) 640.1FT (395.0FT AGL) U/S 2602221221-2603091121
2/21/26
0536Z
3/8/26
0436Z
!JNX 02/020 JNX OBST TOWER LGT (ASR 1228753) 352449.90N0782809.70W (8.7NM SSW JNX) 392.1FT (234.9FT AGL) U/S 2602210536-2603080436
2/20/26
1615Z
4/20/26
2359Z
!JNX 02/019 JNX OBST TOWER LGT (ASR 1055585) 352446.00N0783114.00W (10.1NM SW JNX) 538.1FT (335.0FT AGL) U/S 2602201615-2604202359
2/14/26
2225Z
!JNX 02/016 JNX OBST TOWER LGT (ASR 1003398) 353347.60N0781156.00W (9.4NM E JNX) 443.9FT (254.9FT AGL) U/S 2602142225-2604142359EST
2/13/26
0424Z
3/1/26
0500Z
!JNX 02/015 JNX OBST TOWER LGT (ASR 1267863) 353443.20N0782608.70W (3.1NM NW JNX) 735.9FT (500.0FT AGL) U/S 2602130424-2603010500
1/29/26
1700Z
3/30/26
1700Z
!JNX 01/020 JNX OBST TOWER LGT (ASR 1051540) 353017.00N0781901.00W (4.1NM ESE JNX) 404.9FT (254.9FT AGL) U/S 2601291700-2603301700
1/16/26
1646Z
3/4/26
1700Z
!JNX 01/008 JNX NAV ILS RWY 03 U/S 2601161646-2603041700
3/31/25
1030Z
12/31/27
2330Z
!JNX 03/008 JNX OBST CRANE (ASN UNKNOWN) 353633N0782344W (4.5NM N JNX) 280FT (190FT AGL) LGTD 2503311030-2712312330
FDC
8/6/25
1927Z
!FDC 5/2242 JNX IAP JOHNSTON RGNL, SMITHFIELD, NC.
ILS Y OR LOC Y RWY 3, AMDT 1A...
CIRCLING CAT C MDA 960/HAA 796.
JONIR FIX MINIMUMS:
CIRCLING CAT C MDA 960/HAA 796.
2508061927-2708071927EST
8/6/25
1925Z
!FDC 5/2240 JNX IAP JOHNSTON RGNL, SMITHFIELD, NC.
ILS Z OR LOC Z RWY 3, AMDT 2A...
CIRCLING CAT C MDA 960/HAA 796.
JONIR DME FIX MINIMUMS:
CIRCLING CAT C MDA 960/HAA 796.
2508061925-2708071925EST
8/6/25
1918Z
!FDC 5/2234 JNX IAP JOHNSTON RGNL, SMITHFIELD, NC.
RNAV (GPS) RWY 3, AMDT 2...
CIRCLING CAT C MDA 960/HAA 796.
CHANGE NOTE: DME/DME RNP-0.3 NA TO PBN REQUIREMENT NOTE: RNP APCH.
2508061918-2708071918EST
7/21/25
1815Z
!FDC 5/1983 JNX IAP JOHNSTON RGNL, SMITHFIELD, NC.
RNAV (GPS) RWY 21, AMDT 1...
LPV DA 524/HAT 360.
CIRCLING CAT C MDA 960/HAA 796.
CHANGE NOTE: DME/DME RNP-0.3 NA TO PBN REQUIREMENT NOTE: RNP APCH.
2507211815-2707211815EST
No
0800-1800
UNATNDD THANKSGIVING AND CHRISTMAS DAY.
JOHNSTON CO ARPT AUTH
3149 SWIFT CREEK RD
SMITHFIELD, NC 27577
Phone: 919-934-0992
DAVID HARRIS
3149 SWIFT CREEK RD
SMITHFIELD, NC 27577
Phone: 919-934-0992
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
JNX
--
ACTVT MALSR RWY 03; REIL RWY 21; MIRL 03/21; TWY LGTS - CTAF. PAPI RWY 03 & 21 OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
Major
Major
None
None
Air Ambulance
Avionics
Pilot Instruction
Aircraft Rental

Runway 03/21

5500 ft. x 100 ft.
ASPH
Good
NONE
MED

65,000lbs
65,000lbs
--
--
  Runway 03 Runway 21
True Heading 23°203°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 35° 32' 02"N 35° 32' 52"N
Longitude 78° 23' 38"W 78° 23' 12"W
Elevation 147' 164'
Threshold Crossing Height 45 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1AVOID OVERFLIGHTS OF HOUSING AREA IN TFC PAT FOR NOISE ABATEMENT. FLY WIDER DNWNDS & LONGER DEP LEGS.
A110-100GCO AVBL ON FREQ 135.075 THRU RDU CD & FLT SVCS.
A110-101BE ALERT WHEN TAXING NEAR SOUTH RAMP/CORPORATE HNGR.
A110-102KEY CODE ACES TO PILOT LOUNGE AT PILOT/CREW RAMP.
A110-103HEL FLT T OPS INVOF ARPT.
A110-104GPU AVBL.
A110-105FOR CD IF RALEIGH APCH UNA VIA GCO CTC RALEIGH APCH AT 919-380-3144.
A110-2DEER AND COYOTE ON & INVOF ARPT.
A110-4RWY 21 HAS +65 FT UNMKD PLINE 2000 FT FM THR LEFT AND RIGHT OF CNTRLN.
A110-550 FT AGL TWR 200 FT SW OF RWY 03 CNTRLN.
A17-M1UNATNDD THANKSGIVING AND CHRISTMAS DAY.
A31-03/21HAS A 150 FT SWY ON BOTH ENDS.
A58-0329 FT TREES 0-200 FT FROM THLD OFFSET 425 FT LEFT OF CNTRLN.
A58-216 FT GROUND 0-200 FT FR THR OFFSET 301 FT LEFT OF CNTRLN, AND 54 FT TRESS 122 FT FR THR OFFSET 442 FT LEFT OF CNTRLN.
A81-APTACTVT MALSR RWY 03; REIL RWY 21; MIRL 03/21; TWY LGTS - CTAF. PAPI RWY 03 & 21 OPER CONSLY.
JOHNSTON RGNL (ICAO: KJNX, IATA: JNX) is a public airport located in SMITHFIELD, NC, US.
