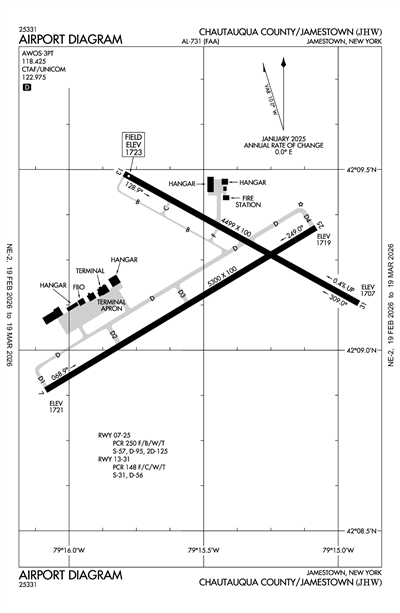

CHAUTAUQUA COUNTY/JAMESTOWN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJHW
ICAO KJHWIATA JHWLocal JHW
CHAUTAUQUA COUNTY/JAMESTOWN
PublicPUB

3 miles N of JAMESTOWN, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 09' 12"N 79° 15' 29"W
Elevation
1723' MSL
Pattern Alt
2723' MSL
Mag Variation
10°W
Declination
10°W
Fuel
JET A, 100LL
FSS
BUFFALO (BUF)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KJHW LIFR
9:56 PM EST
Fog
Overcast 200'
0.25sm
36°F
36°F
30.13"Hg
Calm
AO2 SLP225 60003 T00220022 50008 FZRANO RVRNO
METAR KJHW 040256Z AUTO 00000KT 1/4SM FG OVC002 02/02 A3013 RMK AO2 SLP225 60003 T00220022 50008 FZRANO RVRNO
+ Add Your Business

KJHW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.425
(716) 664-6005

Common

CTAF 122.975
ACTVT MALSR RWY 25; REIL RWY 31; PAPI RWY 13 & 31; VASI RWY 07; HIRL RWY 07/25; MIRL RWY 13/31 & TWY LGTS - CTAF.
UNICOM 122.975

Approach

BUFFALO APPROACH 126.05

Departure

BUFFALO DEPARTURE 126.05

Center

BUFFALO CENTER 127.075
LOW, APCH/DEP SVC PRVDD BY BUFFALO APCH (BUF) ON 126.05 0600-0000. APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQ 127.075/292.175 (WATERFORD RCAG) 0000-0600.

Flight Service

Flight Service 122.1
(BUF)

Terminal Area Forecast

KJHW
Tue, 3/3 6:26 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
LIFR
7:00 PM EST - 8:00 AM EST
Fog
Broken 200'
0.5sm
220° 4kts
LIFR
Temporary 8:00 PM EST - 10:00 PM EST
Light Showers and Rain
Overcast 500'
0.5sm
Calm
LIFR
8:00 AM EST - 9:00 AM EST
Mist
Overcast 300'
1sm
Calm
IFR
9:00 AM EST - 11:00 AM EST
Mist
Broken 600'
3sm
VRB° 3kts
VFR
11:00 AM EST - 7:00 PM EST
Scattered 17,000'
6sm
VRB° 4kts
TAF KJHW 032326Z 0400/0424 22004KT 1/2SM FG BKN002
   TEMPO 0401/0403 1/2SM -SHRA OVC005
   FM041300 00000KT 1SM BR OVC003
   FM041400 VRB03KT 3SM BR BKN006
   FM041600 VRB04KT P6SM SCT170
KJHW
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
1914Z
2/25/26
1100Z
!JHW 02/078 JHW AD AP SFC COND NOT REP 2602241914-2602251100
2/23/26
2033Z
2/26/26
1900Z
Runway!JHW 02/074 JHW RWY 13/31 CLSD 2602232033-2602261900
1/22/26
1958Z
3/8/26
1957Z
!JHW 01/085 JHW OBST TOWER LGT (ASR 1027178) 415731.20N0791610.20W (11.8NM S JHW) 2297.9FT (369.1FT AGL) U/S 2601221958-2603081957
1/8/26
0422Z
!JHW 01/031 JHW NAV ILS RWY 25 LOC NOT MNT 2601080422-2603272000EST
7/7/25
1112Z
7/7/26
1800Z
Runway!JHW 07/007 JHW RWY 25 HLDG PSN SIGN NOT STD 2507071112-2607071800
FDC
2/25/26
1400Z
3/4/26
1650Z
!FDC 6/9332 JHW IAP CHAUTAUQUA COUNTY/JAMESTOWN, JAMESTOWN, NY.
ILS OR LOC RWY 25, AMDT 8B...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
JHW VOR/DME OUT OF SERVICE. 2602251400-2603041650EST
No
M-F 0600-1430 LCL
CHAUTAUQUA COUNTY
NORTH ERIE ST. COUNTY OFFICE BLDGS
MAYVILLE, NY 14757
Phone: 716-753-4800
JOHN MACHEMER
3163 AIRPORT DR
JAMESTOWN, NY 14701
Phone: 716-581-0062
BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF
JHW
--
ACTVT MALSR RWY 25; REIL RWY 31; PAPI RWY 13 & 31; VASI RWY 07; HIRL RWY 07/25; MIRL RWY 13/31 & TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Freight
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

5300 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

57,000lbs
95,000lbs
125,000lbs
--
  Runway 07 Runway 25
True Heading 59°239°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 42° 08' 53"N 42° 09' 20"N
Longitude 79° 16' 05"W 79° 15' 05"W
Elevation 1,721' 1,719'
Threshold Crossing Height 52 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 13/31

4499 ft. x 100 ft.
ASPH
Fair
NONE
MED

31,000lbs
56,000lbs
--
--
  Runway 13 Runway 31
True Heading 119°299°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 09' 29"N 42° 09' 08"N
Longitude 79° 15' 48"W 79° 14' 55"W
Elevation 1,723' 1,707'
Threshold Crossing Height 45 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1DEER AND BIRDS ON & INVOF ARPT.
A110-3SNOW REMOVAL OPS AVBL DURING NORMAL ATTENDANCE HRS; SNOW REMOVAL MAY BE LIMITED ON HOLIDAYS & WEEKENDS.
A110-4FOR CD CTC BUFFALO APCH AT 716-626-6920, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0232.
A110-5ATTENDANCE HRS AND SERVICES AVAILABLE ARE SUBJECT TO CHANGE, CALL AIRPORT MANAGER AT 716-484-0204 TO CONFIRM.
A110-7RWY/TWY CONDITIONS NOT MONITORED OUTSIDE OF NORMAL ATTENDANCE HRS.
A110-824 HR PPR FOR AIR CARRIER OPS WITH MORE THAN 9 PAX SEATS. CONTACT ARPT MGR AT 716-484-0204. FOR EMERGENCIES AFTER HRS, CALL 911 FOR MUTUAL AID SERVICE.
A110-9ARFF INDEX B CPBL.
A24LNDG FEE MULTI-ENGINE ACFT ONLY.
A39-07/25PCR VALUE: 250/F/B/W/T
A39-13/31PCR VALUE: 148/F/C/W/T
A81-APTACTVT MALSR RWY 25; REIL RWY 31; PAPI RWY 13 & 31; VASI RWY 07; HIRL RWY 07/25; MIRL RWY 13/31 & TWY LGTS - CTAF.
E111EXISTED PRIOR TO 1959.
CHAUTAUQUA COUNTY/JAMESTOWN (ICAO: KJHW, IATA: JHW) is a public airport located in JAMESTOWN, NY, US.
