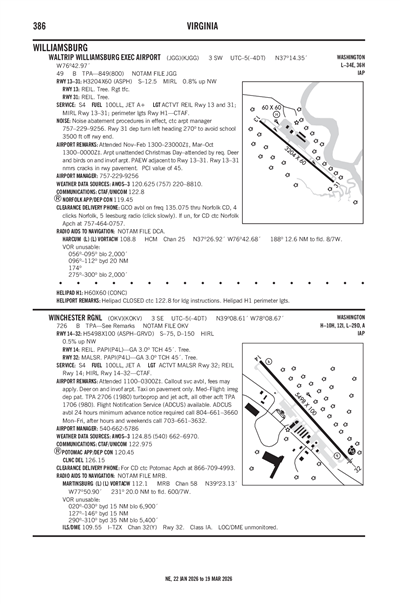

WALTRIP WILLIAMSBURG EXEC AIRPORT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJGG
ICAO KJGGLocal JGG
WALTRIP WILLIAMSBURG EXEC AIRPORT
PublicPUB

3 miles SW of WILLIAMSBURG, VA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 14' 21"N 76° 42' 58"W
Elevation
49' MSL
Pattern Alt
849' MSL
Mag Variation
11°W
Declination
11°W
Fuel
JET A (FSII), 100LL
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KJGG VFR
10:55 PM EST
Broken 13,000'
Few 3,300'
10sm
32°F
32°F
30.29"Hg
170° 5kts
AO2 $
METAR KJGG 040355Z AUTO 17005KT 10SM FEW033 BKN130 A3029 RMK AO2 $
+ Add Your Business

KJGG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.625
(757) 220-8810

Common

CTAF 122.8
ACTVT REIL RWY 13 & 31; MIRL RY 13/31; PERIMETER LGTS RY H1 - CTAF.
UNICOM 122.8

Approach

NORFOLK APPROACH 119.45

Departure

NORFOLK DEPARTURE 119.45

Flight Service

Ground Communication Outlet 135.075
GCO AVBL ON FREQ 135.075 THRU NORFOLK CD, 4 CLICKS NORFOLK, 5 LEESBURG RADIO (CLICK SLOWLY). IF UN, FOR CD CTC NORFOLK APCH AT 757-464-0757.

FAA A/FD Pages

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KFAF (8nm)
Tue, 3/3 6:25 PM EST
Tue, 3/3 6:00 PM EST - Wed, 3/4 8:00 PM EST
VFR
6:00 PM EST - 11:00 PM EST
Overcast 12,000'
6sm
30.32"Hg
VRB° 6kts
VFR
Becoming 11:00 PM EST - 12:00 PM EST
Scattered 12,000'
6sm
30.24"Hg
VRB° 6kts
VFR
Becoming 12:00 PM EST - 4:00 PM EST
Few 14,000'
6sm
30.21"Hg
VRB° 6kts
VFR
Becoming 4:00 PM EST - 8:00 PM EST
Scattered 3,500'
6sm
30.21"Hg
080° 6kts
TAF AMD KFAF 032325Z 0323/0501 VRB06KT 9999 OVC120 QNH3033INS
   BECMG 0404/0405 VRB06KT 9999 SCT120 QNH3023INS
   BECMG 0417/0418 VRB06KT 9999 FEW140 QNH3021INS
   BECMG 0421/0422 08006KT SCT035 QNH3022INS TX018/0418Z TN07/0323Z
KJGG
EffectiveExpiresCategoryNOTAM
Domestic
2/22/26
1732Z
6/22/26
1732Z
!JGG 02/009 JGG OBST TOWER LGT (ASR 1023133) 372025.40N0763025.70W (11.8NM ENE JGG) 333.0FT (315.9FT AGL) U/S 2602221732-2606221732
2/22/26
0823Z
4/8/26
0823Z
!JGG 02/008 JGG OBST POWER LINE LGT (ASN 2017-AEA-12967-OE) 371045N0763909W (4.7NM SE JGG) 298FT (279FT AGL) U/S 2602220823-2604080823
2/12/26
0615Z
3/29/26
0519Z
!JGG 02/007 JGG OBST TOWER LGT (ASN 2017-AEA-3043-OE) 371100N0763752W (5.2NM SE JGG) 278FT (259FT AGL) U/S 2602120615-2603290519
2/2/26
0824Z
3/19/26
0824Z
!JGG 02/003 JGG OBST POWER LINE LGT (ASN 2017-AEA-12967-OE) 371045N0763909W (4.7NM SE JGG) 298FT (279FT AGL) U/S 2602020824-2603190824
2/2/26
0608Z
3/19/26
0625Z
!JGG 02/002 JGG OBST POWER LINE LGT (ASN 2018-AEA-1830-OE) 371004N0763944W (5.0NM SSE JGG) 135FT (117FT AGL) U/S 2602020608-2603190625
1/31/26
2246Z
2/28/26
2359Z
!JGG 01/015 JGG OBST TOWER LGT (ASR 1253271) 371654.40N0764747.60W (4.6NM NW JGG) 457.0FT (404.9FT AGL) U/S 2601312246-2602282359
1/22/26
1843Z
4/22/26
0500Z
!JGG 01/007 JGG OBST TOWER LGT (ASR 1035887) 371959.10N0764229.40W (5.7NM NE JGG) 433.1FT (353.0FT AGL) U/S 2601221843-2604220500
1/21/26
1010Z
3/7/26
1010Z
!JGG 01/005 JGG OBST TOWER LGT (ASN 2018-AEA-1827-OE) 370940N0763954W (5.2NM SSE JGG) 135FT (117FT AGL) U/S 2601211010-2603071010
1/13/26
1041Z
2/27/26
1041Z
!JGG 01/002 JGG OBST TOWER LGT (ASN 2018-AEA-1831-OE) 371039N0763939W (4.5NM SE JGG) 138FT (120FT AGL) U/S 2601131041-2602271041
4/15/15
1947Z
Runway!JGG 04/001 JGG RWY 31 THR DISPLACED 200FT 1504151947-PERM
No
NOV-FEB 0800-1800
MAR-OCT 0800-1900
ARPT UNATTND CHRISTMAS DAY - ATTND BY REQUEST.
WILLIAMSBURG-JAMESTOWN ARPT.
100 MARCLAY RD
WILLIAMSBURG, VA 23185
Phone: 757-229-9256
HERON WEIDNER
100 MARCLAY RD
WILLIAMSBURG, VA 23185
Phone: 757-229-9256
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
JGG
--
ACTVT REIL RWY 13 & 31; MIRL RY 13/31; PERIMETER LGTS RY H1 - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 13/31

3204 ft. x 60 ft.
ASPH
Poor
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 120°300°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 14' 29"N 37° 14' 13"N
Longitude 76° 43' 15"W 76° 42' 41"W
Elevation 48' 22'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

60 ft. x 60 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 37° 14' 32"N N/A
Longitude 76° 43' 09"W N/A
Elevation 40' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2DEER & BIRDS ON & INVOF ARPT.
A110-3NOISE ABATEMENT PROCEDURES IN EFFECT; CTC AMGR 757-229-9256. RY 31 DEP TURN LEFT HEADING 270 DEG TO AVOID SCHOOL 3500 FT OFF RY END.
A110-4GCO AVBL ON FREQ 135.075 THRU NORFOLK CD, 4 CLICKS NORFOLK, 5 LEESBURG RADIO (CLICK SLOWLY). IF UN, FOR CD CTC NORFOLK APCH AT 757-464-0757.
A110-5HELIPAD CLSD CT 122.8 FOR LDG INSTRUCTIONS.
A110-6PAEW ADJECENT TO RY 13/31.
A17-M1ARPT UNATTND CHRISTMAS DAY - ATTND BY REQUEST.
A33-13/31_CONDNMRS CRACKS IN RWY PAVEMENT. PCI VALUE OF 45.
A51-31200 FT DTHR. CLR SLP 15:1 TO DTHR.
A58-3113 FT TREE 150 FT FM THR 115 L OF CNTRLN; BRUSH APRX 120 FT FM THR, ARND PEN EDGE, 10 FT ABV RWY END.
A81-APTACTVT REIL RWY 13 & 31; MIRL RY 13/31; PERIMETER LGTS RY H1 - CTAF.
WALTRIP WILLIAMSBURG EXEC AIRPORT (ICAO: KJGG, IATA: JGG) is a public airport located in WILLIAMSBURG, VA, US.
