KJFX
WALKER COUNTY-BEVILL FLD
PublicPUB

5 miles NW of JASPER, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 54' 07"N 87° 18' 50"W
483' MSL
1483' MSL
01W
JET A, JET A-1, 100LL
ANNISTON (ANB)
ATLANTA
ATLANTA (ZTL)
7/11/24-8/8/24
KJFX LIFR
5:35 AM CDT
Overcast 300'
10sm
61°F
61°F
29.94"Hg
Calm
AO2
KJFX 191035Z AUTO 00000KT 10SM OVC003 16/16 A2994 RMK AO2
Add Your Business

KJFX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3PT

AWOS-3PT
205-295-5539
 119.225

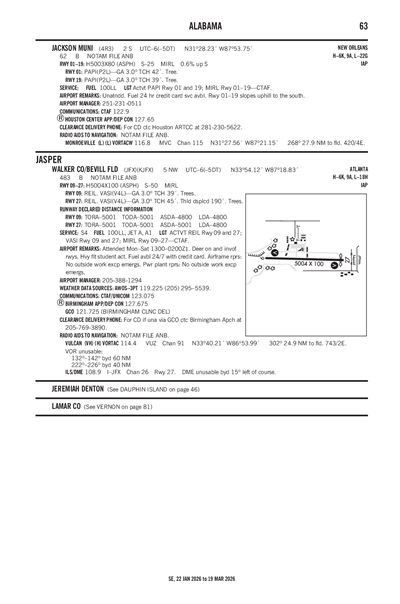

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBHM (35nm)
Thu, 9/19 12:37 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 11:00 AM CDT
Sky Clear
6sm
VRB° 3kts
VFR
11:00 AM CDT - 7:00 PM CDT
Few 5,000'
6sm
360° 6kts
VFR
7:00 PM CDT - 1:00 AM CDT
Sky Clear
6sm
VRB° 3kts
KBHM 190537Z 1906/2006 VRB03KT P6SM SKC
   FM191600 36006KT P6SM FEW050
   FM200000 VRB03KT P6SM SKC
KJFX
Domestic
9/16/241528Z !ANB 09/574 JFX OBST TOWER LGT (ASR 1262907) 333641.00N0870948.00W (18.9NM SSE JFX) 834.0FT (308.1FT AGL) U/S 2409161528-2501141528
9/16/240456Z !ANB 09/562 JFX OBST TOWER LGT (ASR 1267149) 334130.00N0870723.50W (15.7NM SE JFX) 797.9FT (259.8FT AGL) U/S 2409160456-2410010356
9/14/240810Z !ANB 09/511 JFX OBST TOWER LGT (ASR 1278677) 335448.20N0870454.20W (11.6NM E JFX) 675.2FT (306.1FT AGL) U/S 2409140810-2409290710
9/14/240808Z !ANB 09/510 JFX OBST TOWER LGT (ASR 1270090) 335720.90N0870906.20W (8.8NM ENE JFX) 944.9FT (310.0FT AGL) U/S 2409140808-2409290708
9/10/240502Z !ANB 09/266 JFX OBST TOWER LGT (ASR 1277771) 335729.40N0870455.90W (12.1NM ENE JFX) 972.1FT (306.1FT AGL) U/S 2409100502-2409250402
9/6/241512Z !ANB 09/159 JFX OBST TOWER LGT (ASR 1017642) 334908.00N0870843.00W (9.7NM ESE JFX) 658.8FT (275.9FT AGL) U/S 2409061512-2412050400
9/6/240503Z !ANB 09/142 JFX OBST TOWER LGT (ASR 1036971) 334752.30N0871824.20W (6.2NM S JFX) 973.1FT (348.1FT AGL) U/S 2409060503-2409210403
8/31/240637Z !ANB 08/932 JFX OBST TOWER LGT (ASR 1306120) 335959.90N0872507.90W (7.86NM NW JFX) 1069FT (420FT AGL) U/S 2408310637-2410012300
8/23/241446Z !ANB 08/707 JFX OBST TOWER LGT (ASR 1304606) 335317.85N0870901.23W (8.2NM E JFX) 815FT (315FT AGL) U/S 2408231446-2410071446
8/8/241248Z !ANB 08/226 JFX OBST TOWER LGT (ASR 1270695) 334943.60N0872630.10W (7.8NM SW JFX) 828.1FT (310.0FT AGL) U/S 2408081248-2409221247
8/6/242015Z !ANB 08/180 JFX SVC PCL FREQ CHANGED TO 123.075 2408062015-2409302359
8/6/242014Z !ANB 08/179 JFX COM UNICOM FREQ 122.7 NOW 123.075 ALSO MNT 122.7 2408062014-2409302359
No
MON - SAT 0700-2000
WALKER COUNTY COMMISSION
1801 3RD AVE. S., SUITE 113
JASPER, AL 35501
Phone: 205-384-7230
KEITH DUNCAN
198 BIDDLE DRIVE
JASPER, AL 35503
Phone: 205-388-1294
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT REIL RWY 9 & 27; VASI RWY 9 & 27; MIRL RWY 9/27- CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
16
0
0
1
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 09/27

5004 ft. x 100 ft.
ASPH
Fair
NONE
MED

50,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 92°272°
Traffic Pattern
Markings NPI PIR
Markings Condition FAIR FAIR
Latitude 33° 54' 08"N 33° 54' 06"N
Longitude 87° 19' 19"W 87° 18' 20"W
Elevation 482' 474'
Threshold Crossing Height 39 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1DEER ON & INVOF RWYS.
A110-2GCO AVBL ON FREQ 121.725 THRU BIRMINGHAM (BHM) CLEARANCE DELIVERY.
A110-3FOR CD IF UNA VIA GCO CTC BIRMINGHAM APCH AT 205-769-3890.
A110-4HVY FLT STUDENT ACT.
WALKER COUNTY-BEVILL FLD (ICAO: KJFX, IATA: JFX) is a public airport located in JASPER, AL.
