KJES
JESUP-WAYNE COUNTY
PublicPUB

3 miles S of JESUP, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 33' 14"N 81° 52' 57"W
107' MSL
1107' MSL
04W
JET A (FSII), 100LL
MACON (MCN)
JACKSONVILLE
JACKSONVILLE (ZJX)
7/11/24-8/8/24
KJES LIFR
6:35 AM EDT
Mist
Overcast 200'
1.75sm
68°F
68°F
29.90"Hg
Calm
AO2
KJES 191035Z AUTO 00000KT 1 3/4SM BR OVC002 20/20 A2990 RMK AO2
Add Your Business

KJES FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
912 427 0855
 118.125

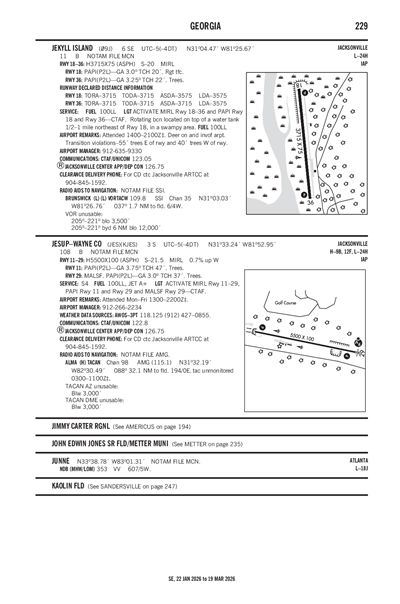

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSSI (35nm)
Thu, 9/19 5:44 AM EDT
Thu, 9/19 6:00 AM EDT - Fri, 9/20 2:00 AM EDT
VFR
6:00 AM EDT - 9:00 AM EDT
Mist
Scattered 7,000'
6sm
VRB° 3kts
VFR
9:00 AM EDT - 1:00 PM EDT
Scattered 2,500'
6sm
320° 5kts
VFR
1:00 PM EDT - 2:00 AM EDT
Scattered 25,000'
Few 3,000'
6sm
080° 7kts
KSSI 190944Z 1910/2006 VRB03KT 6SM BR SCT070
   FM191300 32005KT P6SM SCT025
   FM191700 08007KT P6SM FEW030 SCT250
KJES
Domestic
9/9/240700Z !MCN 09/211 JES OBST TOWER LGT (ASR 1249081) 314109.80N0820602.30W (13.5NM NW JES) 564.6FT (404.9FT AGL) U/S 2409090700-2410090001
9/8/242216Z !MCN 09/200 JES OBST TOWER LGT (ASN 2019-ASO-1227-OE) 313827N0815225W (5.2NM NE JES) 347FT (260FT AGL) U/S 2409082216-2410232216
9/6/240506Z !MCN 09/125 JES OBST TOWER LGT (ASR 1239917) 312410.80N0814115.30W (13.3NM SE JES) 386.2FT (349.1FT AGL) U/S 2409060506-2409210406
8/7/240738Z !MCN 08/282 JES OBST TOWER LGT (ASR 1237480) 312659.90N0815523.30W (6.6NM SSW JES) 373.7FT (308.7FT AGL) U/S 2408070738-2409210730
1/1/240535Z !MCN 01/011 JES RWY 29 PAPI U/S 2401010535-2409302359
1/1/240534Z !MCN 01/010 JES RWY 11 PAPI U/S 2401010534-2409302359
No
MON-FRI 0800-1700
WAYNE COUNTY
PO BOX 270
JESUP, GA 31598
Phone: 912-427-5900
MITCH SUTTON
535 AIRPORT ROAD
JESUP, GA 31546
Phone: 912-266-2234
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT MIRL RY 11/29; PAPI RY 11; PAPI RY 29 & MALSF RY 29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
1
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 11/29

5500 ft. x 100 ft.
ASPH
Good
NONE
MED

22,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 99°279°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 31° 33' 19"N 31° 33' 10"N
Longitude 81° 53' 28"W 81° 52' 26"W
Elevation 107' 70'
Threshold Crossing Height 47 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3.75° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC JACKSONVILLE ARTCC AT 904-845-1592.
JESUP-WAYNE COUNTY (ICAO: KJES, IATA: JES) is a public airport located in JESUP, GA.
