KJAX
JACKSONVILLE INTL
PublicPUB

9 miles N of JACKSONVILLE, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 29' 39"N 81° 41' 16"W
30' MSL
1030' MSL
06W
JET A, 100LL
GAINESVILLE (GNV)
JACKSONVILLE
JACKSONVILLE (ZJX)
4/17/25-5/15/25
KJAX VFR
12:56 PM EST
Few 3,800'
10sm
74°F
54°F
30.29"Hg
100° 9kts
AO2 SLP258 T02330122 10239 20067 58019
METAR KJAX 041756Z 10009KT 10SM FEW038 23/12 A3029 RMK AO2 SLP258 T02330122 10239 20067 58019
+ Add Your Business

KJAX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
 125.85

ASOS

ASOS
904-741-4304
 125.85

Approach/Departure

APCH/P DEP/P
ABV 6000 FT
 121.3
APCH/P DEP/P
091-180 5000 FT & BLW
 124.9
APCH/P DEP/P
270-090
 127.0
APCH/P DEP/P
181-269
 127.775
APCH/P DEP/P
091-180 ABV 5000 FT
 132.775
APCH/P DEP/P IC
 119.0
APCH/S DEP/S
270-090
 119.0

Clearance Delivery

CD/P
 119.5

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.3

Other

ALCRN STAR
 127.0
ARNEY DP
 127.0
CLASS C
091-180 5000 FT & BLW
 124.9
CLASS C
270-090
 127.0
CLASS C
181-269
 127.775
CLASS C
091-180 ABV 5000 FT
 132.775
CLASS C/S
270-090
 119.0
CROSB DP
 127.0
EXBOX DP
 124.9
HOTAR STAR
270-090
 119.0
HOTAR STAR
091-180
 124.9
HOTAR STAR
270-090
 127.0
HOTAR STAR
181-269
 127.775
JACKSONVILLE DP
 127.0
JETIN DP
 127.0
LUNNI STAR
270-090
 119.0
LUNNI STAR
091-180
 124.9
LUNNI STAR
270-090
 127.0
LUNNI STAR
181-269
 127.775
MARQO STAR
270-090
 119.0
MARQO STAR
091-180
 124.9
MARQO STAR
270-090
 127.0
MARQO STAR
181-269
 127.775
OHDEA STAR
270-090
 119.0
OHDEA STAR
091-180
 124.9
OHDEA STAR
270-090
 127.0
OHDEA STAR
181-269
 127.775
POGIE STAR
 127.775
QUBEN STAR
270-090
 119.0
QUBEN STAR
091-180
 124.9
QUBEN STAR
270-090
 127.0
QUBEN STAR
181-269
 127.775
SAWGY DP
 124.9
TEBOW STAR
270-090
 119.0
TEBOW STAR
091-180
 124.9
TEBOW STAR
270-090
 127.0
TEBOW STAR
181-269
 127.775

Terminal Area Forecast

KJAX
Tue, 11/4 12:20 PM EST
Tue, 11/4 1:00 PM EST - Wed, 11/5 1:00 PM EST
VFR
1:00 PM EST - 7:00 PM EST
Few 3,500'
6sm
060° 5kts
Gusts 15kts
VFR
7:00 PM EST - 1:00 PM EST
Sky Clear
6sm
VRB° 4kts
TAF KJAX 041720Z 0418/0518 06005G15KT P6SM FEW035
   FM050000 VRB04KT P6SM SKC
KJAX
EffectiveExpiresCategoryNOTAM
Domestic
10/30/25
1200Z
10/30/25
2100Z
!JAX 10/064 JAX TWY C CLSD 2510301200-2510302100
10/30/25
1200Z
10/30/25
2100Z
Runway!JAX 10/063 JAX RWY 08/26 CLSD 2510301200-2510302100
10/29/25
1400Z
10/29/25
1600Z
!JAX 10/065 JAX NAV ILS RWY 26 GP U/S 2510291400-2510291600
10/29/25
1200Z
10/29/25
2100Z
!JAX 10/062 JAX TWY C CLSD 2510291200-2510292100
10/29/25
1200Z
10/29/25
2100Z
Runway!JAX 10/061 JAX RWY 08/26 CLSD 2510291200-2510292100
10/28/25
1603Z
10/31/25
2100Z
!JAX 10/060 JAX TWY L CL MARKINGS BTN TWY N AND APCH END RWY 08 REMOVED 2510281603-2510312100
10/21/25
2218Z
12/31/25
2359Z
!JAX 10/040 JAX TWY P BTN TWY N AND TWY V CLSD 2510212218-2512312359
10/21/25
2217Z
12/31/25
2359Z
!JAX 10/039 JAX TWY P DIRECTION MARKINGS FOR TWY V REMOVED 2510212217-2512312359
10/21/25
2047Z
!JAX 10/038 JAX NAV ILS RWY 26 LOC U/S 2510212047-2511152000EST
10/20/25
1552Z
1/20/26
0500Z
!JAX 10/036 JAX OBST CRANE (ASN UNKNOWN) 302930N0814123W (0.7NM S APCH END RWY 08)
154FT (130FT AGL) FLAGGED AND LGTD 2510201552-2601200500
10/11/25
2136Z
11/15/25
2200Z
!JAX 10/023 JAX OBST CRANE (ASN 2024-ASO-15074-NRA) 302914N0814046W (0.6NM SE JAX) 148FT (125FT AGL) FLAGGED AND LGTD 2510112136-2511152200
10/6/25
1200Z
10/6/26
2100Z
!JAX 10/011 JAX OBST CRANE (ASN 2025-ASO-8921-NRA) 302943N0814049W (0.4NM ENE JAX) 172FT (150FT AGL) FLAGGED AND LGTD 2510061200-2610062100
10/6/25
1200Z
10/6/26
2100Z
!JAX 10/010 JAX OBST CRANE (ASN 2025-ASO-8920-NRA) 302943N0814051W (0.4NM E JAX) 170FT (150FT AGL) FLAGGED AND LGTD 2510061200-2610062100
10/6/25
1200Z
10/6/26
2100Z
!JAX 10/009 JAX OBST CRANE (ASN 2025-ASO-8919-NRA) 302943N0814052W (0.4NM E JAX) 170FT (150FT AGL) FLAGGED AND LGTD 2510061200-2610062100
10/6/25
1200Z
10/6/26
2100Z
!JAX 10/008 JAX OBST CRANE (ASN 2025-ASO-8918-NRA) 302942N0814052W (0.4NM E JAX) 170FT (150FT AGL) FLAGGED AND LGTD 2510061200-2610062100
10/6/25
1200Z
10/6/26
2100Z
!JAX 10/007 JAX OBST CRANE (ASN 2025-ASO-8916-NRA) 302941N0814052W (0.4NM E JAX) 170FT (150FT AGL) FLAGGED AND LGTD 2510061200-2610062100
10/6/25
1200Z
10/6/26
2100Z
!JAX 10/006 JAX OBST CRANE (ASN 2025-ASO-8917-NRA) 302942N0814052W (0.4NM E JAX) 170FT (150FT AGL) FLAGGED AND LGTD 2510061200-2610062100
10/6/25
1200Z
10/6/26
2100Z
!JAX 10/004 JAX OBST CRANE (ASN 2025-ASO-8915-NRA) 302941N0814050W (0.4NM E JAX) 171FT (150FT AGL) FLAGGED AND LGTD 2510061200-2610062100
10/6/25
1200Z
10/6/26
2100Z
!JAX 10/003 JAX OBST CRANE (ASN 2025-ASO-8914-NRA) 302944N0814051W (0.4NM ENE JAX) 172FT (150FT AGL) FLAGGED AND LGTD 2510061200-2610062100
9/21/25
1522Z
12/21/25
2100Z
!JAX 09/030 JAX OBST CRANE (ASN 2023-ASO-10640-NRA) 302943N0814044W (0.5NM E JAX) 115FT (90FT AGL) FLAGGED AND LGTD 2509211522-2512212100
9/21/25
1521Z
12/21/25
2100Z
!JAX 09/029 JAX OBST CRANE (ASN 2023-ASO-10641-NRA) 302942N0814043W (0.5NM E JAX) 115FT (90FT AGL) FLAGGED AND LGTD 2509211521-2512212100
9/21/25
1521Z
12/21/25
2100Z
!JAX 09/028 JAX OBST CRANE (ASN 2023-ASO-10643-NRA) 302940N0814045W (0.5NM E JAX) 115FT (90FT AGL) FLAGGED AND LGTD 2509211521-2512212100
9/21/25
1520Z
12/21/25
2100Z
!JAX 09/027 JAX OBST CRANE (ASN 2023-ASO-10642-NRA) 302940N0814043W (0.5NM E JAX) 115FT (90FT AGL) FLAGGED AND LGTD 2509211520-2512212100
9/15/25
1843Z
2/1/26
2200Z
!JAX 09/022 JAX NAV ILS RWY 14 U/S 2509151843-2602012200
8/8/25
1727Z
!JAX 08/021 JAX NAV DINNS LOM NDB U/S 2508081727-2602112111EST
7/21/25
1915Z
8/1/26
1200Z
!JAX 07/030 JAX APRON WEST AIR CARRIER RAMP BTN TWY J AND TWY P CLSD 2507211915-2608011200
7/13/25
2302Z
7/7/26
2100Z
!JAX 07/020 JAX OBST CRANE (ASN 2024-ASO-15242-NRA) 302924N0814053W (0.4NM SE JAX) 176FT (150FT AGL) FLAGGED AND LGTD 2507132302-2607072100
7/13/25
2301Z
7/7/26
2000Z
!JAX 07/019 JAX OBST CRANE (ASN 2024-ASO-15247-NRA) 302930N0814048W (0.4NM ESE JAX) 176FT (150FT AGL) FLAGGED AND LGTD 2507132301-2607072000
7/13/25
2300Z
7/7/26
2000Z
!JAX 07/018 JAX OBST CRANE (ASN 2024-ASO-15243-NRA) 302924N0814051W (0.4NM ESE JAX) 176FT (150FT AGL) FLAGGED AND LGTD 2507132300-2607072000
7/13/25
2259Z
7/7/26
2000Z
!JAX 07/017 JAX OBST CRANE (ASN 2024-ASO-15245-NRA) 302926N0814049W (0.4NM ESE JAX) 176FT (150FT AGL) FLAGGED AND LGTD 2507132259-2607072000
7/13/25
2258Z
7/7/26
2000Z
!JAX 07/016 JAX OBST CRANE (ASN 2024-ASO-15244-NRA) 302924N0814049W (0.5NM ESE JAX) 176FT (150FT AGL) FLAGGED AND LGTD 2507132258-2607072000
7/13/25
2257Z
7/7/26
2000Z
!JAX 07/015 JAX OBST CRANE (ASN 2024-ASO-15248-NRA) 302931N0814050W (0.4NM ESE JAX) 176FT (150FT AGL) FLAGGED AND LGTD 2507132257-2607072000
7/13/25
2256Z
7/7/26
2000Z
!JAX 07/014 JAX OBST CRANE (ASN 2024-ASO-15246-NRA) 302928N0814048W (0.4NM ESE JAX) 176FT (150FT AGL) FLAGGED AND LGTD 2507132256-2607072000
6/30/25
0826Z
!JAX 06/035 JAX NAV ILS RWY 08 IM U/S 2506300826-2606252111EST
4/30/25
1417Z
!JAX 04/079 JAX NAV ILS RWY 26 OM U/S 2504301417-2510302111EST
12/9/24
1415Z
12/31/25
2359Z
!JAX 12/016 JAX APRON TXL G S OF FIDELITY FIXED BASE OPR RAMP CLSD 2412091415-2512312359
12/9/24
1415Z
12/31/25
2359Z
!JAX 12/015 JAX APRON GOLF RAMP CLSD 2412091415-2512312359
11/20/24
0501Z
11/20/25
0459Z
!JAX 11/028 JAX OBST CRANE (ASN 2024-ASO-5714-NRA) 302932N0814108W (0.2NM SE JAX) 279FT (250FT AGL) FLAGGED AND LGTD 2411200501-2511200459
11/20/24
0501Z
11/20/25
0459Z
!JAX 11/027 JAX OBST CRANE (ASN 2024-ASO-5713-NRA) 302928N0814109W (0.2NM SSE JAX) 279FT (250FT AGL) FLAGGED AND LGTD 2411200501-2511200459
11/20/24
0501Z
11/20/25
0459Z
!JAX 11/026 JAX OBST CRANE (ASN 2024-ASO-5718-NRA) 302934N0814117W (0.1NM SSW JAX) 279FT (250FT AGL) FLAGGED AND LGTD 2411200501-2511200459
11/20/24
0501Z
11/20/25
0459Z
!JAX 11/025 JAX OBST CRANE (ASN 2024-ASO-5717-NRA) 302934N0814119W (0.1NM SSW JAX) 279FT (250FT AGL) FLAGGED AND LGTD 2411200501-2511200459
11/20/24
0501Z
11/20/25
0459Z
!JAX 11/024 JAX OBST CRANE (ASN 2024-ASO-5716-NRA) 302930N0814119W (0.1NM SSW JAX) 279FT (250FT AGL) FLAGGED AND LGTD 2411200501-2511200459
11/20/24
0501Z
11/20/25
0459Z
!JAX 11/023 JAX OBST CRANE (ASN 2024-ASO-5715-NRA) 302929N0814119W (0.2NM SSW JAX) 279FT (250FT AGL) FLAGGED AND LGTD 2411200501-2511200459
FDC
10/29/25
1200Z
11/5/25
2056Z
!FDC 5/7817 JAX IAP U.S. DOD JACKSONVILLE INTL, JACKSONVILLE, FL.
HI-ILS Z OR LOC Z RWY 14, AMDT 3B...
MISSED APPROACH: CLIMB TO 2000 THEN CLIMBING LEFT TURN TO 4000 ON HEADING 315. EXPECT RADAR VECTORS (RADAR REQUIRED).
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
2510291200-2511052056EST
10/29/25
1200Z
11/5/25
2056Z
!FDC 5/7815 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
HI-ILS Z OR LOC Z RWY 8, AMDT 6A...
MISSED APPROACH: CLIMB TO 1000 THEN CLIMBING LEFT TURN TO 4000 ON HEADING 250, EXPECT RADAR VECTORS (RADAR REQUIRED).
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CRG VORTAC OUT OF SERVICE. 2510291200-2511052056EST
10/29/25
1200Z
11/5/25
2056Z
!FDC 5/7814 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
HI-ILS Z OR LOC Z RWY 26, AMDT 3A...
MISSED APPROACH: CLIMB TO 1200 THEN CLIMBING RIGHT TURN TO 4000 ON HEADING 360. EXPECT RADAR VECTORS (RADAR REQUIRED).
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CRG VORTAC OUT OF SERVICE. 2510291200-2511052056EST
10/29/25
1200Z
11/5/25
2056Z
!FDC 5/7809 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
ILS Y OR LOC Y RWY 8, AMDT 14...
ILS Y RWY 8 (SA CAT I), AMDT 14...
ILS Y RWY 8 (CAT II-III), AMDT 14...
MISSED APPROACH: CLIMB TO 1000 THEN CLIMBING LEFT TURN TO 3000 ON HEADING 250, EXPECT RADAR VECTORS (RADAR REQUIRED).
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CRG VORTAC OUT OF SERVICE. 2510291200-2511052056EST
10/29/25
1200Z
11/5/25
2056Z
!FDC 5/7807 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
ILS Y OR LOC Y RWY 14, AMDT 7D...
KUYER FIX MINIMUMS: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
MISSED APPROACH: CLIMB TO 3000 ON HEADING 140, EXPECT RADAR VECTORS. RADAR REQUIRED,
CRG VORTAC OUT OF SERVICE. 2510291200-2511052056EST
10/29/25
1200Z
11/5/25
2056Z
!FDC 5/7806 JAX SID JACKSONVILLE INTL, JACKSONVILLE, FL.
SAWGY THREE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CRG VORTAC OUT OF SERVICE. 2510291200-2511052056EST
10/10/25
1406Z
!FDC 5/9539 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
RNAV (GPS) Z RWY 32, AMDT 3...
LNAV MDA 460/HAT 436 ALL CATS, VIS CATS C/D 1 1/4. TEMPORARY CRANE 148 MSL 3351FT N OF RWY 32 (2024-ASO-15074-NRA).
2510101406-2512301406EST
10/8/25
1832Z
!FDC 5/8263 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
RNAV (RNP) Y RWY 8, ORIG-B...
RNP 0.11 DA 382/HAT 352 ALL CATS. TEMPORARY CRANE 143 MSL 3020FT SW OF RWY 14 (2023-ASO-5675-NRA).
2510081832-2605202355EST
9/16/25
1704Z
!FDC 5/4901 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
RNAV (GPS) Z RWY 14, AMDT 2D...
RNAV (GPS) Z RWY 32, AMDT 3...
RNAV (GPS) Z RWY 8, AMDT 2D...
CIRCLING MDA 640/HAA 610 ALL CATS. TEMPORARY CRANES 279 MSL 536FT S OF JAX AIRPORT (2024-ASO-5713/5715 THRU 5718-NRA). TEMPORARY CRANES 176 MSL 2409FT SE OF JAX AIRPORT (2024-ASO-15242 THRU 15248-NRA). TEMPORARY CRANES 179 MSL 4785FT SE OF JAX AIRPORT (2025-ASO-1151/1152-NRA).
2509161704-2512041704EST
9/16/25
1704Z
!FDC 5/4900 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
RNAV (GPS) Z RWY 26, AMDT 2E...
CIRCLING CAT A/B/C MDA 640/HAA 610. TEMPORARY CRANES 279 MSL 536FT S OF JAX AIRPORT (2024-ASO-5713/5715 THRU 5718-NRA). TEMPORARY CRANES 176 MSL 2409FT SE OF JAX AIRPORT (2024-ASO-15242 THRU 15248-NRA). TEMPORARY CRANES 179 MSL 4785FT SE OF JAX AIRPORT (2025-ASO-1151/1152-NRA).
2509161704-2512041704EST
9/16/25
1704Z
!FDC 5/4899 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
ILS Y OR LOC Y RWY 26, AMDT 3...
CIRCLING MDA 640/HAA 610 ALL CATS. ZETRI FIX MINIMUMS (DUAL VOR RECEIVERS REQUIRED): CIRCLING MDA 640/HAA 610 ALL CATS. TEMPORARY CRANES 279 MSL 536FT S OF JAX AIRPORT (2024-ASO-5713/5715 THRU 5718-NRA). TEMPORARY CRANES 176 MSL 2409FT SE OF JAX AIRPORT (2024-ASO-15242 THRU 15248-NRA). TEMPORARY CRANES 179 MSL 4785FT SE OF JAX AIRPORT (2025-ASO-1151/1152-NRA).
2509161704-2512041704EST
9/16/25
1704Z
!FDC 5/4898 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
ILS Y OR LOC Y RWY 14, AMDT 7D...
CIRCLING MDA 640/HAA 610 ALL CATS. KUYER FIX MINIMUMS (DME REQUIRED): CIRCLING MDA 640/HAA 610 ALL CATS. TEMPORARY CRANES 279 MSL 536FT S OF JAX AIRPORT (2024-ASO-5713/5715 THRU 5718-NRA). TEMPORARY CRANES 176 MSL 2409FT SE OF JAX AIRPORT (2024-ASO-15242 THRU 15248-NRA). TEMPORARY CRANES 179 MSL 4785FT SE OF JAX AIRPORT (2025-ASO-1151/1152-NRA).
2509161704-2512041704EST
9/16/25
1704Z
!FDC 5/4897 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
ILS Y OR LOC Y RWY 8, AMDT 14...
VOR/DME RWY 32, AMDT 2D...
CIRCLING CAT A/B/C/D MDA 640/HAA 610. TEMPORARY CRANES 279 MSL 536FT S OF JAX AIRPORT (2024-ASO-5713/5715 THRU 5718-NRA). TEMPORARY CRANES 176 MSL 2409FT SE OF JAX AIRPORT (2024-ASO-15242 THRU 15248-NRA). TEMPORARY CRANES 179 MSL 4785FT SE OF JAX AIRPORT (2025-ASO-1151/1152-NRA).
2509161704-2512041704EST
8/22/25
1515Z
!FDC 5/1741 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
ILS Y RWY 8 (CAT II AND III), AMDT 14 ...
S-ILS 8 CAT II NA EXCEPT FOR AIRCRAFT EQUIPPED WITH RADIO ALTIMETER. I-JAX IM OUT OF SERVICE. 2508221515-2604031515EST
6/12/25
1323Z
!FDC 5/3203 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
RNAV (GPS) Z RWY 32, AMDT 3...
VOR/DME RWY 32, AMDT 2D...
STRAIGHT IN RWY 32 NA AT NIGHT, CIRCLING RWY 32 NA AT NIGHT. CHANGE NOTE TO READ: RWY 32 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA. VDP NA. TEMPORARY CRANE 100 MSL 1067FT SE OF RWY 32 (2024-ASO-2685-NRA).
2506121323-2511111731EST
4/29/25
1315Z
!FDC 5/2719 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
ILS Y OR LOC Y RWY 14, AMDT 7D...
ILS Y OR LOC Y RWY 26, AMDT 3...
ILS Y OR LOC Y RWY 8, AMDT 14...
RNAV (GPS) Z RWY 14, AMDT 2D...
RNAV (GPS) Z RWY 26, AMDT 2E...
RNAV (GPS) Z RWY 8, AMDT 2D...
CIRCLING RWY 32 NA AT NIGHT. TEMPORARY CRANE 100 MSL 1067FT SE OF RWY 32 (2024-ASO-2685-NRA).
2504291315-2511111315EST
4/29/25
1315Z
!FDC 5/2718 JAX IAP U.S. DOD JACKSONVILLE INTL, JACKSONVILLE, FL.
HI - TACAN RWY 14, AMDT 4C...
HI-ILS Z OR LOC Z RWY 14, AMDT 3B...
HI-ILS Z OR LOC Z RWY 26, AMDT 3A...
HI-ILS Z OR LOC Z RWY 8, AMDT 6A...
CIRCLING RWY 32 NA AT NIGHT. TEMPORARY CRANE 100 MSL 1067FT SE OF RWY 32 (2024-ASO-2685-NRA).
2504291315-2511111315EST
4/29/25
1315Z
!FDC 5/2716 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
RNAV (RNP) Y RWY 32, AMDT 1A...
PROCEDURE NA AT NIGHT. TEMPORARY CRANE 100 MSL 1067FT SE OF RWY 32 (2024-ASO-2685-NRA).
2504291315-2511111315EST
4/29/25
1315Z
!FDC 5/2715 JAX ODP JACKSONVILLE INTL, JACKSONVILLE, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
ADD TAKEOFF OBSTACLE NOTE: RWY 14, TEMPORARY CRANE 1026FT FROM DER, 291FT LEFT OF CENTERLINE, 75FT AGL/ 100FT MSL (2024-ASO-2685-NRA).
ALL OTHER DATA REMAINS AS PUBLISHED. 2504291315-2511111315EST
11/19/24
1301Z
!FDC 4/5861 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
HI-ILS Z OR LOC Z RWY 26, AMDT 3A...
CIRCLING CAT C/D MDA 640/HAA 610, VIS CAT C 1 3/4. ZETRI FIX MINIMUMS (DUAL VOR RECEIVERS REQUIRED): CIRCLING CAT C/D MDA 640/HAA 610, VIS CAT C 1 3/4. TEMPORARY CRANES 279 MSL 536FT S OF JAX AIRPORT (2024-ASO-5713/5715 THRU 5718-NRA).
2411191301-2512041301EST
11/19/24
1301Z
!FDC 4/5860 JAX IAP U.S. DOD JACKSONVILLE INTL, JACKSONVILLE, FL.
HI-ILS Z OR LOC Z RWY 14, AMDT 3B...
CIRCLING CAT C MDA 640/HAA 610, VIS CAT C 1 3/4. TEMPORARY CRANES 279 MSL 536FT S OF JAX AIRPORT (2024-ASO-5713/5715 THRU 5718-NRA).
2411191301-2512041301EST
11/19/24
1301Z
!FDC 4/5858 JAX IAP U.S. DOD JACKSONVILLE INTL, JACKSONVILLE, FL.
HI - TACAN RWY 14, AMDT 4C...
S-14* CAT C/D/E MDA 520/493, VIS CAT C/D/E 1. CIRCLING CAT C MDA 640/HAA 610, VIS CAT C 1 3/4. *WHEN ALS INOP, INCREASE VIS TO 1 3/8 SM. TEMPORARY CRANES 279 MSL 536FT S OF JAX AIRPORT (2024-ASO-5713/5715 THRU 5718-NRA). TEMPORARY CRANE 143 MSL 1959FT W OF RWY 14 (2023-ASO-5675-NRA)..
2411191301-2512041301EST
11/19/24
1301Z
!FDC 4/5857 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
RNAV (GPS) Z RWY 26, AMDT 2E...
CIRCLING CAT A/B/C MDA 640/HAA 610. TEMPORARY CRANES 279 MSL 536FT S OF JAX AIRPORT (2024-ASO-5713/5715 THRU 5718-NRA).
2411191301-2512041301EST
5/16/24
1302Z
!FDC 4/5125 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
HI-ILS Z OR LOC Z RWY 14, AMDT 3B...
S-ILS 14* DA 306/HAT 279 ALL CATS; VIS 3/4.
2405161302-2605161302EST
12/7/23
2022Z
!FDC 3/2744 JAX IAP JACKSONVILLE INTL, JACKSONVILLE, FL.
HI-ILS Z OR LOC Z RWY 26, AMDT 3...
TERMINAL ROUTE FROM AMG VORTAC TO BIGS NA.
2312072022-2512072022EST
Yes
ALL
JACKSONVILLE INTL AIRPORT
14201 PECAN PARK ROAD
JACKSONVILLE, FL 32218
Phone: 904-741-2000
MR. TERRY DLUGOS
14201 PECAN PARK ROAD
JACKSONVILLE, FL 32218
Phone: (904) 741-3866
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
JAX
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Minor
None
None
Air Freight
Avionics
Cargo Handling
Charter Service
Annual Surveying

Runway 08/26

10000 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 08 Runway 26
True Heading 71°251°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 30° 29' 46"N 30° 30' 19"N
Longitude 81° 41' 60"W 81° 40' 12"W
Elevation 29' 26'
Threshold Crossing Height 70 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No

Runway 14/32

7701 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 14 Runway 32
True Heading 131°311°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 29' 32"N 30° 28' 42"N
Longitude 81° 42' 03"W 81° 40' 56"W
Elevation 27' 24'
Threshold Crossing Height 70 ft. AGL 67 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1BIRD ACTIVITY INVOF ARPT, WILDLIFE PRESENTLY ON AIRFIELD.
A110-11NON-LOAD BEARING ASPHALT ON WEST AIR CARRIER RAMP BTWN OUTER HIGH MAST LIGHTS AND TERMINAL. AIRCRAFT RQRD TO MAINTAIN TAXI OPS OVER CTRLN ON THE AIR CARRIER RAMP.
A110-12PPR FOR HIGH POWER JET ENGINE RUN UPS CTC APT OPS AT 904-741-2020.
A110-13MILITARY: ANG: OPR DAYS VARY. BASE OPS 1130-2100Z++. OFFL BUS ONLY. PPR FOR ALL TRAN AFCT (CALL FANG OPS) DSN 641-7122/40/25,C 904-741-7122/40/25. PPR NEEDED TO PROCD ON TWY M1, M2, M3 FANG MAIN RAMP AND ALERT RAMP. PPR NO RESTRD TO ONLY 1 HR EARLIER OR LTR THAN APVL TIME, BFR/AFT THOSE TIMES THE NO IS NOT VALID. TRAN SVCS UNAVBL. FOR CURRENT BWC CTC SOF (FANG OPS) 251.25. BASH PHASE II 1 NOV THRU 31 MAR FOR MIGRATORY BIRD ACT. FOR MORE DTLD INFO SEE AP/1.
A110-14ARPT CLSD TO ACFT WINGSPAN MORE THAN 171 FT EXC 6 HR PPR 904-741-2020.
A110-3BAK-14 CABLE RAISED FOR TAILHOOK ENGAGEMENT BY TWR ON PILOT REQ ONLY, 1537 FT FM AER 08 AND 1612 FT FM AER 26.
A110-7ARPT CLSD TO INTL GEN AVIATION ARR EXE 6HR PPR ARPT OPS AT 904-741-2020 & CTC U. S. CUSTOMS & SERVICING FBO FOR PROCESSING & INSTRUCTIONS.
A110-8RADIO CONTROLLED ACFT ACTIVITY 3.5 NM 'NNW' OF ARPT.
A110-9SMALL PORTION OF TERMINAL RAMP NOT VISIBLE FM TWR. TWR UNABLE TO DETERMINE IF RAMP IS CLEAR.

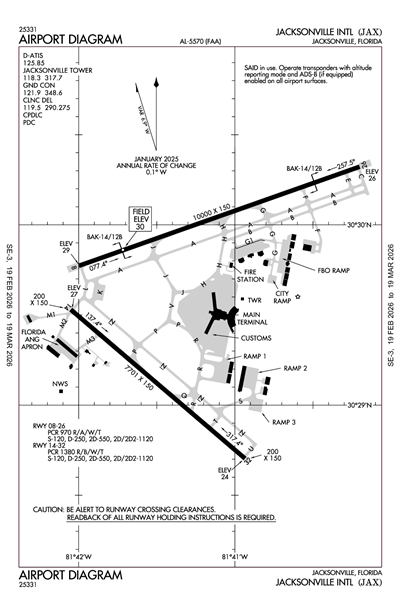

JACKSONVILLE INTL (ICAO: KJAX, IATA: JAX) is a public airport located in JACKSONVILLE, FL.
