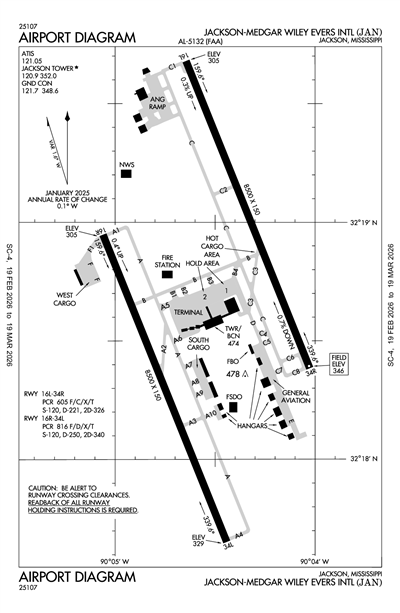

JACKSON-MEDGAR WILEY EVERS INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJAN
ICAO KJANIATA JANLocal JAN
JACKSON-MEDGAR WILEY EVERS INTL
PublicPUB

5 miles E of JACKSON, MS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 18' 40"N 90° 04' 33"W
Elevation
346' MSL
Pattern Alt
1346' MSL
Mag Variation
1°W
Declination
1°W
Fuel
JET A, JET A (FSII), 100LL
FSS
GREENWOOD (GWO)
Sectional
MEMPHIS
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
KJAN MVFR
11:54 PM CST
Overcast 1,400'
10sm
69°F
64°F
30.18"Hg
170° 11kts
AO2 SLP217 T02060178 10244 20200 402830122 51012
METAR KJAN 040554Z AUTO 17011KT 10SM OVC014 21/18 A3018 RMK AO2 SLP217 T02060178 10244 20200 402830122 51012
+ Add Your Business

KJAN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 121.05
ASOS 121.05
(601) 769-1216

Common

CTAF 120.9
WHEN TWR CLSD ACTVT MALSR RWY 34L; REIL RWY 16R & 34R; HIRL RWY 16L/34R & 16R/34L - CTAF. RWY 16L ALSF-2 PRESET ON MED INTST EXC SFL NOT AVBL.
UNICOM 122.95

Ground

JACKSON GROUND 121.7
1200-0500Z++

Tower

JACKSON TOWER 120.9
1200-0500Z++

Approach

JACKSON APPROACH 123.9
Initial Contact - 333-152
JACKSON APPROACH 125.25
153-332

Departure

JACKSON DEPARTURE 123.9
Initial Contact - 333-152
JACKSON DEPARTURE 125.25
153-332

Center

JACKSON CENTER 132.5
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 132.5/259.1 (JACKSON RCAG) WHEN JACKSON APCH CTL CLSD.

Flight Service

Flight Service 122.2
(GWO)

Emergency

Emergency 121.5

Other

CLASS C 123.9
333-152
CLASS C 125.25
153-332

Terminal Area Forecast

KJAN
Tue, 3/3 11:22 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 1:00 AM CST
Few 6,000'
6sm
160° 9kts
MVFR
1:00 AM CST - 11:00 AM CST
Overcast 1,500'
6sm
170° 6kts
VFR
11:00 AM CST - 12:00 AM CST
Broken 3,500'
6sm
170° 9kts
TAF KJAN 040522Z 0406/0506 16009KT P6SM FEW060
   FM040700 17006KT P6SM OVC015
   FM041700 17009KT P6SM BKN035
KJAN
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1400Z
3/4/26
2200Z
!JAN 03/011 JAN NAV ILS RWY 16L CAT II NA 2603041400-2603042200
3/4/26
1400Z
3/4/26
2200Z
Runway!JAN 03/010 JAN RWY 16L ALS U/S 2603041400-2603042200
3/2/26
1537Z
3/9/26
2200Z
!JAN 03/003 JAN OBST CRANE (ASN UNKNOWN) 321918N0900452W (.69NM N JAN)
UNKNOWN (140FT AGL) FLAGGED DLY 1537-2200 2603021537-2603092200
2/28/26
1211Z
5/29/26
0500Z
!JAN 02/080 JAN OBST TOWER LGT (ASR 1039606) 321918.00N0895812.00W (5.4NM E JAN) 592.8FT (194.9FT AGL) U/S 2602281211-2605290500
2/28/26
1033Z
3/30/26
2359Z
!JAN 02/079 JAN OBST TOWER LGT (ASR 1061019) 321406.50N0895346.30W (10.2NM ESE JAN) 854.3FT (303.1FT AGL) U/S 2602281033-2603302359
2/23/26
1721Z
5/24/26
0500Z
!JAN 02/069 JAN OBST TOWER LGT (ASR 1035160) 321608.50N0900443.50W (2.5NM S JAN) 549.9FT (194.9FT AGL) U/S 2602231721-2605240500
2/19/26
1432Z
5/18/26
2300Z
!JAN 02/058 JAN SVC ASR APCH U/S 2602191432-2605182300
2/18/26
0034Z
3/18/26
2359Z
!JAN 02/053 JAN OBST TOWER LGT (ASR 1296674) 320820.30N0895518.30W (12.9NM SE JAN) 686.7FT (310.7FT AGL) U/S 2602180034-2603182359
2/13/26
1200Z
5/12/26
2300Z
!JAN 02/043 JAN OBST CRANE (ASN UNKNOWN) 321959N0900502W (1.38NM N JAN)
UNKNOWN (120FT AGL) FLAGGED AND LGTD 2602131200-2605122300
2/9/26
1407Z
5/8/26
1500Z
!JAN 02/031 JAN TWY A LGT BTN TWY A10 AND TWY A4 U/S 2602091407-2605081500
2/9/26
1407Z
5/8/26
2200Z
!JAN 02/030 JAN TWY A3 SFC MARKINGS NOT STD 2602091407-2605082200
2/9/26
1406Z
5/8/26
2200Z
!JAN 02/029 JAN TWY A3 CLSD 2602091406-2605082200
2/9/26
1406Z
5/8/26
2200Z
!JAN 02/028 JAN TWY A2 SFC MARKINGS NOT STD 2602091406-2605082200
2/9/26
1406Z
5/8/26
2300Z
!JAN 02/027 JAN TWY A8 CLSD 2602091406-2605082300
2/9/26
1405Z
5/8/26
2300Z
!JAN 02/026 JAN TWY A9 CLSD 2602091405-2605082300
2/9/26
1405Z
5/8/26
2300Z
!JAN 02/025 JAN TWY A7 CLSD 2602091405-2605082300
2/9/26
1405Z
5/8/26
2300Z
!JAN 02/024 JAN TWY A10 CLSD 2602091405-2605082300
2/9/26
1405Z
5/8/26
2300Z
!JAN 02/023 JAN TWY A4 CLSD 2602091405-2605082300
2/9/26
1404Z
5/8/26
2300Z
!JAN 02/022 JAN TWY A BTN TWY A3 AND TWY A4 CLSD 2602091404-2605082300
2/9/26
1404Z
5/8/26
2300Z
!JAN 02/021 JAN TWY B3 CLSD 2602091404-2605082300
2/9/26
1404Z
5/8/26
2300Z
!JAN 02/020 JAN TWY B1 NONMOVEMENT AREA 2602091404-2605082300
2/9/26
1404Z
5/8/26
2300Z
!JAN 02/019 JAN TWY B BTN TWY A AND TWY B2 NONMOVEMENT AREA 2602091404-2605082300
2/9/26
1403Z
5/8/26
2300Z
!JAN 02/018 JAN TWY B2 CLSD 2602091403-2605082300
2/9/26
1403Z
5/8/26
2300Z
!JAN 02/017 JAN TWY B BTN TWY B1 AND TWY B4 CLSD 2602091403-2605082300
2/9/26
1402Z
5/8/26
2300Z
!JAN 02/016 JAN TWY A2 CLSD 2602091402-2605082300
2/9/26
1402Z
5/8/26
2300Z
!JAN 02/015 JAN TWY A TWY DIRECTION SIGN BTN TWY A3 AND TWY A4 LGT U/S 2602091402-2605082300
1/9/26
2112Z
3/6/26
2300Z
!JAN 01/023 JAN TWY C6 CLSD TO ACFT MORE THAN 550000LB 2601092112-2603062300
12/31/25
0926Z
Runway!JAN 12/071 JAN RWY 34L RTHL U/S 2512310926-2606262000EST
FDC
3/4/26
1300Z
!FDC 6/3203 JAN IAP JACKSON-MEDGAR WILEY EVERS INTL, JACKSON, MS.
ILS OR LOC RWY 34L, AMDT 7...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MHZ VORTAC OUT OF SERVICE. 2603041300-2603110033EST
3/4/26
1300Z
!FDC 6/3202 JAN IAP JACKSON-MEDGAR WILEY EVERS INTL, JACKSON, MS.
ILS OR LOC RWY 16L, AMDT 9...
ILS RWY 16L (SA CAT I), AMDT 8C...
ILS RWY 16L (CAT II-III), AMDT 8C...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MHZ VORTAC OUT OF SERVICE. 2603041300-2603110033EST
1/27/26
1247Z
!FDC 6/7308 JAN IAP JACKSON-MEDGAR WILEY EVERS INTL, JACKSON, MS.
VOR/DME OR TACAN RWY 16L, ORIG-B...
VOR/DME OR TACAN RWY 16R, ORIG-B...
VOR/DME OR TACAN RWY 34L, ORIG-B...
VOR/DME OR TACAN RWY 34R, ORIG-B...
TACAN PORTION NA,
MHZ TACAN AZIMUTH OUT OF SERVICE. 2601271247-2609081247EST
Yes
ALL
CITY OF JACKSON
P.O. BOX 98109
JACKSON, MS 39298
Phone: 601-939-5631
ROSA BECKETT
100 INTERNATIONAL DRIVE SUITE 300
JACKSON, MS 39208
Phone: 601-939-5631
GREENWOOD FSS (GWO)
Toll Free: 1-800-WX-BRIEF
JAN
--
WHEN TWR CLSD ACTVT MALSR RWY 34L; REIL RWY 16R & 34R; HIRL RWY 16L/34R & 16R/34L - CTAF. RWY 16L ALSF-2 PRESET ON MED INTST EXC SFL NOT AVBL.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Charter Service

Runway 16L/34R

8500 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
221,000lbs
326,000lbs
--
  Runway 16L Runway 34R
True Heading 158°338°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 19' 41"N 32° 18' 24"N
Longitude 90° 04' 40"W 90° 04' 03"W
Elevation 305' 346'
Threshold Crossing Height 71 ft. AGL 66 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 16R/34L

8500 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
250,000lbs
340,000lbs
--
  Runway 16R Runway 34L
True Heading 158°338°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 18' 57"N 32° 17' 39"N
Longitude 90° 05' 04"W 90° 04' 27"W
Elevation 305' 329'
Threshold Crossing Height 80 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1BRG STRENGTH RWY 16L/34R & 16R/34L: ST175.
A110-10MIL ACFT USE TWY C7 TO ACES THE FBO APRON UNLESS OTRW DRCTD BY ATC.
A110-11HOLD AREA 1 & 2 CMSND ON TERM APRON BTN TWY B3 & TWY B5.
A110-12FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A110-13CAUTION - BASH PHASE II PERIOD JUL-OCT. CTC AFLD MGMT OR COMD POST FOR CURRENT BIRD WATCH COND.
A110-14MILITARY: ANG: BASH PHASE II IN EFCT 1 JUL-31 OCT. CTC TWR, COMMAND POST OR AFM FOR BIRD HAZ. WILDLIFE MOST ACTV +/- 1 HR OF SS AND SR.
A110-15MILITARY: ANG: ARFF STS RDCD LEVEL OF SVC (RLS). MDT RISK FOR MIL ACFT CAT 4, 5, 6, 7, 8, AND 9. SEV RISK FOR MIL ACFT CAT 10.
A110-3JASU: 8(A/M32A-86D) 3(MC-1A).
A110-8MILITARY: ANG: OFFL BUS. ALL TRAN ACFT 48HR PPR. LTD PRK USE. CTC AFLD MGMT. TRAN ACFT USE FBO FOR SVC. AFLD MGMT OPR 1300-0230Z++ WKD, DSN 828-8372, C601-405-8372. COMD POST OPR 1200-0630Z++ WKD, DSN 828-8350, C601-405-8350. AFLD MGMT & COMD POST HAVE LTD COMSEC STORAGE. TOP SECRET STORAGE UNAVBL.
A110-9BE ALERT WHEN XNG AER 16R.
A24LDG FEE FOR NON-COML ACFT OVR 25500 LBS; FEE WAIVED FOR LRGR NON-SKED ACFT WITH SUF FUEL PURCHASE.
A38-16L/34RWT BRG CPTY FOR RWYS 16L/34R & 16R/34L ARE TRT585 TO ACCOMMODATE C-17 ACFT.
A39-16L/34RPCR VALUE: 605/F/C/X/T
A39-16R/34LPCR VALUE: 816/F/D/X/T
A81-APTWHEN TWR CLSD ACTVT MALSR RWY 34L; REIL RWY 16R & 34R; HIRL RWY 16L/34R & 16R/34L - CTAF. RWY 16L ALSF-2 PRESET ON MED INTST EXC SFL NOT AVBL.
JACKSON-MEDGAR WILEY EVERS INTL (ICAO: KJAN, IATA: JAN) is a public airport located in JACKSON, MS, US.
