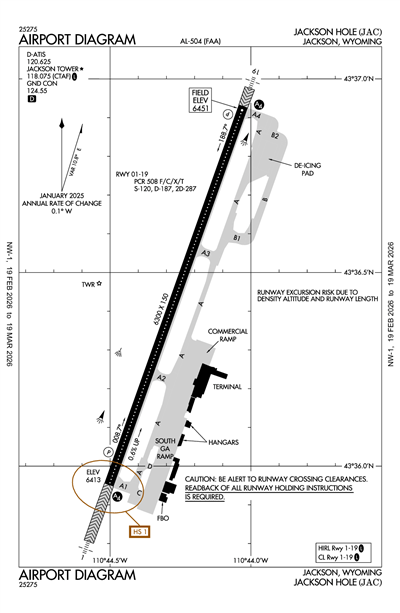

JACKSON HOLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJAC
JACKSON HOLE
PublicPUB

7 miles N of JACKSON, WY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 36' 26"N 110° 44' 16"W
6451' MSL
7451' MSL
11E
JET A, 100LL
CASPER (CPR)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
4/17/25-5/15/25
KJAC MVFR
3:56 PM MST
Light Snow
Overcast 6,500'
Broken 2,800'
Scattered 1,200'
4sm
24°F
14°F
29.78"Hg
290° 13kts
Gusts 20kts
AO2 WSHFT 2148 CIG 019V039 SLP143 P0000 T10441100
METAR KJAC 082256Z 29013G20KT 4SM -SN SCT012 BKN028 OVC065 M04/M10 A2978 RMK AO2 WSHFT 2148 CIG 019V039 SLP143 P0000 T10441100
+ Add Your Business

KJAC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

KJAC
Thu, 1/8 3:14 PM MST
Thu, 1/8 3:00 PM MST - Fri, 1/9 11:00 AM MST
IFR
3:00 PM MST - 5:00 PM MST
Light Snow
Overcast 2,500'
Few 1,500'
2sm
280° 12kts
Gusts 18kts
MVFR
5:00 PM MST - 7:00 PM MST
Light Snow
Broken 3,000'
Few 1,500'
3sm
200° 5kts
VFR
7:00 PM MST - 1:00 AM MST
Broken 8,000'
6sm
140° 6kts
VFR
1:00 AM MST - 10:00 AM MST
Broken 6,000'
Scattered 3,000'
6sm
160° 6kts
VFR
10:00 AM MST - 11:00 AM MST
Showers in vicinity
Broken 5,000'
Scattered 2,500'
6sm
210° 8kts
TAF KJAC 082214Z 0822/0918 28012G18KT 2SM -SN FEW015 OVC025
   FM090000 20005KT 3SM -SN FEW015 BKN030
   FM090200 14006KT P6SM BKN080
   FM090800 16006KT P6SM SCT030 BKN060
   FM091700 21008KT P6SM VCSH SCT025 BKN050
KJAC
EffectiveExpiresCategoryNOTAM
Domestic
1/7/26
0430Z
1/7/26
1400Z
!JAC 01/320 JAC AD AP SFC COND NOT REP 2601070430-2601071400
1/7/26
0141Z
1/8/26
0141Z
!JAC 01/318 JAC TWY B1, B, B2 FICON PATCHY 1/8IN DRY SN OBS AT 2601070141. 2601070141-2601080141
1/7/26
0141Z
1/8/26
0141Z
!JAC 01/317 JAC TWY A2, A3 FICON PATCHY 1/8IN DRY SN OVER PATCHY ICE OBS AT 2601070141. 2601070141-2601080141
1/7/26
0140Z
1/8/26
0140Z
!JAC 01/316 JAC TWY A1, A4 FICON 1IN DRY SN OVER COMPACTED SN OBS AT 2601070140. 2601070140-2601080140
1/7/26
0140Z
1/8/26
0140Z
!JAC 01/315 JAC APRON DEICE PAD, NORTH RUNUP PAD FICON PATCHY 1/8IN DRY SN OBS AT 2601070140. 2601070140-2601080140
1/7/26
0139Z
1/8/26
0139Z
!JAC 01/314 JAC APRON ALL FICON PATCHY 1/8IN WET SN OBS AT 2601070139. 2601070139-2601080139
1/7/26
0139Z
1/8/26
0139Z
!JAC 01/313 JAC TWY A FICON PATCHY 1/8IN DRY SN OBS AT 2601070139. 2601070139-2601080139
1/7/26
0139Z
1/8/26
0139Z
Runway!JAC 01/312 JAC RWY 19 FICON 5/5/5 100 PCT 1/8IN DRY SN OBS AT 2601070139. 2601070139-2601080139
1/6/26
2147Z
Runway!JAC 01/305 JAC RWY 19 ALS U/S EXC MEDIUM INTST ON CONS 2601062147-2602062000EST
1/6/26
1730Z
2/6/26
1600Z
Runway!JAC 01/295 JAC RWY 01 ALS U/S EXC MEDIUM INTST ON CONS 2601061730-2602061600
12/25/25
1239Z
12/31/26
2000Z
Runway!JAC 12/790 JAC RWY 01/19 SAFETY AREA LGT NOT STD 2512251239-2612312000
11/19/25
1751Z
!JAC 11/105 JAC NAV VOR GND REC CHECKPOINT U/S 2511191751-2605192111EST
9/27/25
0212Z
Runway!JAC 09/115 JAC RWY 01 RVRT U/S 2509270212-2603272000EST
9/27/25
0211Z
Runway!JAC 09/114 JAC RWY 19 RVRR U/S 2509270211-2603272000EST
8/26/25
1307Z
9/1/26
2300Z
!JAC 08/096 JAC OBST STACK (ASN UNKNOWN) 433547N1104425W (0.2NM SE APCH END RWY 01)
UNKNOWN (30FT AGL) FLAGGED AND LGTD 2508261307-2609012300
8/26/25
1306Z
9/1/26
1800Z
!JAC 08/095 JAC OBST STACK (ASN UNKNOWN) 433641N1104358W (0.25NM SE APCH END RWY 19)
UNKNOWN (10FT AGL) FLAGGED 2508261306-2609011800
8/26/25
1305Z
9/1/26
1800Z
!JAC 08/094 JAC OBST STACK (ASN UNKNOWN) 433634N1104402W (0.35NM SSE JAC)
UNKNOWN (10FT AGL) FLAGGED AND LGTD 2508261305-2609011800
FDC
10/8/25
0030Z
!FDC 5/7705 JAC IAP JACKSON HOLE, JACKSON, WY.
VOR RWY 1, AMDT 1...
PROCEDURE NA.
2510080030-2605200030EST
8/21/25
1547Z
!FDC 5/1224 JAC SID JACKSON HOLE, JACKSON, WY.
ALPIN FOUR DEPARTURE...
BIG PINEY TRANSITION: FROM OVER KICNE INT ON BPI R-305 TO BPI VOR/DME.
ALL OTHER DATA REMAINS AS PUBLISHED. 2508211547-2708211547EST
4/15/25
1402Z
!FDC 5/6431 JAC IAP JACKSON HOLE, JACKSON, WY.
RNAV (RNP) Z RWY 1, AMDT 1...
RNP 0.11 DA* 6765/HAT 334.
RNP 0.30 DA* 6918/HAT 487.
2504151402-2704151402EST
4/15/25
1402Z
!FDC 5/6430 JAC IAP JACKSON HOLE, JACKSON, WY.
RNAV (RNP) X RWY 19, ORIG...
RNP 0.30 DA# 7237/HAT 786, VIS 2.
RNP 0.30 DA 7237/HAT 786, VIS 2.
2504151402-2704151402EST
4/15/25
1402Z
!FDC 5/6429 JAC IAP JACKSON HOLE, JACKSON, WY.
ILS Z OR LOC Z RWY 19, AMDT 2...
S-ILS 19* DA 6818/HAT 367.
S-LOC 19# MDA 7040/HAT 589 ALL CATS.
CIRCLING CAT A/B MDA 7040/HAA 589 VIS 1.
2504151402-2704151402EST
4/10/25
2014Z
!FDC 5/5084 JAC IAP JACKSON HOLE, JACKSON, WY.
RNAV (GPS) Z RWY 19, AMDT 3A...
LNAV 19 MDA 7300/HAT 849 ALL CATS.
CIRCLING CATS A/B MDA 7300/HAA 849. VIS CAT A 1 1/4.
2504102014-2704102014EST
Yes
0700-2130
ON CALL H24 PHONE 307-733-4767.
JACKSON HOLE AIRPORT BOARD
P. O. BOX 159
JACKSON, WY 83001
Phone: 307-733-7682
JIM ELWOOD
P. O. BOX 159
JACKSON, WY 83001
Phone: (307) 733-7695
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
JAC
--
WHEN ATCT CLSD ACTVT MALS RWY 01 & 19; HIRL RWY 01/19; RCLS RWY 01/19; TWY LGTS; WDI - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
High Pressure
None
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 01/19

6300 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
187,000lbs
287,000lbs
--
  Runway 01 Runway 19
True Heading 20°200°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 43° 35' 57"N 43° 36' 56"N
Longitude 110° 44' 30"W 110° 44' 02"W
Elevation 6,413' 6,451'
Threshold Crossing Height 50 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALS MALS
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A11LEASED FROM U S PARK SERVICE.
A110-135'-53' TREES 700'-800' WEST OF THR RY 01.
A110-10PAVED 950X200 FT SAFETY AREA AT THE DEP END OF RWY 19; NOT USBL FOR PER CALCULATIONS; PLOWED & BROOMED DURG WINTER.
A110-11DEICING PAD LOCATED AT NORTH END OF TWY A.
A110-12COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -22C.
A110-13FOR CD IF UNA TO CTC ON FSS FREQ, CTC JAC TWR GND AT 124.55 DURG NML OPRG HRS. OUTSIDE OF NML OPRG HRS, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-14ACFT PUSHING BACK FM TRML CAUSE CGSTN, MAKING A2 UNAVBL. COORD RWY EXITS WITH TWR.
A110-2NOISE ABATEMENT PROCEDURES IN EFFECT FOR ACFT DEPARTURES ON RWY 19.
A110-3SAGE GROUSE ON & INVOF ARPT APR THRU OCT.
A110-5POSSIBLE SEVERE WINTER CONDITIONS FROM NOV-APR; NO ARPT INFO OR SNOW REMOVAL GUARANTEED DURING HOURS OF NON ATTENDANCE. 307-733-7682
A110-6HANG GLIDING OPNS 9 MILES S OF ARPT NEAR SKI ARE & 9 MILES SSW OF ARPT ALONG THE RIDGE.
A110-7BALLOON OPERATIONS IN VICINITY OF AIRPORT, W AND SW, MAY-OCT.
A110-8FOR PUBLIC HEALTH & SAFETY FLIGHTS, CONTACT AMGR @ 307-733-7682.
A110-9ACFT THAT FAIL TO TOUCH DOWN WITHIN THE FIRST THIRD OF RY 01/19 SOMETIMES FAIL TO STOP ON THE RY AND ARE AT RISK FOR A RY EXCURSION.
A17ON CALL H24 PHONE 307-733-4767.
A39-01/19PCR VALUE: 508/F/C/X/T
A81-APTWHEN ATCT CLSD ACTVT MALS RWY 01 & 19; HIRL RWY 01/19; RCLS RWY 01/19; TWY LGTS; WDI - CTAF.
JACKSON HOLE (ICAO: KJAC, IATA: JAC) is a public airport located in JACKSON, WY.
