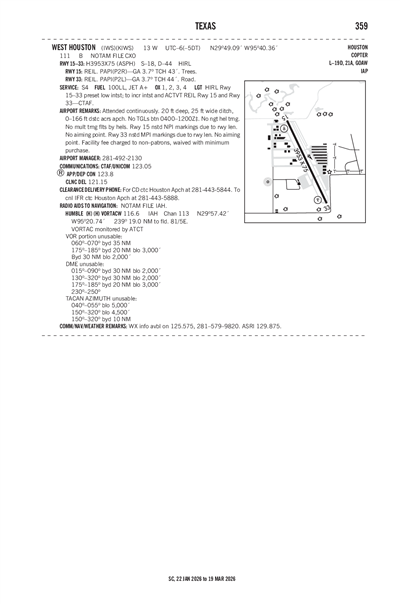

WEST HOUSTON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIWS
ICAO KIWSIATA IWSLocal IWS
WEST HOUSTON
PublicPUB

13 miles W of HOUSTON, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 49' 05"N 95° 40' 21"W
Elevation
111' MSL
Pattern Alt
1111' MSL
Mag Variation
2°E
Declination
5°E
Fuel
JET A (FSII), 100LL
FSS
MONTGOMERY COUNTY (CXO)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KSGR (12nm) IFR
5:53 AM CST
Overcast 500'
10sm
70°F
68°F
30.06"Hg
140° 8kts
AO2 SLP180 T02110200 10217 20206 53003
METAR KSGR 041153Z 14008KT 10SM OVC005 21/20 A3006 RMK AO2 SLP180 T02110200 10217 20206 53003
+ Add Your Business

KIWS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.05
DUSK-DAWN. HIRL RWY 15/33 PRESET LOW INTST; TO INCR INTST & ACTVT REIL RWYS 15 & 33 - CTAF.
UNICOM 123.05

Clearance

Clearance Delivery 121.15

Arrival

BLUBELL STAR 124.225
CESAN STAR 121.3
HUDZY STAR 120.05
OHIIO STAR 120.05
SNDAY RNAV STAR 124.225
TKNIQ STAR 119.625
TSHIRT STAR 119.175
TSHRT STAR 119.175
WAPPL STAR 120.05

Approach

HOUSTON APPROACH 123.8

Departure

ALEXANDRIA DP 123.8
BLTWY RNAV DP 123.8
BORRN RNAV DP 123.8
CRIED DP 123.8
DREMR DP 123.8
EL DORADO DP 123.8
GIFFA DP 123.8
HOODO RNAV DP 123.8
HOUSTON DEPARTURE 123.8
INDIE RNAV DP 123.8
KARRR RNAV DP 123.8
LEONA DP 123.8
LUFKIN DP 123.8
LURIC DP 123.8
MMALT RNAV DP 123.8
STRYA DP 123.8
STYCK DP 123.8
WATFO DP 123.8
WYLSN RNAV DP 123.8

Terminal Area Forecast

KSGR (12nm)
Wed, 3/4 5:20 AM CST
Wed, 3/4 6:00 AM CST - Thu, 3/5 6:00 AM CST
IFR
6:00 AM CST - 10:00 AM CST
Overcast 1,200'
Broken 700'
6sm
140° 9kts
MVFR
10:00 AM CST - 1:00 PM CST
Broken 3,000'
Broken 1,500'
6sm
150° 11kts
VFR
1:00 PM CST - 9:00 PM CST
Broken 5,000'
Broken 3,500'
6sm
150° 13kts
Gusts 22kts
MVFR
9:00 PM CST - 12:00 AM CST
Broken 1,500'
Few 700'
6sm
150° 9kts
IFR
12:00 AM CST - 6:00 AM CST
Overcast 1,500'
Broken 700'
6sm
160° 8kts
TAF KSGR 041120Z 0412/0512 14009KT P6SM BKN007 OVC012
   FM041600 15011KT P6SM BKN015 BKN030
   FM041900 15013G22KT P6SM BKN035 BKN050
   FM050300 15009KT P6SM FEW007 BKN015
   FM050600 16008KT P6SM BKN007 OVC015
KIWS
EffectiveExpiresCategoryNOTAM
Domestic
2/19/26
2211Z
3/19/26
2359Z
!CXO 02/354 IWS OBST TOWER LGT (ASR 1291460) 295348.00N0953213.20W (8.5NM ENE IWS) 425.9FT (319.9FT AGL) U/S 2602192211-2603192359
1/15/26
1318Z
3/7/26
2345Z
!CXO 01/179 IWS AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF 295138N0954259W (2.3NM NW IWS) SFC-400FT AGL DLY SR-SS 2601151318-2603072345
1/14/26
1318Z
3/7/26
2345Z
!CXO 01/194 IWS AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF 294720N0954320W (3.2NM SW IWS) SFC-400FT AGL DLY SR-SS 2601141318-2603072345
1/7/26
1318Z
3/10/26
0026Z
!CXO 01/087 IWS AIRSPACE SEE IAH 01/032 UAS DLY SR-SS 2601071318-2603100026
1/6/26
1359Z
4/6/26
2359Z
!CXO 01/074 IWS OBST TOWER LGT (ASR 1062638) 295110.80N0953219.80W (7.3NM ENE IWS) 618.1FT (520.0FT AGL) U/S 2601061359-2604062359
FDC
3/4/26
1400Z
3/10/26
1900Z
!FDC 6/2870 IWS SID WEST HOUSTON, HOUSTON, TX.
CRIED ONE DEPARTURE...
EL DORADO ONE DEPARTURE...
DEPARTURE PROCEDURE DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LFK VORTAC OUT OF SERVICE. 2603041400-2603101900EST
3/4/26
1400Z
3/10/26
1900Z
!FDC 6/2846 IWS SID WEST HOUSTON, HOUSTON, TX.
ALEXANDRIA THREE DEPARTURE...
LUFKIN FOUR DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LFK VORTAC OUT OF SERVICE. 2603041400-2603101900EST
2/13/26
1339Z
!FDC 6/3834 IWS SID WEST HOUSTON, HOUSTON, TX.
CRIED ONE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CQY VOR OUT OF SERVICE. 2602131339-2802141339EST
2/13/26
1339Z
!FDC 6/3821 IWS SID WEST HOUSTON, HOUSTON, TX.
LEONA FOUR DEPARTURE...
BONHAM TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CQY VOR OUT OF SERVICE. 2602131339-2802141339EST
10/31/25
2050Z
!FDC 5/9854 IWS SID WEST HOUSTON, HOUSTON, TX.
HOODO SEVEN DEPARTURE (RNAV)...
DEPARTURE PROCEDURE GPS REQUIRED,
LEV VORTAC OUT OF SERVICE. 2510312050-2612312050EST
3/12/25
1402Z
!FDC 5/2013 IWS SID WEST HOUSTON, HOUSTON, TX.
KARRR SEVEN DEPARTURE (RNAV)...
CORPUS CHRISTI TRANSITION YOMOM TO CRP VORTAC MOCA 1600.
TRUAX TRANSITION,WWREN TRANSITION KAVCY TO RIIGG MOCA 2100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2503121402-2703121402EST
No
ALL
WEST HOUSTON AIRPORT CORP
BOX 941789
HOUSTON, TX 77094
Phone: 281-492-2130
WOODY LESIKAR
BOX 941789
HOUSTON, TX 77094
Phone: 281-492-2130
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
CXO
--
DUSK-DAWN. HIRL RWY 15/33 PRESET LOW INTST; TO INCR INTST & ACTVT REIL RWYS 15 & 33 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
No
Major
Major
High & Low Pressure
High & Low Pressure
Avionics
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 15/33

3953 ft. x 75 ft.
ASPH
Good
NONE
HIGH

18,000lbs
44,000lbs
--
--
  Runway 15 Runway 33
True Heading 155°335°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 29° 49' 23"N 29° 48' 48"N
Longitude 95° 40' 31"W 95° 40' 12"W
Elevation 110' 109'
Threshold Crossing Height 43 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3.7° 3.7°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-120 FT DEEP, 25 FT WIDE DITCH, 0-166 FT DSTC ACRS APCH.
A110-3NO TGLS BTN 2200-0600.
A110-4NO NGT HEL TRNG.
A110-5NO MULT TRNG FLTS BY HELS.
A110-7WX INFO AVBL ON 125.575, 281-579-9820. ASRI 129.875.
A110-8FOR CD CTC HOUSTON APCH AT 281-443-5844. TO CNL IFR CTC HOUSTON APCH AT 281-443-5888.
A24FACILITY FEE CHARGED TO NON-PATRONS, WAIVED WITH MINIMUM PURCHASE.
A42-15_MARKNSTD NPI MARKINGS DUE TO RWY LEN. NO AIMING POINT.
A42-33_MARKNSTD NPI MARKINGS DUE TO RWY LEN. NO AIMING POINT.
A58-3315 FT ROAD 150 FT EAST OF THR.
A81-APTDUSK-DAWN. HIRL RWY 15/33 PRESET LOW INTST; TO INCR INTST & ACTVT REIL RWYS 15 & 33 - CTAF.
WEST HOUSTON (ICAO: KIWS, IATA: IWS) is a public airport located in HOUSTON, TX, US.
