No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIWD
GOGEBIC/IRON COUNTY
PublicPUB

7 miles NE of IRONWOOD, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 31' 39"N 90° 07' 53"W
1230' MSL
2230' MSL
00E
JET A, 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KIWD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
906-932-4039
 125.175

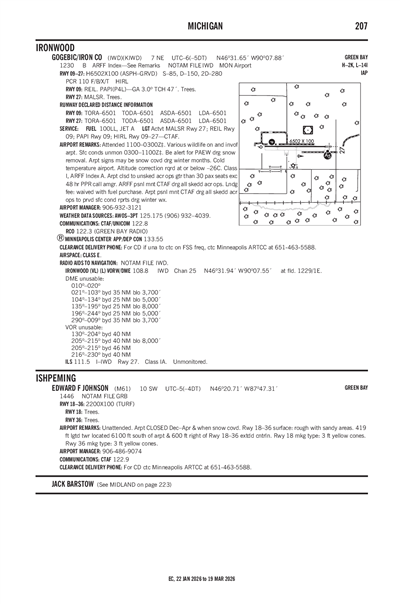

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KIWD
Domestic
1/15/250637Z !IWD 01/431 IWD COM REMOTE COM OUTLET 122.3 U/S 2501150637-2501222000EST
1/15/250238Z !IWD 01/430 IWD APRON ALL FICON COMPACTED SN AND PATCHY 1/8IN DRY SN BA MEDIUM OBS AT 2501150237. COND NOT MNT 2501150300-2501151200. 2501150238-2501151200
1/15/250237Z !IWD 01/429 IWD TWY ALL FICON COMPACTED SN AND PATCHY 1/8IN DRY SN BA MEDIUM OBS AT 2501150237. COND NOT MNT 2501150300-2501151200. 2501150237-2501151200
1/15/250236Z !IWD 01/428 IWD RWY 27 FICON 4/4/4 70 PCT COMPACTED SN AND 30 PCT 1/8IN DRY SN OBS AT 2501150236. COND NOT MNT 2501150300-2501151200. 2501150236-2501151200
1/14/251936Z !IWD 01/419 IWD TWY A3 CLSD 2501141936-2501151900
1/14/251108Z !IWD 01/402 IWD TWY ALL SFC MARKINGS OBSC 2501141108-2501152359
1/14/251108Z !IWD 01/401 IWD RWY 09/27 SFC MARKINGS OBSC 2501141108-2501152359
12/31/240027Z !IWD 12/951 IWD OBST TOWER LGT (ASR 1035235) 462527.50N0901233.60W (7.0NM SSW IWD) 1802.2FT (303.1FT AGL) U/S 2412310027-2502142359
10/29/242129Z !IWD 10/061 IWD OBST TOWER LGT (ASR 1200214) 461638.80N0901351.50W (15.6NM SSW IWD) 2053.8FT (359.9FT AGL) U/S 2410292129-2502012359
FDC
1/15/251330Z !FDC 5/3514 IWD IAP GOGEBIC/IRON COUNTY, IRONWOOD, MI.
ILS OR LOC RWY 27, AMDT 3D...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
IWD VOR/DME OUT OF SERVICE. 2501151330-2501220110EST
1/9/251623Z !FDC 5/1943 IWD IAP GOGEBIC/IRON COUNTY, IRONWOOD, MI.
VOR RWY 9, AMDT 13C...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, IWD VOR/DME UNMONITORED.
2501091623-2502101623EST
No
0500-2100
GOGEBIC COUNTY
GOGEBIC CO COURTHOUSE, 200 N MOORE ST
BESSEMER, MI 49911-1052
Phone: 906-932-3121
JEREMY BUSCH
E5560 AIRPORT RD
IRONWOOD, MI 49938-9202
Phone: 906-932-3121
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
IWD
--
ACTVT MALSR RWY 27; REIL RWY 09; PAPI RWY 09; HIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 09/27

6502 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

85,000lbs
150,000lbs
280,000lbs
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 46° 31' 39"N 46° 31' 39"N
Longitude 90° 08' 40"W 90° 07' 07"W
Elevation 1,223' 1,230'
Threshold Crossing Height 47 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1VARIOUS WILDLIFE ON & INVOF ARPT.
A110-2ARPT SIGNS MAY BE SNOW COVD DRG WINTER MONTHS.
A110-3BE ALERT FOR PAEW DRG SNOW REMOVAL.
A110-4ARFF PSNL MNT CTAF DRG ALL SKEDD ACR OPS.
A110-5ARPT PSNL MNT CTAF DRG ALL SKEDD ACR OPS TO PRVD SFC COND RPRTS DRG WINTER WX.
A110-6COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION RQRD AT OR BELOW -27C.
A110-7SFC CONDS UNMON 2100-0500.
A110-8FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
GOGEBIC/IRON COUNTY (ICAO: KIWD, IATA: IWD) is a public airport located in IRONWOOD, MI.
