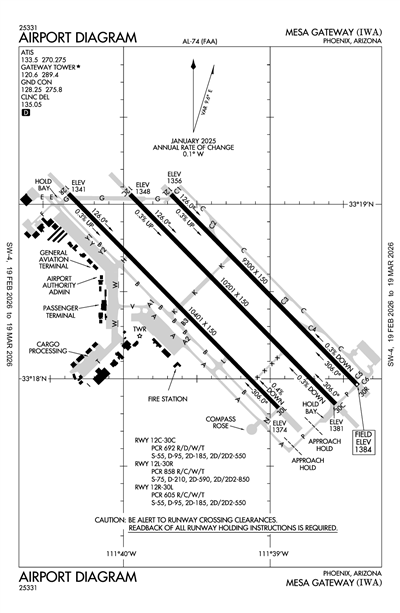

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIWA
PHOENIX-MESA GATEWAY
PublicPUB

20 miles SE of PHOENIX, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 18' 28"N 111° 39' 20"W
1384' MSL
2602' MSL
13E
JET A, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
10/31/24-11/28/24
KIWA VFR
4:50 AM MST
Clear
10sm
43°F
19°F
30.04"Hg
100° 4kts
KIWA 091150Z 10004KT 10SM CLR 06/M07 A3004
Add Your Business

KIWA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 120.6

ATIS

ATIS
Hours: 0500-0000 (MST)
 133.5

AWOS-3

AWOS-3
480-988-9428
 133.5

Clearance Delivery

CD/P
 135.05

Emergency

EMERG
 121.5

Ground

GND/P
 128.25

Tower

LCL/P
 120.6

Terminal Area Forecast

KIWA
Sat, 11/9 4:20 AM MST
Sat, 11/9 5:00 AM MST - Sun, 11/10 5:00 AM MST
VFR
5:00 AM MST - 11:00 AM MST
Sky Clear
6sm
110° 5kts
VFR
11:00 AM MST - 9:00 PM MST
Sky Clear
6sm
290° 4kts
VFR
9:00 PM MST - 5:00 AM MST
Sky Clear
6sm
110° 5kts
KIWA 091120Z 0912/1012 11005KT P6SM SKC
   FM091800 29004KT P6SM SKC
   FM100400 11005KT P6SM SKC
KIWA
Domestic
11/11/241300Z !IWA 11/008 IWA OBST CRANE (ASN 2024-AWP-7618-OE) 331957N1114130W (2.34 NM NW OF IWA) UNKNOWN (130 FT AGL) FLAGGED AND LGTD 2411111300-2411111700
11/4/241349Z !IWA 11/004 IWA AIRSPACE UAS WI AN AREA DEFINED AS 1.2NM RADIUS OF
333300N1113640W (7.9NM NE FFZ) SFC-699FT AGL MON-SAT SR-SS
2411041349-2411100027
11/1/240352Z !IWA 11/002 IWA AD AP WILDLIFE HAZARD COYOTES AND AVIARY 2411010352-2503312359
10/25/241757Z !IWA 10/044 IWA TWY W EDGE MARKINGS BTN TWY T AND REMOTE PRKG SOUTH APN NOT STD 2410251757-2411222359
10/21/241646Z !IWA 10/040 IWA RWY 12R/30L CLSD EXC SINGLE PROPELLOR DRIVEN NON-TURBOJET AIRCRAFT AND ACFT LESS THAN 12500LB 2410211646-2508020100
10/15/240116Z !IWA 10/031 IWA TWY K BTN RWY 12R/30L AND TWY B CLSD 2410150116-2508020100
10/15/240115Z !IWA 10/030 IWA TWY K BTN RWY 12C/30C AND RWY 12R/30L CLSD 2410150115-2508020100
10/15/240114Z !IWA 10/029 IWA RWY 12R/30L SE 7201FT CLSD. DECLARED DIST: RWY 12R TORA 0FT TODA 0FT
ASDA 3200FT LDA 3200FT. RWY 30L TORA 3200FT TODA 3200FT ASDA 0FT LDA 0FT. 2410150114-2508020100
10/14/241400Z !IWA 10/015 IWA TWY N BTN APCH END RWY 30L AND TWY B CLSD 2410141400-2508020100
10/14/241400Z !IWA 10/014 IWA TWY L BTN RWY 12R/30L AND TWY B CLSD 2410141400-2508020100
10/14/241400Z !IWA 10/013 IWA TWY B3 BTN RWY 12R/30L AND TWY B CLSD 2410141400-2508020100
10/7/241802Z !IWA 10/006 IWA OBST BLDG (ASN 2016-AWP-181-NRA) 331818N1113955W (0.94 NM NE OF APCH END RWY 30L) 1543FT (194FT AGL) LGTD 2410071802-2501012359
9/30/240700Z !IWA 09/036 IWA OBST CRANE (ASN 2024-AWP-6244-NRA) 331843N1113827W (1.21 NM ESE OF APCH END RWY 12L) UNKNOWN (110FT AGL) FLAGGED AND LGTD 2409300700-2411112359
7/3/240000Z !IWA 07/004 IWA TWY V CLSD TO ACFT WINGSPAN MORE THAN 118FT 2407030000-2412312359
7/2/240000Z !IWA 07/005 IWA TWY W CLSD TO ACFT WINGSPAN MORE THAN 118FT 2407020000-2412312359
6/18/241200Z !IWA 06/045 IWA OBST CRANE (ASN 2024-AWP-6388-OE) 331728N1113349W (4.8NM SE OF IWA) 1885FT (402FT AGL) FLAGGED AND LGTD 2406181200-2412312359
6/13/242326Z !IWA 06/044 IWA OBST POLE (ASN UNKNOWN) IWA (910FT NE OF APCH END RWY 30R) UNKNOWN (66FT AGL) NOT LGTD 2406132326-2412312359
1/9/241758Z !IWA 01/012 IWA OBST CRANE (ASN 2023-AWP-8422-OE) 332103N1114047W (2.85NM NW OF IWA) UNKNOWN (300FT AGL) FLAGGED AND LGTD 2401091758-2412062359
1/8/241400Z !IWA 01/006 IWA OBST CRANE (ASN 2023-AWP-8992-OE) 332103N1114030W (2.76 NM NE APCH END RWY 12L) UNKNOWN (300FT AGL) FLAGGED AND LGTD 2401081400-2412062359
12/2/231300Z !IWA 11/044 IWA OBST CRANE (ASN 2023-AWP-12862-OE) 331816N1114049W (1.27NM SW APCH END RWY 12R) UNKNOWN (131FT AGL) FLAGGED AND LGTD 2312021300-2501032359
11/16/231821Z !IWA 11/032 IWA RWY 12R/30L CLSD TO ACFT MORE THAN 300000LB 2311161821-2412312359
FDC
11/5/242052Z !FDC 4/9458 IWA ODP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
PHOENIX ONE DEPARTURE ...
TAKEOFF MINIMUMS: RWY 12R, 300-1 1/2 OR STANDARD WITH A MINIMUM CLIMB OF 310FT PER NM TO 3100. ADD TAKEOFF OBSTACLE NOTE: RWY 12R, TEMPORARY CRANE 1.1NM FROM DER, 8FT RIGHT OF CENTERLINE 180FT AGL/1580FT MSL (2024-AWP-4352-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2411052052-2412102052EST
11/4/241655Z !FDC 4/8630 IWA SID PHOENIX-MESA GATEWAY, PHOENIX, AZ.
BNYRD SIX DEPARTURE (RNAV)...
FTHLS SIX DEPARTURE (RNAV)...
IZZZO EIGHT DEPARTURE (RNAV)...
JUDTH SEVEN DEPARTURE (RNAV)...
KATMN SIX DEPARTURE (RNAV)...
LALUZ SIX DEPARTURE (RNAV)...
MAYSA SEVEN DEPARTURE (RNAV)...
SNOBL SIX DEPARTURE (RNAV)...
YOTES SIX DEPARTURE (RNAV)...
TAKEOFF MINIMUMS: RWY 12R, STANDARD WITH A MINIMUM CLIMB OF 310FT PER NM TO 3100. ADD TAKEOFF OBSTACLE NOTE: RWY 12R, TEMPORARY CRANE 1.1NM FROM DER, 8FT RIGHT OF CENTERLINE 180FT AGL/1580FT MSL (2024-AWP-4352-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2411041655-2412101655EST
11/4/241655Z !FDC 4/8629 IWA ODP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
DIVERSE VECTOR AREA (RADAR VECTORS), AMDT 1 ...
RWY 12R, HEADING AS ASSIGNED BY ATC; REQUIRES MINIMUM CLIMB OF 310FT PER NM TO 3100. RWY 12R, TEMPORARY CRANE 1.1NM FROM DER, 8FT RIGHT OF CENTERLINE 180FT AGL/1580FT MSL (2024-AWP-4352-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2411041655-2412101655EST
11/4/241655Z !FDC 4/8628 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
ILS OR LOC RWY 30C, AMDT 3C...
S-LOC 30C MDA 1960/HAT 580 ALL CATS, VIS CAT C/D/E 1 5/8. CIRCLING CATS A/B MDA 2000/HAA 616, CATS C/D/E MDA 2140/HAA 756, VISIBILITY CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. ORIYE FIX MINIMUMS: CIRCLING CAT A/B MDA 1960/HAA 576, CATS C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. ALTITUDE AT ORIYE FIX 1960. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANE UP TO 1602 MSL 2.2NM S OF IWA AIRPORT (2022-AWP-16571-OE), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1631 MSL 1.3NM NE OF IWA AIRPORT (2023-AWP-9870-OE), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1598 MSL 2.9NM NE OF IWA AIRPORT (2024-AWP-9240-OE).
2411041655-2412101655EST
11/4/241655Z !FDC 4/8627 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 30L, AMDT 1D...
LNAV MDA 1840/HAT 466 ALL CATS, VIS CAT C/D 1 1/2. CIRCLING CAT A /B MDA 2000/HAA 616, CAT C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. VDP 1.29NM TO RW30L. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1631 MSL 1.3NM NE OF IWA AIRPORT (2023-AWP-9870-OE), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1598 MSL 2.9NM NE OF IWA AIRPORT (2024-AWP-9240-OE).
2411041655-2412101655EST
11/4/241655Z !FDC 4/8626 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 12C, AMDT 1C...
LNAV/VNAV DA 1840/HAT 481 ALL CATS, VIS ALL CATS 1 3/8. LNAV MDA 1840/HAT 481 ALL CATS. VIS CATS C/D/E 1 3/8. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANES UP TO 1554 MSL BEGINNING 1.9NM SW OF IWA AIRPORT (2022-AWP-16564/16565-OE), CRANES UP TO 1602 MSL BEGINNING 2.2NM S OF IWA AIRPORT (2022-AWP-16570/16571-OE), CRANE 1525 MSL 4.2NM NW OF RWY 12C (2023-AWP-6152-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1631 MSL 1.3NM NE OF IWA AIRPORT (2023-AWP-9870-OE), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1598 MSL 2.9NM NE OF IWA AIRPORT (2024-AWP-9240-OE).
2411041655-2412101655EST
11/4/241655Z !FDC 4/8625 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
VOR OR TACAN RWY 30C, AMDT 2C...
CIRCLING CAT A/B MDA 2000/HAA 616, CATS C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. DME MINIMUMS: S-30C MDA 1920/HAT 540 ALL CATS, VIS CAT C/D 1 1/2. SIDESTEP 30R MDA 1960/HAT 558 ALL CATS. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. ALTITUDE AT ALBNY FIX 1960. VDP NA. ALTERNATE MINIMUMS: CATEGORY C 800 2 1/4, CATEGORY D 800 2 1/2, CATEGORY E 800 2 3/4. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1631 MSL 1.3NM NE OF IWA AIRPORT (2023-AWP-9870-OE), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1598 MSL 2.9NM NE OF IWA AIRPORT (2024-AWP-9240-OE).
2411041655-2412101655EST
11/4/241655Z !FDC 4/8624 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 12R, AMDT 1D...
LP MDA CATS A/B/C/D 1800/HAT 451, VISIBILITY CATS C/D 1 3/8. LNAV MDA CATS A/B/C/D 1880/HAT 531, VISIBILITY CATS C/D 1 1/2. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2140/HAA 756, VISIBILITY CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. VDP NA. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANES UP TO 1554 MSL BEGINNING 1.9NM SW OF IWA AIRPORT (2022-AWP-16564/16565-OE), CRANES UP TO 1602 MSL BEGINNING 2.2NM S OF IWA AIRPORT (2022-AWP-16570/16571-OE), CRANE 1525 MSL 3.9NM NW OF RWY 12R (2023-AWP-6152-OE), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1631 MSL 1.3NM NE OF IWA AIRPORT (2023-AWP-9870-OE), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1598 MSL 2.9NM NE OF IWA AIRPORT (2024-AWP-9240-OE).
2411041655-2412101655EST
11/4/241655Z !FDC 4/8623 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) Y RWY 30C, AMDT 1C...
LNAV/VNAV DA 1748/HAT 368 ALL CATS, VIS ALL CATS 1. LNAV MDA 1840/HAT 460 ALL CATS, VIS CAT C/D/E 1 3/8. CIRCLING CAT A MDA 2000/HAA 616, CAT B MDA 2020/HAA 636, CAT C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. VDP 1.40NM TO RW30C. TEMPORARY CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), TEMPORARY CRANE 1587 MSL 3372FT NE OF RWY 30C (2023-AWP-723-NRA), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1631 MSL 1.3NM NE OF IWA AIRPORT (2023-AWP-9870-OE), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1598 MSL 2.9NM NE OF IWA AIRPORT (2024-AWP-9240-OE).
2411041655-2412101655EST
11/4/241655Z !FDC 4/8622 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 30R, ORIG-A...
LNAV/VNAV DA 1748/HAT 364 ALL CATS, VIS ALL CATS 1. LNAV MDA 1840/HAT 456 ALL CATS, VIS CAT C/D 1 3/8. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2140/HAA 756, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. VDP 1.37NM TO RW30R. CRANE 1776 MSL 2.5NM NE OF IWA AIRPORT (2021-AWP-19857-OE), CRANE 1484 MSL 4563FT E OF RWY 30R (2022-AWP-22247-OE), CRANE 1587 MSL 2445FT NE OF RWY 30R (2023-AWP-723-NRA), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1631 MSL 1.3NM NE OF IWA AIRPORT (2023-AWP-9870-OE), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1729 MSL 2.8NM NE OF IWA AIRPORT (2024-AWP-8590-OE), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1580 MSL 1.8NM SE OF IWA AIRPORT (2024-AWP-4352-OE), CRANE 1598 MSL 2.9NM NE OF IWA AIRPORT (2024-AWP-9240-OE).
2411041655-2412101655EST
10/29/241735Z !FDC 4/5578 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (RNP) Z RWY 30C, ORIG-B...
RNP 0.21 DA 1758/HAT 377 ALL CATS, VIS ALL CATS 1. RNP 0.30 DA 1796/HAT 415 ALL CATS, VIS ALL CATS 1 1/8. POLE 1518 MSL 4089FT E OF RWY 30C (04-081247), POLE 1519 MSL 4973FT E OF RWY 30C (04-081258).
2410291735-2610291735EST
4/2/241548Z !FDC 4/5440 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
ILS OR LOC RWY 30C, AMDT 3C...
ORIYE FIX MINIMUMS CIRCLING CAT C MDA 1900/HAA 516.
2404021548-2604021547EST
4/2/241546Z !FDC 4/5439 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
VOR OR TACAN RWY 30C, AMDT 2C...
TDZE 30R 1384. SIDESTEP 30R MDA 1940/HAT 556 ALL CATS. DME MINIMUMS: S-30C MDA 1840/HAT 460 ALL CATS. VIS CAT C 1 3/8. SIDESTEP 30R MDA 1840/HAT 456 ALL CATS. CIRCLING CAT C MDA 1900/HAA 516.
2404021546-2604021546EST
4/2/241542Z !FDC 4/5438 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 30R, ORIG-A...
LNAV MDA 1840/HAT 456 ALL CATS. CIRCLING CAT C MDA 1900/HAA 516.
2404021542-2604021542EST
4/2/241542Z !FDC 4/5437 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 30L, AMDT 1D...
LNAV MDA 1840/HAT 466 ALL CATS. CIRCLING CAT C MDA 1900/HAA 516.
2404021542-2604021542EST
4/2/241542Z !FDC 4/5432 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) Y RWY 30C, AMDT 1C...
LNAV MDA 1840/HAT 460 ALL CATS. CIRCLING CAT C MDA 1900/HAA 516.
2404021542-2604021542EST
4/2/241542Z !FDC 4/5431 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 12C, AMDT 1C...
RNAV (GPS) RWY 12R, AMDT 1D...
CIRCLING CAT C MDA 1900/HAA 516.
2404021542-2604021542EST
Yes
ALL
PHX MESA GATEWAY AIRPORT AUTHORITY
5835 S. SOSSAMAN RD
MESA, AZ 85212-0919
Phone: 480-988-7570
J. BRIAN O'NEILL
PHX-MESA GATEWAY AIRPORT AUTHORITY, 5835 S. SOSSAMAN ROAD
MESA, AZ 85212-0919
Phone: 480-988-7708
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
IWA
--
WHEN ATCT CLSD LGTS ON CONSLY.
N/A
Yes
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Major
High & Low Pressure
None
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 12C/30C

10201 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH

55,000lbs
95,000lbs
185,000lbs
550,000lbs
  Runway 12C Runway 30C
True Heading 136°316°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 19' 03"N 33° 17' 51"N
Longitude 111° 39' 57"W 111° 38' 33"W
Elevation 1,348' 1,380'
Threshold Crossing Height 50 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12L/30R

9300 ft. x 150 ft.
CONC
Good
NONE
HIGH

75,000lbs
210,000lbs
590,000lbs
850,000lbs
  Runway 12L Runway 30R
True Heading 136°316°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 19' 03"N 33° 17' 58"N
Longitude 111° 39' 41"W 111° 38' 24"W
Elevation 1,356' 1,384'
Threshold Crossing Height 74 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12R/30L

10401 ft. x 150 ft.
CONC
Good
NONE
MED

55,000lbs
95,000lbs
185,000lbs
550,000lbs
  Runway 12R Runway 30L
True Heading 136°316°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 19' 04"N 33° 17' 50"N
Longitude 111° 40' 22"W 111° 38' 57"W
Elevation 1,341' 1,374'
Threshold Crossing Height 60 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No
Runway End Identifier Lights
A110-23NOISE ABATEMENT PROC IN EFCT; AVOID LOW OVR FLT OF NOISE SENSITIVE AREAS; INFO - 480-988-7637.
A110-28TWY Y RSTD TO WINGSPAN LESS THAN 79 FT.
A110-297 FT FENCE S PORTION OF MIDDLE RAMP.
A110-30LRG/HVY INBOARD ENGINE TAX ONLY.
A110-33TWY T AVBL TO WINGSPAN BTN 119-170 FT WITH WING WALKERS FM TWY W SOUTH OF TWY V.
A110-34NON EMERG AV-8 MODEL OPS LMTD TO RWY 12L/30R.
A110-3524 HR PPR FOR UNSKED ACR GTR THAN 30 PAX SEATS - ARPT OPS.
A110-38FOR CD WHEN ATCT CLSD, CTC PHOENIX APCH AT 602-306-2565.
A110-39FUEL AVBL H24 - 480-988-7700 OR 129.875.
A110-8WILDLIFE INVOF ARPT.
PHOENIX-MESA GATEWAY (ICAO: KIWA, IATA: IWA) is a public airport located in PHOENIX, AZ.
