iFlightPlanner



...

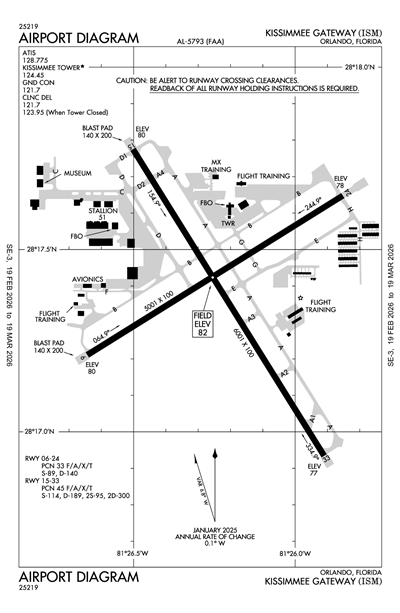

KISSIMMEE GATEWAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KISM
ICAO KISMIATA ISMLocal ISM
KISSIMMEE GATEWAY
PublicPUB

16 miles SW of ORLANDO, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
28° 17' 23"N 81° 26' 13"W
Elevation
82' MSL
Pattern Alt
1082' MSL
Mag Variation
7°W
Declination
5°W
Fuel
JET A, 100LL
FSS
SAINT PETERSBURG (PIE)
Sectional
JACKSONVILLE
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KISM VFR
9:56 PM EST
Clear
10sm
68°F
65°F
30.27"Hg
060° 4kts
AO2 SLP249 T02000183 51011 $
METAR KISM 040256Z AUTO 06004KT 10SM CLR 20/18 A3027 RMK AO2 SLP249 T02000183 51011 $
+ Add Your Business

KISM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.775
AWOS-3PT (407) 847-0533

Common

CTAF 124.45
WHEN ATCT CLSD ACTVT MALSF RWY 15; REIL RWY 06 & 24 & 33; PAPI RWY 06, 15, 24, & 33; MIRL RWY 06/24 & 15/33 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 121.7
Clearance Delivery 123.95
WHEN TWR CLSD

Ground

KISSIMMEE GROUND 121.7
0700-2200

Tower

KISSIMMEE TOWER 124.45
0700-2200

Arrival

ALYNA STAR 124.8
BITHO STAR 128.375
JAFAR STAR 134.05
JOKRS STAR 134.05
LEESE STAR 128.675
LEESE STAR 134.05
MINEE STAR 134.05
PRICY STAR 134.05
RIDES STAR 128.375
SHREK STAR 128.675
SHREK STAR 134.05
SNFLD STAR 128.375

Approach

ORLANDO APPROACH 119.4

Departure

ORLANDO DEPARTURE 119.4

Terminal Area Forecast

KISM
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 8:00 PM EST
Showers in vicinity
Scattered 3,000'
6sm
100° 12kts
VFR
8:00 PM EST - 10:00 AM EST
Sky Clear
6sm
070° 4kts
VFR
10:00 AM EST - 7:00 PM EST
Scattered 3,000'
6sm
110° 10kts
TAF KISM 032320Z 0400/0424 10012KT P6SM VCSH SCT030
   FM040100 07004KT P6SM SKC
   FM041500 11010KT P6SM SCT030
KISM
EffectiveExpiresCategoryNOTAM
Domestic
2/18/26
0511Z
3/5/26
0411Z
!ISM 02/013 ISM OBST TOWER LGT (ASR 1218161) 281937.90N0812418.40W (2.9NM NE ISM) 249.0FT (160.1FT AGL) U/S 2602180511-2603050411
2/2/26
1912Z
3/2/26
2200Z
!ISM 02/001 ISM SVC PCL ALL U/S EXC MEDIUM INTST ON CONS 2602021912-2603022200
1/24/26
2018Z
4/30/26
2359Z
Runway!ISM 01/024 ISM RWY 33 PAPI U/S 2601242018-2604302359
FDC
2/3/26
1452Z
3/12/26
1452Z
!FDC 6/9828 ISM ODP KISSIMMEE GATEWAY, ORLANDO, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-A...
ADD TAKEOFF OBSTACLE NOTE: RWY 15, TEMPORARY CRANES BEGINNING 2431FT FROM DER, BEGINNING 3FT LEFT OF CENTERLINE, UP TO 100FT AGL/ 167FT MSL (2024-ASO-15605/15609/15613-OE). TEMPORARY CRANE 2574FT FROM DER, 48FT RIGHT OF CENTERLINE, 95FT AGL/ 161FT MSL (2024-ASO-15616-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2602031452-2603121452EST
12/1/25
1828Z
!FDC 5/2990 ISM IAP KISSIMMEE GATEWAY, ORLANDO, FL.
ILS OR LOC RWY 15, AMDT 1A...
VDP NA, I-ISM DME OUT OF SERVICE.
2512011828-2607131828EST
4/11/25
1612Z
!FDC 5/5433 ISM IAP KISSIMMEE GATEWAY, ORLANDO, FL.
RNAV (GPS) RWY 15, AMDT 1A...
LPV DA 332/HAT 250, VISIBILITY ALL CATS 1; LNAV/VNAV DA 557/HAT 475.
2504111612-2704151612EST
4/11/25
1612Z
!FDC 5/5429 ISM IAP KISSIMMEE GATEWAY, ORLANDO, FL.
ILS OR LOC RWY 15, AMDT 1A...
S-ILS 15 DA 332/HAT 250, VISIBILITY ALL CATS 1; S-LOC 15 MDA 460/HAT 378.
2504111612-2704151611EST
4/3/25
1702Z
!FDC 5/1859 ISM IAP KISSIMMEE GATEWAY, ORLANDO, FL.
ILS OR LOC RWY 15, AMDT 1A...
ALTERNATE MINIMUMS NA.
2504031702-2704031702EST
2/27/25
1300Z
!FDC 5/7349 ISM IAP KISSIMMEE GATEWAY, ORLANDO, FL.
RNAV (GPS) RWY 33, AMDT 2C...
LPV DA 387/HAT 305 ALL CATS. CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE ORLANDO INTL ALTIMETER SETTING AND INCREASE ALL LPV DA TO 415, ALL LNAV/VNAV DA TO 429, NAD ALL MDA 40 FEET; INCREASE LNAV/VNAV ALL CATS VISIBILITY 1/8 SM, LNAV CAT C/D AND CIRCLING CAT C VISIBILITY 1/4 SM. TEMPORARY CRANES UP TO 167 MSL BEGINNING 2468FT SE OF RWY 33 (2024-ASO-15605/15609/15613/15616-OE).
2502271300-2603151300EST
3/29/24
1220Z
3/19/26
0900Z
!FDC 4/4028 ISM STAR KISSIMMEE GATEWAY AIRPORT, KISSIMMEE, FL. SNFLD
THREE RNAV ARRIVAL..X SNFLD AT OR ABV 12000FT.
2403291220-2603190900
Yes
0700-2200
CITY OF KISSIMMEE
101 CHURCH STREET
KISSIMMEE, FL 34741
Phone: 407-847-2821
SHAUN GERMOLUS
KISSIMMEE GATEWAY AIRPORT 401 DYER BOULEVARD
KISSIMMEE, FL 34741
Phone: 407-518-2516
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
ISM
--
WHEN ATCT CLSD ACTVT MALSF RWY 15; REIL RWY 06 & 24 & 33; PAPI RWY 06, 15, 24, & 33; MIRL RWY 06/24 & 15/33 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 06/24

5001 ft. x 100 ft.
ASPH
Good
GRVD
MED
33/F/A/X/T
89,000lbs
140,000lbs
--
--
  Runway 06 Runway 24
True Heading 58°238°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 17' 13"N 28° 17' 39"N
Longitude 81° 26' 39"W 81° 25' 51"W
Elevation 80' 78'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

6001 ft. x 100 ft.
ASPH
Fair
GRVD
MED
45/F/A/X/T
114,000lbs
189,000lbs
300,000lbs
--
  Runway 15 Runway 33
True Heading 148°328°
Traffic Pattern Right Left
Markings PIR NPI
Markings Condition FAIR FAIR
Latitude 28° 17' 46"N 28° 16' 56"N
Longitude 81° 26' 30"W 81° 25' 55"W
Elevation 80' 77'
Threshold Crossing Height 49 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes
A110-1NOISE SENSITIVE AREA 1/2 MI N OF AER 24. DEP RWY 06 EARLY TURNOUTS NA.
A110-10LNDG FEE: CTC ARPT OR CK ARPT WEBSITE FOR DTLS, EXEMPTIONS.
A110-2REQ ALL JETS/TURBO PROPS USE NBAA CLOSE-IN PROC.
A110-5ULTRALGT ACFT NA EXCEPT PPR - AMGR.
A110-7LOW LVL VFR HEL, WILDLIFE & BIRDS ON & INVOF ARPT.
A110-8HEL RUN ON LNDG NA.
A110-9RWY 15 HAS UNLGTED OBSTNS PRESENT IN THE APCH DUE TO 52 FT TREES 1960 FT BFR AER.
A30A-06HOLDING BAY RSTRD TO ACFT WITH WINGSPAN OF 49 FT OR LESS.
A30A-15CALM WIND RWY.
A30A-33MULT UNLGT OBSTNS FIRST 3000 FT; 250-500 FT E & W OF CNTRLN.
A58-33+6 FT FENCE 190 FT FM RWY END 245 FT R OF CNTRLN.
A81-APTWHEN ATCT CLSD ACTVT MALSF RWY 15; REIL RWY 06 & 24 & 33; PAPI RWY 06, 15, 24, & 33; MIRL RWY 06/24 & 15/33 - CTAF.
KISSIMMEE GATEWAY (ICAO: KISM, IATA: ISM) is a public airport located in ORLANDO, FL, US.
