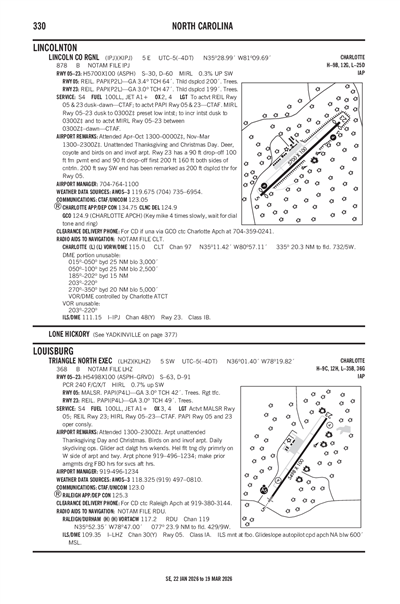

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIPJ
LINCOLNTON-LINCOLN COUNTY RGNL
PublicPUB

5 miles E of LINCOLNTON, NC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 28' 59"N 81° 09' 41"W
878' MSL
1878' MSL
06W
JET A-1+, 100LL
RALEIGH (RDU)
CHARLOTTE
ATLANTA (ZTL)
10/31/24-11/28/24
KIPJ VFR
6:45 AM EST
Clear
10sm
47°F
43°F
30.22"Hg
Calm
AO2 T00830063
KIPJ 091145Z AUTO 00000KT 10SM CLR 08/06 A3022 RMK AO2 T00830063
Add Your Business

KIPJ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

KCLT (19nm)
Sat, 11/9 6:32 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 1:00 PM EST
VFR
7:00 AM EST - 6:00 PM EST
Scattered 20,000'
Few 5,000'
6sm
060° 9kts
VFR
6:00 PM EST - 8:00 AM EST
Scattered 15,000'
Few 6,000'
6sm
070° 5kts
VFR
8:00 AM EST - 1:00 PM EST
Broken 4,000'
6sm
070° 4kts
KCLT 091132Z 0912/1018 06009KT P6SM FEW050 SCT200
   FM092300 07005KT P6SM FEW060 SCT150
   FM101300 07004KT P6SM BKN040
KIPJ
Domestic
11/5/240224Z !IPJ 11/001 IPJ OBST TOWER LGT (ASR 1259704) 352633.70N0810800.70W (2.8NM SSE IPJ) 1042.0FT (240.2FT AGL) U/S 2411050224-2503050224
10/24/240531Z !IPJ 10/004 IPJ OBST TOWER LGT (ASR 1307097) 352729.80N0810316.10W (5.4NM ESE IPJ) 1015FT (234FT AGL) U/S 2410240531-2411220001
8/27/242000Z !IPJ 08/007 IPJ OBST TOWER LGT (ASR 1027411) 352848.90N0805946.10W (8.1NM E IPJ) 1096.8FT (250.0FT AGL) U/S 2408272000-2411250400
FDC
10/25/241358Z !FDC 4/4219 IPJ IAP LINCOLNTON-LINCOLN COUNTY RGNL, LINCOLNTON, NC.
ILS Z OR LOC Z RWY 23, ORIG-D...
S-LOC 23 RADAR OR DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
MISSED APPROACH: CLIMB TO 1900 THEN CLIMBING RIGHT TURN TO 3100 ON HEADING 091 AND CLT VOR/DME R-358 TO JIVOM INT/I-IPJ 13.39 DME/RADAR AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BZM VOR/DME OUT OF SERVICE. 2410251358-2504161358EST
10/25/241358Z !FDC 4/4216 IPJ IAP LINCOLNTON-LINCOLN COUNTY RGNL, LINCOLNTON, NC.
ILS Y OR LOC Y RWY 23, ORIG-C...
S-LOC 23: RADAR OR DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BZM VOR/DME OUT OF SERVICE. 2410251358-2504161358EST
9/12/241339Z !FDC 4/4393 IPJ SID LINCOLNTON-LINCOLN COUNTY RGNL, LINCOLNTON, NC.
KNIGHTS THREE DEPARTURE...
PEKNN TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SDZ VOR OUT OF SERVICE. 2409121339-2504241339EST
3/21/240901Z !FDC 4/9236 IPJ SID LINCOLNTON-LINCOLN COUNTY RGNL, LINCOLNTON, NC.
KNIGHTS THREE DEPARTURE ...
ANDYS TRANSITION: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT VOR/DME 185-205 UNUSABLE. 2403210901-2603211732EST
3/21/240901Z !FDC 4/9233 IPJ SID LINCOLNTON-LINCOLN COUNTY RGNL, LINCOLNTON, NC.
KERMIT FOUR DEPARTURE ...
ANDYS TRANSITION, TREAL TRANSITION: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT VOR/DME 185-205 UNUSABLE. 2403210901-2603211732EST
No
APR-OCT 0800-1900
NOV-MAR 0800-1800
UNATNDD THANKSGIVING AND CHRISTMAS DAY.
CITY OF LINCOLNTON & LINCOLN
714 JACK DELLINGER DRIVE
IRON STATION, NC 28080
Phone: 704-735-6002
SCOTT STIMPSON
714 JACK DELLINGER DRIVE
IRON STATION, NC 28080
Phone: 704-735-0602
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
IPJ
--
TO ACTVT REIL RWY 05 & 23 DUSK-DAWN - CTAF; TO ACTVT PAPI RWY 05 & 23 - CTAF. MIRL RWY 05/23 DUSK TO 2200 PRESET LOW INTST; TO INCR INTST DUSK TO 2200 AND TO ACTVT MIRL RWY 05/23 BETWEEN 2200-DAWN - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
0
0
0
0
0
0
Major
Major
Low Pressure
Low Pressure
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

5700 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
60,000lbs
--
--
  Runway 05 Runway 23
True Heading 47°227°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 28' 40"N 35° 29' 18"N
Longitude 81° 10' 07"W 81° 09' 16"W
Elevation 878' 863'
Threshold Crossing Height 64 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3.4° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RWY 23 HAS A 90 FT DROP-OFF 100 FT FM PVMT END AND 90 FT DROP-OFF FIRST 200 FT 160 FT BOTH SIDES OF CNTRLN.
A110-101FOR CD IF UNA VIA GCO CTC CHARLOTTE APCH AT 704-359-0241.
A110-102GCO AVBL ON FREQ 124.900 THRU CHARLOTTE APCH; KEY MIKE 4 TIMES SLOWLY, WAIT FOR DIAL TONE AND RING.
A110-2ARPT PHONE NR 704-735-0602.
A110-3DEER, COYOTE & BIRDS ON & INVOF ARPT.
LINCOLNTON-LINCOLN COUNTY RGNL (ICAO: KIPJ, IATA: IPJ) is a public airport located in LINCOLNTON, NC.
