No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIOW
IOWA CITY MUNI
PublicPUB

2 miles SW of IOWA CITY, IA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 38' 23"N 91° 32' 53"W
684' MSL
1684' MSL
01W
JET A, 100LL
FORT DODGE (FOD)
CHICAGO
CHICAGO (ZAU)
7/11/24-8/8/24
KIOW VFR
5:52 AM CDT
Clear
10sm
61°F
54°F
29.92"Hg
Calm
AO2 SLP126 T01610122
KIOW 191052Z AUTO 00000KT 10SM CLR 16/12 A2992 RMK AO2 SLP126 T01610122
Add Your Business

KIOW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
319-339-9491
 128.075

FAA A/FD Pages

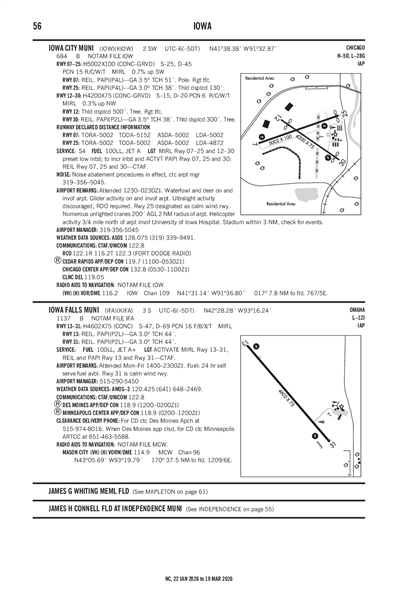

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCID (17nm)
Thu, 9/19 12:28 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 10:00 AM CDT
Scattered 25,000'
6sm
150° 5kts
VFR
10:00 AM CDT - 6:00 PM CDT
Broken 10,000'
6sm
170° 12kts
VFR
6:00 PM CDT - 1:00 AM CDT
Broken 10,000'
Scattered 5,000'
6sm
180° 6kts
MVFR
7:00 PM CDT - 10:00 PM CDT
Light Thunderstorm and Rain
Overcast 5,000'
Scattered 3,000'
4sm
Calm
KCID 190528Z 1906/2006 15005KT P6SM SCT250
   FM191500 17012KT P6SM BKN100
   FM192300 18006KT P6SM SCT050 BKN100
   PROB30 2000/2003 4SM -TSRA SCT030 OVC050CB
KIOW
Domestic
9/18/241300Z !IOW 09/014 IOW AD AP LGT ALL U/S 2409181300-2409181900
9/18/240500Z !IOW 09/015 IOW COM REMOTE COM OUTLET 122.3 U/S 2409180500-2409181100
9/12/240407Z !IOW 09/012 IOW OBST TOWER LGT (ASR 1269302) 413455.00N0914259.80W (8.3NM WSW IOW) 1114.8FT (319.9FT AGL) U/S 2409120407-2410122359
9/4/240444Z !IOW 09/001 IOW OBST TOWER LGT (ASR 1237967) 413344.30N0911711.40W (12.6NM ESE IOW) 982.9FT (259.8FT AGL) U/S 2409040444-2411042359
8/29/240503Z !IOW 08/013 IOW OBST TOWER LGT (ASR 1225889) 413038.20N0913340.20W (7.8NM S IOW) 1148.0FT (422.9FT AGL) U/S 2408290503-2409280001
7/23/242231Z !IOW 07/010 IOW RWY 12/30 COMMISSIONED 4200FT X 75FT CONC LGTD. DECLARED DIST: RWY 12 TORA 4200FT TODA 4200FT ASDA
4200FT LDA 3700FT. RWY 30 TORA 4200FT TODA 4200FT ASDA 4200FT LDA 3700FT. 2407232231-2410242359
7/11/240000Z !IOW 07/006 IOW AIRSPACE UAS WI AN AREA DEFINED AS 0.3NM RADIUS OF
413705.40N0913831W (4.4NM WSW IOW) SFC-150FT AGL DLY 0000-2359
2407110000-2410312359
7/11/240000Z !IOW 07/005 IOW AIRSPACE UAS WI AN AREA DEFINED AS 0.3NM RADIUS OF
413752.50N0912514.30W (5.8NM E IOW) SFC-150FT AGL
2407110000-2410312359
FDC
8/16/241413Z !FDC 4/0441 IOW IAP IOWA CITY MUNI, IOWA CITY, IA.
RNAV (GPS) RWY 25, AMDT 2...
RNAV (GPS) RWY 30, AMDT 1B...
VOR-A, ORIG-E...
CIRCLING CATS A/B MDA 1360/HAA 676.
TEMPORARY CRANE, 996 MSL, 1.18 NM NORTH OF KIOW AIRPORT (2023-ACE-4573-OE), TEMPORARY CRANE, 965 MSL, 1.04 NM NORTH OF KIOW AIRPORT (2023-ACE-6112-OE).
2408161413-2503281413EST
10/27/231217Z !FDC 3/2728 IOW IAP IOWA CITY MUNI, IOWA CITY, IA.
VOR-A, ORIG-E...
NOTE: CIRCLING RWY 12, 30 NA AT NIGHT. RWY 12, 30 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
2310271217-2510271217EST
10/27/231217Z !FDC 3/2727 IOW IAP IOWA CITY MUNI, IOWA CITY, IA.
RNAV (GPS) RWY 25, AMDT 2...
LPV DA 953/HAT 294, VIS 7/8 ALL CATS.
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE CEDAR RAPIDS ALTIMETER SETTING AND INCREASE LPV DA TO 1014 FEET AND ALL VISIBILITIES 1/8 SM. INCREASE LNAV/VNAV DA TO 1211 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE ALL MDA 80 FEET AND LNAV VISIBILITY CATS C/D 3/8 SM, AND CIRCLING ALL VISIBILITES 1/4 SM.
NOTE: CIRCLING RWY 12, 30 NA AT NIGHT.
2310271217-2510271217EST
10/27/231217Z !FDC 3/2726 IOW IAP IOWA CITY MUNI, IOWA CITY, IA.
RNAV (GPS) RWY 30, AMDT 1B...
LP MDA 1020/HAT 362; LNAV MDA 1080/HAT 422.
NOTE: STRAIGHT-IN RWY 30 NA AT NIGHT, CIRCLING RWY 12, 30 NA AT NIGHT. HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
2310271217-2510271217EST
9/5/231308Z !FDC 3/5520 IOW ODP IOWA CITY MUNI, IOWA CITY, IA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5...
TAKE-OFF MINIMUMS RWY 30: 300-1 7/8 WITH MINIMUM CLIMB OF 210- FT PER NM TO 1200, OR STANDARD WITH MINIMUM CLIMB OF 720 FT PER NM TO 900, OR 1000-3 FOR VCOA.
ALL OTHER DATA REMAINS AS PUBLISHED. 2309051308-2509021308EST
No
0630-2030
CITY OF IOWA CITY
410 EAST WASHINGTON
IOWA CITY, IA 52240
Phone: 319-356-5010
MICHAEL THARP
1801 S. RIVERSIDE
IOWA CITY, IA 52246
Phone: 319-356-5045
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
IOW
--
MIRL RWY 07/25 & 12/30 PRESET LOW INTST; TO INCR INTST & ACTVT PAPI RWY 07 & 25; REIL RWY 07 & 25 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
64
1
6
2
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

5002 ft. x 100 ft.
CONC
Good
GRVD
MED
15 /R/C/W/T
25,000lbs
45,000lbs
--
--
  Runway 07 Runway 25
True Heading 71°251°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 41° 38' 18"N 41° 38' 34"N
Longitude 91° 33' 28"W 91° 32' 26"W
Elevation 684' 650'
Threshold Crossing Height 51 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12/30

3900 ft. x 75 ft.
CONC
Fair
GRVD
MED
6 /R/C/W/T
15,000lbs
20,000lbs
--
--
  Runway 12 Runway 30
True Heading 125°305°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 41° 38' 31"N 41° 38' 09"N
Longitude 91° 33' 10"W 91° 32' 28"W
Elevation 661' 649'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1NOISE ABATEMENT PROCEDURES IN EFFECT, CTC ARPT MGR 319-356-5045.
A110-10RY 25 DESIGNATED AS CALM WIND RY.
A110-5WATERFOWL & DEER ON & INVOF ARPT.
A110-6HEL ACTIVITY 3/4 MILE N OF ARPT INVOF UNIVERSITY OF IOWA HOSPITAL.
A110-7NUMEROUS UNLGTD CRANES 200 FT AGL 2 NM RDS OF ARPT.
A110-8GLIDER ACTIVITY ON & INVOF ARPT.
A110-9STADIUM WITHIN 3NM, CHECK FOR EVENTS.
IOWA CITY MUNI (ICAO: KIOW, IATA: IOW) is a public airport located in IOWA CITY, IA.
