iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KINW
WINSLOW-LINDBERGH RGNL
PublicPUB

1 miles W of WINSLOW, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 01' 19"N 110° 43' 21"W
4941' MSL
5941' MSL
14E
JET A, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
10/31/24-11/28/24
KINW VFR
4:56 AM MST
Clear
10sm
24°F
20°F
30.14"Hg
Calm
AO2 SLP209 T10441067 11006 21044 53006
KINW 091156Z AUTO 00000KT 10SM CLR M04/M07 A3014 RMK AO2 SLP209 T10441067 11006 21044 53006
Add Your Business

KINW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
928-289-0134
 118.875

FAA A/FD Pages

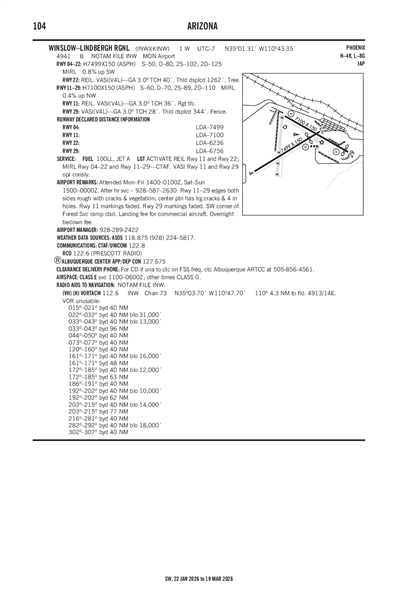

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KINW
Sat, 11/9 4:37 AM MST
Sat, 11/9 5:00 AM MST - Sun, 11/10 5:00 AM MST
VFR
5:00 AM MST - 5:00 AM MST
Sky Clear
6sm
VRB° 4kts
KINW 091137Z 0912/1012 VRB04KT P6SM SKC
KINW
Domestic
11/1/240023Z !INW 11/001 INW OBST TOWER LGT (ASR 1001732) 350125.00N1103741.00W (4.7NM E INW) 5317.9FT (356.0FT AGL) U/S 2411010023-2503010023
FDC
8/17/231239Z !FDC 3/6674 INW IAP WINSLOW-LINDBERGH RGNL, WINSLOW, AZ.
VOR OR GPS RWY 11, AMDT 4D...
CHANGE NOTE TO READ: RWY 11 HELICOPTER VISIBILLITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
MSA FROM INW VORTAC 25 NM 120 CW 340 SECTOR MINIMUM ALTITUDE 8100.
2308171239-2508161238EST
No
MON-FRI 0700-1800
SAT-SUN 0800-1700
AFT HR SVC - 928-587-2630.
CITY OF WINSLOW
21 WILLIAMSON AVE
WINSLOW, AZ 86047
Phone: 928-289-2422
TIM WESTOVER
21 WILLIAMSON AVE
WINSLOW, AZ 86047
Phone: 928-289-2422
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
INW
--
ACTVT REIL RWY 11 & 22; MIRL RWY 04/22 & 11/29 - CTAF. VASI RWY 11 & 29 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Air Ambulance

Runway 04/22

7499 ft. x 150 ft.
ASPH
Good
NONE
MED

50,000lbs
80,000lbs
125,000lbs
--
  Runway 04 Runway 22
True Heading 59°239°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 35° 00' 51"N 35° 01' 30"N
Longitude 110° 44' 16"W 110° 42' 59"W
Elevation 4,941' 4,881'
Threshold Crossing Height -- 40 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 11/29

7100 ft. x 150 ft.
ASPH
Fair
NONE
MED

60,000lbs
70,000lbs
110,000lbs
--
  Runway 11 Runway 29
True Heading 120°300°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 35° 01' 45"N 35° 01' 10"N
Longitude 110° 43' 40"W 110° 42' 26"W
Elevation 4,899' 4,870'
Threshold Crossing Height 36 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-2SW CORNER FOREST SVC RAMP CLSD.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
WINSLOW-LINDBERGH RGNL (ICAO: KINW, IATA: INW) is a public airport located in WINSLOW, AZ.
