KINS
CREECH AFB
Private
PVT
1 miles N of INDIAN SPRINGS, NV
View on
Map
Status
Operational
Coordinates
36° 35' 11"N
115° 40' 39"W
Elevation
3134' MSL
Pattern Alt
4134' MSL
Mag Variation
15E
Fuel
JET A-1+
FSS
RENO (RNO)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
10/31/24-11/28/24
KINS
VFR
3:55 AM PST
RAW
Clear
Viz
10sm
Temp
34°F
Dew
8°F
Pres
30.07"Hg
Wind
Calm
RMK
AO2 SLP167 T00121133 10081 20012 57005 $
KINS 091155Z AUTO 00000KT 10SM CLR 01/M13 A3007 RMK AO2 SLP167 T00121133 10081 20012 57005 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KINS FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
--
Emergency
EMERG
121.5
Ground
GND/P
118.3
Tower
LCL/P
118.3

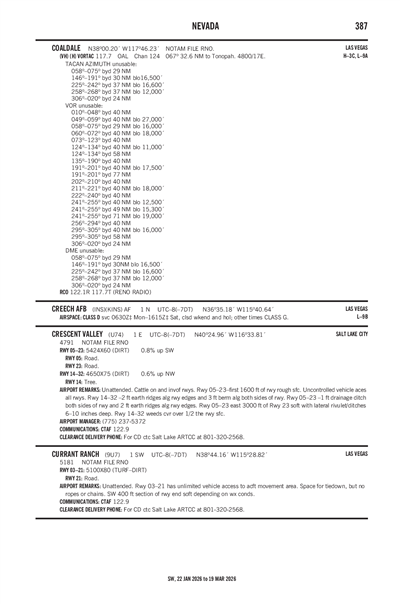

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KVGT (32nm)
RAW
Reported
Sat, 11/9 3:31 AM PST
Valid
Sat, 11/9 4:00 AM PST - Sun, 11/10 4:00 AM PST
VFR
4:00 AM PST - 10:00 AM PST
Sky Clear
Viz
6sm
Wind
320° 5kts
VFR
10:00 AM PST - 8:00 PM PST
Sky Clear
Viz
6sm
Wind
130° 6kts
VFR
8:00 PM PST - 4:00 AM PST
Scattered 25,000'
Viz
6sm
Wind
310° 6kts
KVGT 091131Z 0912/1012 32005KT P6SM SKC
FM091800 13006KT P6SM SKC
FM100400 31006KT P6SM SCT250
KINS
Military
11/4/24
0806Z
OBSTRUCTION LIGHT ON NORTH RAMP SUNSHADE N-6 OTS
11/2/24
0149Z
!KINS M0429/24 INS AD AIRPORT
CLSD
FOR AIRFIELD EMERGENCIES CONTACT AIRFIELD MANAGER AT 725-278-5076. EFFECTIVE 7 NOVEMBER 2200L-11 NOVEMBER 2200L (8 NOV 0600Z-12 NOV 0600Z) 2411020149-2411120600
10/30/24
0148Z
COMM/BEACON HILL FLASHING OBST LIGHT OTS EAST OF RWY 26 APPROACH END 36.57822N115.615275W
9/23/24
1837Z
SUNSHADE N-1
CLOSED
DUE TO EQUIP STORAGE
8/27/24
0555Z
TWY G NORTH AT THE INTERSECTION OF RWY 13/31
CLSD
TO ALL AIRCRAFT.
ATC Tower
Yes
Attendance
ALL
OPR H24 0630Z++ MON THRU 0615Z++ SAT, CLSD WKEND AND HOL.
Owner
USAF
NELLIS AFB
LAS VEGAS, NV 89110
Manager
CHIEF OF AFLD MANAGEMENT
CREECH AFB
INDIAN SPRINGS, NV 89018
Phone: 879-6251
FSS
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
NOTAM
INS
Light Schedule
--
Lights
ACTIVATE-3 STEP MIRL AND THLD RWY 08-26 - 118.3.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
Hangar
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
Minor
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Cargo Handling
Runway 08/26
Dimensions
9002 ft. x 150 ft.
Surface Type
Surface Cond
ASPH
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
50 /F/A/W/T
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 08
Runway 26
True Heading
93°
273°
Traffic Pattern
Markings
Markings Condition
Latitude
36° 35' 04"N
36° 35' 00"N
Longitude
115° 41' 44"W
115° 39' 54"W
Elevation
3,134'
3,104'
Threshold Crossing Height
43 ft. AGL
50 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
Runway 13/31
Dimensions
5476 ft. x 100 ft.
Surface Type
Surface Cond
ASPH
Treatment
NONE
Rwy Edge Lgts
Pavement Class
22 /R/B/W/T
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 13
Runway 31
True Heading
146°
326°
Traffic Pattern
Markings
Markings Condition
Latitude
36° 35' 47"N
36° 35' 03"N
Longitude
115° 40' 40"W
115° 40' 03"W
Elevation
3,099'
3,104'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
BASE OPS OPR H24 FR 0630Z++ MON THRU 0615Z++ SAT; CLSD WKEND AND HOL.
A110-10
FUEL TANKS LCTD 175-195 FT SOUTH OF TWY A CNTRLN, 24-41 FT IN HEIGHT.
A110-11
NS ABTMT: NO TKOF, LO APCH, TOUCH AND GO OR ENG RUN PRIOR TO 1400Z++, WKNDS AND HOL. AFLD CLSD, NO LDG WKEND AND HOL, EXCEPT FOR NELLIS AFB LCL FLYING OR MSN ESSENTIAL.
A110-13
MISC: NO CLASSIFIED MATERIALS STOR WITH 99 SFOF-OLA, DSN 384-0556, C702-404-0556. TWO NSTD MRK 4' X 25' EA SIDE OF RWY CNTRLN, 2378' FR APCH END RWY 13, AND NORTH OF TWY "F".
A110-14
CAUTION: MICROWAVE TWR LOC 1230' SOUTH OF RWY 08/26 CL, HEIGHT 100' AGL.
A110-18
SERVICE-FUEL: A++ AVBL 0400-2400 MON-FRI.
A110-2
UNMANNED AERIAL VEHICLE 767 FT AGL.
A110-20
RSTD # 1: RWY 13-31 IS CLASS A DAYTIME VFR RWY AVBL FOR EMER USE ONLY. AFLD HAS RSTD ON ALL AIRLIFT ACFT, CTC DSN 384-0308/09. PPR UP TO 7 DAYS, BUT NOT LESS THAN 24 HR, PRIOR TO ETA. ACFT MUST ADHERE TO PPR ARR BLOCK +/- 30 MIN OF SKED LDG. CTC BASE OPS DSN 384-0308/09, FAX 0407.
A110-21
RSTD # 2: C-17 AND C-5 UTILIZE TWY B AND C ONLY TO ENTER/EXIT RWY 08-26, TWY E LTD TO USE BY AFCT WITH WINGSPAN OF 75' OR LESS.
A110-26
CAUTION: FENCES IN AREA OF FUEL FARM ADJ TO TWY A ARE LCTD 146' FR TWY CNTRLINE.
A110-27
CAUTION: ONE GDT ANTENNA TOWER 1125' FR RWY CNTRLN AND 92' FR APRON EDGE; THREE ANTENNA TOWERS 992' FR RWY CNTRLN, 130' FRM TAXIWAY E CNTRLN, ALL GDT TOWERS ARE 56' IN HGT.
A110-28
CAUTION: TWY D FR TWY E TO W SIDE OF RWY 13-31 AND TWY B, N OF THE FOXTROT LIVE ORDNANCE LOADING AREA (LOLA) ARE 50' WIDE, ALL OTHER TWYS ARE 75'.
A110-29
CAUTION: TWY LGT NOT AVBL ON TWY B N FR FOXTROT LOLA TO APCH END RWY 13, TWY F FR TWY B N TO TWY A, TWY G FR TWY F TO APCH END RWY 26, AND TWY D.
A110-3
(E117) USAF TACTICAL FIGHTER WEAPONS TRAINING.
A110-30
RSTD: TWY B NORTH OF TWY F, AND TWY DELTA AND TWY GOLF BTW RWY 26 AND TWY FOXTROT, RSTD TO REMOTELY PILOTED ACFT USE ONLY DUR HRS OF REDUCED VIS; NO TWY EDGE LIGHTS.
A110-31
SERVICE-A-GEAR: STD CONFIG FOR APCH END RWY, E-5 DISCONNECTED AND BAK-14 IN DOWN POSN (TWR WILL RAISE CABLE ON REQ).
A110-33
CAUTION: USE EXTRM CAUTION FOR EXTSV UAS OPS IN VCNTY.
A110-34
RSTD: TRAN ACFT TO DAYTIME USE ONLY FOR TWY BRAVO NORTH, BTW TWY FOXTROT AND APCH END RY 13, TWY DELTA BTW TWY ECHO AND TWY GOLF, AND TWY GOLF FRM TWY FOXTROT TO APCH END RY 26.
A110-35
CSTMS/AG/IMG - ALL SVC UNAVBL.
A110-36
WX STN OPS BEGIN 2300 SUN-FRI, CLOSING HRS VARY BASED ON LOCAL FLYING, CLSD WKND AND HOL. BLDGS AND NGT FLOOD LGTS BLKD WX FCSTR AND OBSN VIEW OF APCH END OF RWYS 26 & 31.
A110-37
RSTD: OPS RSTD DUR BIRD WATCH COND MODERATE (TKOF OR LDG PERMS ONLY WHEN DEP AND ARR AVOID IDENT BIRD ACT, NO LCL IFR.VFR TFC PAT ACT) AND SEVERE (TKOF AND LDG PROH WO OG/CC OR DESIGNATED OFFL APVL).
A110-39
BASH PHASE I (APR-MAY AND AUG-OCT), BASH PHASE I ALL OTHER MONTHS NOT DESIGNATED AS PHASE II.
A110-4
(E137-04) NUMEROUS UNLGTD HILLS WI 2 MILES OF ARPT TO 4000' MSL.
A110-40
AFLD WX SUPPORT OPR H24 0630Z++ MON THRU 0615Z++ SAT, CLSD WKEND & HOL; 432OSS/OSW DSN 384-1723.
A110-41
TRAN AIRCREW WX FCST AVBL FR 25 OWS, DAVIS MONTHAN AFB (KDMA) DSN 228-6598/6599 OR C1-877-451-8637. ASOS EQPT NOT AUGMENTED, DSN 682-0667.
A110-42
AFLD WX OBS IS TRANS BY AN FMQ-19 AND AUGMENTED BY HUMAN OBS AS RQR. OBSN VIEW RSTD FR 080-250 DEGS BY FLIGHTLINE FAC, BLDGS AND HIGH INTS RAMP LGT.
A110-43
WX BRF FOR TRAN AIRCREWS BYD NML OPR HR AVBL VIA 25OWS AT DAVIS MONTHAN AFB, DSN 228-6598/6599, C520-228-6598/6599.
A110-44
CAUTION: RWYS 8 AND 26 AND RWYS 13 AND 31 MRKD AS PRECISION INST RWYS AND USED FOR VFR OPS ONLY.
A110-45
MISC: RWY CC NOT RPT.
A110-46
CAUTION: 3.5-FT-DEEP DRAINAGE DITCH LCTD AT NORTH END OF RWY 13/31.
A110-47
TRAN ALERT: DUE TO MANNING AND RFUL LIMITATIONS, TRAN ALERT CAN RCV FLTS OF 4 FTR/ATTACK ACFT AND SMALLER, 15 MIN APART; HVY ACFT MUST ARR INDIVIDUALLY, 15 MIN APART.
A110-48
TFC PAT: ASR DEGRADED DUE TO EQPT LIMITATIONS. TFC PAT LTD TO 3 REMOTELY PILOTED ACFT (RPA).
A110-5
(E137-1) RWY COND: FAIR-GOOD, SMOOTH PACKED CHAD SURFACE, NO ROCKS.
A110-6
(E137-2) MOUNTAINOUS TERRAIN ALL SIDES. NO OBSTN LGTS.
A110-7
(E137-3) JET LO ALT HI SPEED WEAPONS TRNG IN PROGRESS IMMED N OF INS AT ALL HR.
A110-8
(E99) 1 HELICOPTER HGR 60' X 60'.
A110-9
TWY LGTS NOT AVBL ON TWY A, B, C & D FM PARKING APRON TO RY HOLD LINE. ALL TWY 75 FT WIDE.
CREECH AFB (ICAO: KINS, IATA: INS) is a private airport located in INDIAN SPRINGS, NV.
