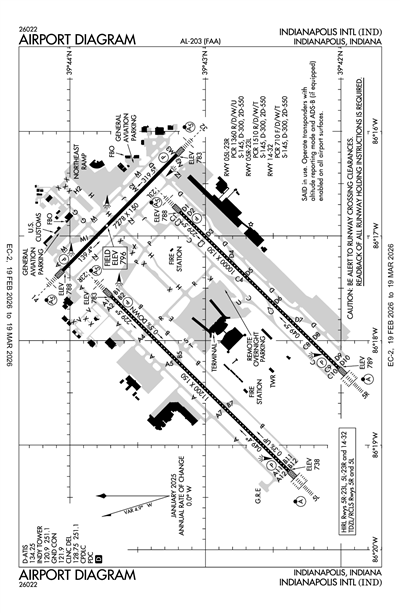

INDIANAPOLIS INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIND
ICAO KINDIATA INDLocal IND
INDIANAPOLIS INTL
PublicPUB

7 miles SW of INDIANAPOLIS, IN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 43' 02"N 86° 17' 41"W
Elevation
796' MSL
Pattern Alt
1796' MSL
Mag Variation
5°W
Declination
5°W
Fuel
JET A, JET A-1+, 100LL
FSS
TERRE HAUTE (HUF)
Sectional
ST LOUIS
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KIND IFR
8:54 PM EST
Heavy Thunderstorm and Rain and Mist
Overcast 3,000'
Broken 1,400'
Scattered 400'
2sm
44°F
44°F
30.14"Hg
050° 6kts
AO2 SLP209 OCNL LTGIC OHD TS OHD MOV E P0048 T00670067
METAR KIND 040154Z 05006KT 2SM +TSRA BR SCT004 BKN014CB OVC030 07/07 A3014 RMK AO2 SLP209 OCNL LTGIC OHD TS OHD MOV E P0048 T00670067
+ Add Your Business

KIND FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 134.25
ASOS (317) 220-6243

Common

UNICOM 122.95

Clearance

INDY CLEARANCE DELIVERY 128.75

Ground

INDY GROUND 121.9
INDY GROUND 121.8
Secondary

Tower

INDY TOWER 120.9

Arrival

CLANG STAR 128.175
RACYR STAR 128.175

Approach

INDIANAPOLIS APPROACH 119.05
WEST OF ACTIVE RWY
INDIANAPOLIS APPROACH 127.15
EAST OF ACTIVE RWY
INDIANAPOLIS APPROACH 128.175
Initial Contact

Departure

INDIANAPOLIS DEPARTURE 119.05
WEST
INDIANAPOLIS DEPARTURE 124.95
EAST

Emergency

Emergency 121.5

Other

CLASS C 119.05
WEST OF ACTIVE RWY
CLASS C 127.15
EAST OF ACTIVE RWY

Terminal Area Forecast

KIND
Tue, 3/3 8:51 PM EST
Tue, 3/3 9:00 PM EST - Thu, 3/5 1:00 AM EST
LIFR
Temporary 9:00 PM EST - 11:00 PM EST
Overcast 1,300'
Broken 300'
N/A
Calm
MVFR
9:00 PM EST - 11:00 PM EST
Light Thunderstorm and Rain and Mist
Broken 1,300'
Scattered 300'
3sm
350° 6kts
IFR
11:00 PM EST - 2:00 PM EST
Light Rain and Mist
Overcast 500'
2sm
040° 5kts
IFR
2:00 PM EST - 1:00 AM EST
Light Showers and Rain and Mist
Overcast 700'
3sm
120° 6kts
TAF KIND 040151Z 0402/0506 35006KT 3SM -TSRA BR SCT003 BKN013CB
   TEMPO 0402/0404 BKN003 OVC013CB
   FM040400 04005KT 2SM -RA BR OVC005
   FM041900 12006KT 3SM -SHRA BR OVC007
KIND
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
1300Z
2/25/26
1500Z
Runway!IND 02/355 IND RWY 14 PAPI U/S 2602251300-2602251500
2/25/26
1300Z
2/25/26
2100Z
!IND 02/352 IND NAV ILS RWY 14 U/S 2602251300-2602252100
2/25/26
1300Z
2/25/26
2100Z
!IND 02/351 IND NAV ILS RWY 32 U/S 2602251300-2602252100
2/25/26
1300Z
2/25/26
1500Z
Runway!IND 02/347 IND RWY 14/32 CLSD 2602251300-2602251500
2/25/26
1130Z
2/25/26
1930Z
!IND 02/354 IND NAV ILS RWY 05R U/S 2602251130-2602251930
2/25/26
1130Z
2/25/26
1930Z
!IND 02/353 IND NAV ILS RWY 23L U/S 2602251130-2602251930
2/24/26
1747Z
2/25/26
1747Z
!IND 02/350 IND APRON ALL FICON PATCHY COMPACTED SN OBS AT 2602241747. 2602241747-2602251747
2/24/26
1747Z
2/25/26
1747Z
!IND 02/349 IND TWY ALL FICON PATCHY COMPACTED SN OBS AT 2602241747. 2602241747-2602251747
2/12/26
2026Z
!IND 02/257 IND COM REMOTE TRANS/REC 120.65 U/S 2602122026-2602262000EST
1/23/26
2013Z
5/23/26
2013Z
!IND 01/205 IND OBST TOWER LGT (ASR 1039852) 393147.60N0862026.50W (11.5NM S IND) 966.9FT (296.9FT AGL) U/S 2601232013-2605232013
1/21/26
0321Z
!IND 01/197 IND NAV ILS RWY 05R IM U/S 2601210321-2606262000EST
9/25/25
1115Z
!IND 09/156 IND NAV ILS RWY 05L IM U/S 2509251115-2603312111EST
8/1/25
1000Z
10/31/26
2300Z
!IND 07/113 IND OBST CRANE (ASN 2025-AGL-4251-NRA) 394243N0861756W (0.4NM SSW IND) 918FT (161FT AGL) FLAGGED AND LGTD 2508011000-2610312300
8/1/25
1000Z
10/31/26
2300Z
!IND 07/112 IND OBST CRANE (ASN 2025-AGL-4253-NRA) 394247N0861811W (0.5NM WSW IND) 918FT (161FT AGL) FLAGGED AND LGTD 2508011000-2610312300
8/1/25
1000Z
10/31/26
2300Z
!IND 07/111 IND OBST CRANE (ASN 2025-AGL-4252-NRA) 394239N0861800W (0.5NM SSW IND) 918FT (161FT AGL) FLAGGED AND LGTD 2508011000-2610312300
8/1/25
1000Z
10/31/26
2300Z
!IND 07/110 IND OBST CRANE (ASN 2025-AGL-4250-NRA) 394251N0861807W (0.4NM WSW IND) 918FT (161FT AGL) FLAGGED AND LGTD 2508011000-2610312300
FDC
2/23/26
1730Z
3/9/26
2355Z
!FDC 6/7930 IND IAP INDIANAPOLIS INTL, INDIANAPOLIS, IN.
RNAV (GPS) Y RWY 32, AMDT 4A...
LNAV/VNAV DA 1142/HAT 349 ALL CATS, VIS ALL CATS RVR 3000. LNAV MDA 1240/HAT 447 ALL CATS, VIS CATS C/D RVR 4000. VDP 1.18NM TO RW32. FOR INOP ALS, INCREASE LNAV/VNAV VISIBILITY TO RVR 5500. TEMPORARY CRANE 931 MSL, 1972FT S OF RWY 23L (2025-AGL-11488-NRA).
2602231730-2603092355EST
2/23/26
1730Z
3/9/26
2355Z
!FDC 6/7928 IND IAP INDIANAPOLIS INTL, INDIANAPOLIS, IN.
RNAV (GPS) Y RWY 23L, AMDT 5...
LPV DA 1046/HAT 256 ALL CATS. LNAV/VNAV DA 1142/HAT 352, VIS ALL CATS RVR 3000. LNAV MDA 1240/HAT 450, VIS CATS C/D RVR 4500. VDP 1.17NM TO RW23L. FOR ALS INOP, INCREASE LNAV/VNAV VISIBILITY TO RVR 5500. TEMPORARY CRANE 931 MSL, 1972FT S OF RWY 23L (2025-AGL-11488-NRA).
2602231730-2603092355EST
2/23/26
1730Z
3/9/26
2355Z
!FDC 6/7926 IND IAP INDIANAPOLIS INTL, INDIANAPOLIS, IN.
ILS RWY 23L (SA CAT II), AMDT 8 ...
PROCEDURE NA.
TEMPORARY CRANE 931 MSL, 1972FT S OF RWY 23L (2025-AGL-11488-NRA) 2602231730-2603092355EST
2/23/26
1730Z
3/9/26
2355Z
!FDC 6/7925 IND IAP INDIANAPOLIS INTL, INDIANAPOLIS, IN.
ILS OR LOC RWY 23L, AMDT 8...
S-ILS 23L DA 1045/HAT 255 ALL CATS. TEMPORARY CRANE 931 MSL, 1972FT S OF RWY 23L (2025-AGL-11488-NRA).
2602231730-2603092355EST
2/5/26
1828Z
!FDC 6/0683 IND IAP INDIANAPOLIS INTL, INDIANAPOLIS, IN.
ILS RWY 5R (CAT II-III), AMDT 7A ...
S-ILS 5R CAT II NA EXCEPT FOR AIRCRAFT WITH RADIO ALTIMETER. I-OQV INNER MARKER OUT OF SERVICE. 2602051828-2609171828EST
1/26/26
1604Z
!FDC 6/6946 IND IAP INDIANAPOLIS INTL, INDIANAPOLIS, IN.
RNAV (GPS) Y RWY 23L, AMDT 5...
LNAV MDA 1220/HAT 430 ALL CATS, VISIBILITY CATS C/D RVR 4000.
2601261604-2801221604EST
9/25/25
1444Z
!FDC 5/0401 IND IAP INDIANAPOLIS INTL, INDIANAPOLIS, IN.
ILS RWY 5L (CAT II-III), AMDT 5A. ...
S-ILS 5L CAT II NA EXCEPT FOR AIRCRAFT EQUIPPED WITH RADIO ALTIMETER. I-IND INNER MARKER OUT OF SERVICE. 2509251444-2709241434EST
8/8/25
1512Z
!FDC 5/3851 IND IAP INDIANAPOLIS INTL, INDIANAPOLIS, IN.
ILS OR LOC RWY 5R, AMDT 7A...
GOLSE FIX MINIMUMS: FOR ALS INOP, S-LOC 5R INCREASE CAT C/D VISIBILITY TO RVR 5500.
2508081512-2708081512EST
Yes
ALL
INDIANAPOLIS AIRPORT AUTH
7800 COL. H. WEIR COOK MEMORIAL DR.
INDIANAPOLIS, IN 46241
Phone: 317-487-9594
MARIO RODRIGUEZ
7800 COL. H. WEIR COOK MEMORIAL DR.
INDIANAPOLIS, IN 46241
Phone: 317-487-9594
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
IND
--
--
N/A
Yes - Lighted
No
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Cargo Handling

Runway 05L/23R

11200 ft. x 150 ft.
CONC
Good
GRVD
HIGH

145,000lbs
300,000lbs
550,000lbs
--
  Runway 05L Runway 23R
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 42' 23"N 39° 43' 42"N
Longitude 86° 19' 15"W 86° 17' 34"W
Elevation 738' 783'
Threshold Crossing Height 74 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 05R/23L

10000 ft. x 150 ft.
CONC
Good
GRVD
HIGH

145,000lbs
300,000lbs
550,000lbs
--
  Runway 05R Runway 23L
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 42' 01"N 39° 43' 11"N
Longitude 86° 18' 16"W 86° 16' 46"W
Elevation 789' 788'
Threshold Crossing Height 70 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No

Runway 14/32

7278 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

145,000lbs
300,000lbs
550,000lbs
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 44' 03"N 39° 43' 13"N
Longitude 86° 17' 20"W 86° 16' 13"W
Elevation 788' 783'
Threshold Crossing Height 74 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR MALSR
Centerline Lights No No
Runway End Identifier Lights No No
A110-1PRIM STUDENT TGL NOT PMTD.
A110-11TWY V IS NOT AVBL FOR ACR OPS.
A110-3LARGE FLOCKS OF BIRDS ON & INVOF ARPT.
A110-4NOISE ABATEMENT PROCEDURES IN EFFECT CTC ARPT MGR.
A110-7BE ALERT TO CLOSE PROXIMITY OF RWY 14/32 TO NORTHEAST RAMP.
A110-8TWY H RUNS CONTIGUOUS AT NORTHEAST RAMP.
A39-05L/23RPCR VALUE: 1360/R/D/W/U
A39-05R/23LPCR VALUE: 1510/R/D/W/T
A39-14/32PCR VALUE: 710/F/D/W/T
A43-14PAPI UNUSBL BYD 8 DEGS RIGHT OF CNTRLN.
A43-23LPAPI UNUSBL BYD 7 DEGS LEFT OF CNTRLN.
INDIANAPOLIS INTL (ICAO: KIND, IATA: IND) is a public airport located in INDIANAPOLIS, IN, US.
