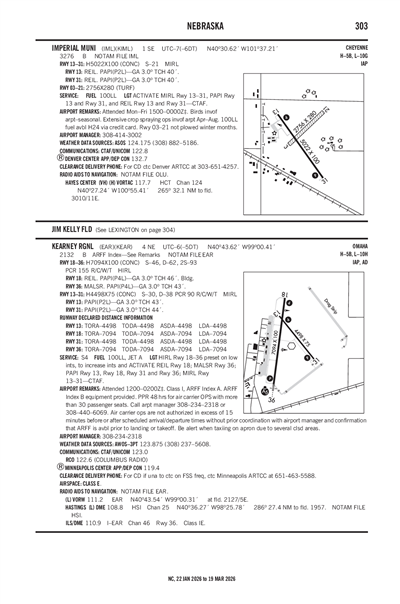

IMPERIAL MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIML
ICAO KIMLIATA IMLLocal IML
IMPERIAL MUNI
PublicPUB

1 miles SE of IMPERIAL, NE, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 30' 37"N 101° 37' 13"W
Elevation
3276' MSL
Pattern Alt
4276' MSL
Mag Variation
6°E
Declination
9°E
Fuel
100LL
FSS
COLUMBUS (OLU)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KIML VFR
10:53 PM MST
Clear
10sm
33°F
25°F
30.14"Hg
330° 5kts
AO2 SLP216 T00061039 10150 20006 51005
METAR KIML 040553Z AUTO 33005KT 10SM CLR 01/M04 A3014 RMK AO2 SLP216 T00061039 10150 20006 51005
+ Add Your Business

KIML FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 124.175
(308) 882-5186

Common

CTAF 122.8
ACTVT MIRL RY 13/31 PAPI RY 13 & 31 AND REIL RY 13 & 31 - CTAF.
UNICOM 122.8

Center

DENVER CENTER 132.7
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 132.7/397.85 (OGALLALA RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMCK (51nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 1:00 AM CST
Scattered 15,000'
6sm
VRB° 6kts
IFR
1:00 AM CST - 2:30 AM CST
Mist
Broken 700'
1sm
VRB° 6kts
LIFR
2:30 AM CST - 10:00 AM CST
Fog
Overcast 100'
0.25sm
VRB° 6kts
IFR
Temporary 10:00 AM CST - 12:00 PM CST
Mist
Overcast 700'
2sm
Calm
VFR
10:00 AM CST - 3:00 PM CST
Scattered 4,500'
6sm
VRB° 6kts
VFR
3:00 PM CST - 12:00 AM CST
Few 15,000'
6sm
160° 10kts
TAF KMCK 040520Z 0406/0506 VRB06KT P6SM SCT150
   FM040700 VRB06KT 1SM BR BKN007
   FM040830 VRB06KT 1/4SM FG OVC001
   FM041600 VRB06KT P6SM SCT045
   TEMPO 0416/0418 2SM BR OVC007
   FM042100 16010KT P6SM FEW150
KIML
EffectiveExpiresCategoryNOTAM
Domestic
2/9/26
1704Z
!IML 02/002 IML SVC AUTOMATED WX BCST SYSTEM CHANGED TO 308-301-2403 2602091704-PERM
FDC
2/7/25
2019Z
!FDC 5/1245 IML IAP IMPERIAL MUNI, IMPERIAL, NE.
RNAV (GPS) RWY 13, ORIG-A...
TERMINAL ROUTE UYOGI TO AXPUX NA.
2502072019-2609192019EST
No
MON-FRI 0800-1700
IMPERIAL AIRPORT AUTHORITY
P.O. BOX 637 BOX 637
IMPERIAL, NE 69033
Phone: 308-882-5643
ADRIAN FOREMAN
P.O. BOX 637
IMPERIAL, NE 69033
Phone: 308-414-3002
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
IML
--
ACTVT MIRL RY 13/31 PAPI RY 13 & 31 AND REIL RY 13 & 31 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 03/21

2756 ft. x 280 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 46°226°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 40° 30' 34"N 40° 30' 53"N
Longitude 101° 37' 23"W 101° 36' 57"W
Elevation 3,267' 3,274'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

5022 ft. x 100 ft.
CONC
Good
NONE
MED

21,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 144°324°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 30' 53"N 40° 30' 13"N
Longitude 101° 37' 33"W 101° 36' 55"W
Elevation 3,273' 3,265'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS INVOF ARPT - SEASONAL.
A110-2EXTENSIVE CROP SPRAYING OPNS INVOF ARPT APR THRU AUG.
A110-3RY 03/21 NOT PLOWED WINTER MONTHS.
A110-4FOR CD CTC DENVER ARTCC AT 303-651-4257.
A14RICK CHANDLER AMGR APR-SEPT.
A16CTC FOR BOTH AMGRS.
A70-100LLFUEL AVBL H24 VIA CREDIT CARD.
A81-APTACTVT MIRL RY 13/31 PAPI RY 13 & 31 AND REIL RY 13 & 31 - CTAF.
A844 FT X 8 FT CONCRETE MARKER SEGMENTS.
E111EXISTED PRIOR TO 1959.
IMPERIAL MUNI (ICAO: KIML, IATA: IML) is a public airport located in IMPERIAL, NE, US.
