KILN
WILMINGTON AIR PARK
PublicPUB

2 miles SE of WILMINGTON, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 25' 41"N 83° 47' 32"W
1077' MSL
2077' MSL
07W
JET A
DAYTON (DAY)
CINCINNATI
INDIANAPOLIS (ZID)
7/11/24-8/8/24
KILN VFR
6:54 AM EDT
Clear
10sm
61°F
58°F
29.96"Hg
060° 4kts
AO2 SLP137 T01610144
KILN 191054Z AUTO 06004KT 10SM CLR 16/14 A2996 RMK AO2 SLP137 T01610144
Add Your Business

KILN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

D-ATIS
 124.925

Clearance Delivery

CD/P
 128.85

Ground

GND/P
 121.6

Tower

LCL/P
 119.475

FAA A/FD Pages

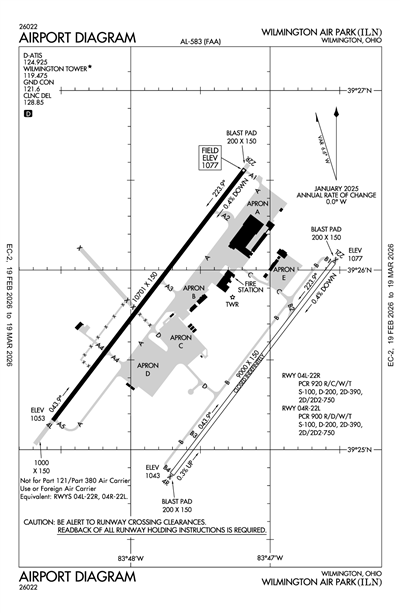

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KILN
Thu, 9/19 1:39 AM EDT
Thu, 9/19 2:00 AM EDT - Fri, 9/20 2:00 AM EDT
VFR
2:00 AM EDT - 11:00 AM EDT
Broken 25,000'
6sm
VRB° 3kts
MVFR
Temporary 6:00 AM EDT - 8:00 AM EDT
Mist
No Clouds
3sm
Calm
VFR
11:00 AM EDT - 2:00 AM EDT
Broken 25,000'
6sm
020° 5kts
KILN 190539Z 1906/2006 VRB03KT P6SM BKN250
   TEMPO 1910/1912 3SM BR
   FM191500 02005KT P6SM BKN250
KILN
Domestic
9/18/241000Z !ILN 09/016 ILN RWY 04L ALS U/S 2409181000-2409181600
9/10/241048Z !ILN 09/013 ILN RWY 22R ALS U/S 2409101048-2410022000EST
8/3/241941Z !ILN 08/003 ILN OBST TOWER LGT (ASR 1018804) 391256.00N0835414.00W (13.9NM SSW ILN) 1274.9FT (299.9FT AGL) U/S 2408031941-2412011941
7/29/240746Z !ILN 07/033 ILN OBST TOWER LGT (ASR 1226741) 392608.00N0834941.00W (1.7NM WNW ILN) 1226.7FT (201.8FT AGL) U/S 2407290746-2411260746
FDC
9/17/241646Z !FDC 4/6766 ILN IAP WILMINGTON AIR PARK, WILMINGTON, OH.
ILS OR LOC RWY 22R , AMDT 6B...
ILS RWY 22R (SA CAT I), AMDT 6B...
ILS RWY 22R (CAT II - III), AMDT 6B...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
APE VORTAC OUT OF SERVICE. 2409171646-2504291646EST
8/23/241910Z !FDC 4/4988 ILN IAP WILMINGTON AIR PARK, WILMINGTON, OH.
RNAV (GPS) RWY 4L, ORIG-D...
CIRCLING CAT A/B MDA 1560/HAA 483.
2408231910-2504041910EST
3/21/241253Z !FDC 4/9771 ILN IAP WILMINGTON AIR PARK,
WILMINGTON, OH.
ILS RWY 22R (SA CAT I), AMDT 6B ...
ILS RWY 22R (CAT II & III), AMDT 6B ...
DISREGARD NOTE: PROCEDURE NA WHEN CONTROL TOWER CLOSED.
2403211253-2603211253EST
9/21/231849Z !FDC 3/3247 ILN ODP WILMINGTON AIR PARK, WILMINGTON, OH.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
RWY 22R, FENCE 296 FT FROM DER, 552 FT RIGHT OF CENTERLINE, 1063 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2309211849-2509191849EST
Yes
ALL
CLINTON COUNTY PORT AUTHORITY
1113 AIRPORT RD
WILMINGTON, OH 45177-8904
Phone: 937-536-1776
JEREMY HEARD
145 HUNTER DR
WILMINGTON, OH 45177-9550
Phone: 937-366-2114
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
ILN
--
PAPI RWY 04L & 22R OPR CONSLY SS-SR. ALL RWY 04R/22L LGTS OTS INDEFLY.
N/A
Yes - Lighted
No
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
None

Runway 04L/22R

10701 ft. x 150 ft.
CONC
Fair
GRVD
HIGH
84 /R/C/W/T
100,000lbs
200,000lbs
390,000lbs
750,000lbs
  Runway 04L Runway 22R
True Heading 37°217°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 25' 10"N 39° 26' 34"N
Longitude 83° 48' 33"W 83° 47' 11"W
Elevation 1,053' 1,077'
Threshold Crossing Height 62 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 04R/22L

9000 ft. x 150 ft.
CONC
Fair
GRVD
HIGH
98 /R/B/W/T
100,000lbs
200,000lbs
390,000lbs
750,000lbs
  Runway 04R Runway 22L
True Heading 37°217°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 24' 52"N 39° 26' 03"N
Longitude 83° 47' 42"W 83° 46' 33"W
Elevation 1,042' 1,076'
Threshold Crossing Height 71 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-24 HR PPR FOR ALL TSNT ACFT DURG OPRG HRS & AFT HRS - CALL 866-931-2337.
A110-4FOR CD CTC COLUMBUS APCH AT 614-338-8537.
WILMINGTON AIR PARK (ICAO: KILN, IATA: ILN) is a public airport located in WILMINGTON, OH.
