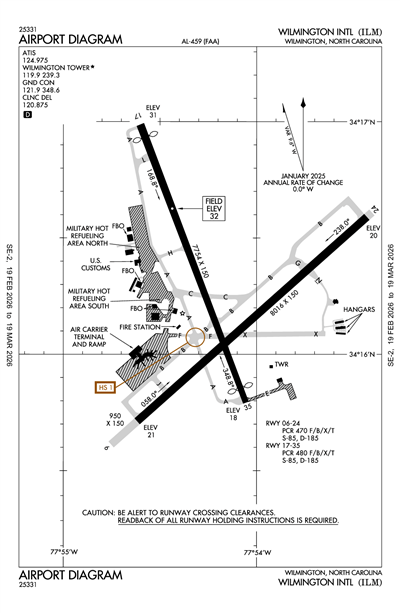

WILMINGTON INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KILM
ICAO KILMIATA ILMLocal ILM
WILMINGTON INTL
PublicPUB

3 miles NE of WILMINGTON, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 16' 16"N 77° 54' 10"W
Elevation
32' MSL
Pattern Alt
1032' MSL
Mag Variation
10°W
Declination
10°W
Fuel
JET A, JET A (FSII), 100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KILM VFR
2:53 AM EST
Clear
10sm
48°F
47°F
30.29"Hg
Calm
AO2 SLP257 T00890083
METAR KILM 040753Z AUTO 00000KT 10SM CLR 09/08 A3029 RMK AO2 SLP257 T00890083
+ Add Your Business

KILM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.975
VFR Advisory 119.9
ASOS (910) 212-6314

Common

CTAF 119.9
ACTVT MALSR RWY 24 & 35; REIL RWY 06 & 17; PAPI RWY 06, 17, 24; HIRL RWY 06/24 & 17/35; AND ALL TWY LGTS - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 120.875

Ground

WILMINGTON GROUND 121.9
0600-2300

Tower

WILMINGTON TOWER 119.9
0600-2300

Terminal

TRSA 118.25
164-343
TRSA 135.75
344-163

Approach

WILMINGTON APPROACH 118.25
164-343
WILMINGTON APPROACH 135.75
344-163

Departure

WILMINGTON DEPARTURE 118.25
164-343
WILMINGTON DEPARTURE 135.75
344-163

Center

WILMINGTON CENTER 124.025
HIGH, APCH/DEP SVC PRVDD BY WASHINGTON ARTCC ON FREQS 124.025/269.15 (WILMINGTON RCAG) WHEN WILMINGTON APCH CTL CLSD.

Flight Service

Flight Service 122.1
(RDU)

Emergency

Emergency 121.5

Terminal Area Forecast

KILM
Wed, 3/4 12:23 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
LIFR
Temporary 1:00 AM EST - 5:00 AM EST
Fog
Broken 300'
0.25sm
Calm
VFR
1:00 AM EST - 6:00 AM EST
Mist
Few 2,000'
6sm
Calm
LIFR
Temporary 6:00 AM EST - 8:00 AM EST
Fog
Broken 300'
0.25sm
Calm
IFR
6:00 AM EST - 9:00 AM EST
Mist
Scattered 300'
2sm
Calm
VFR
9:00 AM EST - 3:00 PM EST
Scattered 4,500'
6sm
280° 3kts
VFR
3:00 PM EST - 12:00 AM EST
Scattered 15,000'
6sm
200° 7kts
IFR
12:00 AM EST - 1:00 AM EST
Mist
Scattered 7,000'
2sm
VRB° 4kts
TAF KILM 040523Z 0406/0506 00000KT 6SM BR FEW020
   TEMPO 0406/0410 1/4SM FG BKN003
   FM041100 00000KT 2SM BR SCT003
   TEMPO 0411/0413 1/4SM FG BKN003
   FM041400 28003KT P6SM SCT045
   FM042000 20007KT P6SM SCT150
   FM050500 VRB04KT 2SM BR SCT070
KILM
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1300Z
3/4/26
1900Z
!ILM 03/003 ILM NAV ILS RWY 35 SPECIAL AUTH CAT II NA 2603041300-2603041900
3/4/26
1300Z
3/4/26
1900Z
!ILM 03/002 ILM AD AP RVR ALL U/S 2603041300-2603041900
2/23/26
1628Z
3/31/26
2200Z
!ILM 02/107 ILM OBST CRANE (ASN UNKNOWN) 341603N0775438W (0.44NM N APCH END RWY 06)
UNKNOWN (130FT AGL) FLAGGED AND LGTD 2602231628-2603312200
2/22/26
0529Z
6/22/26
0529Z
!ILM 02/101 ILM OBST TOWER LGT (ASR 1004813) 342758.00N0775236.00W (11.9NM NE ILM) 296.9FT (270.0FT AGL) U/S 2602220529-2606220529
2/17/26
0229Z
3/18/26
2300Z
!ILM 02/091 ILM OBST TOWER LGT (ASR 1024421) 341438.00N0780723.00W (11.1NM W ILM) 852.7FT (802.8FT AGL) U/S 2602170229-2603182300
2/17/26
0228Z
3/18/26
2300Z
!ILM 02/090 ILM OBST TOWER LGT (ASR 1285012) 340552.30N0775817.20W (11.1NM SSW ILM) 627.3FT (605.3FT AGL) U/S 2602170228-2603182300
2/12/26
1401Z
3/12/26
2359Z
!ILM 02/081 ILM OBST TOWER LGT (ASR 1229600) 341704.10N0775857.00W (4.0NM W ILM) 326.1FT (320.2FT AGL) U/S 2602121401-2603122359
1/21/26
1229Z
!ILM 01/034 ILM NAV ILS RWY 35 OM U/S 2601211229-2607312111EST
FDC
2/10/26
1439Z
9/22/28
1439Z
!FDC 6/1786 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
ILS Y RWY 24 (SA CAT I & II), AMDT 2 ...
S-ILS 24 (SA CAT I) NA. S-ILS 24 (SA CAT II) NA.
2602101439-2809221439EST
2/10/26
1430Z
!FDC 6/1783 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
ILS Z RWY 24, AMDT 1...
S-ILS 24** DA 310/HAT 284 VIS RVR 4000. DISREGARD NOTE: ** RVR 1800 AUTHORIZED WITH THE USE OF FD OR AP OR HUD TO DA.
2602101430-2809221430EST
2/10/26
1430Z
!FDC 6/1781 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
ILS Y OR LOC RWY 24, AMDT 2...
S-ILS 24** DA 310/HAT 284 VIS RVR 4000. DISREGARD NOTE: ** RVR 1800 AUTHORIZED WITH THE USE OF FD OR AP OR HUD TO DA.
2602101430-2809221430EST
2/10/26
1430Z
!FDC 6/1780 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
ILS Y OR LOC RWY 35, AMDT 22D...
ILS Z RWY 35, ORIG-B...
S-ILS 35 NA.
2602101430-2809221430EST
2/18/25
1623Z
!FDC 5/3778 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
ILS Y OR LOC RWY 24, AMDT 2...
ALTERNATE MINIMUMS
ILS STANDARD
LOC A, B, C STANDARD, CAT D 900-3.
2502181623-2702181621EST
9/30/24
1724Z
!FDC 4/2384 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
ILS Y OR LOC RWY 35, AMDT 22D...
ILS Z RWY 35, ORIG-B...
CHART NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 238.
2409301724-2609301724EST
4/29/24
1338Z
!FDC 4/6129 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
RNAV (GPS) RWY 17, AMDT 4A...
LNAV MDA 440/HAT 408 ALL CATS.
2404291338-2604191338EST
Yes
ALL
NEW HANOVER COUNTY
1740 AIRPORT BLVD
WILMINGTON, NC 28405
Phone: 910-341-4333
JEFFREY BOURK, A.A.E.
1740 AIRPORT BLVD
WILMINGTON, NC 28405
Phone: 910-341-4333
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
ILM
--
ACTVT MALSR RWY 24 & 35; REIL RWY 06 & 17; PAPI RWY 06, 17, 24; HIRL RWY 06/24 & 17/35; AND ALL TWY LGTS - CTAF.
N/A
Yes - Lighted
N/A
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

8016 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

85,000lbs
185,000lbs
--
--
  Runway 06 Runway 24
True Heading 48°228°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 15' 43"N 34° 16' 35"N
Longitude 77° 54' 37"W 77° 53' 26"W
Elevation 21' 20'
Threshold Crossing Height 57 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 17/35

7754 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

85,000lbs
185,000lbs
--
--
  Runway 17 Runway 35
True Heading 159°339°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 16' 59"N 34° 15' 48"N
Longitude 77° 54' 36"W 77° 54' 03"W
Elevation 31' 18'
Threshold Crossing Height 50 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1FUEL: AIR WILMINGTON, INC, 910-763-4691.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC WASHINGTON ARTCC AT 703-771-3587.
A16EXT 1001.
A30-06/24WT LMT FOR RWY 06-24: USE ACFT PCR FOR ALL GEAR TYPES OTHER THAN "S" OR D".
A30-17/35WT LMT FOR RWY 17-35: USE ACFT PCR FOR ALL GEAR TYPES OTHER THAN "S" OR "D".
A39-06/24PCR VALUE: 470/F/B/X/T
A39-17/35PCR VALUE: 480/F/B/X/T
A81-APTACTVT MALSR RWY 24 & 35; REIL RWY 06 & 17; PAPI RWY 06, 17, 24; HIRL RWY 06/24 & 17/35; AND ALL TWY LGTS - CTAF.
E111TPA: ARPT IN EXISTENCE IN 1956.
E147TPA: 1000 FT AGL RECIPROCATING ENGINE, 1500 FT AGL TBJT/JET. OHD: 5 MILE INITIAL 2500 FT AGL, BREAK 2000 FT AGL. TOWER CALLS DRCTN OF BREAK. CARRIER BREAK NA.
WILMINGTON INTL (ICAO: KILM, IATA: ILM) is a public airport located in WILMINGTON, NC, US.
