iFlightPlanner



...

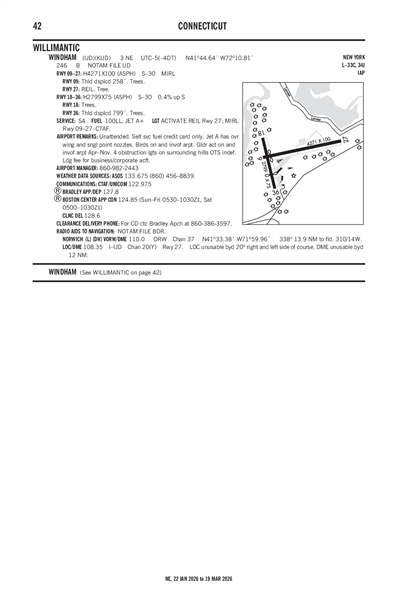

WINDHAM - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIJD
ICAO KIJDIATA IJDLocal IJD
WINDHAM
PublicPUB

3 miles NE of WILLIMANTIC, CT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 44' 38"N 72° 10' 49"W
Elevation
246' MSL
Pattern Alt
1246' MSL
Mag Variation
14°W
Declination
15°W
Fuel
JET A (FSII), 100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KIJD LIFR
7:52 AM EST
Freezing Fog
Obscured 100'
0.25sm
29°F
29°F
30.25"Hg
Calm
AO2 SLP246 T10171017
METAR KIJD 041252Z AUTO 00000KT 1/4SM FZFG VV001 M02/M02 A3025 RMK AO2 SLP246 T10171017
+ Add Your Business

KIJD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 133.675
(860) 456-8839

Common

CTAF 122.975
ACTVT REIL RWY 27; MIRL RWY 09/27- CTAF.
UNICOM 122.975

Clearance

Clearance Delivery 128.6

Approach

BRADLEY APPROACH 127.8

Departure

BRADLEY DEPARTURE 127.8

Center

BRADLEY CENTER 124.85
LOW, APCH SVC PRVDD BY BOSTON ARTCC ON FREQS 124.85/307.9 (WOODSTOCK RCAG) WHEN PROVIDENCE APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBDL (25nm)
Wed, 3/4 7:10 AM EST
Wed, 3/4 7:00 AM EST - Thu, 3/5 1:00 PM EST
LIFR
Temporary 7:00 AM EST - 9:00 AM EST
Freezing Fog
No Clouds
0.25sm
Calm
LIFR
7:00 AM EST - 10:00 AM EST
Mist
Overcast 300'
2sm
Calm
VFR
10:00 AM EST - 11:00 PM EST
Scattered 25,000'
6sm
VRB° 3kts
MVFR
11:00 PM EST - 1:00 AM EST
Mist
Scattered 15,000'
3sm
Calm
IFR
1:00 AM EST - 10:00 AM EST
Mist
Broken 1,000'
1sm
Calm
MVFR
10:00 AM EST - 1:00 PM EST
Mist
Broken 3,000'
5sm
Calm
TAF KBDL 041210Z 0412/0518 00000KT 2SM BR OVC003
   TEMPO 0412/0414 1/4SM FZFG
   FM041500 VRB03KT P6SM SCT250
   FM050400 00000KT 3SM BR SCT150
   FM050600 00000KT 1SM BR BKN010
   FM051500 00000KT 5SM BR BKN030
KIJD
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
2040Z
3/4/26
1500Z
!IJD 03/005 IJD AD AP CLSD 2603032040-2603041500
3/1/26
2247Z
3/16/26
2247Z
!IJD 03/003 IJD OBST POWER LINE LGT (ASN 2012-ANE-643-OE) 414516N0721151W (1.0NM NW IJD) 488FT (82FT AGL) U/S 2603012247-2603162247
3/1/26
2246Z
3/16/26
2246Z
!IJD 03/002 IJD OBST POWER LINE LGT (ASN 2013-ANE-2325-OE) 414453N0721315W (1.8NM W IJD) 600FT (82FT AGL) U/S 2603012246-2603162246
3/1/26
2217Z
3/16/26
2217Z
!IJD 03/001 IJD OBST POWER LINE LGT (ASN 2019-ANE-3859-OE) 414444N0721345W (2.2NM W IJD) 499FT (95FT AGL) U/S 2603012217-2603162217
2/28/26
0814Z
3/15/26
0714Z
!IJD 02/049 IJD OBST TOWER LGT (ASR 1205146) 414145.20N0720549.40W (4.7NM SE IJD) 610.9FT (250.0FT AGL) U/S 2602280814-2603150714
2/27/26
1455Z
3/14/26
1455Z
!IJD 02/048 IJD OBST TOWER LGT (ASN 2019-ANE-3867-OE) 414515N0721152W (1.0NM NW IJD) 495FT (84FT AGL) U/S 2602271455-2603141455
2/27/26
1435Z
3/27/26
2359Z
!IJD 02/047 IJD OBST TOWER LGT (ASR 1017421) 413310.00N0720435.00W (12.4NM SSE IJD) 700.8FT (356.0FT AGL) U/S 2602271435-2603272359
2/27/26
0603Z
3/14/26
0503Z
!IJD 02/046 IJD OBST TOWER LGT (ASR 1043732) 414210.10N0721318.70W (3.1NM SW IJD) 817.9FT (297.9FT AGL) U/S 2602270603-2603140503
2/27/26
0509Z
3/14/26
0509Z
!IJD 02/045 IJD OBST POWER LINE LGT (ASN 2014-ANE-1-OE) 414452N0721319W (1.9NM W IJD) 602FT (72FT AGL) U/S 2602270509-2603140509
2/21/26
2212Z
3/8/26
2212Z
!IJD 02/038 IJD OBST POWER LINE LGT (ASN 2019-ANE-3863-OE) 414457N0721303W (1.7NM W IJD) 551FT (85FT AGL) U/S 2602212212-2603082212
2/21/26
2211Z
3/8/26
2211Z
!IJD 02/037 IJD OBST TOWER LGT (ASN 2019-ANE-3866-OE) 414511N0721213W (1.2NM WNW IJD) 574FT (82FT AGL) U/S 2602212211-2603082211
2/21/26
0414Z
3/8/26
0414Z
!IJD 02/035 IJD OBST POWER LINE LGT (ASN 2012-ANE-642-OE) 414515N0721159W (1.0NM NW IJD) 550FT (87FT AGL) U/S 2602210414-2603080414
2/20/26
1331Z
3/7/26
1331Z
!IJD 02/033 IJD OBST POWER LINE LGT (ASN 2019-ANE-3860-OE) 414448N0721329W (2.0NM W IJD) 525FT (95FT AGL) U/S 2602201331-2603071331
2/19/26
1355Z
3/6/26
1355Z
!IJD 02/032 IJD OBST POWER LINE LGT (ASN 2013-ANE-2326-OE) 414456N0721309W (1.7NM W IJD) 590FT (112FT AGL) U/S 2602191355-2603061355
2/18/26
1138Z
3/5/26
1138Z
!IJD 02/031 IJD OBST POWER LINE LGT (ASN 2021-ANE-7388-OE) 414544N0720742W (2.6NM ENE IJD) 526FT (75FT AGL) U/S 2602181138-2603051138
2/18/26
0807Z
3/5/26
0807Z
!IJD 02/030 IJD OBST POWER LINE LGT (ASN 2021-ANE-7387-OE) 414546N0720749W (2.5NM ENE IJD) 520FT (88FT AGL) U/S 2602180807-2603050807
2/18/26
0803Z
3/5/26
0803Z
!IJD 02/029 IJD OBST POWER LINE LGT (ASN 2019-ANE-6763-OE) 414443N0721352W (2.3NM W IJD) 516FT (93FT AGL) U/S 2602180803-2603050803
7/10/25
1628Z
!IJD 07/005 IJD COM REMOTE TRANS/REC 128.6 U/S 2507101628-PERM
FDC
2/23/26
1440Z
3/26/26
1440Z
!FDC 6/8340 IJD IAP WINDHAM, WILLIMANTIC, CT.
VOR-A, AMDT 9B...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HFD VOR OUT OF SERVICE. 2602231440-2603261440EST
8/7/25
1203Z
!FDC 5/2905 IJD ODP WINDHAM, WILLIMANTIC, CT.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 6...
TAKE-OFF MINIMUMS: RWY 9: STANDARD WITH MINMUM CLIMB OF 425 FT/NM TO 900 OR 1100-3 FOR VCOA. RWY 27: 300-2 OR STANDARD WITH MINIMUM CLIMB OF 279 FT/NM TO 800. RWY 36: STANDARD WITH MINIMUM CLIMB OF 418 FT/NM TO 700 OR 1100-3 FOR VCOA.
ALL OTHER DATA REMAINS AS PUBLISHED. 2508071203-2708071203EST
No
UNATTENDED
CONNECTICUT AIRPORT AUTHORITY
SUITE 160 334 ELLA GRASSO TURNPIKE
WINDSOR LOCKS, CT 06096
Phone: 860-292-2000
ROBERT PELLIGRINO
CONNECTICUT AIRPORT AUTHORITY 239 MAXIM RD
HARTFORD, CT 06114
Phone: 860-982-2443
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
IJD
--
ACTVT REIL RWY 27; MIRL RWY 09/27- CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction

Runway 09/27

4271 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 74°254°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 41° 44' 36"N 41° 44' 48"N
Longitude 72° 11' 07"W 72° 10' 12"W
Elevation 239' 239'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes

Runway 18/36

2799 ft. x 75 ft.
ASPH
Good
NONE


30,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 163°343°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 44' 47"N 41° 44' 20"N
Longitude 72° 11' 08"W 72° 10' 58"W
Elevation 235' 246'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-34 OBS LGTS ON SRNDG HILLS OTS INDEFLY.
A110-4BIRDS ON & INVOF ARPT.
A110-5FOR CD CTC BRADLEY APCH AT 860-386-3597.
A110-6GLDR ACT ON & INVOF ARPT APR-NOV.
A24LDG FEE FOR BUS/CORPORATE ACFT.
A57-09APCH RATIO 25:1 TO DTHR.
A57-36APCH RATIO 20:1 TO DTHR.
A70-100LLSELF SVC FUEL, CREDIT CARD ONLY: VISA, MASTERCARD & DISCOVER.
A70-A+SELF SVC FUEL, CREDIT CARD ONLY: VISA, MASTERCARD & DISCOVER. JET A HAS OVR WING & SNGL POINT NOZZLES.
A81-APTACTVT REIL RWY 27; MIRL RWY 09/27- CTAF.
E111EXISTED PRIOR TO 1959.
WINDHAM (ICAO: KIJD, IATA: IJD) is a public airport located in WILLIMANTIC, CT, US.
