No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIGM
KINGMAN
PublicPUB

8 miles NE of KINGMAN, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 15' 34"N 113° 56' 17"W
3449' MSL
4249' MSL
12E
JET A, 100LL
PRESCOTT (PRC)
PHOENIX
LOS ANGELES (ZLA)
10/31/24-11/28/24
KIGM VFR
4:51 AM MST
Clear
10sm
33°F
11°F
30.09"Hg
Calm
AO2 SLP160 T00061117 10044 21006 53004
KIGM 091151Z AUTO 00000KT 10SM CLR 01/M12 A3009 RMK AO2 SLP160 T00061117 10044 21006 53004
Add Your Business

KIGM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
928-692-8104
 119.275

FAA A/FD Pages

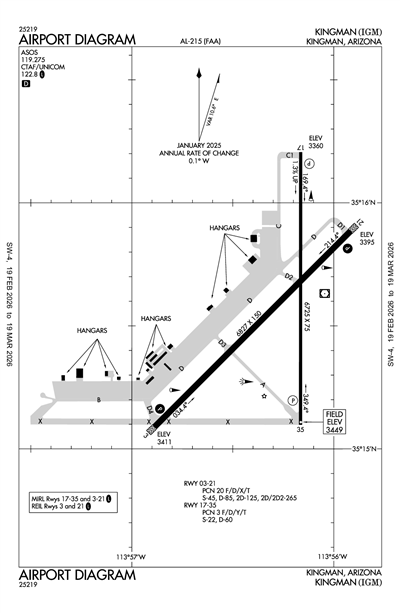

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIFP (31nm)
Sat, 11/9 4:31 AM MST
Sat, 11/9 5:00 AM MST - Sun, 11/10 5:00 AM MST
VFR
5:00 AM MST - 11:00 AM MST
Sky Clear
6sm
010° 5kts
VFR
11:00 AM MST - 7:00 PM MST
Sky Clear
6sm
350° 11kts
VFR
7:00 PM MST - 5:00 AM MST
Sky Clear
6sm
VRB° 5kts
KIFP 091131Z 0912/1012 01005KT P6SM SKC
   FM091800 35011KT P6SM SKC
   FM100200 VRB05KT P6SM SKC
KIGM
Domestic
10/24/241311Z !IGM 10/008 IGM RWY 03 PAPI UNUSABLE 2410241311-2504282111EST
FDC
11/5/241700Z !FDC 4/8546 IGM ODP KINGMAN, KINGMAN, AZ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1A...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
IGM VOR/DME OUT OF SERVICE. 2411051700-2411122300EST
3/25/241831Z !FDC 4/1394 IGM IAP KINGMAN, KINGMAN, AZ.
RNAV (GPS) Z RWY 21, ORIG-C...
LPV DA 3678/HAT 275.
DISREGARD NOTE: DME/DME RNP-0.3 NA. PBN REQUIREMENTS NOTE: RNP APCH.
2403251831-2603251831EST
No
MON-FRI 0600-1600
SAT-SUN 0600-1400
CITY OF KINGMAN
7000 FLIGHTLINE DR
KINGMAN, AZ 86401
Phone: 928-757-2134
DOUG BRECKENRIDGE
7000 FLIGHTLINE DR.
KINGMAN, AZ 86401
Phone: 928-757-2134
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
IGM
--
ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 & 17/35; TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Air Freight
Air Ambulance
Aircraft Rental

Runway 03/21

6827 ft. x 150 ft.
ASPH
Good
NONE
MED
20 /F/D/X/T
45,000lbs
85,000lbs
125,000lbs
265,000lbs
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 15' 05"N 35° 15' 53"N
Longitude 113° 56' 53"W 113° 55' 55"W
Elevation 3,411' 3,395'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 17/35

6725 ft. x 75 ft.
ASPH
Good
NONE
MED
3 /F/D/Y/T
22,000lbs
60,000lbs
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 16' 12"N 35° 15' 06"N
Longitude 113° 56' 10"W 113° 56' 10"W
Elevation 3,360' 3,449'
Threshold Crossing Height 49 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RWY 21 CALM WIND RWY.
A110-3DISTANCE REMAINING SIGNS RIGHT SIDE RWY 03, LEFT SIDE RWY 21.
A110-4ULTRALIGHT & MODEL AIRPLANE ACTVT NW OF ARPT.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-7VEHICLE AND PEDESTRIAN GATE CODE IS THE PUBLISHED LENGTH OF RWY 03/21.
KINGMAN (ICAO: KIGM, IATA: IGM) is a public airport located in KINGMAN, AZ.
