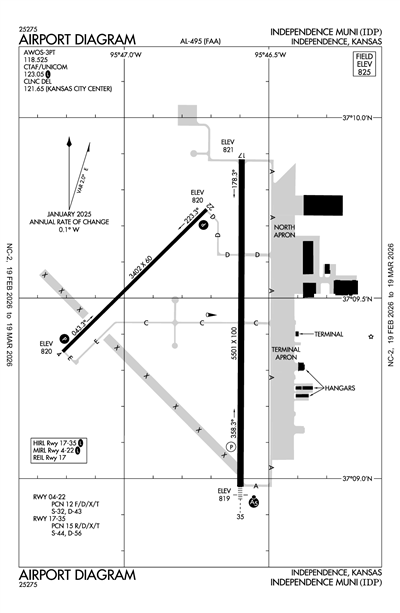

INDEPENDENCE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIDP
ICAO KIDPIATA IDPLocal IDP
INDEPENDENCE MUNI
PublicPUB

5 miles SW of INDEPENDENCE, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 09' 29"N 95° 46' 44"W
Elevation
825' MSL
Pattern Alt
1825' MSL
Mag Variation
2°E
Declination
2°E
Fuel
JET A, 100LL
FSS
WICHITA (ICT)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KIDP LIFR
4:35 AM CST
Mist
Overcast 400'
5sm
45°F
45°F
30.05"Hg
020° 10kts
AO2 LTG DSNT NW
METAR KIDP 041035Z AUTO 02010KT 5SM BR OVC004 07/07 A3005 RMK AO2 LTG DSNT NW
+ Add Your Business

KIDP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.525
(620) 331-5980

Common

CTAF 123.05
ACTVT MALSR RWY 35; PAPI RWY 04 & 22; MIRL RWY 04 & 22: HIRL RWY 17 & 35 - CTAF.
UNICOM 123.05

Center

KANSAS CITY CENTER 128.6
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 128.6/282.325 (EDNA RCAG).

Terminal Area Forecast

KBVO (26nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 1:00 AM CST
Broken 12,000'
Broken 5,000'
Scattered 1,500'
6sm
360° 11kts
MVFR
Temporary 12:00 AM CST - 1:00 AM CST
Broken 1,500'
N/A
Calm
MVFR
1:00 AM CST - 3:00 AM CST
Broken 1,500'
6sm
010° 7kts
IFR
3:00 AM CST - 7:00 AM CST
Broken 700'
6sm
360° 5kts
IFR
3:00 AM CST - 7:00 AM CST
Light Rain and Mist
Broken 700'
5sm
Calm
IFR
Temporary 7:00 AM CST - 11:00 AM CST
Thunderstorm and Rain and Mist
Broken 800'
2sm
VRB° 11kts
IFR
7:00 AM CST - 1:00 PM CST
Light Showers and Rain and Mist and Thunderstorm in vicinity
Broken 1,200'
Broken 700'
4sm
360° 10kts
IFR
1:00 PM CST - 7:00 PM CST
Broken 800'
6sm
350° 5kts
MVFR
7:00 PM CST - 12:00 AM CST
Broken 1,200'
6sm
VRB° 3kts
TAF KBVO 040520Z 0406/0506 36011KT P6SM SCT015 BKN050 BKN120
   TEMPO 0406/0407 BKN015
   FM040700 01007KT P6SM BKN015
   FM040900 36005KT P6SM BKN007
   PROB30 0409/0413 5SM -RA BR BKN007
   FM041300 36010KT 4SM -SHRA BR VCTS BKN007 BKN012CB
   TEMPO 0413/0417 VRB11KT 2SM TSRA BR BKN008CB
   FM041900 35005KT P6SM BKN008
   FM050100 VRB03KT P6SM BKN012
KIDP
EffectiveExpiresCategoryNOTAM
Domestic
12/31/25
2258Z
3/31/26
2359Z
!ICT 12/490 IDP OBST TOWER LGT (ASR 1062553) 365819.00N0955348.00W (12.5NM SSW IDP) 1133.2FT (353.0FT AGL) U/S 2512312258-2603312359
FDC
2/28/26
1956Z
6/2/26
1956Z
!FDC 6/1712 IDP IAP INDEPENDENCE MUNI, INDEPENDENCE, KS.
VOR-A, AMDT 3B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BVO VOR/DME UNMONITORED. 2602281956-2606021956EST
No
MON-FRI 0700-1800
CITY OF INDEPENDENCE
120 N. 6TH
INDEPENDENCE, KS 67301
Phone: 620-332-2500
AARON SHRADER
498 FREEDOM DRIVE
INDEPENDENCE, KS 67301
Phone: 620-332-2531
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT MALSR RWY 35; PAPI RWY 04 & 22; MIRL RWY 04 & 22: HIRL RWY 17 & 35 - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 04/22

3402 ft. x 60 ft.
ASPH
Fair
NONE
MED
12/F/D/X/T
32,000lbs
43,000lbs
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 09' 21"N 37° 09' 45"N
Longitude 95° 47' 13"W 95° 46' 43"W
Elevation 820' 820'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5501 ft. x 100 ft.
ASPH
Fair
NONE
HIGH
15/R/D/X/T
44,000lbs
56,000lbs
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 37° 09' 53"N 37° 08' 59"N
Longitude 95° 46' 36"W 95° 46' 36"W
Elevation 821' 819'
Threshold Crossing Height -- 42 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No
A110-10RWY 35 DSGNDAS CALM WIND RWY.
A110-11FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A110-2MANUFACTURED ACFT TESTING ON & INVOF ARPT
A110-3CROP DUSTING ACFT & AGRICULTURAL EQUIP ON & INVOF ARPT.
A110-4MIGRATORY BIRDS & WATERFOWL ON & INVOF ARPT.
A110-5WILDLIFE ON & INVOF RWYS.
A110-6RWY 04/22 NO LINE ON SIGHT BETWEEN RWY ENDS.
A110-7EXTSV FLT TESTING & FLT TRNG.
A110-8FARM MACHINERY ON ARPT.
A110-9CROP DUSTING ACTIVITY INVOF ARPT.
A58-0415 FT TREES 72 FT DST, 186 FT L.
A70-100LL100LL ONLY SELF SVC AVBL 24 HRS.
A81-APTACTVT MALSR RWY 35; PAPI RWY 04 & 22; MIRL RWY 04 & 22: HIRL RWY 17 & 35 - CTAF.
E111PRVDD A CLEAR APCH TO EACH RY MAINTAINED FOR A MINIMUM 20:1 GLIDE SLOPE & A CLEAR TRANSITIONAL SFC IS MAINTAINED FOR A 7:1 SLOPE.
INDEPENDENCE MUNI (ICAO: KIDP, IATA: IDP) is a public airport located in INDEPENDENCE, KS, US.
