KIMBALL MUNI/ROBERT E ARRAJ FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIBM
ICAO KIBMLocal IBM
KIMBALL MUNI/ROBERT E ARRAJ FLD
PublicPUB

3 miles S of KIMBALL, NE, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 11' 17"N 103° 40' 39"W
Elevation
4926' MSL
Pattern Alt
5926' MSL
Mag Variation
7°E
Declination
10°E
Fuel
JET A, 100LL
FSS
COLUMBUS (OLU)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KIBM VFR
9:35 PM MST
Clear
10sm
41°F
32°F
30.17"Hg
030° 3kts
AO2 T00501001
METAR KIBM 040435Z AUTO 03003KT 10SM CLR 05/00 A3017 RMK AO2 T00501001
+ Add Your Business

KIBM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.075
(308) 235-2516

Common

CTAF 122.8
ACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
UNICOM 122.8

Center

DENVER CENTER 125.9
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 125.9/284.7 (CHEYENNE RCAG).

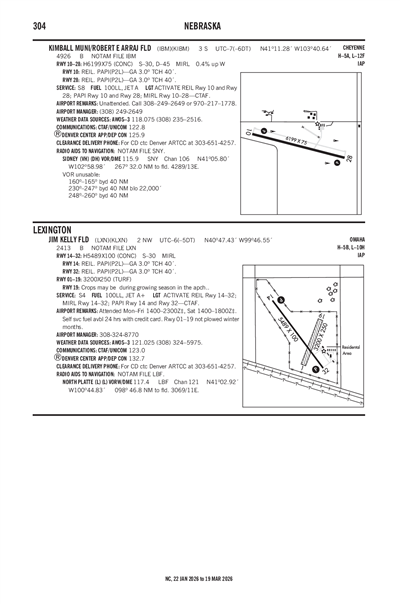

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSNY (32nm)
Tue, 3/3 4:20 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 7:00 PM MST
Overcast 6,000'
6sm
360° 10kts
VFR
7:00 PM MST - 9:00 PM MST
Light Showers and Rain
Overcast 8,000'
6sm
270° 5kts
VFR
9:00 PM MST - 8:00 AM MST
Broken 9,000'
6sm
270° 5kts
VFR
8:00 AM MST - 5:00 PM MST
Sky Clear
6sm
250° 5kts
TAF KSNY 032320Z 0400/0424 36010KT P6SM OVC060
   FM040200 27005KT P6SM -SHRA OVC080
   FM040400 27005KT P6SM BKN090
   FM041500 25005KT P6SM SKC
KIBM
EffectiveExpiresCategoryNOTAM
Domestic
1/19/26
1633Z
4/19/26
2359Z
!IBM 01/001 IBM OBST TOWER LGT (ASR 1241900) 411249.20N1032336.80W (12.9NM E IBM) 4954.7FT (349.7FT AGL) U/S 2601191633-2604192359
No
UNATTENDED
CALL (308) 249-2649 OR (970) 217-1778.
KIMBALL AIRPORT AUTHORITY
223 S CHESTNUT STREET
KIMBALL, NE 69145
Phone: (308) 249-2649
RYAN MCELROY
223 S CHESTNUT STREET
KIMBALL, NE 69145
Phone: (308) 249-2649
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
IBM
--
ACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
Minor
None
None
Pilot Instruction
Aircraft Rental

Runway 10/28

6199 ft. x 75 ft.
CONC
Good
NONE
MED

30,000lbs
45,000lbs
--
--
  Runway 10 Runway 28
True Heading 105°285°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 11' 25"N 41° 11' 09"N
Longitude 103° 41' 18"W 103° 39' 59"W
Elevation 4,926' 4,900'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1FOR CD CTC DENVER ARTCC AT 303-651-4257.
A17-M1CALL (308) 249-2649 OR (970) 217-1778.
A57-10RWY 10 CLNC SLOPE 36:1 TO RWY THR DUE TO ROAD 641 FT FM & 12 FT ABV RWY END, 316 RIGHT.
A57-28RWY 28 CLNC SLOPE 43:1 TO RWY THR DUE TO ROAD 768 FT FM & 13 FT ABV RWY END, 335 R.
A81-APTACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
KIMBALL MUNI/ROBERT E ARRAJ FLD (ICAO: KIBM, IATA: IBM) is a public airport located in KIMBALL, NE, US.
