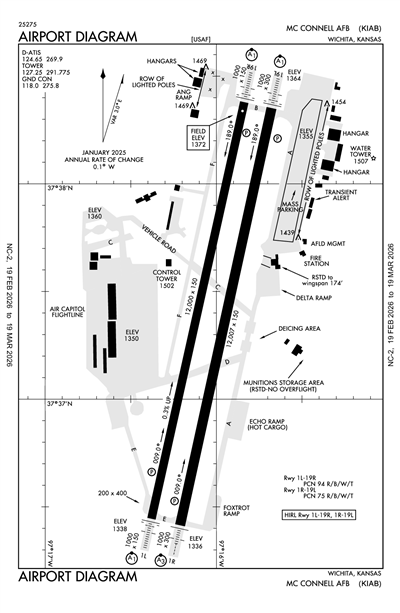

MC CONNELL AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIAB
ICAO KIABIATA IABLocal IAB
MC CONNELL AFB
PrivatePVT

4 miles S of WICHITA, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 37' 23"N 97° 16' 03"W
Elevation
1372' MSL
Pattern Alt
2372' MSL
Mag Variation
3°E
Declination
4°E
Fuel
None Listed
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KIAB IFR
7:55 PM CST
Mist
Overcast 500'
3sm
45°F
44°F
30.05"Hg
030° 13kts
AO2 CIG 004 RWY19 SLP181 T00730066 $
METAR KIAB 040155Z AUTO 03013KT 3SM BR OVC005 07/07 A3005 RMK AO2 CIG 004 RWY19 SLP181 T00730066 $
+ Add Your Business

KIAB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 124.65

Ground

MC CONNELL GROUND 118.0

Tower

MC CONNELL TOWER 127.25

Approach

WICHITA APPROACH 126.7
WEST OF ICT
WICHITA APPROACH 134.8
EAST OF IAB, 4000 FT & BLW
WICHITA APPROACH 134.8
WICHITA APPROACH 134.85
EAST OF IAB ABV 4000 FT

Departure

WICHITA DEPARTURE 134.8
WICHITA DEPARTURE 134.8
4000 FT & BLW
WICHITA DEPARTURE 134.85
ABV 4000 FT

Emergency

Emergency 121.5

Terminal Area Forecast

KIAB
Tue, 3/3 1:10 PM CST
Tue, 3/3 1:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
Temporary 12:00 PM CST - 6:00 PM CST
Mist
Overcast 200'
0.99sm
Calm
IFR
1:00 PM CST - 2:00 AM CST
Mist
Overcast 600'
3.73sm
29.91"Hg
010° 7kts
Light Turbulence: 1,000 - 4,000'
IFR
Becoming 2:00 AM CST - 9:00 AM CST
Light Showers and Rain and Thunderstorm in vicinity
Overcast 2,000'
Broken 700'
4.97sm
30.06"Hg
030° 12kts
Moderate, Clear Air, Occasional: 3,000 - 5,000'
LIFR
Temporary 4:00 AM CST - 9:00 AM CST
Thunderstorm and Rain
Overcast 1,500'
Broken 400'
2.98sm
VRB° 20kts
Gusts 30kts
IFR
Becoming 9:00 AM CST - 11:00 AM CST
Showers in vicinity
Overcast 1,500'
Broken 700'
Scattered 400'
6sm
30.09"Hg
360° 9kts
Light Turbulence: 2,000 - 5,000'
MVFR
Becoming 11:00 AM CST - 6:00 PM CST
Broken 1,200'
6sm
29.97"Hg
340° 9kts
Light Turbulence: 2,000 - 5,000'
TAF AMD KIAB 031910Z 0319/0424 01007KT 6000 BR OVC006 510103 QNH2992INS
   TEMPO 0318/0324 1600 BR OVC002
   BECMG 0408/0409 03012KT 8000 -SHRA VCTS BKN007 OVC020CB 520302 QNH3007INS
   TEMPO 0410/0415 VRB20G30KT 4800 TSRA BKN004 OVC015CB
   BECMG 0415/0416 36009KT 9999 VCSH SCT004 BKN007 OVC015 510203 QNH3010INS
   BECMG 0417/0418 34009KT 9999 NSW BKN012 510203 QNH2998INS TX10/0321Z TN07/0312Z
KIAB
EffectiveExpiresCategoryNOTAM
Military
2/24/26
1327Z
2/27/26
2200Z
CAUTION: 60FT AGL ANTENNA LOCATED APPROXIMATELY 2000FT NW OF RWY 19R/01L
2/19/26
1344Z
4/19/26
2359Z
MAPA EDGE LGT UNSERVICEABLE MAPA RAMP, (2) TWO BALL PARK OBSTRUCTION LIGHTS.
2/19/26
1342Z
4/19/26
2359Z
KANSAS ANG APRON EDGE LGT UNSERVICEABLE KANG RAMP/FIRE DEPT/AGR (2) BALL PARK OBSTRUCTION LIGHTS.
2/10/26
1730Z
3/31/26
2359Z
FIRE CRASH CAPABILITY: 2 VEHICLES/4800 GALLONS OF AGENT REDUCING LEVEL OF SERVICE. KIAB AIRCRAFT RESCUE AND FIRE FIGHTING (ARFF) IS: OPTIMAL LEVEL OF SERVICE: CAT 8; KC-135, CAT 5; C-20A/B/C/H, CAT 1,2,3,4; T-37B, UAVS & DRONES, T-38A, AT-38B/C, T-6A, UV-18, CV-22, UH-1N, C-38A, A-10, OA-10, F-16C/D, T-1A, C-21A, C-12, F-15A/B/C/D, F-15E, F-117A, F-22A, F-35A/B/C. REDUCED LEVELS OF SERVICE: CAT 8; C-17A, B-1B, B-2, B-52H AND KC-46 (767), CAT 6 - 7; C-9A/C (DC-9), C-22B, C-40C (737), T-43A (737), C-130 (ALL MODELS), C-37A, MH-53J/M, C-32A (757), E-8C (707), E-3B (707), RC-135U/V/W (707). CRITICAL LEVEL OF SERVICE: CAT 10; C-5A/B, CAT 9; E-4B (747), VC-25 (747) AND KC-10A (DC-10)
2/6/26
1720Z
4/6/26
2359Z
PAPI/VGSI SET FOR: HGT GP 3 RWY 1L-19R & RWY 19L (TCH = 55), HGT GP 4 RWY 1R (TCH 64).
1/31/26
0303Z
3/31/26
2359Z
ONE OB LIGHT UNLIT AT THE FIRE TRAINING AREA
1/31/26
0302Z
3/31/26
2359Z
TRANSIENT APPROACHES/PATTERN WORK AUTHORIZED WITHOUT RESTRICTION. PPRS STILL REQUIRED FOR FULL STOP LANDING.
1/23/26
0232Z
4/22/26
2359Z
ECHO RAMP (3) BALL PARK OBSTRUCTION LIGHTS UNLIT
1/13/26
2004Z
3/31/26
2359Z
USE CAUTION, TURNS AT THE TAXIWAY D AND TAXIWAY A INTERSECTION, REQUIRES JUDGMENTAL OVERSTEER FOR KC-46 AND LARGER AIRCRAFT. NO C5, B747, OR B52 TURNS IN THIS INTERSECTION
1/8/26
0319Z
3/7/26
2359Z
OB LIGHT UNLIT NEAR SOUTH OVERRUNS, AT RAWS BLDG. 20037
1/8/26
0312Z
3/7/26
2359Z
AIRCRAFT WITH WINGSPANS GREATER THAN 190FT, NOT AUTHORIZED ON TWY B BETWEEN RWY 19L/01R AND TWY A
Yes
ALL
USAF
HQ MCCONNELL AFB
WICHITA, KS 67221
CHIEF AIRFIELD MANAGEMENT
HQ MCCONNELL AFB
WICHITA, KS 67221
Phone: 316-759-3835
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
IAB
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Cargo Handling

Runway 01L/19R

12000 ft. x 150 ft.
ASPH
CONC
NONE
HIGH
94/R/B/W/T
--
--
--
--
  Runway 01L Runway 19R
True Heading 12°192°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition
Latitude 37° 36' 26"N 37° 38' 22"N
Longitude 97° 16' 25"W 97° 15' 52"W
Elevation 1,338' 1,372'
Threshold Crossing Height 55 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 01R/19L

12007 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
75/R/B/W/T
--
--
--
--
  Runway 01R Runway 19L
True Heading 12°192°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 37° 36' 24"N 37° 38' 20"N
Longitude 97° 16' 15"W 97° 15' 42"W
Elevation 1,336' 1,364'
Threshold Crossing Height 64 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALR ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-25JASU: 4(M32A-86) (MA-1A) (MC-1A) 2(MC-2A) 5(MD-4) 3(AM32-95)
A110-26FUEL: A++
A110-28OIL: O-133-148-156 SOAP.
A110-29TRAN ALERT: NO PRIORITY BASIS. LTD TRAN MAINT SVC AVBL 1300-0500Z++ WKD; 1400-0000Z++ SAT-SUN; CLSD FED HOL.
A110-30TRANS ALERT: TRAN MAINT NOT AVBL OUTSIDE PUBL HR. TRANS SVC LIMITED. WEAPONS/GUNS, ARM/DE-ARM/SAFEING NOT AVBL.
A110-32REQ FOR PPR TAKEN NO ERYR THAN 7 DAYS PRIOR TO PLANNED MSN. PPR'S VALID +/- 1 HR SKED PPR SLOT TIMES. PPR INCL SKED DV, AIREVAC, AMC AND SAM MSN DUE LTD RAMP SPACE, TRAN ACFT PRK LT. CTC AMOPS DSN 743-3701, C316-759-3701. INBD ACFT WITH DV CTC COMD POST 30 MIN PRIOR TO ETA WITH BLOCK TIME.
A110-33RSTD: INBD ACFT WITH DV CTC COMD POST 30 MIN PRIOR TO ETA WITH BLOCK TIME. DO NOT OVFT MUNITIONS STOR AREA 2500' E OF MIDPOINT RWY 01R-19L. ALL INBD PAX/CARGO ACFT MUST CTC COMD POST NO LATER THAN 30 MIN PRIOR TO LDG.ACFT OPR RSTD DUR BIRD WATCH COND MODERATE (TKOF OR LDG PERMS ONLY WHEN DEP AND ARR RTE AVOID IDENT BIRD ACT. NO LCL IFR/VFR TFC PAT ACT) AND SEVERE (TKOF AND LDG PROH WO OG/CC APVL), CTC ATIS, TWR, COMD POST, OR PTD/AMOPS FOR CURRENT BIRD WATCH COND.
A110-36CAUTION: ACFT MAY APPEAR TO BE LEFT OF CRS WHEN FLYING INST APCH TO RWY 01L IN IMC DUE TO PARL RWY 01R APCH LGT.
A110-42SOAP SVCS NOT AVBL FOR TRANSIENT ACFT.
A110-45TRAN ALERT: PRK SPACE, SVCG, AND RON CANNOT BE ASSURED WITHOUT PRIOR COORD DSN 743-3701, C316-759-3701. GND SVCG NOT AVBL WHEN LIGHTNING WITHIN 5 NM.
A110-50CAUTION: RWY 01R/19L EDGE LIGHTS LCTD MORE THAN 10 FT FR EDGE OF USABLE RWY SFC.
A110-52TRAN ALERT: NO DEICING CAPABILITY FOR C-5, C-17, B-747, KC OR DC-10.
A110-58RWY 01L-19R FULLY GROOVED. RWY 01R-19L: FIRST 1000 FT AND LAST 1000 FT- CONC; MID 10,000 FT- ASPH; MID 9500 FT GROOVED.
A110-59PMSV METRO: WX SVC AVBL H24 UNLESS AFLD CLSD AT DSN 743-3707/4311, C316-759-3707/4311. AN/FMQ-19 AWOS IN USE, AUGMENTED BY HUMAN OBSN WHEN NEC. VIS OF AFLD RSTD FR BASE WX OPS NNE-SE DUR MANUAL AUGMENTATION BY WX FORECASTER. CTC TACC DSN 779-0308, C618-229-0308, OR 26 OWS DSN 331-2651/2652/2653, C318-529-2641/2652/2653 DUR WX FLT CLOSURE OR EVAC. WHEN POSSIBLE, PROVIDE 2 HR ADVANCE NTC FOR ALL RQR BRIEFS.
A110-60CAUTION: BACKUP WX OBSN VIEW LTD, RSTD FR 020-140 BY FLIGHTLINE FAC. ATC PERS IAW COOPERATIVE WX WATCH WILL ALERT WX PERS ON ANY UNREPORTED WX COND THAT COULD AFCT FLT SAFETY. ALTN WX LCTN VIEW LTD, RSTD FR 210-320 BY BLDGS.
A110-62RSTD: HAZ CARGO PRK AVBL WITH 48 HRS PN.
A110-64STOR OF CLASSIFIED MATERIAL NOT AVBL AT AFLD MGMT, CTC COMD POST DSN 743-3251, C316-759-3251, 24 HR PRIOR.
A110-65RSTD: PRACTICE APCH (VFR/IFR) RSTD TO KC-135, KC-46, A10, C-12, T-1, C-130, UH-60 AND T-38 ACFT ONLY 0400-1200Z++.
A110-66MISC: ACFT RESCUE FIRE FIGHTING (ARFF) CAPABILITIES HAS PERM REDUCED LEVEL OF SVC (RLS) FOR USAF CAT 5 AND 6/NFPA CAT 9 AND 10 (ACFT TYPE: C5, VC-25, KC-10 AND E-4).
A110-67KANSAS ANG APRON CLSD, NO ACFT OPS WITHOUT AFLD MGR APVL.
A110-68NVD TRNG EVERY MON AND WED 0300-0830Z++ (MON, WED 2100-0230L). RWY 19L-01R UNAVBL FOR ACFT NOT PARTICIPATING IN NVD OPS. VFR PAT WILL BE CLSD FOR ALL TFC EXC PARTICIPATING ACFT.
A110-69RWYCC NOT RPT.
A110-MANAGERMR. LENZI CAN BE REACHED AT RICHARD.LENZI@US.AF.MIL
A18PPR V962-5271.
A33-01R/19L_SURFFIRST 1000' CONCRETE; MID 10000' ASPHALT.
A34-01R/19LMID 9500' GROOVED.
MC CONNELL AFB (ICAO: KIAB, IATA: IAB) is a private airport located in WICHITA, KS, US.
