iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHYA
CAPE COD GATEWAY
PublicPUB

1 miles N of HYANNIS, MA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 40' 10"N 70° 16' 49"W
54' MSL
1054' MSL
16W
JET A, 100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
7/11/24-8/8/24
KHYA LIFR
5:56 AM EDT
Overcast 300'
8sm
66°F
66°F
29.87"Hg
030° 8kts
AO2 SLP114 T01890189
KHYA 190956Z 03008KT 8SM OVC003 19/19 A2987 RMK AO2 SLP114 T01890189
Add Your Business

KHYA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.5

ATIS

ATIS
508-778-1143
 123.8

Clearance Delivery

CD/P
 125.15

Ground

GND/P
 118.45

Tower

LCL/P
 119.5

FAA A/FD Pages

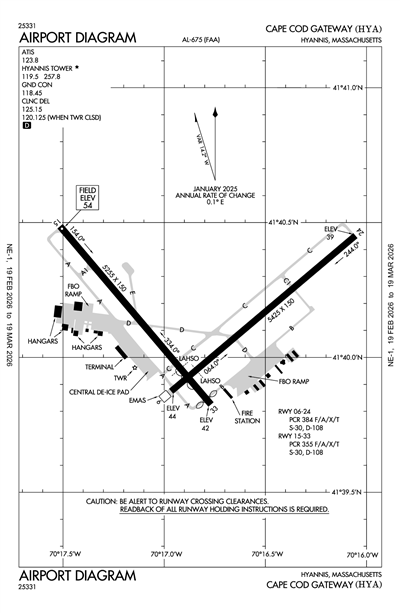

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHYA
Thu, 9/19 1:20 AM EDT
Thu, 9/19 2:00 AM EDT - Fri, 9/20 2:00 AM EDT
IFR
2:00 AM EDT - 3:00 AM EDT
Mist and Showers in vicinity
Broken 800'
6sm
060° 8kts
LIFR
3:00 AM EDT - 7:00 AM EDT
Light Showers and Rain and Mist
Overcast 400'
1sm
060° 9kts
IFR
7:00 AM EDT - 4:00 PM EDT
Showers and Rain and Mist
Overcast 500'
4sm
050° 14kts
Gusts 22kts
IFR
4:00 PM EDT - 2:00 AM EDT
Light Showers and Rain and Mist
Overcast 700'
3sm
040° 17kts
Gusts 28kts
KHYA 190520Z 1906/2006 06008KT 6SM BR VCSH BKN008
   FM190700 06009KT 1SM -SHRA BR OVC004
   FM191100 05014G22KT 4SM SHRA BR OVC005
   FM192000 04017G28KT 3SM -SHRA BR OVC007
KHYA
Domestic
9/17/241157Z !HYA 09/016 HYA RWY 33 RVR U/S 2409171157-2409202000EST
9/17/241157Z !HYA 09/015 HYA RWY 15 RVR U/S 2409171157-2409202000EST
9/13/241255Z !HYA 09/013 HYA OBST POWER LINE LGT (ASN 2018-ANE-5040-OE) 414055N0701826W (1.4NM WNW HYA) 172FT (92FT AGL) U/S 2409131255-2409281255
9/6/242017Z !HYA 09/009 HYA OBST POWER LINE LGT (ASN 2018-ANE-5043-OE) 414110N0701811W (1.4NM NW HYA) 190FT (72FT AGL) U/S 2409062017-2409212017
9/1/241401Z !HYA 09/001 HYA OBST TOWER LGT (ASR 1004090) 414126.00N0701119.00W (4.3NM ENE HYA) 350.7FT (320.9FT AGL) U/S 2409011401-2412010400
8/30/240359Z !HYA 08/062 HYA RWY 06 RWY END ID LGT U/S 2408300359-2410311900
6/1/241000Z !HYA 05/066 HYA AD AP ARFF UPGRADED NOW INDEX B 2406011000-2501310300
6/1/240200Z !HYA 05/065 HYA AD AP ARFF INDEX UNCHANGED EXC 90MIN PPR 508-778-7770 DLY 0200-1100 2406010200-2502011100
FDC
9/13/242218Z !FDC 4/5278 HYA IAP CAPE COD GATEWAY, HYANNIS, MA.
ILS OR LOC RWY 15, AMDT 5C...
VOR RWY 6, AMDT 10B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LFV VOR/DME UNMONITORED. 2409132218-2410112330EST
8/27/241836Z !FDC 4/6646 HYA IAP CAPE COD GATEWAY, HYANNIS, MA.
ILS OR LOC RWY 24, AMDT 19B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ACK VOR/DME UNMONITORED. 2408271836-2409281836EST
8/23/241535Z !FDC 4/4849 HYA IAP CAPE COD GATEWAY, HYANNIS, MA.
ILS OR LOC RWY 15, AMDT 5C...
NOTE: AUTO-PILOT COUPLED APPROACH NA BELOW 700.
2408231535-2608241535EST
6/15/231212Z !FDC 3/1153 HYA IAP CAPE COD GATEWAY, HYANNIS, MA.
ILS OR LOC RWY 15, AMDT 5C...
ILS OR LOC RWY 24, AMDT 19B...
VOR RWY 6, AMDT 10B...
MSA FROM MVY VOR/DME 25NM 270 CW 360 MINIMUM ALTITUDE 2100, 360 CW 270 MINIMUM ALTITUDE 1900. (PERM OBST 2020-WTE-6308-OE).
2306151212-2504301212EST
Yes
ALL
AVGAS UNAVBL BTN 1900 & 0600 LCL DLY. CALL GRIFFIN AFT HRS 508-367-2140.
TOWN OF BARNSTABLE
TOWN HALL 367 MAIN ST
HYANNIS, MA 02601
Phone: 508-862-4600
KATIE RILEY SERVIS
480 BARNSTABLE RD
HYANNIS, MA 02601
Phone: 508-775-2020
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
HYA
--
ACTVT MALSR RWY 15; MALSF RWY 24; HIRL RWYS 06/24 & 15/33 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
28
7
0
2
0
0
Major
Major
None
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

5425 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

30,000lbs
108,000lbs
--
--
  Runway 06 Runway 24
True Heading 50°230°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 39' 53"N 41° 40' 27"N
Longitude 70° 16' 58"W 70° 16' 03"W
Elevation 44' 39'
Threshold Crossing Height 37 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes

Runway 15/33

5255 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

30,000lbs
108,000lbs
--
--
  Runway 15 Runway 33
True Heading 140°320°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 40' 29"N 41° 39' 50"N
Longitude 70° 17' 31"W 70° 16' 46"W
Elevation 54' 42'
Threshold Crossing Height -- 53 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1ANT ON TANK 4600 FT SE ELEV 208 FT; STANDPIPE 7050 FT NORTH 236 FT; OBSTN LGTD.
A110-12TWY B CLSD TO ACFT WITH WINGSPAN GTR THAN 118 FT. TWY B BTN TWY D & RWY 6-24 CLSD TO ACFT WITH WINGSPAN GTR THAN 78 FT.
A110-14BE AWARE OF HIGH-SPD MIL JET & HVY HEL TFC VCNTY JOINT BASE CAPE COD. DO NOT CONFUSE JOINT BASE CAPE COD, 10NM W WITH CAPE COD GATEWAY.
A110-15ARFF INDEX B SVCS PRVDD BTN 0600 AND 2159 LCL DLY. ARFF INDEX A SVCS PRVDD DRG OTR TIMES. FOR INDEX B SVCS BTN 2200 AND 0559 LCL, 1HR 30MIN PPR AT 508-778-7770.
A110-3BIRDS, COYOTES ON & INVOF ARPT.
A110-5ARPT HAS NOISE ABATEMENT CTC AMGR 508-778-7765.
A110-6TGL OPS PROHIBITED BTN 2100-0559, PPR BY AMGR.
A110-8ALL TSNT & GA PILOTS MUST CTC ARPT OPS ON FREQ 122.95 PRIOR TO ENG SHTDN FOR AIRFIELD ESCORT BTN 2200-0559 LCL.
CAPE COD GATEWAY (ICAO: KHYA, IATA: HYA) is a public airport located in HYANNIS, MA.
