iFlightPlanner



...

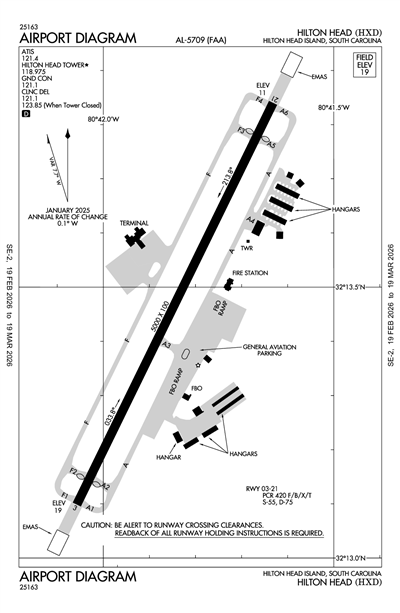

HILTON HEAD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHXD
ICAO KHXDIATA HHHLocal HXD
HILTON HEAD
PublicPUB

3 miles E of HILTON HEAD ISLAND, SC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 13' 28"N 80° 41' 51"W
Elevation
19' MSL
Pattern Alt
1019' MSL
Mag Variation
8°W
Declination
7°W
Fuel
JET A, 100LL
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KHXD VFR
8:55 PM EST
Clear
8sm
55°F
54°F
30.36"Hg
030° 3kts
AO2
METAR KHXD 040155Z AUTO 03003KT 8SM CLR 13/12 A3036 RMK AO2
+ Add Your Business

KHXD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 121.4
AWOS-3PT 121.4
(843) 342-5072

Common

CTAF 118.975
ACTVT REILS RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.

Clearance

Clearance Delivery 121.1
Clearance Delivery 123.85
WHEN HXD TWR CLSD

Ground

HILTON HEAD GROUND 121.1
0700-2100

Tower

HILTON HEAD TOWER 118.975
0700-2100

Approach

SAVANNAH APPROACH 125.3

Departure

SAVANNAH DEPARTURE 125.3

Center

SAVANNAH CENTER 132.925
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 132.925/363.2 (SAVANNAH RCAG) WHEN SAVANNAH APCH CTL CLSD.

Terminal Area Forecast

KNBC (15nm)
Tue, 3/3 4:25 PM EST
Tue, 3/3 4:00 PM EST - Wed, 3/4 4:00 PM EST
VFR
4:00 PM EST - 3:00 AM EST
Scattered 4,000'
Scattered 1,500'
6sm
30.30"Hg
120° 5kts
LIFR
Becoming 3:00 AM EST - 9:00 AM EST
Fog
Overcast 800'
0.5sm
30.27"Hg
VRB° 5kts
VFR
Becoming 9:00 AM EST - 4:00 PM EST
Scattered 6,000'
Scattered 2,000'
6sm
30.24"Hg
090° 4kts
TAF KNBC 0321/0421 12005KT 9999 SCT015 SCT040 QNH3029INS
   BECMG 0408/0410 VRB05KT 0800 FG OVC008 QNH3026INS
   BECMG 0414/0416 09004KT 9999 NSW SCT020 SCT060 QNH3025INS TX22/0321Z TN12/0410Z
KHXD
EffectiveExpiresCategoryNOTAM
Domestic
2/22/26
1224Z
5/24/26
0500Z
!HXD 02/017 HXD OBST TOWER LGT (ASR 1026505) 321620.80N0805212.50W (9.2NM WNW HXD) 234.9FT (214.9FT AGL) U/S 2602221224-2605240500
2/1/26
1229Z
3/18/26
1229Z
!HXD 02/002 HXD OBST TOWER LGT (ASR 1043968) 321337.00N0805052.00W (7.6NM W HXD) 849.1FT (829.1FT AGL) U/S 2602011229-2603181229
1/6/26
1536Z
4/7/26
0500Z
!HXD 01/003 HXD OBST TOWER LGT (ASR 1025433) 321435.30N0805246.80W (9.3NM W HXD) 239.8FT (214.9FT AGL) U/S 2601061536-2604070500
7/31/25
1701Z
7/31/26
2359Z
Runway!HXD 07/030 HXD RWY 03/21 SAFETY AREA IRREGULAR SFC 2507311701-2607312359
FDC
4/29/25
2001Z
!FDC 5/3292 HXD IAP HILTON HEAD, HILTON HEAD ISLAND, SC.
LOC RWY 21, AMDT 6...
VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE 3.00/TCH 35)..
2504292001-2704292001EST
Yes
0600-2200
BEAUFORT COUNTY
120 BEACH CITY ROAD
HILTON HEAD ISLAND, SC 29926
Phone: 843-255-2950
JON REMBOLD
120 BEACH CITY ROAD
HILTON HEAD ISLAND, SC 29926
Phone: 843-255-2952
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
HXD
--
ACTVT REILS RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 03/21

5000 ft. x 100 ft.
ASPH
Good
GRVD
MED

55,000lbs
75,000lbs
--
--
  Runway 03 Runway 21
True Heading 26°206°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 13' 06"N 32° 13' 50"N
Longitude 80° 42' 03"W 80° 41' 38"W
Elevation 19' 11'
Threshold Crossing Height 40 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1NOISE ABATEMENT PROCS IN EFC, CTC OPS (843) 255-2960.
A110-2BIRDS ON & INVOF ARPT.
A110-3PARASAIL OPNS WITHIN 3 NM RADIUS OF SAV 009 DEGS/15 NM, SFC TO 1500 DURG DALGT HRS.
A110-6DEER ON AND INVOF ARPT.
A26CLSD TO UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS EXCP 24 HRS PPR CALL AMGR (843) 255-2950
A39-03/21PCR VALUE: 420/F/B/X/T
A43-03PAPI UNUSBL BYD 7 DEGS LEFT OF CNTRLN.
A57-2133:1 TO DSPLCD THLD ; TREES AT 1600 FT.
A81-APTACTVT REILS RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
E60-03_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 207 FT IN LENGTH BY 105 FT IN WIDTH LCTD AT THE DER 03.
E60-21_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 211 FT IN LENGTH BY 105 FT IN WIDTH LCTD AT THE DER 21.
HILTON HEAD (ICAO: KHXD, IATA: HXD) is a public airport located in HILTON HEAD ISLAND, SC, US.
