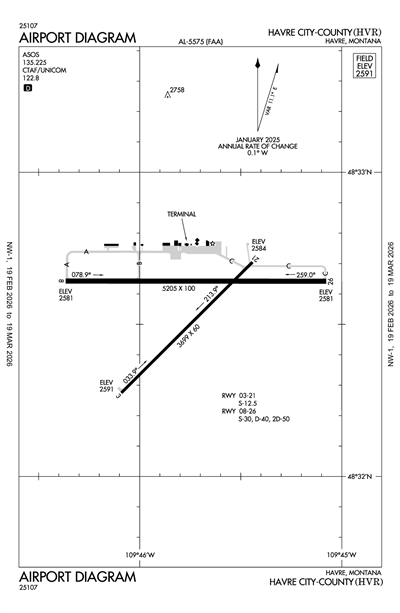

HAVRE CITY-COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHVR
ICAO KHVRIATA HVRLocal HVR
HAVRE CITY-COUNTY
PublicPUB

3 miles W of HAVRE, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 32' 35"N 109° 45' 44"W
Elevation
2591' MSL
Pattern Alt
3591' MSL
Mag Variation
11°E
Declination
13°E
Fuel
JET A (FSII), 100LL
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KHVR VFR
6:53 PM MST
Overcast 6,000'
10sm
42°F
29°F
29.70"Hg
080° 15kts
Gusts 25kts
AO2 SLP077 T00561017
METAR KHVR 050153Z AUTO 08015G25KT 10SM OVC060 06/M02 A2970 RMK AO2 SLP077 T00561017
+ Add Your Business

KHVR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.225
(406) 265-6638

Common

CTAF 122.8
ACTVT REIL RWY 08 & 26; PAPI RWY 21; VASI RWY 08 & 26; MIRL RWY 03/21 - CTAF
UNICOM 122.8

Center

SALT LAKE CENTER 133.4
LOW, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON 133.4/285.4 (JUDITH MOUNTAIN RCAG).

Flight Service

Flight Service 122.5
(GTF), COMMUNICATIONS PRVDD BY GREAT FALLS RADIO ON FREQ 122.5 (HAVRE RCO).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KHVR
Wed, 3/4 4:39 PM MST
Wed, 3/4 5:00 PM MST - Thu, 3/5 5:00 PM MST
VFR
5:00 PM MST - 3:00 AM MST
Overcast 6,000'
6sm
090° 11kts
MVFR
3:00 AM MST - 1:00 PM MST
Overcast 1,500'
Scattered 900'
6sm
360° 11kts
IFR
5:00 AM MST - 11:00 AM MST
Light Snow and Mist
Overcast 900'
1sm
Calm
MVFR
1:00 PM MST - 5:00 PM MST
Broken 2,500'
6sm
320° 11kts
MVFR
2:00 PM MST - 5:00 PM MST
Light Showers and Rain and Showers and Snow
Overcast 1,500'
5sm
Calm
TAF KHVR 042339Z 0500/0524 09011KT P6SM OVC060
   FM051000 36011KT P6SM SCT009 OVC015
   PROB30 0512/0518 1SM -SN BR OVC009
   FM052000 32011KT P6SM BKN025
   PROB30 0521/0524 5SM -SHRASN OVC015
KHVR
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1830Z
3/4/26
2100Z
!HVR 03/003 HVR NAV VOR/DME U/S 2603041830-2603042100
3/4/26
1600Z
3/4/26
1800Z
Runway!HVR 03/004 HVR RWY 26 RWY END ID LGT U/S 2603041600-2603041800
3/3/26
2358Z
!HVR 03/005 HVR COM REMOTE COM OUTLET 122.5 U/S 2603032358-2603132000EST
2/23/26
1629Z
!HVR 02/020 HVR SVC AUTOMATED WX BCST SYSTEM CHANGED TO 406-290-3286 2602231629-PERM
2/15/26
0854Z
4/1/26
0952Z
!HVR 02/006 HVR OBST TOWER LGT (ASR UNKNOWN) 484438.10N1095853.72W (14.9NM NW HVR) 3343FT (700FT AGL) U/S 2602150854-2604010952
FDC
3/4/26
1830Z
!FDC 6/3128 HVR ODP HAVRE CITY-COUNTY, HAVRE, MT.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HVR VOR/DME OUT OF SERVICE. 2603041830-2603112302EST
1/2/25
1440Z
!FDC 5/0164 HVR IAP HAVRE CITY-COUNTY, HAVRE, MT.
VOR RWY 8, AMDT 7B...
S-8 CATS A-D MDA 3240/HAT 655. S-8 CATS C-D VIS 1 7/8. CIRCLING CATS A-B CMDA 3240/HAA 649.
MISSED APPROACH: CLIMB TO 3900 THEN CLIMBING LEFT TURN 8000 DIRECT HVR VOR/DME AND HOLD, CONTINUE CLIMB-IN-HOLD TO 8000.
2501021440-2701021440EST
No
0600-2000
AFLD SFC COND CALL 24/7 406-390-5689
CITY OF HAVRE & HILL CO
520 4 TH ST PO BOX 231
HAVRE, MT 59501
Phone: (406) 265-6719
TONY DOLPHAY
5180 9TH ST W P.O. BOX 231
HAVRE, MT 59501
Phone: 406-265-4326
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
HVR
--
ACTVT REIL RWY 08 & 26; PAPI RWY 21; VASI RWY 08 & 26; MIRL RWY 03/21 - CTAF
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Minor
Minor
None
None
Air Freight
Crop Dusting
Air Ambulance
Cargo Handling

Runway 03/21

3699 ft. x 60 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 48° 32' 16"N 48° 32' 42"N
Longitude 109° 46' 05"W 109° 45' 27"W
Elevation 2,591' 2,584'
Threshold Crossing Height -- 21 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 08/26

5205 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
40,000lbs
50,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 48° 32' 39"N 48° 32' 39"N
Longitude 109° 46' 22"W 109° 45' 05"W
Elevation 2,581' 2,580'
Threshold Crossing Height 40 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1POTENTIAL LARGE FLOCKS OF WATERFOWL NEAR APPROACH END RY 26.
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A16CELL NUMBER 406-390-5689
A17-H1AFLD SFC COND CALL 24/7 406-390-5689
A81-APTACTVT REIL RWY 08 & 26; PAPI RWY 21; VASI RWY 08 & 26; MIRL RWY 03/21 - CTAF
HAVRE CITY-COUNTY (ICAO: KHVR, IATA: HVR) is a public airport located in HAVRE, MT, US.
