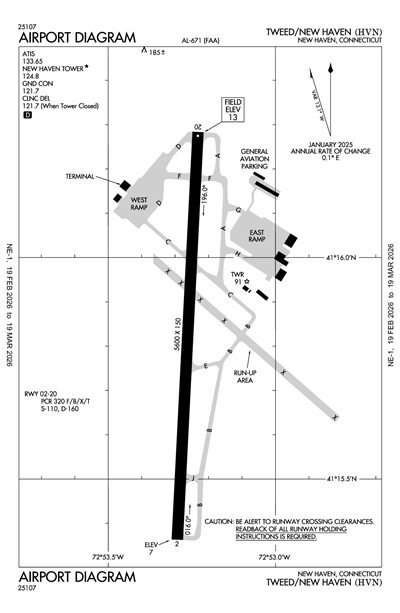

TWEED/NEW HAVEN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHVN
ICAO KHVNIATA HVNLocal HVN
TWEED/NEW HAVEN
PublicPUB

3 miles SE of NEW HAVEN, CT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 15' 49"N 72° 53' 16"W
Elevation
13' MSL
Pattern Alt
1012' MSL
Mag Variation
13°W
Declination
13°W
Fuel
JET A, 100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KHVN IFR
8:53 PM EST
Mist and Unknown Precipitation
Overcast 600'
5sm
33°F
32°F
30.24"Hg
Calm
AO2 RAE31UPB31E35B51 SLP240 P0004 T00060000
METAR KHVN 040153Z 00000KT 5SM UP BR OVC006 01/00 A3024 RMK AO2 RAE31UPB31E35B51 SLP240 P0004 T00060000
+ Add Your Business

KHVN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 133.65
ASOS (203) 466-6205

Common

CTAF 124.8
WHEN ATCT CLSD ACTVT MALSF RWY 02; HIRL RWY 02/20 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 121.7
WHEN HVN TWR CLSD
Clearance Delivery 121.7

Ground

NEW HAVEN GROUND 121.7
0600-2200

Tower

NEW HAVEN TOWER 124.8
0600-2200

Arrival

DENNA STAR 124.075

Approach

NEW YORK APPROACH 124.075

Departure

NEW YORK DEPARTURE 124.075

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KBDR (12nm)
Tue, 3/3 6:39 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
7:00 PM EST - 9:00 PM EST
Light Rain and Mist
Overcast 700'
3sm
050° 2kts
IFR
9:00 PM EST - 4:00 AM EST
Light Rain and Mist
Overcast 500'
1.5sm
VRB° 1kts
IFR
4:00 AM EST - 8:00 AM EST
Mist
Overcast 700'
2sm
VRB° 1kts
MVFR
8:00 AM EST - 10:00 AM EST
Mist
Broken 1,500'
5sm
310° 2kts
VFR
10:00 AM EST - 2:00 PM EST
Scattered 25,000'
Few 1,500'
6sm
350° 4kts
VFR
2:00 PM EST - 7:00 PM EST
Broken 25,000'
Scattered 10,000'
6sm
VRB° 5kts
TAF KBDR 032339Z 0400/0424 05002KT 3SM -RA BR OVC007
   FM040200 VRB01KT 1 1/2SM -RA BR OVC005
   FM040900 VRB01KT 2SM BR OVC007
   FM041300 31002KT 5SM BR BKN015
   FM041500 35004KT P6SM FEW015 SCT250
   FM041900 VRB05KT P6SM SCT100 BKN250
KHVN
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0113Z
2/26/26
0113Z
Runway!HVN 02/192 HVN RWY 02 FICON DRY PLOWED AND SWEPT 100FT WID 20IN SNOWBANKS REMAINDER COMPACTED SN OBS AT 2602250113. 2602250113-2602260113
2/24/26
2301Z
2/25/26
2301Z
!HVN 02/191 HVN TWY C BTN RWY 02/20 AND TWY D FICON PATCHY COMPACTED SN 14IN SNOWBANKS OBS AT 2602242301. 2602242301-2602252301
2/24/26
2254Z
2/25/26
2254Z
!HVN 02/189 HVN TWY F BTN RWY 02/20 AND TWY D FICON PATCHY COMPACTED SN 14IN SNOWBANKS OBS AT 2602242254. 2602242254-2602252254
2/24/26
2252Z
2/25/26
2252Z
!HVN 02/188 HVN TWY B, J, E, A, H, G, TWY C BTN RWY 02/20 AND TWY B, TWY F BTN RWY 02/20 AND TWY A FICON 14IN SNOWBANKS OBS AT 2602242252. 2602242252-2602252252
2/24/26
2251Z
2/25/26
2251Z
!HVN 02/187 HVN TWY E FICON PATCHY COMPACTED SN 14IN SNOWBANKS OBS AT 2602242251. 2602242251-2602252251
2/24/26
1553Z
2/25/26
1553Z
!HVN 02/186 HVN TWY D FICON PATCHY COMPACTED SN 24IN SNOWBANKS OBS AT 2602241553. 2602241553-2602251553
2/24/26
1434Z
3/6/26
2359Z
!HVN 02/181 HVN NAV ILS RWY 02 GP U/S 2602241434-2603062359
2/13/26
2318Z
3/30/26
2317Z
!HVN 02/099 HVN OBST TOWER LGT (ASR 1051788) 412205.60N0725618.40W (6.7NM NNW HVN) 371.4FT (246.4FT AGL) U/S 2602132318-2603302317
12/16/25
2205Z
8/31/26
0359Z
Runway!HVN 12/131 HVN RWY 02/20 CL MARKINGS NOT STD 2512162205-2608310359
11/15/25
0228Z
8/1/26
1200Z
Runway!HVN 11/048 HVN RWY 02/20 CL MARKINGS OBSC 2511150228-2608011200
10/31/25
0409Z
11/1/26
1200Z
!HVN 10/065 HVN OBST POLE (ASN UNKNOWN) 411559N0725327W (0.3NM NW HVN)
UNKNOWN (18FT AGL) NOT LGTD 2510310409-2611011200
10/31/25
0400Z
1/1/27
1200Z
!HVN 10/064 HVN APRON RUNUP PAD CLSD 2510310400-2701011200
10/31/25
0359Z
11/1/26
1200Z
!HVN 10/063 HVN OBST STACK (ASN UNKNOWN) 411701N0725426W (1.13NM NW HVN)
UNKNOWN (388FT AGL) NOT LGTD 2510310359-2611011200
10/31/25
0355Z
11/1/26
1200Z
!HVN 10/062 HVN OBST CRANE (ASN UNKNOWN) 411835N0725642W (4NM NW APCH END RWY 20)
353FT (317FT AGL) FLAGGED AND LGTD 2510310355-2611011200
10/31/25
0351Z
11/1/26
1200Z
!HVN 10/061 HVN OBST POLE (ASN UNKNOWN) 411616N0725322W (0.11NM W APCH END RWY 20)
35FT (29FT AGL) NOT LGTD 2510310351-2611011200
10/31/25
0346Z
11/1/26
1200Z
!HVN 10/060 HVN OBST POLE (ASN UNKNOWN) 411520N0725325W (0.065NM SW APCH END RWY 02)
58FT (44FT AGL) NOT LGTD 2510310346-2611011200
10/31/25
0340Z
11/1/26
1200Z
!HVN 10/059 HVN OBST POLE (ASN UNKNOWN) 411618N0725322W (0.11NM W APCH END RWY 20)
35FT (29FT AGL) NOT LGTD 2510310340-2611011200
10/31/25
0338Z
11/1/26
1200Z
!HVN 10/058 HVN OBST POLE (ASN UNKNOWN) 411626N0725305W (0.19NM NE APCH END RWY 20)
69FT (55FT AGL) NOT LGTD 2510310338-2611011200
10/31/25
0337Z
11/1/26
1200Z
!HVN 10/057 HVN OBST POLE (ASN UNKNOWN) 411626N0725308W (0.19NM NE APCH END RWY 20)
69FT (55FT AGL) NOT LGTD 2510310337-2611011200
10/31/25
0336Z
11/1/26
1200Z
!HVN 10/056 HVN OBST POLE (ASN UNKNOWN) 411627N0725310W (0.197NM N APCH END RWY 20)
69FT (55FT AGL) NOT LGTD 2510310336-2611011200
FDC
2/17/26
1423Z
9/29/26
1423Z
!FDC 6/4749 HVN SID TWEED/NEW HAVEN, NEW HAVEN, CT.
BRIDGEHAVEN ONE DEPARTURE...
NOTE: COATE DEPARTURES NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAX VORTAC OUT OF SERVICE. 2602171423-2609291423EST
5/29/25
1800Z
!FDC 5/6712 HVN SID TWEED/NEW HAVEN, NEW HAVEN, CT.
BRIDGEHAVEN ONE DEPARTURE...
TAKE-OFF MINIMUMS: RWY 02, 300-1 5/8 WITH MINIMUM CLIMB OF 240 FT/NM TO 900, OR STANDARD WITH MINIMUM CLIMB OF 1183 FT/NM TO 400 OR 1000-3 FOR VCOA.
ALL OTHER DATA REMAINS AS PUBLISHED. 2505291800-2705291800EST
5/29/25
1024Z
!FDC 5/6434 HVN ODP TWEED/NEW HAVEN, NEW HAVEN, CT.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7...
TAKE-OFF MINIMUMS: RWY 02, 300-1 5/8 WITH MINIMUM CLIMB OF 240 FT/NM TO 900, OR STANDARD WITH MINIMUM CLIMB OF 1183 FT/NM TO 400 OR 1000-3 FOR VCOA.
ALL OTHER DATA REMAINS AS PUBLISHED. 2505291024-2705291024EST
Yes
0600-2200
FUEL AVBL AFT HRS PPR 203-467-9555.
CITY OF NEW HAVEN
155 BURR ST
NEW HAVEN, CT 06510
Phone: 203-466-8833
JEREMY NIELSON
155 BURR ST
NEW HAVEN, CT 06512
Phone: 203-466-8833
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
HVN
--
WHEN ATCT CLSD ACTVT MALSF RWY 02; HIRL RWY 02/20 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

5600 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

110,000lbs
160,000lbs
--
--
  Runway 02 Runway 20
True Heading 3°183°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 41° 15' 22"N 41° 16' 17"N
Longitude 72° 53' 18"W 72° 53' 14"W
Elevation 6' 13'
Threshold Crossing Height 50 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights
A110-1NOISE ABATEMENT PROCS IN EFCT. DEPARTING RWY 20, RIGHT AND LEFT TURN MADE ONLY AFT PASSING SHORELINE.
A110-10WILDLIFE FQTLY ON OR INVOF ARPT.
A110-11TSNT PRKG ON EAST RAMP ONLY.
A110-16PAEW ADJ TO ALL OPR SFCS DALGT HRS APR-OCT.
A110-22LDG HELS USE TWYS A & H INTXN.
A110-23STANDING WATER AT INTXN OF TWY D & C AFT HVY RAIN.
A110-24FOR CD WHEN TWR CLSD CTC NEW YORK APCH AT 516-683-2449 OR 121.7.
A110-3TGL OPNS PMTD 0700-2200 MON-SAT; 0800-2200 SUN.
A110-4AVOID CLOSE-IN BASE LEGS AND SHORT APCHS LDG RWY 20.
A110-6FLT NOTIFICATION SVC (ADCUS) AVBL.
A110-7CLSD TO ACFT OVER 78 DB 0700-2200; 73 DB 2200-0000 & 0600-0700; 68 DB 0000-0600 EXCP MIL EMERG & MED ACFT; PPR CALL 203-907-9818.
A110-8EXTSV HOP SFC-10000 FT WI 20 MI NNW.
A17-M1FUEL AVBL AFT HRS PPR 203-467-9555.
A24LDG FEE FOR ALL ACFT EXC MIL, GOVT, EMERG & MED.
A26ARFF INDEX C SVCS PRVDD BTN 0600 AND 2359 DLY. ARFF INDEX B SVCS PRVDD DRG OTR TIMES. FOR INDEX C SVCS BTN 0000 AND 0559, 1HR 30MIN PPR AT 203-907-9818.
A39-02/20PCR VALUE: 320/F/B/X/T
A81-APTWHEN ATCT CLSD ACTVT MALSF RWY 02; HIRL RWY 02/20 - CTAF.
E111EXISTED PRIOR TO 1959.
E147TPA: 999 FT AGL RECIPROCATING ENG, 1499 FT AGL TURBOPROP/JET.
TWEED/NEW HAVEN (ICAO: KHVN, IATA: HVN) is a public airport located in NEW HAVEN, CT, US.
