KHUA
REDSTONE AAF
PrivatePVT

6 miles SW of REDSTONE ARSNL HUNTSVILLE, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 40' 43"N 86° 41' 05"W
685' MSL
1685' MSL
04W
100LL
ANNISTON (ANB)
ATLANTA
MEMPHIS (ZME)
7/11/24-8/8/24
KHSV (5nm) VFR
5:53 AM CDT
Few 25,000'
10sm
64°F
62°F
29.94"Hg
Calm
AO2 SLP132 T01780167 $
KHSV 191053Z 00000KT 10SM FEW250 18/17 A2994 RMK AO2 SLP132 T01780167 $
Add Your Business

KHUA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 126.95

ATIS

ATIS
C256-842-0188/0165, Hours: SAME AS TWR
 120.65

Emergency

EMERG
 121.5

Tower

LCL/P
 126.95

Other

GCA
 124.8
OPS
 126.2

FAA A/FD Pages

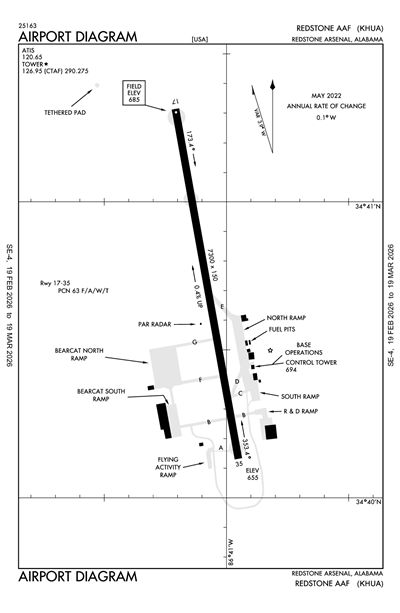

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHUA
Wed, 9/18 3:00 PM CDT
Wed, 9/18 3:00 PM CDT - Thu, 9/19 9:00 PM CDT
VFR
3:00 PM CDT - 9:00 PM CDT
Scattered 3,000'
6sm
29.88"Hg
280° 10kts
TAF COR KHUA 182000Z 1820/2002 28010KT 9999 SCT030 QNH2989INS TX31/1921Z TN18/1914Z LAST NO AMDS AFT 1900 NEXT 1912
KHUA
Military
9/18/241100Z AERODROME 96' CRANE LOCATED AT BLDG 7000 REDSTONE GATEWAY
9/17/241930Z AERODROME KNUTSON UAS OPS 34 42 34N 86 40 30W RADIUS: 0.25 NM SFC-350' AGL
9/17/241526Z M0888/24 NOTAMC M0876/24
9/17/241224Z M0886/24 NOTAMC M0801/24
9/16/242130Z AERODROME DURING THE EFFECTIVE TIME PERIOD ONLY, THE MOCC RADIO FREQUENCIES 278.025 AND 139.025 WILL BE UNMONITORED
9/16/242130Z AERODROME DURING THE EFFECTIVE TIME PERIOD ONLY, IF THE RESTRICTED AIRSPACE IS ACTIVE AND MILITARY AIRCRAFT REQUIRE ENTRY, COORDINATE WITH THE MOCC VIA PHONE PRIOR TO TAKEOFF AT 256-842-6622 OR 254-368-5364.
9/16/242030Z AERODROME BLUE ORIGIN TEST STAND ACTIVITY 34 37 47.68 N 86 40 21.36 W REMAIN CLEAR OF THIS AREA BY ONE HALF NAUTICAL MILE R2104-A (C) SFC-5,000 FT MSL
9/16/241300Z AERODROME DYNETICS UAS OPS 34 44 12.93N 86 41 22.45W DYNETICS FIELD 34 43 20N 86 41 25W MOQUIN SITE SFC - 200 FT AGL
9/16/241200Z !KHUA M0873/24 HUA RWY 17/35 WORK IN PROGRESS MAINT MEN AND EQUIPMENT ON N. END. NO FIXED-WING ARRIVALS WITHOUT PPR. REDUCED RUNWAY FIXED-WING DEPARTURES AUTHORIZED RUNWAY 17 ONLY. DO NOT OVERFLY N. END. DLY 1200-1600 2409161200-2409201600
9/16/241200Z AERODROME UAS OPS R2104A (W) SFC-3,000FT MSL
9/16/241130Z AERODROME INTRUSIVE OPERATIONS AT THE NASA TEST STANDS LOCATED AT 34 37 49.12 N 86 39 44.02 W REMAIN CLEAR OF THIS AREA BY ONE HALF NAUTICAL MILE. R2104-A (C) SFC-3,000 FT MSL
9/10/241300Z AERODROME UAH UAS OPS 34 43 14.023N 86 38 21W SFC-400' AGL
9/4/241857Z !KHUA M0850/24 HUA SVC AUTOMATED WX BCST SYSTEM U/S WHEN TOWER IS CLOSED 2409041857-2411012030
9/3/241200Z !KHUA M0819/24 HUA SVC ALERT AND BASE OPS OPERATING HOURS NOW MON-FRI EXCEPT HOLIDAY'S LOCAL TIMES (0700-2100) 2409031200-2411030300
9/2/242130Z AERODROME UNLIGHTED TOWER, 206 FT AGL, LOCATED IN THE NW CORNER OF THE SCETI TOWER AREA APPROXIMATELY 0.25 NAUTICAL MILE WEST OF THE TEST AREA SIX BLOCKHOUSE N 34 38' 34.00" W 86 42' 25.00" R2104A (W)
8/15/241200Z AERODROME COLSA UAS OPS N34 43 20 W86 41 22 SFC-400' AGL
8/7/242122Z !KHUA V0345/24 HUA AERODROME INSTRUMENT APPROACH PROCEDURE LIMITED RNAV (GPS) RWY 35: LPV DA AND LNAV/VNAV DA NOT AUTHORIZED. 2408072122-2410032359
8/7/242121Z !KHUA V0344/24 HUA AERODROME INSTRUMENT APPROACH PROCEDURE NOT AUTHORIZED PAR RWY 35. 2408072121-2410032359
Yes
MON-FRI 0700-1800
CLDS HOLS
COMMANDER USAASA
9325 GUNSTON ROAD, BLDG 1466 SUITE N319
FORT BELVOIR, VA 22060
US ARMY
AMSAM-RA-EPW-BA BLDG 4488
HUNSTVILLE, AL 35898
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
HUA
--
WHEN ATCT CLSD ACTVT MALSR RWY 17; PAPI RWY 17 & 35; HIRL RWY 17/35 - CTAF.
N/A
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 17/35

7300 ft. x 150 ft.
ASPH
Good
NONE
HIGH
63 /F/A/W/T
--
--
--
--
  Runway 17 Runway 35
True Heading 170°350°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 41' 19"N 34° 40' 08"N
Longitude 86° 41' 13"W 86° 40' 57"W
Elevation 685' 655'
Threshold Crossing Height 46 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-11FUEL: A ++ (AVBL 1215-0345Z++ MON-FRI EXC HOL; OT O/R).
A110-13TRAN ALERT: LTD SVC.
A110-14RSTD: 24 HR PPR ALL ACFT, 48 HR PPR ACFT WITH HAZARDOUS CARGO. CTC BASE OPS DSN 746-1916/4299 C256-876-1916/4299. REFUEL EXP DELAY.
A110-15MISC: LTD PRK. NO PHOTOGRAPHY ALLOWED WO BASE OPS APVL.
A110-16CAUTION: DEER, TUKEY, COYOTE HAZ. ACFT LARGER THAN C-12 USE EXTREME CAUTION WHILE TAXIING DUE TO MIN WG TIP CLNC.
A110-17RADAR: SEE TERMINAL FLIP FOR RADAR MINIMA.
A110-18PAR AND PAPI RWY 17-35 ARE COINCIDENTAL.
A110-19MISC: F/W LARGER THAN C130 RSTD TO TWY D, E, AND N RAMP AREA. LAWRS. ALL TRAN ACFT OPN OTHER THAN KHUA MUST RCV RNG BRIEFING FROM BASE OPS PRIOR TO OPN.
A110-20BASE OPS - OPR 1300-2200Z++ MON-FRI EXC HOL. OT O/R. 126.2 OR 239.275.
A110-21AVOID OVFT SATELLITE COM COMPLEX BLW 2000 FT 1.8 NM SE OF AFLD.
A110-22FOR CD CTC HUNTSVILLE APCH AT 256-542-2070/2080.
REDSTONE AAF (ICAO: KHUA, IATA: HUA) is a private airport located in REDSTONE ARSNL HUNTSVILLE, AL.
