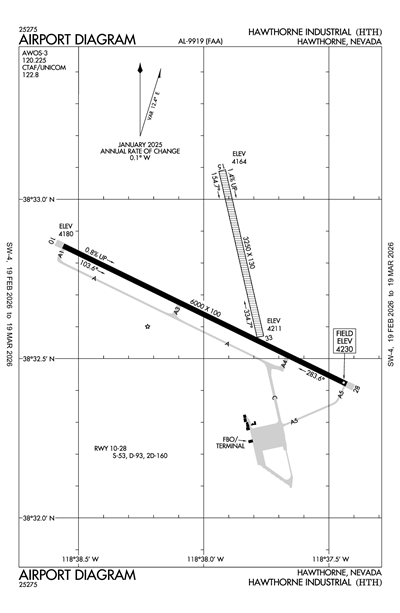

HAWTHORNE INDUSTRIAL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHTH
ICAO KHTHIATA HTHLocal HTH
HAWTHORNE INDUSTRIAL
PublicPUB

1 miles N of HAWTHORNE, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 32' 42"N 118° 37' 57"W
Elevation
4230' MSL
Pattern Alt
5230' MSL
Mag Variation
13°E
Declination
13°E
Fuel
JET A, JET A (FSII), 100LL
FSS
RENO (RNO)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KHTH VFR
1:55 AM PST
Clear
10sm
43°F
23°F
30.07"Hg
240° 4kts
A01
METAR KHTH 040955Z AUTO 24004KT 10SM CLR 06/M05 A3007 RMK A01
+ Add Your Business

KHTH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.225
(775) 945-0727

Common

CTAF 122.8
ACTVT REIL RWY 10 & 28; MIRL RWY 10/28 - CTAF. PAPI RWY 28 ON CONSLY.
UNICOM 122.8

Center

OAKLAND CENTER 125.75
LOW, APCH/DEP CTL SVC PRVDD BY OAKLAND ARTCC (ZOA) ON FREQS 125.75/284.65 (BISHOP RCAG).

Flight Service

Flight Service 122.1
(RNO), COMMUNICATIONS PRVDD BY RENO RADIO ON FREQS 122.1R/114.1T (HAZEN RCO).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBAN (43nm)
Tue, 3/3 7:28 PM PST
Tue, 3/3 7:00 PM PST - Wed, 3/4 7:00 PM PST
VFR
7:00 PM PST - 9:00 AM PST
Sky Clear
6sm
240° 5kts
VFR
Becoming 9:00 AM PST - 7:00 PM PST
Sky Clear
6sm
250° 15kts
Gusts 25kts
TAF KBAN 0403/0503 24005KT 9999 SKC QNN3006INS
   BECMG 0417/0419 25015G25KT 9999 SKC TX13/0403Z TNM02/0413Z
KHTH
No NOTAM Available
No
UNATNDD
VOLUNTEER ATND - BETTY EASLEY (775) 945-9286.
MINERAL COUNTY
PO BOX 1035
HAWTHORNE, NV 89415
Phone: 775-945-3897
DENNIS BUNCH
300 O STREET PO BOX 1035
HAWTHORNE, NV 89415
Phone: (775) 312-0243
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
HTH
--
ACTVT REIL RWY 10 & 28; MIRL RWY 10/28 - CTAF. PAPI RWY 28 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Ambulance

Runway 10/28

6000 ft. x 100 ft.
ASPH
Good
NONE
MED

53,000lbs
93,000lbs
160,000lbs
--
  Runway 10 Runway 28
True Heading 116°296°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 32' 51"N 38° 32' 25"N
Longitude 118° 38' 34"W 118° 37' 26"W
Elevation 4,180' 4,230'
Threshold Crossing Height -- 42 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 15/33

3250 ft. x 130 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 167°347°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 38° 33' 05"N 38° 32' 34"N
Longitude 118° 37' 56"W 118° 37' 46"W
Elevation 4,164' 4,211'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-3OCNL UAV/UAS ACT ON & INVOF ARPT.
A110-4WILDLIFE ACT INVOF ARPT.
A110-5FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
A17-M1VOLUNTEER ATND - BETTY EASLEY (775) 945-9286.
A30A-33RWY BGNS AT N EDGE RWY 10/28.
A43-28PAPI UNUSBL BYD 7 DEGS RIGHT OF CNTRLN. DOES NOT PROVIDE OBSTRUCTION CLEARANCE BYD 6.0 NM FROM THR.
A81-APTACTVT REIL RWY 10 & 28; MIRL RWY 10/28 - CTAF. PAPI RWY 28 ON CONSLY.
HAWTHORNE INDUSTRIAL (ICAO: KHTH, IATA: HTH) is a public airport located in HAWTHORNE, NV, US.
