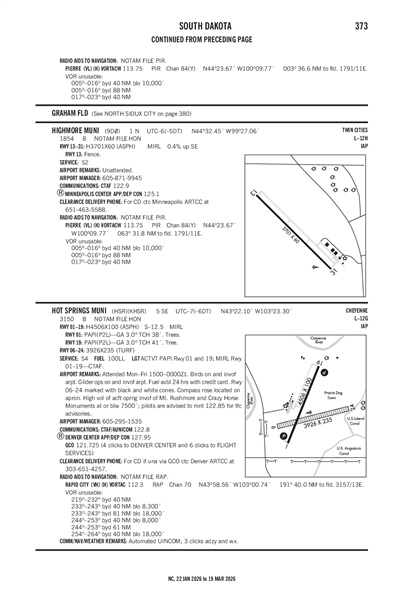

HOT SPRINGS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHSR
ICAO KHSRLocal HSR
HOT SPRINGS MUNI
PublicPUB

5 miles SE of HOT SPRINGS, SD, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 22' 06"N 103° 23' 18"W
Elevation
3150' MSL
Pattern Alt
4150' MSL
Mag Variation
7°E
Declination
10°E
Fuel
100LL
FSS
HURON (HON)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KCUT (24nm) VFR
6:53 PM MST
Clear
10sm
43°F
12°F
30.14"Hg
140° 3kts
AO2 SLP203 T00611111
METAR KCUT 040153Z AUTO 14003KT 10SM CLR 06/M11 A3014 RMK AO2 SLP203 T00611111
+ Add Your Business

KHSR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF.
UNICOM 122.8
AUTOMATED UNICOM; 3 CLICKS ADZY & WX.

Center

DENVER CENTER 127.95
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 127.95/338.2 (RAPID CITY RCAG).

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 ( 4 CLICKS TO DENVER CENTER AND 6 CLIKCS TO FLIGHT SERVICES)

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KCDR (34nm)
Tue, 3/3 4:20 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 10:00 AM MST
Sky Clear
6sm
VRB° 6kts
VFR
10:00 AM MST - 5:00 PM MST
Sky Clear
6sm
230° 10kts
TAF KCDR 032320Z 0400/0424 VRB06KT P6SM SKC
   FM041700 23010KT P6SM SKC
KHSR
EffectiveExpiresCategoryNOTAM
Domestic
11/5/25
2018Z
4/30/26
2359Z
!HON 11/013 HSR AD AP BIRD ACT MIGRATORY 2511052018-2604302359
FDC
2/20/26
1422Z
!FDC 6/7444 HSR IAP HOT SPRINGS MUNI, HOT SPRINGS, SD.
RNAV (GPS) RWY 19, ORIG-B...
TAA SECTOR FROM 292/30 CW 112/30 TO 292/6 CW 112/6 MINIMUM ALTITUDE 9400.
2602201422-2802201422EST
1/5/26
1623Z
4/8/26
1623Z
!FDC 6/0546 HSR SID HOT SPRINGS MUNI, HOT SPRINGS, SD.
TOADSTOOL TWO DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TST VOR/DME OUT OF SERVICE. 2601051623-2604081623EST
No
MON-FRI 0800-1700
CITY OF HOT SPRINGS
BOX 391
HOT SPRINGS, SD 57747
Phone: 605-745-3135
IVAN VENNER
27858 HWY 385
HOT SPRINGS, SD 57747
Phone: 605-295-1535
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
HON
--
ACTVT PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting
Glider Service
Glider Towing

Runway 01/19

4506 ft. x 100 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 22°202°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 21' 48"N 43° 22' 30"N
Longitude 103° 23' 33"W 103° 23' 10"W
Elevation 3,150' 3,142'
Threshold Crossing Height 38 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 06/24

3926 ft. x 235 ft.
TURF
Good
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading 76°256°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 43° 21' 58"N 43° 22' 07"N
Longitude 103° 23' 40"W 103° 22' 48"W
Elevation 3,146' 3,142'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2RY 01 +21 FT PLINE 680 FT FM THR.
A110-3BIRDS ON & INVOF ARPT.
A110-4RY 06/24 MARKED WITH BLACK AND WHITE CONES.
A110-5GLIDER OPS ON & INVOF ARPT.
A110-6GCO AVBL ON FREQ 121.725 ( 4 CLICKS TO DENVER CENTER AND 6 CLIKCS TO FLIGHT SERVICES)
A110-7COMPASS ROSE LCTD ON APRON.
A110-8FOR CD IF UNA VIA GCO CTC DENVER ARTCC AT 303-651-4257.
A110-9HIGH VOL OF ACFT OPRNG INVOF OF MT RUSHMORE AND CRAZY HORSE MONUMENTS AT OR BLW 7500 FT; PILOTS ARE ADVISED TO MNT 122.85 FOR TFC ADVISORIES.
A70-100LLFUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APTACTVT PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF.
A82AUTOMATED UNICOM; 3 CLICKS ADZY & WX.
HOT SPRINGS MUNI (ICAO: KHSR, IATA: HSR) is a public airport located in HOT SPRINGS, SD, US.
