KHSP
INGALLS FLD
PublicPUB

3 miles S of HOT SPRINGS, VA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 57' 05"N 79° 50' 02"W
3793' MSL
4793' MSL
08W
JET A (FSII), 100LL
LEESBURG (DCA)
CINCINNATI
WASHINGTON (ZDC)
10/31/24-11/28/24
KHSP VFR
6:55 AM EST
Clear
10sm
41°F
31°F
30.27"Hg
Calm
AO2 T00521005 10075 20041
KHSP 091155Z AUTO 00000KT 10SM CLR 05/00 A3027 RMK AO2 T00521005 10075 20041
Add Your Business

KHSP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
540-839-5974
 118.8

FAA A/FD Pages

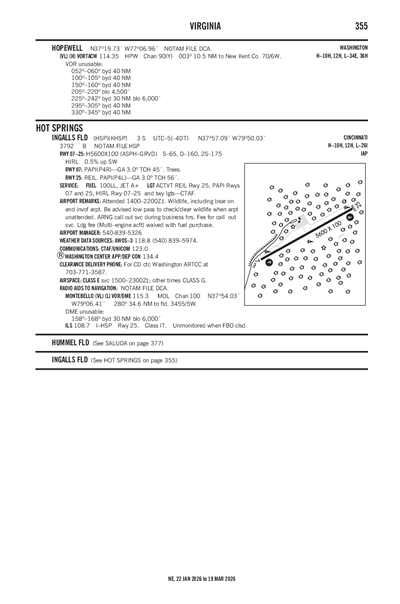

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLWB (27nm)
Sat, 11/9 6:20 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
VFR
7:00 AM EST - 2:00 PM EST
Few 25,000'
6sm
Calm
VFR
2:00 PM EST - 7:00 PM EST
Scattered 25,000'
6sm
130° 5kts
VFR
7:00 PM EST - 7:00 AM EST
Broken 25,000'
6sm
Calm
KLWB 091120Z 0912/1012 00000KT P6SM FEW250
   FM091900 13005KT P6SM SCT250
   FM100000 00000KT P6SM BKN250
KHSP
Domestic
10/25/240425Z !HSP 10/011 HSP OBST TOWER LGT (ASR 1239929) 374756.20N0794205.10W (11.0NM SE HSP) 1600.1FT (254.9FT AGL) U/S 2410250425-2411090325
9/1/242225Z !HSP 09/001 HSP OBST TOWER LGT (ASR 1016611) 374826.70N0794805.90W (8.8NM S HSP) 2051.2FT (198.2FT AGL) U/S 2409012225-2411300400
8/2/241922Z !HSP 08/002 HSP OBST TOWER LGT (ASR 1018301) 374729.00N0792742.00W (19.9NM ESE HSP) 1498.7FT (359.9FT AGL) U/S 2408021922-2411302359
No
0900-1700
ARNG CALL-OUT SVC DRNG BUS HRS. FEE FOR CALL-OUT SVC.
BATH COUNTY ARPT AUTH
6240 AIRPORT ROAD
HOT SPRINGS, VA 24445
Phone: 540-839-5326
PARKE KERSHNER
6240 AIRPORT ROAD
HOT SPRINGS, VA 24445
Phone: 540-839-5326
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
HSP
--
ACTVT REIL RWY 25, PAPI RWYS 07 & 25, HIRL RWY 07/25 & TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 07/25

5600 ft. x 100 ft.
ASPH
Fair
GRVD
HIGH

65,000lbs
160,000lbs
--
--
  Runway 07 Runway 25
True Heading 59°239°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 56' 51"N 37° 57' 20"N
Longitude 79° 50' 32"W 79° 49' 32"W
Elevation 3,790' 3,763'
Threshold Crossing Height 45 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-2WILDLIFE, INCLUDING BEAR, ON & INVOF ARPT.
A110-3BE ADVISED LOW PASS TO CHECK/CLEAR WILDLIFE WHEN ARPT UNATNDD.
A110-4FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
INGALLS FLD (ICAO: KHSP, IATA: HSP) is a public airport located in HOT SPRINGS, VA.
