iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHRT
HURLBURT FLD
PrivatePVT

2 miles E of MARY ESTHER, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 25' 44"N 86° 41' 20"W
36' MSL
1036' MSL
03W
JET A+, CILI
GAINESVILLE (GNV)
NEW ORLEANS
JACKSONVILLE (ZJX)
10/31/24-11/28/24
KVPS (9nm) VFR
5:55 AM CST
Broken 5,000'
10sm
74°F
70°F
30.00"Hg
060° 4kts
AO2 SLP165 T02320211 10239 20230 53008 $
KVPS 091155Z AUTO 06004KT 10SM BKN050 23/21 A3000 RMK AO2 SLP165 T02320211 10239 20230 53008 $
Add Your Business

KHRT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 134.475

Ground

GND/P
 123.975

Tower

LCL/P
 126.5

Other

COMD POST
 143.0
PMSV METRO
 143.725

FAA A/FD Pages

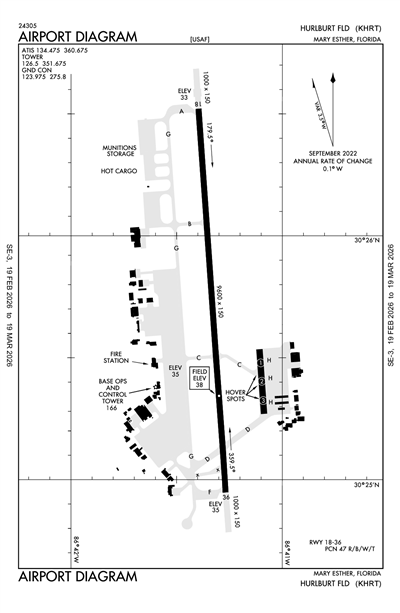

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHRT
Fri, 11/8 1:05 PM CST
Fri, 11/8 1:00 PM CST - Sat, 11/9 6:00 PM CST
VFR
1:00 PM CST - 3:00 AM CST
Scattered 2,000'
6sm
30.00"Hg
170° 6kts
MVFR
Temporary 9:00 PM CST - 1:00 AM CST
Broken 1,000'
N/A
Calm
IFR
Becoming 3:00 AM CST - 1:00 PM CST
Broken 500'
6sm
29.97"Hg
060° 10kts
VFR
Becoming 1:00 PM CST - 6:00 PM CST
Scattered 2,000'
6sm
30.00"Hg
100° 10kts
TAF COR KHRT 081905Z 0819/0924 17006KT 9999 SCT020 QNH3000INS
   TEMPO 0903/0907 BKN010
   BECMG 0909/0910 06010KT 9999 BKN005 QNH2997INS
   BECMG 0919/0920 10010KT 9999 SCT020 QNH3000INS TX28/0819Z TN23/0911Z LAST NO AMDS AFT 0818 NEXT 1210
KHRT
Military
11/6/241430Z QUIET HOURS IN EFFECT. NO TAKEOFFS/LANDINGS, NO TAXIS/TOWS, NO ENGINE RUNS OR STARTS AUTHORIZED. GASOLINE/DIESEL POWERED AGE EQUIPMENT OPERATION ALLOWED BETWEEN TWY ALPHA AND HOT CARGO RAMP, WEST RAMP NORTH OF GOLF PARKING ROW, SOUTH OF LIMA PARKING ROW, AND THE EAST RAMP. ADDITIONS: NO GAINT VOICE BROADCAST (EXCEPTIONS: ATTACK/NATURAL DISASTERS/LIGHTING). NO CATM FIRING (GROUP CC CEREMONIES AND ABOVE ONLY). NO HEAVY EQUIPMENT USE BY CONTACTORS IN AREA. NO POL FUEL TRUCKS IN AREA. (EGLIN RADAR, 96 OSS) INSTALLATION (HRT CLASS D) OVERFLIGHT RESTRICTION WITHIN LATERAL CONFINES OF R-2915 OF SFC-5K FOR MISSION ACTIVITY. REQUEST ALL FIGHTER TYPE AIRCRAFT REMAIN OUTSIDE OF 5.3 NM FROM HRT SFC-5K.
11/6/241200Z AERODROME USAF MARITIME WEAPONS TESTING IN GOMEX/W151 6 MILES SOUTH OF HRT IN VICINITY OF SANTA ROSA ISLAND AND EAST/WEST CORRIDOR. CONTACT EGLIN APPROACH FOR ADVISORIES ON 132.1 PRIOR TO ENTERING CORRIDOR.
11/5/242200Z JULIET ROW PARKING RESTRICTED TO STATIC DISPLAY AIRCRAFT ONLY
11/5/241800Z HOT CARGO APRON PARKING SPOTS A-6-7 UNAVAILABLE DAILY 1200L - 2200L WHEN HELICOPTERS ARE ACTIVELY ARM/DEARMING OR REFUELING.
11/5/241657Z PARKING SPOTS ECHO 4-5-6, AND F-5 CLOSED DUE TO CONSTRUCTION, MEN AND EQUIPMENT IN VICINITY
11/5/241547Z M0649/24 NOTAMC M0648/24
11/5/240546Z AERODROME USE CAUTION: MEN, EQUIPMENT, AND VEHICLES OPERATING DAILY FROM 1300Z-0100Z IN THE FOLLOWING AREAS: THE SERVICE ROAD EASTSIDE OF THE RUNWAY, THE NORTH END OF THE RUNWAY NEAR THE LOCALIZER ANTENNA, AND THE WESTSIDE OF THE RUNWAY NORTH OF TAXIWAY ALPHA.
11/5/240544Z TOUCH AND GO'S UNAUTHORIZED FOR HEAVY AIRCRAFT GREATER THAN 300,000 LBS DUE TO PAVEMENT DETERIORATION ON RUNWAY.
10/17/241909Z TACAN REMOTE STATUS INDICATOR NOT LOCALLY MONITORED.
10/15/242228Z ATTENTION AIRCREWS AND MISSION PLANNERS: HURLBURT FIELD WILL BE CLOSED FOR THE FOLLOWING DATES/TIMES IN OBSERVANCE OF FEDERAL HOLIDAYS AND AFSOC SAFETY DAYS FOR CY 2024, VETERANS DAY: 0700L 8 NOV 24 - 0700L 12 NOV 24, THANKSGIVING HOLIDAY: 0700L 28 NOV 24 - 0700L 2 DEC 24, CHRISTMAS HOLIDAY: 0700L 24 DEC 24 - 0700L 26 DEC 24, NEW YEARS HOLIDAY: 0700L 31 DEC 24 - 0700L 2 JAN 25. 29 JAN 16:53 2024 UNTIL 25 APR 23:59 2024.
9/24/242340Z AIRFIELD OPERATING HOURS ARE MONDAY-FRIDAY 0700L UNTIL THE LAST SCHEDULED AIRCRAFT IS DOWN. OUTSIDE OF THIS TIMEFRAME, AIRFIELD OPS WILL BE SUSPENDED, AND AIRFIELD OPS PERSONNEL WILL BE ON-CALL WITH A ONE HOUR RESPONSE TIME. FOR AIRFIELD OPENING OUTSIDE OF NORMAL OPERATING HOURS, CONTACT COMMAND POST DSN: 579-8100.
9/18/241711Z BASH PHASE II IN EFFECT. AIRCREWS MUST CONFIRM THE CURRENT BASH CONDITION VIA NOTAMS OR ATIS. PHASE II RESTRICTIONS: WITHIN +/- 1 HOUR OF DAWN/DUSK, ONLY INITIAL TAKE-OFFS AND ONLY FULL STOP LANDINGS, RESTRICTED LOW APPROACHES MUST BE AT OR ABOVE 500' AGL. EXCEPTION: ROTARY WING OPERATIONS (HOIST, FAST ROPE AND OTHER LOW SPEED OPERATIONS) TO CONDUCT REQUIRED TRAINING BELOW 1000' IS AUTHORIZED.
9/16/241625Z UNIFORM AND VICTOR PARKING ROWS CLOSED FOR CRACK AND SPALL REPAIRS. MEN AND EQUIPMENT IN THE AREA.
Yes
ALL
USAF
DEPT OF THE AF, HDQRTRS ADTC
EGLIN AFB, FL 32544
CHIEF OF AFLD MANAGEMENT
DEPT OF THE AF, HDQRTRS ADTC
EGLIN AFB, FL 32544
Phone: 850-884-7806
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
CEW
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
Low Pressure
None

Runway 18/36

9600 ft. x 150 ft.

CONC
NONE
HIGH
47 /R/B/W/T
--
--
--
--
  Runway 18 Runway 36
True Heading 176°356°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 26' 31"N 30° 24' 57"N
Longitude 86° 41' 24"W 86° 41' 16"W
Elevation 31' 34'
Threshold Crossing Height 41 ft. AGL 54 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights SALS ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1BEARING STRENGTH RY 18-36: ST174 TT352 TRT495 TDT 794.
A110-10CAUTION: VFR CORRIDOR 1.2 NM S OF RY. 80 FT CRANE (INTMT) LCTD 3000 FT S AND 1000' FTW OF EXTN RY CNTRLINE.
A110-14MISC: ACFT WITH DV7 OR ABV CTC COMMAND POST 30 MIN PRIOR TO ETA. ALL TRAN AIRCREWS WILL CHECK IN WITH BASE OPS BFR DEP FLT LINE. NO CLASSIFIED MTRLS AVBL FOR TRAN ISSUE. LTD STORAGE FOR MTRL UP TO SECRET CLASSIFICATION AT BASE OPS, ADDNL STORAGE AVBL AT COMMAND POST. FOR COMSEC, CTC WING COMSEC OFFICE AT DSN 579-5666.
A110-15MISC: TOP SECRET AND ADDN STOR AVBL AT COMD POST. AIRCREWS: US CUSTOMS SVC NOT IMMED AVBL. ALL SUPPORT FOR CUSTOMS MUST BE PRE-COORD. ACFT ARR ON WEEKENDS MUST COORD SUPPORT NO LATER THAN 1500L ON FRI. TRAN AIRCREWS PLANNING TO FLY LCL SORTIES MUST BRING A CELLULAR TO PROVIDE COMD POST A 24 HR CTC.
A110-17CUSTOMS/AG/IMG-ITD SVC: AVBL FOR ACFT SUPPORTING AFSOC OPERATIONS. 24 HR PN RQR. ALL OTHER ACFT MUST CLEAR CSTMS PRIOR TO ARR TO HURLBURT FLD.
A110-18RSTD: RY 18 UNLGTD DSPLCD THLD MAY BE USED BY BASE ASGNED ACFT FOR TKOF,CTC TWR WITH REQ TO BACK TAXI.
A110-21MISC: PAX PROCESSING RQR 24 PPR - DSN 579-5781/3901.
A110-22MISC: C5 & C17 ACFT PRKG NA.
A110-25RSTD: TAXIING ACFT ENGINE RUN-UPS AT THE FOLLOWING LOCATIONS PROVIDED THE AIRCREW HAS CLEARED THE AREA AND APPLIED ANY SPECIFIC ACFT RESTRICTIONS. TWY ALPHA, DELTA FOXTROT, GOLF ABEAM BRAVO AND GOLF ABEAM DELTA (FLARE RAMP MUST BE CLEAR OF ACFT/PERSONNEL).
A110-29RSTD: LIMIT T/O & LNDG TO ONE (1) WITHIN 1 HR OF SR/SS DURING BASH PHASE II. TGL NA DURG THIS WINDOW & LA RSTD TO 500 ' AGL. FULL STOP TAXI BACK, FOR PURPOSES OF ONLOAD/OFFLOADIN PERS IS AUTH (EXC: ROTARY WING/TILT ROTOR OPNS TO CONDUCT RQR TRNG BLW 1000' ARE AUTH). CREWS WILL EXER DUE DILIGENCE.
A110-3JASU: (A/M32A-86D) (A/M32A-95) (MEP-360A)
A110-30IF BIRD COND ELEVATED TO SEVERE, COMPLY WITH SOW BASH PLAN RESTRICTIONS. AERODROME OFFL BUS ONLY.
A110-31CAUTION: RY 18/36 NSTD SHOULDERS 16 FT WIDE.
A110-32RSTD: COMPASS ROSE AVBL TO WING ASGN ACFT ONLY,
A110-34RSTD: MAX PWR ENG RUN NA ON PRKG SPOT HOTEL 2.
A110-35RSTD: WING WALKERS RQR WHEN TAXIING N FM PRKG SPOT E-6.
A110-36MISC: VEH TRANSPORTATION AVBL M-F 1100-0500Z++, SA-SUN 1200-2100Z++. FOR AFTER HRS/WKENDS/HOL PN REQ ARE ADVISED, DSN 579-6171.
A110-37CAUTION: EXP PAT AVAILABILITY/DELAYS WHEN R2915A/B AIRSPACE IS ACTIVE.
A110-38MISC: AIRLIFT MSN SUPPORT LTD TO WORKING MAX ON GRD (MOG) OF ONE.
A110-39CAUTION: LEFT SIDE VFR HOLD PSN SIGN MISG AT TWY C, HOVER POINTS, AND TWY H INT.
A110-40MISC: AFLD WX IS MNTD BY AN/FMQ-19, AUTOMATED OBSN SYS AND AUGMENTED BY HUMAN OBSERVER H24.
A110-42RWY RSTD: NO U-TURNS BTN TWY B & C; PAVEMENT FAILURE W EDGE OF RWY S OF TWY BRAVO.
A110-43RSTD: TRAN AIRLIFT ACFT ENG RUNNING OFFLOADS UNAUTHD WO PRIOR APVL FR 1 SOLRS/LGRDA.
A110-44SIMUL PRK ON TWY A ARM/DEARM AND TWY A EXPLOSIVE CARGO AREA ECA 500 PROH.
A110-5FLUID: PRESAIR LOX LPOX. LOX NA FOR F-16, F-15, F-18, A-10, & T-38 ACFT.
A110-6OIL: O-148-156 SOAP
A110-7TRAN ALERT: TRANS ACFT MUST HAVE PPR AND USE FLW-ME TO PRK SVC AVBL 1300-0500Z++. TRAN ALERT WILL NOT SUPPORT LCL, ROUND ROBINS IN OR OUT AND BACK TRAN ACFT. FLEET SVC AVBL 1500-2200Z++ DSN 579-5781/3901.
A110-8RSTD: PPR INCL SKED AMC MSN DUE LTD RAMP SPACE, TRAN ACFT PRK LTD, 24 HR PN RQR BASE OPS DSN 579-7806/7, C850-884-7806/7, FAX DSN 579-5358; PPR GOOD FOR +/-1 HR PPR TIME. COORD OF PPR OUTSIDE OF BLOCK TIME BY FONE IS RQR. AFLD SUBJ TO NO-NTC CLOSURE.
A110-9RSTD: ALL TRAN ACFT FLYING LCL AREA MSN, CTC COMD POST PRIOR TO TKOF OR ASAP AFT TKOF. ALL TRAN ACFT SUPTNG SPCL OPR CTC CHINDIT OPS 30 MIN PRIOR ETA. COMPASS ROSE LTD TO TOW IN & OUT ONLY. RY 18 DISPL THLD MAY BE USED BY BASE ASSIGNED ACFT FOR TKOF & ROLLOUT, CTC TWR WITH REQ TO BACK TAXI.
HURLBURT FLD (ICAO: KHRT, IATA: HRT) is a private airport located in MARY ESTHER, FL.
