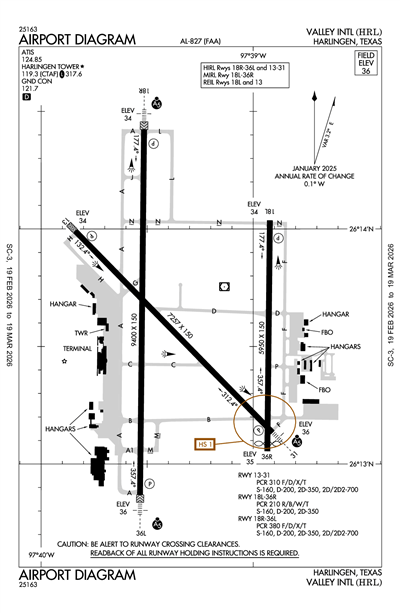

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHRL
VALLEY INTL
PublicPUB

3 miles NE of HARLINGEN, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
26° 13' 36"N 97° 39' 19"W
36' MSL
1036' MSL
03E
JET A, 100LL
SAN ANGELO (SJT)
BROWNSVILLE
HOUSTON (ZHU)
4/17/25-5/15/25
KHRL VFR
1:52 AM CDT
Clear
10sm
78°F
77°F
29.84"Hg
130° 5kts
AO2 SLP105 T02560250
KHRL 030652Z AUTO 13005KT 10SM CLR 26/25 A2984 RMK AO2 SLP105 T02560250
+ Add Your Business

KHRL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.3

ATIS

ATIS
 124.85

ASOS

ASOS
956-428-7297
 124.85

Ground

GND/P
 121.7

Tower

LCL/P
 119.3

Terminal Area Forecast

KHRL
Tue, 6/3 12:20 AM CDT
Tue, 6/3 1:00 AM CDT - Wed, 6/4 1:00 AM CDT
VFR
1:00 AM CDT - 11:00 AM CDT
Scattered 3,500'
Few 1,500'
6sm
150° 7kts
VFR
11:00 AM CDT - 1:00 AM CDT
Scattered 25,000'
Few 4,500'
6sm
140° 14kts
Gusts 22kts
KHRL 030520Z 0306/0406 15007KT P6SM FEW015 SCT035
   FM031600 14014G22KT P6SM FEW045 SCT250
KHRL
Domestic
5/12/251200Z !HRL 05/016 HRL OBST WIND TURBINE LGT (ASN 2014-WTW-7374-OE) 261023N0973133W (7.7NM ESE HRL) 519FT (496FT AGL) U/S 2505121200-2506052300
5/12/251200Z !HRL 05/015 HRL OBST WIND TURBINE LGT (ASN 2014-WTW-7373-OE) 261017N0973145W (7.6NM ESE HRL) 519FT (496FT AGL) U/S 2505121200-2506052300
5/12/251200Z !HRL 05/014 HRL OBST WIND TURBINE LGT (ASN 2014-WTW-7372-OE) 261010N0973157W (7.5NM ESE HRL) 519FT (496FT AGL) U/S 2505121200-2506052300
5/12/251200Z !HRL 05/013 HRL OBST WIND TURBINE LGT (ASN 2014-WTW-7371-OE) 261001N0973208W (7.4NM ESE HRL) 525FT (496FT AGL) U/S 2505121200-2506052300
5/12/251200Z !HRL 05/012 HRL OBST WIND TURBINE LGT (ASN 2014-WTW-7370-OE) 260907N0973127W (8.4NM ESE HRL) 518FT (496FT AGL) U/S 2505121200-2506052300
5/12/251200Z !HRL 05/011 HRL OBST WIND TURBINE LGT (ASN 2015-WTW-3878-OE) 260903N0973139W (8.3NM ESE HRL) 518FT (496FT AGL) U/S 2505121200-2506052300
5/12/251200Z !HRL 05/010 HRL OBST WIND TURBINE LGT (ASN 2015-WTW-3877-OE) 260858N0973151W (8.2NM SE HRL) 520FT (496FT AGL) U/S 2505121200-2506052300
5/12/251200Z !HRL 05/009 HRL OBST WIND TURBINE LGT (ASN 2014-WTW-7367-OE) 260852N0973208W (8.0NM SE HRL) 523FT (496FT AGL) U/S 2505121200-2506052300
5/12/250220Z !HRL 05/028 HRL OBST TOWER LGT (ASN 2022-ASW-2196-OE) 260439N0973538W (9.5NM SSE HRL) 297FT (255FT AGL) U/S 2505120220-2506260219
5/11/252225Z !HRL 05/027 HRL OBST WIND TURBINE LGT (ASN 2014-WTW-7375-OE) 261028N0973120W (7.9NM ESE HRL) 522FT (496FT AGL) U/S 2505112225-2506032300
5/8/252108Z !HRL 05/024 HRL RWY 36L ALS U/S 2505082108-2505222000EST
5/6/251343Z !HRL 05/018 HRL OBST WIND TURBINE LGT (ASN 2018-WTW-14066-OE) 261158N0973017W (8.4NM ESE HRL) 519FT (498FT AGL) U/S 2505061343-2505312359
5/5/250000Z !HRL 05/008 HRL AIRSPACE UAS WI AN AREA DEFINED AS 260300N0975200W
(9.6NM SE TXW) TO 260900N0975100W (6.9NM E TXW) TO 260600N0974200W
(7.9NM SSW HRL) TO 260100N0973500W (10.8NM NW BRO) TO
255800N0973600W (10.1NM WNW BRO) TO POINT OF ORIGIN SFC-1200FT AGL
DLY 0000-2359 2505050000-2505312359
5/1/251218Z !HRL 05/003 HRL NAV ILS RWY 18R CAT II NA 2505011218-2506022000EST
5/1/251218Z !HRL 05/002 HRL NAV ILS RWY 36L CAT II NA 2505011218-2506022000EST
4/23/251833Z !HRL 04/047 HRL OBST TOWER LGT (ASR 1047398) 261301.00N0974649.00W (6.8NM W HRL) 1049.9FT (1000.7FT AGL) U/S 2504231833-2507222359
4/18/250439Z !HRL 04/040 HRL COM REMOTE COM OUTLET 122.2 U/S 2504180439-2505282000EST
4/18/250428Z !HRL 04/039 HRL RWY 18L PAPI U/S 2504180428-2506272000EST
3/29/252015Z !HRL 03/095 HRL OBST TOWER LGT (ASR 1206947) 260239.50N0974009.20W (10.8NM S HRL) 363.2FT (310.0FT AGL) U/S 2503292015-2506270400
FDC
5/21/251230Z !FDC 5/3743 HRL IAP VALLEY INTL, HARLINGEN, TX.
VOR Y OR TACAN RWY 31, AMDT 2...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BRO TACAN OUT OF SERVICE. 2505211230-2505272230EST
10/31/241102Z !FDC 4/6726 HRL IAP VALLEY INTL, HARLINGEN, TX.
RNAV (GPS) RWY 18L, AMDT 3...
LNAV MDA NA ALL CATS.
2410311102-2606141102EST
10/3/241507Z !FDC 4/4365 HRL IAP VALLEY INTL, HARLINGEN, TX.
ILS OR LOC RWY 36L, ORIG-A ...
ILS RWY 36L (SA CAT I), ORIG-A ...
ILS RWY 36L (SA CAT II), ORIG-A ...
FOODS TO TIMMM TRANSITION NA 2410031507-2605151507EST
8/28/241901Z !FDC 4/7553 HRL IAP VALLEY INTL, HARLINGEN, TX.
ILS OR LOC RWY 18R, AMDT 1...
ILS RWY 18R (SA CAT I), AMDT 1...
ILS RWY 18R (SA CAT II), AMDT 1...
TERMINAL ROUTE MAYRR (IAF) TO ZIPIV NA.
2408281901-2604091901EST
Yes
0600-0000
CITY OF HARLINGEN
PO BOX 2207
HARLINGEN, TX 78550-2207
Phone: (956) 430-8605
MARV ESTERLY
AIRPORT TERMINAL BUILDING,, 3002 HE, 3200 HERITAGE WAY
HARLINGEN, TX 78550
Phone: 956-430-8605
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
HRL
--
DUSK-DAWN. WHEN ATCT CLSD ACTVT MALSR RWY 18R, RWY 31, RWY 36L - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

7257 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

160,000lbs
200,000lbs
350,000lbs
700,000lbs
  Runway 13 Runway 31
True Heading 136°316°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 26° 13' 59"N 26° 13' 08"N
Longitude 97° 39' 50"W 97° 38' 55"W
Elevation 34' 36'
Threshold Crossing Height 59 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 18L/36R

5950 ft. x 150 ft.
ASPH
Good
NONE
MED

160,000lbs
200,000lbs
350,000lbs
--
  Runway 18L Runway 36R
True Heading 181°1°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 26° 14' 02"N 26° 13' 03"N
Longitude 97° 38' 55"W 97° 38' 56"W
Elevation 34' 35'
Threshold Crossing Height 50 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 18R/36L

9400 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

160,000lbs
200,000lbs
350,000lbs
700,000lbs
  Runway 18R Runway 36L
True Heading 181°1°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 26° 14' 25"N 26° 12' 52"N
Longitude 97° 39' 31"W 97° 39' 32"W
Elevation 34' 36'
Threshold Crossing Height 71 ft. AGL 74 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights
A110-1MIGRATORY BIRDS ON & INVOF ARPT.
A110-2WHEN ATCT CLSD REQ ARFF THRU CORPUS APPROACH OR FLT SVC.
A110-3FOR CD WHEN ATCT IS CLSD CTC CRP APCH AT 361-299-4230.
VALLEY INTL (ICAO: KHRL, IATA: HRL) is a public airport located in HARLINGEN, TX.
