iFlightPlanner



...

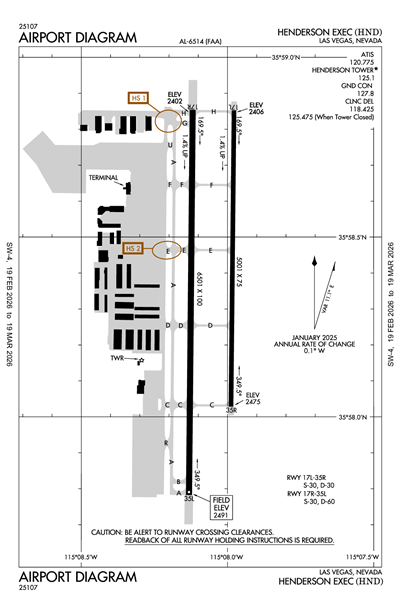

HENDERSON EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHND
ICAO KHNDIATA HSHLocal HND
HENDERSON EXEC
PublicPUB

11 miles S of LAS VEGAS, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 58' 22"N 115° 08' 04"W
Elevation
2491' MSL
Pattern Alt
3491' MSL
Mag Variation
11°E
Declination
13°E
Fuel
JET A, 100LL
FSS
RENO (RNO)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KHND VFR
8:56 PM PST
Clear
10sm
56°F
29°F
30.07"Hg
170° 6kts
AO2 SLP191 T01331017 $
METAR KHND 040456Z AUTO 17006KT 10SM CLR 13/M02 A3007 RMK AO2 SLP191 T01331017 $
+ Add Your Business

KHND FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.775
AWOS-3PT 120.775
(702) 614-4537, (COMM_DECOMM_DATE) AUTOMATED WEATHER SENSOR SYSTEM (AWSS); (ASOS_AWOS_TYPE) INCLUDES TYPE Z - FREEZING RAIN SENSOR

Common

CTAF 125.1
ACTVT REIL RWY 17R & 35L, 17L & 35R; PAPI RWY 17R & 35L, 17L & 35R; MIRL RWY 17R/35L, 17L/35R - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 118.425
Clearance Delivery 125.475
WHEN TWR CLSD

Ground

HENDERSON GROUND 127.8
0600-2000

Tower

HENDERSON TOWER 125.1
0600-2000

Arrival

GAMES STAR 125.025
NTNDO RNAV STAR 125.475

Approach

LAS VEGAS APPROACH 125.475

Departure

LAS VEGAS DEPARTURE 125.475

Flight Service

Flight Service 122.6
(RNO), COMMUNICATIONS PRVDD BY RENO RADIO ON FREQ 122.6 (MOUNT POTOSI RCO).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KHND
Tue, 3/3 3:20 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 7:00 PM PST
Few 25,000'
6sm
020° 10kts
VFR
7:00 PM PST - 10:00 AM PST
Few 25,000'
6sm
190° 6kts
VFR
10:00 AM PST - 2:00 PM PST
Few 25,000'
6sm
VRB° 5kts
VFR
2:00 PM PST - 4:00 PM PST
Scattered 25,000'
6sm
200° 10kts
Gusts 18kts
TAF KHND 032320Z 0400/0424 02010KT P6SM FEW250
   FM040300 19006KT P6SM FEW250
   FM041800 VRB05KT P6SM FEW250
   FM042200 20010G18KT P6SM SCT250
KHND
EffectiveExpiresCategoryNOTAM
Domestic
3/2/26
1300Z
3/31/26
2300Z
!HND 02/023 HND OBST CRANE (ASN UNKNOWN) 355716N1150814W (1.1NM S HND) 2692FT (125FT AGL) FLAGGED AND LGTD 2603021300-2603312300
3/2/26
0801Z
3/9/26
0659Z
!HND 02/017 HND AD AP CLSD TO TRANSIENT GA ACFT EXC PPR 702-261-7775 2603020801-2603090659
2/25/26
1430Z
2/25/26
2359Z
!HND 02/021 HND OBST CRANE (ASN 2025-AWP-9508-OE) 355716N1150814W (1.1NM S HND) 2688FT (120FT AGL) FLAGGED 2602251430-2602252359
2/24/26
1932Z
3/6/26
2359Z
Runway!HND 02/027 HND RWY 35R PAPI U/S 2602241932-2603062359
2/24/26
1932Z
3/6/26
2359Z
Runway!HND 02/026 HND RWY 17L PAPI U/S 2602241932-2603062359
2/4/26
1300Z
2/28/26
2300Z
!HND 02/005 HND OBST CRANE (ASN UNKNOWN) 355716N1150814W (1.1NM S HND) 2692FT (125FT AGL) FLAGGED AND LGTD DLY 1300-2300 2602041300-2602282300
1/19/26
1130Z
3/1/26
2359Z
!HND 01/011 HND OBST TOWER LGT (ASR 1234294) 360031.00N1150020.00W (6.6NM ENE HND) 3589.9FT (273.0FT AGL) U/S 2601191130-2603012359
FDC
1/7/26
1248Z
!FDC 6/1173 HND ODP HENDERSON EXEC, LAS VEGAS, NV.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS: RWY 17R, 300-1 WITH A MINIMUM CLIMB OF 491FT PER NM TO 6000 OR 4700-3 FOR VCOA.
ALL OTHER DATA REMAINS AS PUBLISHED. RWY 17R, TEMPORARY CRANE 2778FT FROM DER, 324FT RIGHT OF CENTERLINE, 140FT AGL/ 2709FT MSL (2025-AWP-7801-OE). 2601071248-2608191245EST
11/23/25
1003Z
!FDC 5/0811 HND SID HENDERSON EXEC, LAS VEGAS, NV.
OYODA TWO DEPARTURE (RNAV)...
TAKE-OFF MINIMUMS: RWY 17R, 300-1 WITH A MINIMUM CLIMB OF 560FT PER NM TO 4900.
ALL OTHER DATA REMAINS AS PUBLISHED. RWY 17R, TEMPORARY CRANE 2778FT FROM DER, 324FT RIGHT OF CENTERLINE, 140FT AGL/ 2709FT MSL (2025-AWP-7801-OE). 2511231003-2607052355EST
11/23/25
1002Z
!FDC 5/0809 HND IAP HENDERSON EXEC, LAS VEGAS, NV.
VOR-C, AMDT 1A...
NOTE: RWY 35L HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA. TEMPORARY CRANE 2709 MSL 2778FT SOUTH OF RWY 35L (2025-AWP-7801-OE).
2511231002-2607052355EST
7/7/25
2044Z
!FDC 5/3704 HND ODP HENDERSON EXEC, LAS VEGAS, NV.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF OBSTACLE NOTES: RWY 17R, BUILDINGS BEGINNING 3108 FT FROM DER, 280 FT RIGHT OF CENTERLINE, UP TO 60 FT AGL/2629 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2507072044-2707082044EST
7/7/25
2044Z
!FDC 5/3703 HND ODP HENDERSON EXEC, LAS VEGAS, NV.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKEOFF OBSTACLE NOTES: RWY 17L, BUILDINGS BEGINNING 4608 FT FROM DER, 979 FT RIGHT OF CENTERLINE, UP TO 60 FT AGL/2629 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2507072044-2707082044EST
Yes
0500-2230
CLARK COUNTY
3500 EXECUTIVE TERMINAL DR. SUITE 100
HENDERSON, NV 89052
Phone: 702-261-4800
BRUCE DAUGHERTY
3500 EXECUTIVE TERMINAL DRIVE SUITE 100
HENDERSON, NV 89052
Phone: 702-261-4802
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
HND
--
ACTVT REIL RWY 17R & 35L, 17L & 35R; PAPI RWY 17R & 35L, 17L & 35R; MIRL RWY 17R/35L, 17L/35R - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 17L/35R

5001 ft. x 75 ft.
ASPH
Excellent
NONE
MED

30,000lbs
30,000lbs
--
--
  Runway 17L Runway 35R
True Heading 181°1°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 58' 51"N 35° 58' 02"N
Longitude 115° 07' 59"W 115° 07' 59"W
Elevation 2,406' 2,475'
Threshold Crossing Height 40 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 4.3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No
Runway End Identifier Lights Yes Yes

Runway 17R/35L

6501 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
60,000lbs
--
--
  Runway 17R Runway 35L
True Heading 181°1°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 58' 51"N 35° 57' 47"N
Longitude 115° 08' 07"W 115° 08' 08"W
Elevation 2,402' 2,491'
Threshold Crossing Height 41 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 4.3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2COML AIR TOUR TFC ARR FM SE DALGT HR.
A110-6CTN: ACFT DEP RWY 17R OR 35L MUST VFY PSN ON RWY NOT ON PARL TWY.
A110-7FOR CD WHEN ATCT CLSD CTC LAS APCH ON 125.475 OR PH 725-200-4432.
A110-8WHEN SPL EVENT PRKG PPR PROGRAM NOTAM IS ACTV, TSNT ACFT OPERS NOT PERM BASED NEED TO OBTAIN A PPR NR FM AN FBO FOR EA LDG. PPR APPVL & CONFIRMATION NRS CAN BE OBTAINED FM THE SEL FBO AT 702-261-7775. PPR CONFIRMATION NRS SHOULD BE ENTERED IN THE RMKS SECTION OF EACH FLT PLAN.
A14OPS: 702-261-4851.
A30-17L/35ROPS DLY 1900-0700.
A43-35LPAPI UNUSBL BYD 3.3 NM FM RWY THR.
A43-35RPAPI UNUSBL BYD 3.5 NM FM RWY THR.
A70-100LL100LL SELF-SVC H24.
A81-APTACTVT REIL RWY 17R & 35L, 17L & 35R; PAPI RWY 17R & 35L, 17L & 35R; MIRL RWY 17R/35L, 17L/35R - CTAF.
HENDERSON EXEC (ICAO: KHND, IATA: HND) is a public airport located in LAS VEGAS, NV, US.
