iFlightPlanner



...

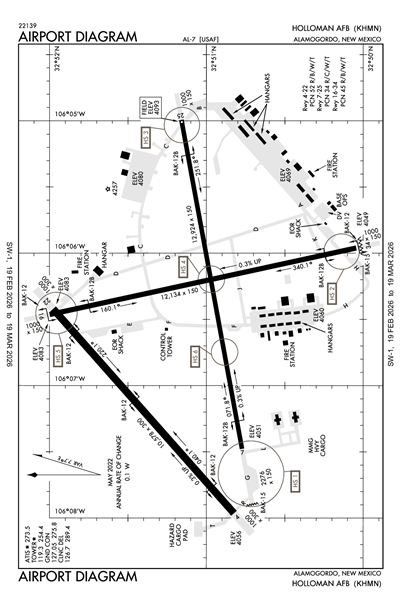

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHMN
HOLLOMAN AFB
PrivatePVT

6 miles SW of ALAMOGORDO, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 51' 07"N 106° 06' 31"W
4093' MSL
5093' MSL
10E
None Listed
ALBUQUERQUE (ABQ)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
7/11/24-8/8/24
KHMN VFR
3:55 AM MDT
Clear
10sm
62°F
32°F
29.98"Hg
300° 5kts
AO2 SLP078 T01690001 $
KHMN 190955Z AUTO 30005KT 10SM CLR 17/00 A2998 RMK AO2 SLP078 T01690001 $
Add Your Business

KHMN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Approach

APCH/P
 120.6

Departure

DEP/P
LTD BYD 15 NM 020-140
 128.1

Clearance Delivery

CD/P
 126.7

Emergency

EMERG
 121.5

Ground

GND/P
 127.05

Tower

LCL/P
LTD BYD 15 NM 020-140
 119.3

Other

OPS
CHEROKEE MISSION
 126.9

Terminal Area Forecast

KHMN
Thu, 9/19 3:00 AM MDT
Thu, 9/19 3:00 AM MDT - Fri, 9/20 9:00 AM MDT
VFR
3:00 AM MDT - 2:00 AM MDT
Few 15,000'
6sm
29.97"Hg
200° 10kts
Gusts 15kts
VFR
Temporary 3:00 PM MDT - 6:00 PM MDT
No Clouds
N/A
220° 15kts
Gusts 25kts
VFR
Becoming 2:00 AM MDT - 9:00 AM MDT
Broken 20,000'
Scattered 10,000'
6sm
29.94"Hg
160° 10kts
TAF KHMN 190900Z 1909/2015 20010G15KT 9999 FEW150 QNH2997INS
   TEMPO 1921/1924 22015G25KT
   BECMG 2008/2009 16010KT 9999 SCT100 BKN200 QNH2995INS TX34/1922Z TN15/1912Z
KHMN
Military
9/21/241220Z H-60 UAO IN PROGRESS. H-60S ARR/DEP DCT TO/FROM NORTH RAMP, (SAT/SUN) 21/22 SEP 24 0620L-0930L DAILY
9/21/240301Z MQ-9 UAO IN PROGRESS. MQ-9S TAXIING TO/FROM MAIN RAMP/RWYS, (FRI) 20 SEP 24 2101L - (MON) 23 SEP 24 0744L
9/20/240331Z MQ-9 UAO IN PROGRESS. MQ-9S TAXIING TO/FROM MAIN RAMP/RWYS, (THU) 19 SEP 24 2131L - (FRI) 20 SEP 24 0914L
9/17/241556Z M1168/24 NOTAMC M1125/24
9/17/241556Z USE CAUTION: JERSEY BARRICADES LOCATED BETWEEN HANGARS 21808 AND 21811 AND BETWEEN HANGARS 21812 AND 21813. ACFT LANDING RWY 16 EXITING AT TWY H TO THE WEST RAMP, TURN EAST ON WEST RAMP TO AVOID MEN AND EQUIPMENT
9/17/241400Z EOD DETONATIONS OCCURRING AT EOD RANGE, 1250FT AGL OR BELOW. VALID 17 SEP - 20 SEP 2024 0800L-1800L DAILY
9/17/240331Z MQ-9 UAO IN PROGRESS. MQ-9S TAXIING TO/FROM MAIN RAMP/RWYS, (MON-THU) 16-19 SEP 24, 2131L-0744L DAILY
9/16/242022Z AERODROME FIRE FIGHTING AND RESCUE CAPABILITY HAS BEEN DOWNGRADED TO RED FOR (C-17, B-1, B-2, KC-135, KC-46, 767, KC-10, E-4(747), MD-11, C-5, AN-124). EMERGENCY RESPONSE FORCES CAN EXPECT TO ACCOMPLISH FES OBJECTIVES WHEN THE INCIDENT CAN BE QUCKLY CONTAINED AND MITIGATED. FIREFIGHTERS ARE EXPECTED TO REVERT TO DEFENSIVE OPERATIONS WHEN THE EMERGENCY CANNOT BE CONTAINED QUICKLY. THE PROPERTY INVOLVED IN THE FIRE IS EXPECTED TO RECEIVE
9/16/242021Z M1161/24 NOTAMC M0999/24
9/16/242021Z AERODROME FIRE FIGHTING AND RESCUE CAPABILITY HAS BEEN DOWNGRADED TO YELLOW FOR (C-9, C-130, MH-53, E-3, RC-135). REDUCED LEVEL OF SERVICE PROVIDES SUFFICIENT CAPABILITY FOR INITIAL RESPONSE, SCENE ASSESSMENT AND IMPLEMENTATION OF MITIGATION TACTICS. RLS REPRESENTS INCREASED RISK/LOSS POTENTIAL DUE TO LACK OF EMERGENCY RESPONSE CAPABILITY TO PERFORM RESCUE AND SUFFICIENT MITIGATION TACTICS SIMULTANEOUSLY. OBJECTIVES MAY NOT BE SUCCESSFUL DURING SITUATIONS WHERE SIMULTANEOUS RESCUE AND FIREFIGHTING ACTIVITIES ARE REQUIRED.
9/16/242019Z M1159/24 NOTAMC M0976/24
9/16/241350Z M1157/24 NOTAMC M1156/24
9/15/242359Z HOLLOMAN APPROACH CONTROL HOURS: (MON) 23 SEP 24: 0745L-2045L (1345Z-0245Z), (TUE) 24 SEP 24: 0745L-2045L (1345Z-0245Z), (WED) 25 SEP 24: 0745L-2045L (1345Z-0245Z), (THU) 26 SEP 24: 0745L-2045L (1345Z-0245Z), (FRI) 27 SEP 24: 0745L-2045L (1345Z-0245Z), (SAT) 28 SEP 24: CLSD, (SUN) 29 SEP 24: CLSD.
9/15/242359Z AERODROME AIRFIELD HOURS: (MON) 16 SEP 24: 0745L-2130L (1345Z-0330Z), (TUE) 17 SEP 24: 0745L-2130L (1345Z-0330Z), (WED) 18 SEP 24: 0745L-2130L (1345Z-0330Z), (THU) 19 SEP 24: 0745L-2130L (1345Z-0330Z), (FRI) 20 SEP 24: 0915L-2100L (1515Z-0300Z), (SAT) 21 SEP 24: CLSD, (SUN) 22 SEP 24: CLSD.
9/15/242359Z HOLLOMAN APPROACH CONTROL HOURS: (MON) 16 SEP 24: 0745L-2130L (1345Z-0330Z), (TUE) 17 SEP 24: 0745L-2130L (1345Z-0330Z), (WED) 18 SEP 24: 0745L-2130L (1345Z-0330Z), (THU) 19 SEP 24: 0745L-2130L (1345Z-0330Z), (FRI) 20 SEP 24: 0915L-2100L (1515Z-0300Z), (SAT) 21 SEP 24: CLSD, (SUN) 22 SEP 24: CLSD.
9/15/242359Z AERODROME AIRFIELD HOURS: (MON) 23 SEP 24: 0745L-2045L (1345Z-0245Z), (TUE) 24 SEP 24: 0745L-2045L (1345Z-0245Z), (WED) 25 SEP 24: 0745L-2045L (1345Z-0245Z), (THU) 26 SEP 24: 0745L-2045L (1345Z-0245Z), (FRI) 27 SEP 24: 0745L-2045L (1345Z-0245Z), (SAT) 28 SEP 24: CLSD, (SUN) 29 SEP 24: CLSD.
8/22/241353Z !KHMN M1049/24 HMN TWY F RWY GUARD LGTS AT RWY 07/25 U/S 2408221353-2409301245
8/15/242258Z AERODROME MIDDLE TAXILANE AT THE INTERSECTION OF TAXIWAY C & NORTH RAMP CLOSED DUE TO SEVERE POTENTIAL FOR SINK HOLE.
8/12/241246Z RAPCON FREQUENCY 126.7 OUT OF SERVICE
7/24/240454Z RWY 16 WEST 8/4 RWY DISTANCE MARKER (RDM) NOT ILLUMINATED
Yes
Unknown
USAF
49TH CSG/TAC/
HOLLOMAN AFB, NM 88330
BASE OPERATIONS
49TH CSG/TAC/
HOLLOMAN AFB, NM 88330
Phone: 575-572-5411
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
HMN
Sunset to Sunrise
--
N/A
ABN UNSERVICEABLE.
Yes
No
No
None
No
0
0
0
0
1
0
Major
Major
None
High & Low Pressure
None

Runway 04/22

10578 ft. x 300 ft.

PEM
NONE
HIGH
52 /R/B/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 48°228°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 50' 48"N 32° 51' 59"N
Longitude 106° 07' 57"W 106° 06' 26"W
Elevation 4,056' 4,083'
Threshold Crossing Height -- 53 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 07/25

12922 ft. x 150 ft.

PEM
NONE
HIGH
34 /R/C/W/T
--
--
--
--
  Runway 07 Runway 25
True Heading 79°259°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 50' 46"N 32° 51' 10"N
Longitude 106° 07' 29"W 106° 04' 60"W
Elevation 4,051' 4,093'
Threshold Crossing Height -- 43 ft. AGL
Visual Glide Path Angle -- 2.5°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 16/34

12134 ft. x 150 ft.

PEM
NONE
HIGH
45 /R/B/W/T
--
--
--
--
  Runway 16 Runway 34
True Heading 168°348°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 51' 60"N 32° 50' 02"N
Longitude 106° 06' 28"W 106° 05' 58"W
Elevation 4,083' 4,049'
Threshold Crossing Height 50 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1CAUTION: MT TERRAIN 10 NM E AND 20 NM W.
A110-10CAUTION: PORTIONS OF ARPT NOT VIS FR TWR. EXIT RWY 22 ON TWY R HOLD SHORT TWY G.
A110-104ILS/RADAR: RWY 16 ILS AVBL FOR CIR APCH TO RWY 22.
A110-105MISC: AERODROME WX SVC AVBL MON-SAT 0600-0100Z++, SAT 1400-2100Z++. CLSD SUN, HOL OR WHEN AFLD IS NOTAM CLSD. AUTO OBS AVBL DUR NON-OPR HRS.
A110-106SERVICE-A-GEAR: RWY 04-22 BAK-12B (MID FLD) AND RWY 25 APCH BAK-12B 30 MIN PN. BAK-15 LCTD RWY 16 UNDER-RUN UNSVC. NETS AVBL TO BE RAISED AT PILOT REQ. RWY 34 HOOK BAK-12 B (60 FT OVRN) UNIT IS NOT BI-DIRECTIONAL.
A110-107CAUTION: AFLD HAS HI POTENTIAL FOR FOD FR ENG BLAST, MINIMIZE THRUST DUR GRD OPS.
A110-108MISC: ONLY SINGLE APCH AND FULL STOP LDG AUTHORIZED FOR TRAN ACFT.
A110-109RSTD: RWY 16-34 RSTD TO ACFT WITH WINGSPAN 175 FT OR LESS.
A110-11CAUTION: COPTER ARR/DEP AVOID HOVER OVER UNPREPARED SFC.
A110-110SERVICE-LGT: RWY 16-34 DIST REM MRK OTS.
A110-111TWY GOLF EDGE LGTS LOCATED 150 FT SOUTH OF TWY GOLF PAVEMENT EDGE INVOF CLSD END OF RWY (EOR) GULF.
A110-113REMARKS-RSTD: CTC AM OPS DSN 572-5411, C575-572-5411 TO SKED.
A110-114UNITS WISHING TO FORWARD DEPLOY TO HOLLOMAN AFB CTC 49 WG/XP DSN 572-7483 FOR WG APVL.
A110-115CAUTION: BIRD HAZARD: WETLANDS AND LAKE LOCATED LESS THAN 1 NM S OF RWY 34 APCH END. BASH PHASE II IN EFF: 1 MAR-31 MAY AND 1 AUG-31 OCT.
A110-116RSTD: ALL ACFT RQRG CARGO AND/OR PAX SVC RQR TO CTC 49 LRS AT DSN 572-0905, C575-572-0905.
A110-117RSTD: NO ENG RUNNING ON/OFF LOADS WITHOUT PRIOR COORD WITH 49 LRS.
A110-118CAUTION: NON-FRANGIBLE SIGN LCTD ON TWY F/TWY E INT LESS THAN 100 FT FR TWY F CNTRLN ON S SIDE.
A110-119SERVICE-A-GEAR: CAUTION: RWY 25 APCH BAK-12 INCREASED STRIKE HAZ TO F-16 CONFIGURED WITH EXTERNAL CNTRLN STORES/TANKS.
A110-13SERVICE-LGT: GATED THLD LGT ALL RWY.
A110-15BEARING STRENGTH RWY 04-22: ST155 SBTT590 DDT837.
A110-16BEARING STRENGTH RWY 07-25: ST155.
A110-17BEARING STRENGTH RWY 16-34: ST155 SBTT590.
A110-2CAUTION: UNCTL VEH ON MOVEMENT AREA.
A110-20MISC: STD AETC RSRS APPLIED, NON-AETC ASGN ACFT RQR WRITTEN APVL.
A110-22MISC: RADAR MONITORING NOT AVBL ALL RWY.
A110-23JASU: 2(MD-3) 2(MA-1A) 3(MC-1) 1(MC-1A) 1(M32A-60).
A110-24FUEL: A++.
A110-25FLUID: SP LHOX LOX.
A110-26OIL: O-128-133-148-156 SOAP.
A110-28A: OPR 1000-0100Z++ MON-SAT.
A110-30PPR MUST BE REQ 72 HR PRIOR BUT NO EARLIER THAN 7 DAYS PRIOR TO ARR. CTC AFLD MGMT DSN 572-5411/5412, C575-572-5411/5412. PPR VALID +/- 30 MIN PRIOR/AFTER ETA. EARLY/LATE ARR/DEP MUST BE RE-COORD WITH AFLD MGMT.
A110-31SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-32MISC: TWY GOLF WIDTH 150 FT WT BEARING.
A110-39RSTD: HEAVY ACFT SHOULD EXPECT TO LAND RWY 22.
A110-43MISC: WX OBSN SITE LTD 220-350 DEG DUE TO BLDG; NGT OBSN LTD DUE TO HI INST LGT. SVC UNAVBL WHEN AFLD NOTAM CLSD. WX DSN 572-3924/5 C575-572-3924/5. FOR SBY SVC DUR NON-OPR WX HR CTC 25 OWS DSN 228-6674.
A110-49MISC: TRANSIENT ACFT LAST PRIORITY ON REFUELING DUE TO REFUELING MECHANICAL PROBLEMS, EXPECT DELAYS.
A110-5TRAN ALERT: TRAN ALERT SVC AVBL 1230-0330Z++ MON-FRI, 1430-2230++ SAT-SUN. NO PRIORITY BASIS.
A110-56MISC: WX SUPPORT AND AUGMENTED AUTOMATED OBSN AVBL DUR WING FLYING HRS.AUTOMATED OBSN AVBL DUR NON-OPR WX HRS AND DUR AFLD CLOSURE.
A110-58CAUTION: UNCONTROLLED AFD OPS (UAO) IN EFFECT DURING OUTSIDE PUB AFLD HRS. UAO ONLY AUTH FOR FLYING UNITS LISTED IN HAFBI 11-250. CTC COMD POST DSN 572-7575, C575-572-7575 FOR CURRENT UAO STATUS.
A110-60MISC: VFR HOLD LINES LCTD AT INTERSECTIONS OF RWY 16/34 (4 EA.). ACFT GIVEN CLNC TO LAND OR TAKE-OFF SHALL DISREGARD HOLD LINES AT THE INTERSECTIONS DURG LANDING AND TAKE-OFF ROLL. LAND AND HOLD SHORT OPS NOT AUTH.
A110-67RSTD: HEAVY ACFT PROH FR DEP OR ARR RWY 07/25.
A110-74CAUTION: PAVEMENT MARKINGS THROUGHOUT AFLD FADED & NON-REFLECTIVE.
A110-77CAUTION: USE EXTREME CAUTION, UAS ACFT CONDUCTING STD OPS IN HOLLOMAN AIRSPACE.
A110-86RSTD: 180 DEGS TURNS ON RWY ASPHALT SFC NOT PERMITTED WITHOUT AFLD MGR APVL.
A110-89OPR HRS BY NOTAM.
A110-9CSTMS/AG/IMG: CSTMS/ IMG AVBL TO 49 TFW FR OUTSIDE CONUS.
A110-90RWY 34 & RWY 04; AT 2000 FT DIST REMAINING MRK, ONLY 1700 FT OF RWY AVBL.
HOLLOMAN AFB (ICAO: KHMN, IATA: HMN) is a private airport located in ALAMOGORDO, NM.
