KHLR
YOAKUM-DEFRENN AHP
PrivatePVT

1 miles NE of FORT CAVAZOS (KILLEEN), TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 08' 15"N 97° 42' 51"W
910' MSL
1910' MSL
05E
None Listed
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
7/11/24-8/8/24
KHLR VFR
4:55 AM CDT
Clear
10sm
77°F
72°F
29.87"Hg
180° 6kts
AO2 SLP102 T02510224
KHLR 190955Z AUTO 18006KT 10SM CLR 25/22 A2987 RMK AO2 SLP102 T02510224
Add Your Business

KHLR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
Hours: OPR 1400-0600Z++ MON-FRI EXC HOL, OT CTC ROBERT GRAY TWR 120.75 285.5
 138.6

Emergency

EMERG
 121.5

Ground

GND/P
 133.85

Tower

LCL/P
 119.65

Other

FLT FLW
 141.175
RANGE CTL
 30.45
RANGE CTL
 38.3

FAA A/FD Pages

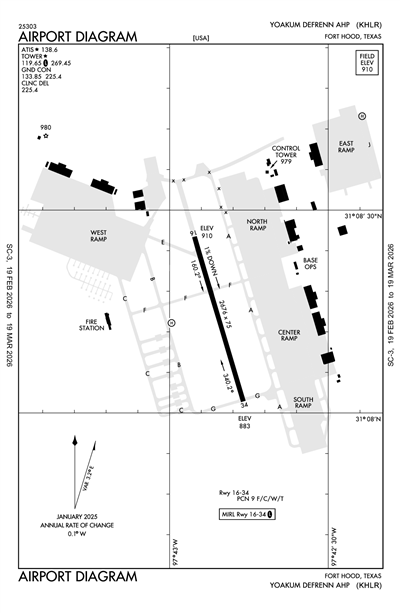

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGRK (7nm)
Thu, 9/19 3:00 AM CDT
Thu, 9/19 3:00 AM CDT - Fri, 9/20 9:00 AM CDT
VFR
3:00 AM CDT - 6:00 AM CDT
Sky Clear
6sm
29.88"Hg
140° 9kts
VFR
Becoming 6:00 AM CDT - 10:00 AM CDT
Scattered 3,000'
Few 2,000'
6sm
29.91"Hg
150° 9kts
MVFR
Temporary 7:00 AM CDT - 10:00 AM CDT
Broken 2,500'
N/A
Calm
VFR
Becoming 10:00 AM CDT - 4:00 PM CDT
Scattered 5,000'
Few 3,000'
6sm
29.85"Hg
150° 9kts
VFR
Becoming 4:00 PM CDT - 5:00 AM CDT
Sky Clear
6sm
29.82"Hg
130° 9kts
VFR
Becoming 5:00 AM CDT - 9:00 AM CDT
Scattered 25,000'
Scattered 1,500'
6sm
29.82"Hg
VRB° 6kts
TAF KGRK 190800Z 1908/2014 14009KT 9999 SKC QNH2989INS
   BECMG 1911/1912 15009KT 9999 FEW020 SCT030 QNH2992INS
   TEMPO 1912/1915 BKN025
   BECMG 1915/1916 15009KT 9999 FEW030 SCT050 QNH2985INS
   BECMG 1921/1922 13009KT 9999 SKC QNH2982INS
   BECMG 2010/2011 VRB06KT 9999 SCT015 SCT250 QNH2982INS TX35/1921Z TN24/1912Z
KHLR
Military
9/21/241600Z AERODROME LS-CS, ROZ, UAS OPS, LAUNCH AND RECOVERY FROM LS-CS AND WI THE LS-CS ROZ, SFC TO 10,000FT MSL. E REDLINE CLSD IN TA 15 AND TA20 DURING OPS (OPNL1600Z-1700Z, 1900Z-2200Z AND 0300Z-0400Z). CTC UNIT: TEST OPS UAS A/A E 64.35, FOR STS. POC: SFC DLUGOPOLSKI (931) 494-0216
9/20/242030Z AERODROME WTA 121, MULTI ACFT LOW LVL HEL OPS, 2,000MSL AND BLO, WI 10NM OF 305433N 0985839W AND 305259N 0985419W AND 305602N0985758W, NONPARTICIPATING ACFT CTC ROYAL 122.8 SC/PT. POC ROYAL TOC, 254-288-7605
9/20/241400Z AERODROME LS-CS, ROZ, UAS OPS, LAUNCH AND RECOVERY FROM LS-CS AND WI THE LS-CS ROZ, SFC TO 10,000FT MSL. E REDLINE CLSD IN TA 15 AND TA20 DURING OPS (OPNL 1400Z-1700Z, 1900Z-2200Z, AND 0200Z-0300Z). CTC UNIT: TEST OPS UAS A/A E 64.35, FOR STS. POC: SFC DLUGOPOLSKI (931) 494-0216
9/19/242330Z AERODROME WTA 110, MULTI ACFT LOW LEVEL HEL OPS, 2,000MSL AND BLO, WI 10NM OF 312840N 0984340W, NONPARTICIPATING ACFT CTC ROYAL 122.8 SC/PT. POC ROYAL TOC, 254-288-7605
9/19/242330Z AERODROME WTA 121, MULTI ACFT LOW LVL HEL OPS, 2,000MSL AND BLO, WI 10NM OF 305335N 985357W, NONPARTICIPATING ACFT CTC ROYAL 122.8 SC/PT. POC ROYAL TOC, 254-288-7605
9/19/242330Z AERODROME TA20-25A1, ROZ, MULTI ACFT LOW LVL HEL OPS, 2,000 MSL AND BLO, NONPARTICIPATING ACFT CTC ROYAL A/A 64.35 SC/PT FOR APVL BFR ENTRY. POC ROYAL SCC, 254-288-7605
9/19/241300Z AERODROME LS-CS, TA 21-TA23A1, ROZ, UAS OPS, LAUNCH AND RECOVERY FROM LS-CS, WI THE LS-CS ROZ AND WI TA21-TA23A1, SFC TO 10,000FT MSL. E REDLINE CLSD IN TA 15 AND TA20 DURING OPS (OPNL 1300Z-1500Z AND 1900Z-2200Z). CTC UNIT: TEST OPS UAS A/A E 64.35, FOR STS. POC: SFC DLUGOPOLSKI (931) 494-0216
9/19/241100Z AERODROME R6302A, ROZ FOR THAAD OPS AT CMC (14R PV 2887 5240). NO FLT WI LF86, LF87, AND LF88 BLO 20,000 MSL WHEN RADIATING. UNIT: B-62 THAAD, CTC RANGE OPS 36.35 OR 30.45 SC/PT FOR STS. POC: 1LT HERRARTE (787) 517-9031
9/19/240100Z AERODROME WTA 100, MULTI ACFT LOW LEVEL HEL OPS, 2,000MSL AND BLO, WI 10NM OF 312833N0980908W. NONPARTICIPATING ACFT CTC ROYAL 122.8 SC/PT. POC ROYAL TOC, 254-288-7605
9/19/240100Z AERODROME TA20-25A1, ROZ, MULTI ACFT LOW LVL HEL OPS, 2,000 MSL AND BLO, NONPARTICIPATING ACFT CTC ROYAL A/A 64.35 SC/PT FOR APVL BFR ENTRY. POC ROYAL SCC, 254-288-7605
9/18/241900Z AERODROME LS-CS, ROZ, UAS OPS, LAUNCH AND RECOVERY FROM LS-CS AND WI THE LS-CS ROZ, SFC TO 10,000FT MSL. E REDLINE CLSD IN TA 15 AND TA20 DURING OPS (OPNL 1900Z-2000Z AND 0000Z-0100Z). CTC UNIT: TEST OPS UAS A/A E 64.35, FOR STS. POC: SFC DLUGOPOLSKI (931) 494-0216
9/18/241400Z AERODROME TA20-25A1, ROZ, MULTI ACFT LOW LVL HEL OPS, 2,000 MSL AND BLO, NONPARTICIPATING ACFT CTC ROYAL A/A 64.35 SC/PT FOR APVL BFR ENTRY. POC ROYAL SCC, 254-288-7605
9/18/241130Z AERODROME R6302 A, B, C AND D. PIPELINE FLIGHT 2500FT MSL AND BLO. POC: MR. ISENBERG, (832) 776-8096
9/17/241000Z AERODROME UAS OPS WI R-6302A, C, AND D, MQ-1C, 5,500FT MSL, 10,500FT MSL, AND 11,500FT MSL AND R6302A 21,000FT MSL
9/11/241407Z AERODROME RRP WINDSOCK OBSTRUCTION LIGHT UNSERVICEABLE
9/6/241810Z AERODROME TA30, TA 31, TA34, AND TA35, ROZ, PATRIOT OPS/COMMS ANTENNAS, SFC-500FT AGL WI 200M OF TA30 (PV 26485 47181 AND 23550 47918), TA 31 (PV 28514 49065), TA34 (PV 31165 45419), AND TA35 (PV 32090 45238). POC: CW2 LUTMAN (309) 205-4215 OR SFC SMARRITO (936) 419-7732.
9/3/240501Z AERODROME TA60, ROZ, ATHP, NO OVERFLIGHT SFC-1000FT AGL WITHIN 500M OF 14RPV 1682 6279. POC: 1LT EATON (828) 275-3692
8/28/242058Z AERODROME RAPID REFUEL OPEN M-F 0900-2300 (L). LANES 4&5 ONLY. AH64/UH60 ONLY. FREQ: 41.50 CALLSIGN: YOAKUM FUEL
7/12/241610Z AERODROME HELIPAD 3 CLOSED FOR ARRIVALS AND DEPARTURES.
7/12/241605Z AERODROME HELIPAD 2 CLOSED FOR ARRIVAL AND DEPARTURES.
7/12/241600Z AERODROME ALL TAXIWAYS NON-STANDARD AND FADED MARKINGS.
Yes
MON-FRI 1400-0600Z++
EXC HOL
US ARMY
US ARMY AERONAUTICAL SVCS AGENCY, 9325 GUNSTON RD, STE N319
FORT BELVOIR, VA 22060-5582
DIRECTORATE OF AVIATION OPERATIONS
BLDG 90029, CLARKE RD
FORT CAVAZOS, TX 76544
Phone: 254-553-0501
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
LGT-MIRL AHP 16-34 OPR 1400-0600++ WKD EXC FED HOL OT PCL 119.65.
N/A
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 16/34

2676 ft. x 75 ft.
ASPH
Good
NONE
MED
9 /F/C/W/T
--
--
--
--
  Runway 16 Runway 34
True Heading 164°344°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 08' 28"N 31° 08' 03"N
Longitude 97° 42' 55"W 97° 42' 46"W
Elevation 910' 883'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1CAUTION: R6302 LCTD 1.1 NM N OF AFLD.
A110-10TRAN ALERT: LTD TRAN PRK.
A110-11RSTD: PPR ALL TRAN ACFT, C254-288-3811, DSN 738-3811 OR C254-287-7585 DSN 737-7585. RSTD FROM F/W ACFT.
A110-12MISC: NO TRML FCST ISSUED FOR YOAKUM-DEFRENN AHP.
A110-16SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-2CAUTION: SOME ACFT OPR IN AREA WO CONSPICUOUS MRK AND BLEND WITH TERRAIN.
A110-22TFC PAT: LEFT AND RGT TFC ALT 1500'.
A110-23SERVICE - FUEL - A++. RAPID REFUEL OPR TIMES BY NOTAM.
A110-24PMSV GRAY METRO: WX OBSN FULLY AUTOMATED. MANUAL BACK-UP PRVDD FOR EQUIPMENT/COMMUNICATION FAILURE ONLY DURING AFLD OPERATING HRS.
A110-25H-1 AND TWY J CLSD 1200-1330Z++ MON-FRI EXC HOL.
A110-26CAUTION - EXTSV UAS ACT WI CLASS D ASP AND BTN ROBERT GRAY AAF AND R6302.
A110-4CAUTION: INST FINAL APCH CRS CROSS 1 NM SW KILLEEN MUNI.
A110-5CAUTION: INTS COPTER OPR VCNTY FT CAVAZOS.
A110-7RSTD: NO BASE OPS SVC AVBL AT YOAKUM-DEFRENN AHP, CTC ROBERT GRAY BASE OPS C254-288-9200, DSN 738-9200.
A110-9OIL: SOAP.
YOAKUM-DEFRENN AHP (ICAO: KHLR, IATA: HLR) is a private heliport located in FORT CAVAZOS (KILLEEN), TX.
