KHII
ICAO KHIIIATA HIILocal HII
LAKE HAVASU CITY
PublicPUB

6 miles N of LAKE HAVASU CITY, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 34' 16"N 114° 21' 30"W
Elevation
783' MSL
Pattern Alt
1783' MSL
Mag Variation
11°E
Declination
13°E
Fuel
JET A, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KHII VFR
9:35 PM MST
Clear
10sm
73°F
25°F
29.95"Hg
340° 7kts
AO2
METAR KHII 040435Z AUTO 34007KT 10SM CLR 23/M04 A2995 RMK AO2
+ Add Your Business

KHII FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.025
(928) 764-2309

Common

CTAF 122.7
ACTVT REIL RWY 14/32; MIRLS RWY 14/32 - CTAF.
UNICOM 122.7
UNMNT 1700-0500 & WKEND.

Center

L.A. CENTER CENTER 134.65
LOW, APCH/DEP CTL SVC PRVDD BY LOS ANGELES ARTCC (ZLA) ON FREQUENCIES 134.65/360.65 (NELSON RCAG).

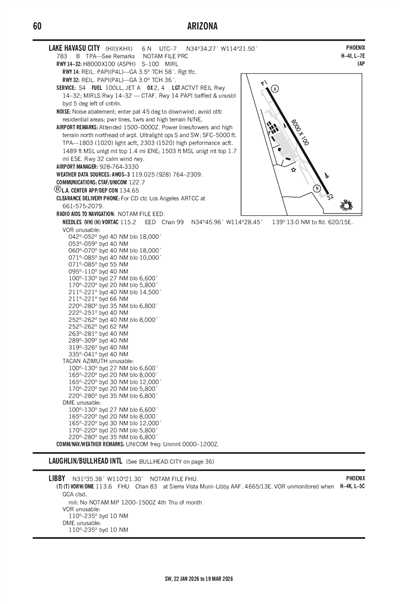

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KEED (17nm)
Tue, 3/3 3:20 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 7:00 PM PST
Few 25,000'
6sm
350° 12kts
Gusts 20kts
VFR
7:00 PM PST - 8:00 AM PST
Few 25,000'
6sm
330° 8kts
VFR
8:00 AM PST - 3:00 PM PST
Few 25,000'
6sm
VRB° 5kts
VFR
3:00 PM PST - 4:00 PM PST
Few 20,000'
6sm
190° 10kts
TAF KEED 032320Z 0400/0424 35012G20KT P6SM FEW250
   FM040300 33008KT P6SM FEW250
   FM041600 VRB05KT P6SM FEW250
   FM042300 19010KT P6SM FEW200
KHII
EffectiveExpiresCategoryNOTAM
Domestic
2/6/26
1820Z
12/31/26
2359Z
!PRC 02/084 HII TWY C CLSD 2602061820-2612312359
No
0800-1700
LAKE HAVASU CITY
2330 N. MC CULLOCH
LAKE HAVASU CITY, AZ 86403
Phone: 928-764-3330
KIP TURNER
5600 NORTH HIGHWAY 95 #1
LAKE HAVASU CITY, AZ 86404
Phone: 928-764-3330
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT REIL RWY 14/32; MIRLS RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
None
No
Major
Major
Low Pressure
Low Pressure
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 14/32

8000 ft. x 100 ft.
ASPH
Fair
NONE
MED

100,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 149°329°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 34' 50"N 34° 33' 42"N
Longitude 114° 21' 54"W 114° 21' 06"W
Elevation 749' 783'
Threshold Crossing Height 58 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1NOISE ABATEMENT; ENTER PAT 45 DEG TO DOWNWIND; AVOID OTFC RESIDENTIAL AREAS; PWR LINES, TWRS & HIGH TRRN N/NE.
A110-3ULTRALIGHT OPS S & SW; SFC-5000 FT.
A110-61489 FT MSL UNLGT MT TOP 1.4 MI ENE; 1503 FT MSL UNLGT MT TOP 1.7 MI ESE.
A110-8FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A30-14/32RWY 32 CALM WIND RWY.
A43-14PAPI BAFFLED & UNUSBL BYD 5 DEG LEFT OF CNTRLN.
A81-APTACTVT REIL RWY 14/32; MIRLS RWY 14/32 - CTAF.
A82UNMNT 1700-0500 & WKEND.
E147TPA 1020 AGL LGT ACFT; 1520 AGL HIGH PERFORMANCE ACFT.
LAKE HAVASU CITY (ICAO: KHII, IATA: HII) is a public airport located in LAKE HAVASU CITY, AZ, US.
