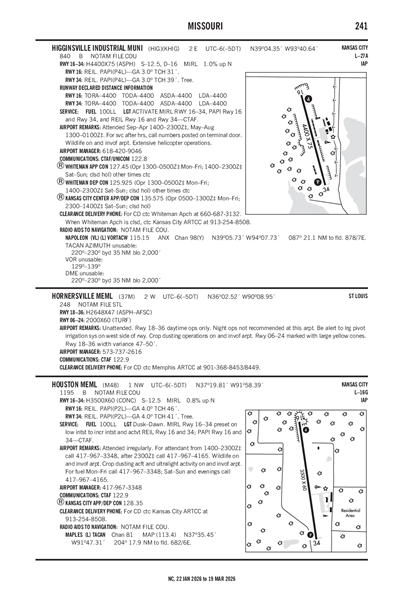

HIGGINSVILLE INDUSTRIAL MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHIG
ICAO KHIGLocal HIG
HIGGINSVILLE INDUSTRIAL MUNI
PublicPUB

2 miles E of HIGGINSVILLE, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 04' 21"N 93° 40' 38"W
Elevation
840' MSL
Pattern Alt
1840' MSL
Mag Variation
1°E
Declination
2°E
Fuel
100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KRCM (18nm) IFR
10:55 PM CST
Mist
Overcast 500'
5sm
43°F
41°F
30.10"Hg
020° 6kts
AO2
METAR KRCM 040455Z AUTO 02006KT 5SM BR OVC005 06/05 A3010 RMK AO2
+ Add Your Business

KHIG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT MIRL RY 16/34; PAPI & REIL RYS 16 & 34 - CTAF.
UNICOM 122.8

Approach

WHITEMAN APPROACH 127.45

Departure

WHITEMAN DEPARTURE 125.925

Center

WHITEMAN CENTER 135.575
LOW, APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQS 135.575/323.15 (KNOB NOSTER RCAG) WHEN WHITEMAN APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSZL (21nm)
Tue, 3/3 1:00 PM CST
Tue, 3/3 1:00 PM CST - Wed, 3/4 7:00 PM CST
MVFR
1:00 PM CST - 6:00 PM CST
Overcast 2,500'
Few 600'
6sm
29.97"Hg
050° 9kts
IFR
Temporary 3:00 PM CST - 6:00 PM CST
Light Showers and Rain and Mist
Overcast 2,500'
Broken 600'
2.98sm
Calm
IFR
Becoming 6:00 PM CST - 3:00 AM CST
Light Rain and Mist
Overcast 500'
3.73sm
30.00"Hg
090° 6kts
IFR
Becoming 3:00 AM CST - 1:00 PM CST
Mist
Overcast 500'
4.97sm
30.00"Hg
050° 6kts
IFR
Becoming 1:00 PM CST - 7:00 PM CST
Overcast 800'
6sm
29.97"Hg
020° 6kts
TAF KSZL 031900Z 0319/0501 05009KT 9999 FEW006 OVC025 QNH2996INS
   TEMPO 0321/0324 4800 -SHRA BR BKN006 OVC025 621205
   BECMG 0400/0401 09006KT 6000 -RA BR OVC005 QNH3000INS
   BECMG 0409/0410 05006KT 8000 BR OVC005 QNH3000INS
   BECMG 0419/0420 02006KT 9999 NSW OVC008 QNH2997INS TX13/0419Z TN07/0412Z
KHIG
EffectiveExpiresCategoryNOTAM
Domestic
2/19/26
1438Z
4/5/26
1436Z
!COU 02/351 HIG OBST TOWER LGT (ASR 1040286) 391036.00N0935146.00W (10.6NM NW HIG) 1129.6FT (309.7FT AGL) U/S 2602191438-2604051436
2/13/26
1630Z
3/30/26
1629Z
!COU 02/236 HIG OBST TOWER LGT (ASN 2024-ACE-6209-OE) 391148N0933636W (8.1NM NNE HIG) 1143FT (255FT AGL) U/S 2602131630-2603301629
2/11/26
1502Z
2/28/26
2359Z
!COU 02/179 HIG APRON MAIN APN WIP MEN AND EQPT ADJ 2602111502-2602282359
2/11/26
1502Z
2/28/26
2359Z
Runway!COU 02/178 HIG RWY 16/34 WIP MEN AND EQPT ADJ 2602111502-2602282359
12/12/25
1644Z
2/28/26
2359Z
Runway!COU 12/276 HIG RWY 34 PAPI U/S 2512121644-2602282359
12/12/25
1644Z
2/28/26
2359Z
Runway!COU 12/275 HIG RWY 16 PAPI U/S 2512121644-2602282359
12/12/25
1644Z
2/28/26
2359Z
Runway!COU 12/274 HIG RWY 34 RWY END ID LGT U/S 2512121644-2602282359
12/12/25
1643Z
2/28/26
2359Z
Runway!COU 12/273 HIG RWY 16 RWY END ID LGT U/S 2512121643-2602282359
No
SEP-APR 0800-1700
MAY-AUG 0700-1900
CITY OF HIGGINSVILLE
1922 MAIN ST BOX 110
HIGGINSVILLE, MO 64037
Phone: 660-584-2106
SCOTT MCCORMICK
11667 AIRPORT ROAD
HIGGINSVILLE, MO 64037
Phone: 618-420-9046
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
ACTVT MIRL RY 16/34; PAPI & REIL RYS 16 & 34 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Avionics
Aircraft Sales

Runway 16/34

4400 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
16,000lbs
--
--
  Runway 16 Runway 34
True Heading 165°345°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 04' 42"N 39° 03' 60"N
Longitude 93° 40' 45"W 93° 40' 31"W
Elevation 840' 796'
Threshold Crossing Height 31 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2WILDLIFE ON & INVOF ARPT.
A110-3EXTENSIVE HELICOPTER OPERATIONS.
A110-4FOR CD CTC WHITEMAN APCH AT 660-687-3132. WHEN WHITEMAN APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
A70-100LLFOR SVC AFT HRS, CALL NBRS POSTED ON TERMINAL DOOR.
A81-APTACTVT MIRL RY 16/34; PAPI & REIL RYS 16 & 34 - CTAF.
HIGGINSVILLE INDUSTRIAL MUNI (ICAO: KHIG, IATA: HIG) is a public airport located in HIGGINSVILLE, MO, US.
