KHIF
HILL AFB
Private
PVT
6 miles S of OGDEN, UT
View on
Map
Status
Operational
Coordinates
41° 07' 26"N
111° 58' 23"W
Elevation
4789' MSL
Pattern Alt
5789' MSL
Mag Variation
14E
Fuel
JET A+, CILI
FSS
CEDAR CITY (CDC)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KHIF FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
--
ATIS
ATIS
134.925
Clearance Delivery
CD/P
124.1
Emergency
EMERG
121.5
Ground
GND/P
121.6
Tower
LCL/P
127.15
Other
PTD
134.75
PTD
139.3
FAA A/FD Pages
FAA A/FD Page

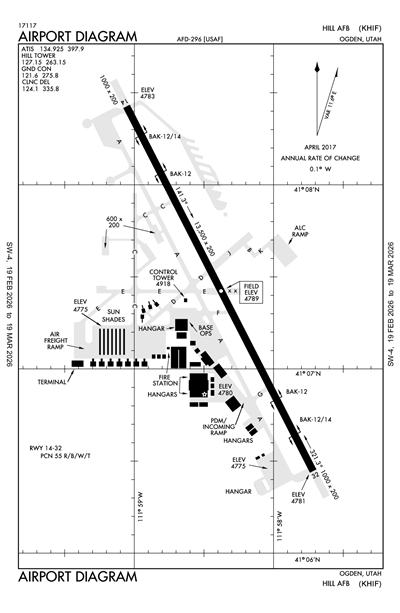

Airport Diagrams
AIRPORT DIAGRAM
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
DEVLN 1
FREMONT 1 (VECTOR)
LGTNG 1
WILLARD 1 (VECTOR)
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
HI-ILS OR LOC Y RWY 14
HI-TACAN RWY 32
HI-TACAN Z RWY 14
ILS OR LOC X RWY 14
TACAN X RWY 14
Terminal Area Forecast
No TAF is available for this location.
KHIF
Military
1/17/25
1500Z
!KHIF M0035/25 HIF AD AIRPORT
CLSD
2501171500-2501211500
1/14/25
1619Z
!KHIF M0043/25 HIF RWY 14/32 CONST AREA PERSONNEL AND EQUIPMENT OPERATING BETWEEN 390FT AND 785FT SOUTH OF TWY C AND BETWEEN 110FT AND 285FT WEST OF RWY 14/32 EDGE 2501141619-2501160659
1/14/25
0243Z
M0042/25 NOTAMC M0041/25
1/13/25
1447Z
M0039/25 NOTAMC M0038/25
11/4/24
1530Z
!KHIF M0727/24 HIF OBST CRANE 410653N1115832W (0.246NM W HIF) UNKNOWN MSL
(165FT AGL) FLAGGED AND LGTD 2411041530-2501312359
11/2/24
0504Z
!KHIF M0717/24 HIF APRON SOUTH RAMP
CLSD
WEST TAXILANE/Q ROW
CLOSED
TO ACFT LARGER THAN FIGHTER 2411020504-2501312359
ATC Tower
Yes
Attendance
MON-SAT 1500-0700Z++
SAT-SUN 1600-0000Z++
Owner
USAF
2849TH AB GP/OT, HILL AFB
OGDEN, UT 84401
Manager
BASE OPERATIONS
2849TH AB GP/OT, HILL AFB
OGDEN, UT 84401
Phone: 801-777-1861
FSS
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
NOTAM
HIF
Light Schedule
Sunset to Sunrise
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
None
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
High & Low Pressure
Other Services
None
Runway 14/32
Dimensions
13500 ft. x 200 ft.
Surface Type
PEM
Surface Cond
Good
Treatment
PFC
Rwy Edge Lgts
HIGH
Pavement Class
55 /R/B/W/T
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 14
Runway 32
True Heading
153°
333°
Traffic Pattern
Right
Markings
PIR
PIR
Markings Condition
GOOD
GOOD
Latitude
41° 08' 26"N
41° 06' 27"N
Longitude
111° 59' 03"W
111° 57' 43"W
Elevation
4,785'
4,781'
Threshold Crossing Height
59 ft. AGL
52 ft. AGL
Visual Glide Path Angle
2.8°
2.5°
Visual Slope Indicator
P4L
P4L
Approach Lights
ALSF2
ODALS
Centerline Lights
No
No
Runway End Identifier Lights
Yes
Yes
A110-10
CTN: HVY TFC ON APCH & DEP; EXP TURB APCH & LDG RWY 14 DURG MED - HI SFC WINDS; WIND VELOCITY MAY VARY FM APCH TO DEP END OF RWY.
A110-11
CAUTION: DO NOT MISTAKE OGDEN ARPT 4.5 NM N FOR HILL AFB. ACFT DEP SHOULD NOT EXCEED 6300' TIL PAST DEP END OF RWY TO AVOID OVERHEAD TFC PAT.
A110-12
TFC PAT: RECTANGULAR 6300', OVERHEAD 6800', MAINT 6800' TIL TURNING BASE LEG. USAF (AF, ANG, AFRC) FTR ACFT EXP REDUCED RWY SEPARATION DAY, VFR-3000' BTN SIMILAR ACFT, 6000' BTN DISSIMILAR ACFT. VARIATIONS EXIST FOR DIFFERENT TYPE OPR.
A110-13
TFC PAT: TRAN FTR ACFT MUST NOTIFY TWR ON INITIAL CTC IF REDUCED RWY SEPARATION IS NOT DESIRED.
A110-14
NS ABTMT: STRICT ADHERENCE TO NS ABTMT RQR. TRAN ACFT RSTD TO STR-IN FULL STOP ONLY ON WEEKENDS, HOL, AND ON WKD BTW 0000-1500Z++ DAILY.
A110-15
CSTMS/AG/IMG: CSTMS/IMG AVBL TO ACC AND AMC FLT. SEE FCG KHIF ENTRY.
A110-18
BEARING STRENGTH RWY 14-32: ST175
A110-19
CTN: PRCHT OPS E OF OGDEN ARPT 4 MI N OF HIF 1 MI E OF FINAL.
A110-2
A-GEAR: BAK-12B DEP END ACTIVE RWY IN RAISED POSN; 15 MIN/30 MIN NON-DUTY HR PN RQR TO ERECT ON APCH END OF ACT RWY; BAK-12B/14 O/R FM TWR.
A110-21
UTTR OPS SEE CLOVER CONTROL. OBSN/FCST AVBL MON-THURS 1200-0400Z++ FRI 1200-0200Z++ CTC HILL AFB WX DSN 777-2018.
A110-23
RSTD: TSNT WITH UNEXPENDED LIVE ORDNANCE WO PRIOR COORD.
A110-27
COM: PMSV METRO 342.3: CEIL & VIS FREQ LOWER ON N END OF RWY & E-SE ALONG MTNS.
A110-3
JASU: 4(MA-1A) 7(A/M32A-86) 5(AM32A-60).
A110-30
WX MNT BY AN/FMQ-19 ASOS.
A110-31
COM: PMSV METRO 342.3; DUE TO OBSTG TRRN PMSV UNUSBL BYD 20 NM BLW 20000 FT & FM 100 - 150 DEGS BYD 25 NM BLW 15000 FT; MAN OBS LTD FM 120 - 260 DEG DUE TO FAC OBSTN.
A110-32
TRANS ALERT: 1500Z-0700Z++ MON-SAT; 1600Z-0000Z++ SAT-SUN; CLSD FED HOL.
A110-33
FOR CD CTC SALT LAKE CITY APCH AT 801-325-9670.
A110-34
CAUTION: RWY COND CODE NOT REPORTED.
A110-35
MISC: WX FLT D777-2018 C801-777-2018; WX FLT CLSD SBY VIA COMD POST D777-3007/C801-777-3007; WX FLT UNAVBL - 25 OWS DAVIS MONTHAN AFB DSN 228-6598/6599/6588/C520-228-6598/6599/6588.
A110-5
FLUID: SP PRESAIR LHOX LOX DE-ICE OIL -O-128-133-148-156; JOAP-4 HR PN RQR DSN 777-1861.
A110-6
TRANS ALERT: DE-ICING AVBL.
A110-8
RSTD: ENGINE RUN OFFLOADS NA. PPR ALL ACFT - BASE AMOPS D777-1861/C801-777-1861. LIFEGUARD/MEDEVAC/SAR/MSN ESSENTIAL ACFT - AMOPS DSN 777-1861/ C801-777-1861 FAX EXTN 2221 ASAP PRIOR TO ARR TO ENSURE COORD.
A110-9
RSTD: VIP ACFT CTC PTD 30 MIN PRIOR TO ETA WITH FIRM BLOCK TIME.
HILL AFB (ICAO: KHIF, IATA: HIF) is a private airport located in OGDEN, UT.
