iFlightPlanner



...

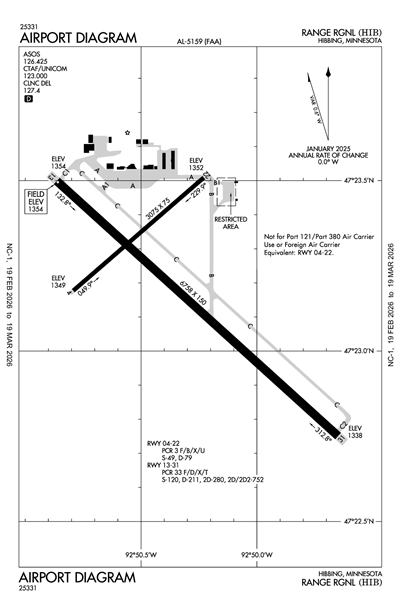

RANGE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHIB
ICAO KHIBIATA HIBLocal HIB
RANGE RGNL
PublicPUB

4 miles SE of HIBBING, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 23' 12"N 92° 50' 20"W
Elevation
1354' MSL
Pattern Alt
2354' MSL
Mag Variation
1°W
Declination
2°E
Fuel
JET A, 100LL
FSS
PRINCETON (PNM)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KHIB MVFR
12:53 AM CST
Mist
Overcast 1,200'
4sm
26°F
25°F
30.09"Hg
Calm
AO2 SLP210 I1000 T10331039
METAR KHIB 040653Z AUTO 00000KT 4SM BR OVC012 M03/M04 A3009 RMK AO2 SLP210 I1000 T10331039
+ Add Your Business

KHIB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 126.425
(218) 263-8384

Common

CTAF 123.0
ACTVT OR INCR INTST MALSR RWY 13 & 31; HIRL RWY 13/31 - CTAF. PAPI RWY 13 & 31 OPR CONSLY; HIRL RWY 13/31 PRESET LOW INTST.
UNICOM 123.0

Clearance

Clearance Delivery 127.4

Approach

DULUTH APPROACH 125.45

Departure

DULUTH DEPARTURE 125.45

Flight Service

Flight Service 122.6
(PNM)

Terminal Area Forecast

KHIB
Tue, 3/3 11:33 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
LIFR
12:00 AM CST - 6:00 AM CST
Mist
Broken 400'
4sm
Calm
LIFR
6:00 AM CST - 9:00 AM CST
Freezing Fog
Broken 300'
0.5sm
VRB° 4kts
IFR
9:00 AM CST - 11:00 AM CST
Broken 800'
6sm
210° 6kts
VFR
11:00 AM CST - 10:00 PM CST
Scattered 16,000'
6sm
210° 8kts
Gusts 18kts
MVFR
10:00 PM CST - 12:00 AM CST
Mist
Broken 3,500'
4sm
110° 5kts
TAF KHIB 040533Z 0406/0506 00000KT 4SM BR BKN004
   FM041200 VRB04KT 1/2SM FZFG BKN003
   FM041500 21006KT P6SM BKN008
   FM041700 21008G18KT P6SM SCT160
   FM050400 11005KT 4SM BR BKN035
KHIB
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1500Z
3/4/26
2000Z
!HIB 03/004 HIB COM REMOTE COM OUTLET 121.5 NOT AVBL 2603041500-2603042000
3/4/26
1500Z
3/4/26
2000Z
!HIB 03/003 HIB COM CLR DELIVERY 127.4 U/S 2603041500-2603042000
3/4/26
1500Z
3/4/26
2000Z
!HIB 02/278 HIB COM REMOTE COM OUTLET 122.6 U/S 2603041500-2603042000
3/2/26
1553Z
6/30/26
2300Z
!HIB 03/002 HIB TWY C SFC PAINTED HLDG PSN SIGNS FOR RWY 04/22 SOUTHEAST SIDE NOT STD 2603021553-2606302300
3/2/26
1549Z
6/30/26
2300Z
!HIB 03/001 HIB TWY B SFC PAINTED HLDG PSN SIGNS FOR APCH END RWY 22 NOT STD 2603021549-2606302300
2/28/26
2019Z
3/31/26
2359Z
!HIB 02/315 HIB OBST TOWER LGT (ASR 1033720) 472253.00N0925716.00W (4.7NM W HIB) 2131.2FT (511.2FT AGL) U/S 2602282019-2603312359
1/30/26
2131Z
6/30/26
2300Z
!HIB 01/511 HIB TWY C2 SFC PAINTED HLDG PSN SIGNS NOT STD 2601302131-2606302300
1/7/26
1443Z
7/7/26
2359Z
!HIB 01/167 HIB OBST TOWER LGT (ASR 1028462) 472224.00N0930049.00W (7.1NM W HIB) 2016.1FT (545.9FT AGL) U/S 2601071443-2607072359
12/10/25
1732Z
4/9/26
1732Z
!HIB 12/137 HIB OBST TOWER LGT (ASR 1262828) 472901.20N0924617.10W (6.4NM NNE HIB) 1782.8FT (319.9FT AGL) U/S 2512101732-2604091732
11/25/25
1457Z
!HIB 11/096 HIB NAV ILS RWY 31 OM U/S 2511251457-2605272000EST
FDC
12/5/25
1935Z
7/17/26
1935Z
!FDC 5/5525 HIB IAP RANGE RGNL, HIBBING, MN.
ILS OR LOC RWY 13, AMDT 1B...
ILS OR LOC RWY 31, AMDT 13B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HIB VOR OUT OF SERVICE. 2512051935-2607171935EST
No
0400-2400
CHISHOLM-HIBBING AIRPORT
11038 HIGHWAY 37
HIBBING, MN 55746
Phone: 218-262-3451
BARRETT ZIEMER
11038 HIGHWAY 37
HIBBING, MN 55746
Phone: 218-440-5407
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
HIB
--
ACTVT OR INCR INTST MALSR RWY 13 & 31; HIRL RWY 13/31 - CTAF. PAPI RWY 13 & 31 OPR CONSLY; HIRL RWY 13/31 PRESET LOW INTST.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Avionics
Charter Service

Runway 04/22

3075 ft. x 75 ft.
ASPH
Excellent
NONE


49,000lbs
79,000lbs
--
--
  Runway 04 Runway 22
True Heading 49°229°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 23' 11"N 47° 23' 31"N
Longitude 92° 50' 48"W 92° 50' 14"W
Elevation 1,349' 1,352'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

6758 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
211,000lbs
280,000lbs
752,000lbs
  Runway 13 Runway 31
True Heading 132°312°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 23' 30"N 47° 22' 45"N
Longitude 92° 50' 52"W 92° 49' 39"W
Elevation 1,354' 1,338'
Threshold Crossing Height 50 ft. AGL 62 ft. AGL
Visual Glide Path Angle 3° 2.9°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights No No
Runway End Identifier Lights No No
A110-2DIVD ACFT LIMITATIONS - NO INTL PSGR PROCESSING. ONLY ONE ACR GATE. LTD STERILE AREA SPACE (125 PSGRS). VENDING CONCESSIONS ONLY.
A110-4FOR CD CTC DULUTH APCH AT 218-740-5950.
A110-6BIRDS ON & INVOF ARPT.
A110-7FLD CONDS UNMON 2400-0400.
A110-8COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -40C.
A110-9TYPE I, IV DEICE FLUID AVBL. EXEC CONF ROOM, PILOT LOUNGE & AFT HRS SVC CTC 218-263-4353 (ADVND RSVN OR ADNL CTC INFO AT FBO RAMP ENTRANCE.
A24LDG FEE FOR ALL ACFT OVR 12500 LB.
A26ACR OPS NA IN EXCESS OF 15 MINS BFR OR AFT SKEDD ARR/DEP TIMES WO PRIOR CDN WITH AMGR. 24 HR PPR FOR UNSKED ACR OPS GTR THAN 30 PAX SEATS - CALL AMGR 218-262-3451.
A30-04/22RWY 04/22 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. CLSD AT NGT.
A39-04/22PCR VALUE: 3/F/B/X/U
A39-13/31PCR VALUE: 33/F/D/X/T
A75-HTRAN HEATED HGR SPACE AVBL.
A81-APTACTVT OR INCR INTST MALSR RWY 13 & 31; HIRL RWY 13/31 - CTAF. PAPI RWY 13 & 31 OPR CONSLY; HIRL RWY 13/31 PRESET LOW INTST.
RANGE RGNL (ICAO: KHIB, IATA: HIB) is a public airport located in HIBBING, MN, US.
