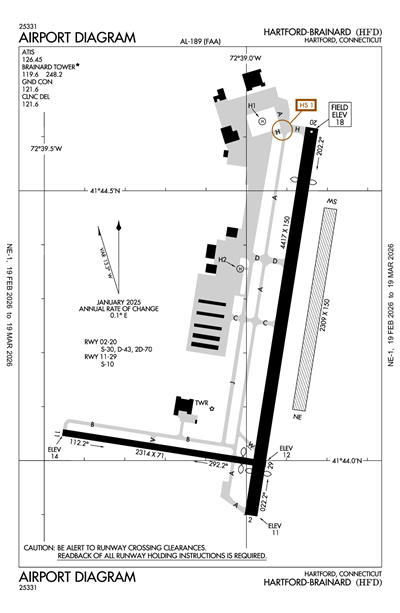

HARTFORD-BRAINARD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHFD
ICAO KHFDIATA HFDLocal HFD
HARTFORD-BRAINARD
PublicPUB

3 miles SE of HARTFORD, CT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 44' 12"N 72° 38' 58"W
Elevation
18' MSL
Pattern Alt
1018' MSL
Mag Variation
13°W
Declination
15°W
Fuel
JET A, 100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KHFD IFR
1:53 AM EST
Mist and Unknown Precipitation
Overcast 3,800'
Broken 500'
3sm
31°F
30°F
30.19"Hg
Calm
AO2 UPE15B39 SLP224 P0002 I1000 T10061011 $
METAR KHFD 040653Z AUTO 00000KT 3SM UP BR BKN005 OVC038 M01/M01 A3019 RMK AO2 UPE15B39 SLP224 P0002 I1000 T10061011 $
+ Add Your Business

KHFD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.45
(860) 246-5929
ASOS (860) 952-9954

Common

CTAF 119.6
WHEN ATCT CLSD, ACTVT REIL RWYS 02 & 20; HIRL RWY 02/20 - CTAF. PAPI RWY 02 & 20 OPR CONSLY.
UNICOM 122.95

Clearance

Clearance Delivery 121.6
Clearance Delivery 121.6
WHEN TWR CLSD

Ground

BRAINARD GROUND 121.6
WHEN TWR CLSD
BRAINARD GROUND 121.6
0600-0000

Tower

BRAINARD TOWER 119.6
0600-0000

Arrival

STELA STAR 125.35

Approach

BRADLEY APPROACH 127.8

Departure

BRADLEY DEPARTURE 127.8

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KBDL (12nm)
Wed, 3/4 12:20 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 7:00 AM EST
IFR
1:00 AM EST - 3:00 AM EST
Light Freezing Rain and Mist
Overcast 500'
2sm
Calm
LIFR
3:00 AM EST - 10:00 AM EST
Mist
Overcast 300'
3sm
Calm
VFR
10:00 AM EST - 11:00 PM EST
Scattered 25,000'
6sm
VRB° 3kts
MVFR
11:00 PM EST - 7:00 AM EST
Mist
Scattered 15,000'
3sm
Calm
TAF KBDL 040520Z 0406/0512 00000KT 2SM -FZRA BR OVC005
   FM040800 00000KT 3SM BR OVC003
   FM041500 VRB03KT P6SM SCT250
   FM050400 00000KT 3SM BR SCT150
KHFD
EffectiveExpiresCategoryNOTAM
Domestic
3/6/26
0500Z
3/6/26
1100Z
!HFD 03/006 HFD COM CLR DELIVERY 121.6 U/S 2603060500-2603061100
3/5/26
1400Z
3/5/26
1600Z
!HFD 03/002 HFD NAV LOC RWY 02 U/S 2603051400-2603051600
3/4/26
0254Z
3/4/26
1300Z
!HFD 03/007 HFD AD AP CLSD 2603040254-2603041300
3/3/26
2043Z
3/4/26
2042Z
!HFD 03/005 HFD APRON ALL FICON 1/8IN SLUSH OBS AT 2603032042. 2603032043-2603042042
3/3/26
2043Z
3/4/26
2042Z
!HFD 03/004 HFD TWY ALL FICON 1/8IN SLUSH OBS AT 2603032042. 2603032043-2603042042
3/3/26
2042Z
3/4/26
2042Z
Runway!HFD 03/003 HFD RWY 02 FICON 3/3/3 60 PCT 1/8IN SLUSH OBS AT 2603032042. 2603032042-2603042042
3/2/26
1224Z
3/31/26
2359Z
Runway!HFD 03/001 HFD RWY 11/29 CLSD 2603021224-2603312359
2/18/26
1441Z
5/18/26
2300Z
!HFD 02/017 HFD OBST TOWER LGT (ASR UNKNOWN) 414412.48N0723944.17W (0.7NM W HFD) 143FT (115FT AGL) U/S 2602181441-2605182300
2/5/26
1437Z
5/5/26
2300Z
!HFD 02/005 HFD OBST TOWER LGT (ASR UNKNOWN) 414519.16N0723912.39W (1.3NM N HFD) 254FT (238FT AGL) U/S 2602051437-2605052300
1/28/26
1346Z
4/28/26
2300Z
!HFD 01/047 HFD OBST POWER LINE LGT (ASN 1996-ANE-279-OE) 414509N0723929W (1.2NM NNW HFD) 283FT (246FT AGL) U/S 2601281346-2604282300
1/27/26
1502Z
4/27/26
2300Z
!HFD 01/046 HFD OBST TOWER LGT (ASR UNKNOWN) 413335.06N0723434.93W (7.2NM WSW 9B8) 288FT (250FT AGL) U/S 2601271502-2604272300
1/20/26
1357Z
4/20/26
2300Z
!HFD 01/029 HFD OBST TOWER LGT (ASR UNKNOWN) 414407.29N0723944.97W (0.7NM W HFD) 276FT (250FT AGL) U/S 2601201357-2604202300
1/16/26
1452Z
4/16/26
2300Z
!HFD 01/018 HFD OBST TOWER LGT (ASR UNKNOWN) 414402.32N0723945.21W (0.7NM WSW HFD) 165FT (115FT AGL) U/S 2601161452-2604162300
FDC
2/23/26
1440Z
3/26/26
1440Z
!FDC 6/8337 HFD IAP HARTFORD-BRAINARD, HARTFORD, CT.
LDA RWY 2, AMDT 2C...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HFD VOR OUT OF SERVICE. 2602231440-2603261440EST
1/30/26
1345Z
!FDC 6/8817 HFD IAP HARTFORD-BRAINARD, HARTFORD, CT.
LDA RWY 2, AMDT 2C...
RNAV (GPS) RWY 2, ORIG-D...
VOR-A, AMDT 10B...
CIRCLING TURF RWY NE/SW NA.
2601301345-2801281345EST
1/30/26
1344Z
!FDC 6/8815 HFD ODP HARTFORD-BRAINARD, HARTFORD, CT.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 6...
TAKEOFF MINIMUMS: TURF RWY NE, SW NA - ENVIRONMENTAL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2601301344-2801281344EST
Yes
APR-NOV 0700-2100
DEC-MAR 0700-1900
CONNECTICUT AIRPORT AUTHORITY
SUITE 160 334 ELLA GRASSO TURNPIKE
WINDSOR LOCKS, CT 06096
Phone: 860-386-6000
PELLEGRINO, ROBERT
239 MAXIM ROAD
HARTFORD, CT 06114
Phone: 860-982-2443
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
HFD
--
WHEN ATCT CLSD, ACTVT REIL RWYS 02 & 20; HIRL RWY 02/20 - CTAF. PAPI RWY 02 & 20 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

4417 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

30,000lbs
43,000lbs
70,000lbs
--
  Runway 02 Runway 20
True Heading 9°189°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 43' 54"N 41° 44' 37"N
Longitude 72° 38' 59"W 72° 38' 50"W
Elevation 11' 18'
Threshold Crossing Height 37 ft. AGL 58 ft. AGL
Visual Glide Path Angle 3.5° 4°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 11/29

2314 ft. x 71 ft.
ASPH
Good
NONE
HIGH

10,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 99°279°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 44' 03"N 41° 43' 60"N
Longitude 72° 39' 27"W 72° 38' 57"W
Elevation 14' 12'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway H1

70 ft. x 77 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NONE
Markings Condition
Latitude 41° 44' 38"N N/A
Longitude 72° 38' 57"W N/A
Elevation 16' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

44 ft. x 44 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NONE
Markings Condition
Latitude 41° 44' 21"N N/A
Longitude 72° 39' 01"W N/A
Elevation 14' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway NE/SW

2309 ft. x 150 ft.

TURF
NONE


--
--
--
--
  Runway NE Runway SW
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1BIRDS & DEER ON & INVOF ARPT.
A110-2ARPT LCTD IN NOISE SENSITIVE AREA. POPULATED AREAS TO SOUTH & WEST SHOULD BE AVOIDED. APCH/DEP OVR RIVER WHEN PSBL. SEE BRAINARD TWR LTRS TO AIRMEN.
A110-3VOLUNTARY COMPLIANCE REQSTD - NO TGL & PRACTICE INST APCH MON THRU SAT 2200-0600 & SUN 2200-0900.
A110-4TURF NE/SW RWY CLSD DURG WINTER MONTHS FM NOV 2 TO APR 30 EXC FOR SKI-EQUIPPED ACFT & HEL TRNG.
A110-6CTN HFD IS LCTD ON W SIDE OF RIVER. CLSD ARPT 1 MILE ENE OF HFD ON E SIDE OF RIVER.
A110-7WHEN ATCT CLSD, FOR CD CTC BRADLEY APCH 860-386-3597.
A24LDG FEE FOR BUS/CORPORATE & REVENUE PRODUCING ACFT.
A26ARPT CLSD TO ACR OPNS.
A43-20RWY 20 PAPI UNUSBL BYD 7 DEGS L OF RCL.
A52-H1HNGR (26 FT HIGH AT 290 DEGS WEST) 234 FT FROM HELI.
A57-02APCH RATIO 20:1 TO DTHR.
A57-20APCH RATIO 16:1 TO DTHR.
A57-29APCH RATIO 11:1 TO DTHR.
A58-023 FT GND, 0 FT DSTC, 150 FT R.
A58-2027 FT BERM, 0-199 FT DSTC, 171-57 FT L.
A81-APTWHEN ATCT CLSD, ACTVT REIL RWYS 02 & 20; HIRL RWY 02/20 - CTAF. PAPI RWY 02 & 20 OPR CONSLY.
E111EXISTED PRIOR TO 1959.
HARTFORD-BRAINARD (ICAO: KHFD, IATA: HFD) is a public airport located in HARTFORD, CT, US.
